Tappan
Gas Range

Model # 30DPMDWGN1 Official Tappan gas range - 5995211231

Here are the diagrams and repair parts for Official Tappan 30DPMDWGN1 gas range - 5995211231, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

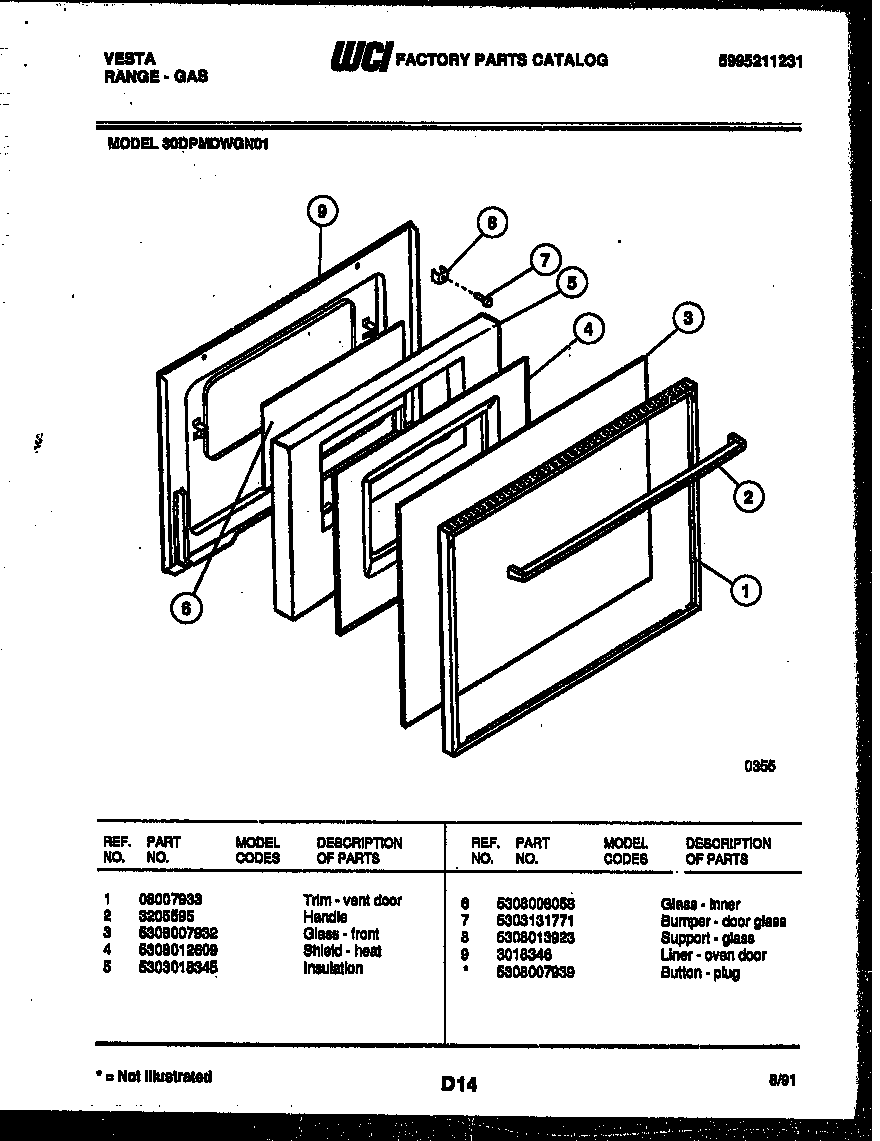

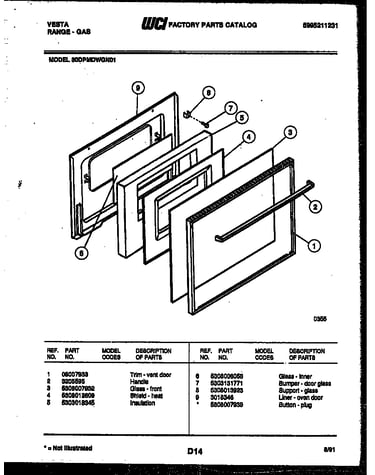

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Igniter 5308009420
#14

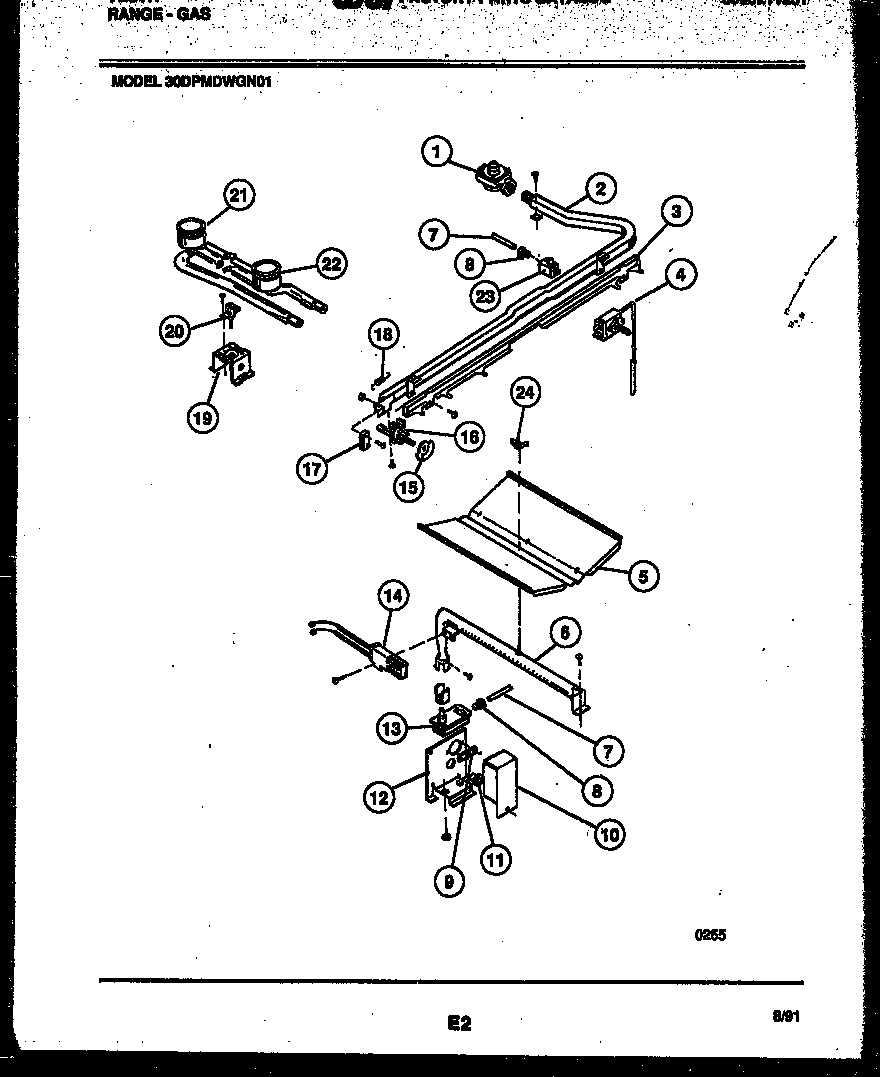

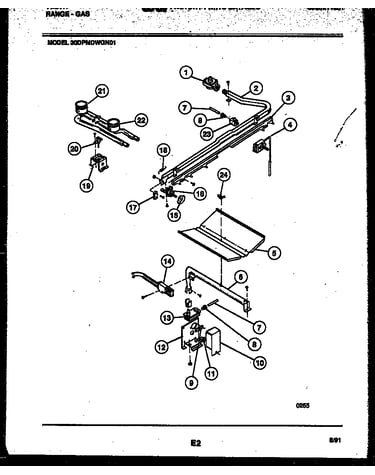

Burner, manifold and gas control diagram

Igniter

Part #5308009420

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#25

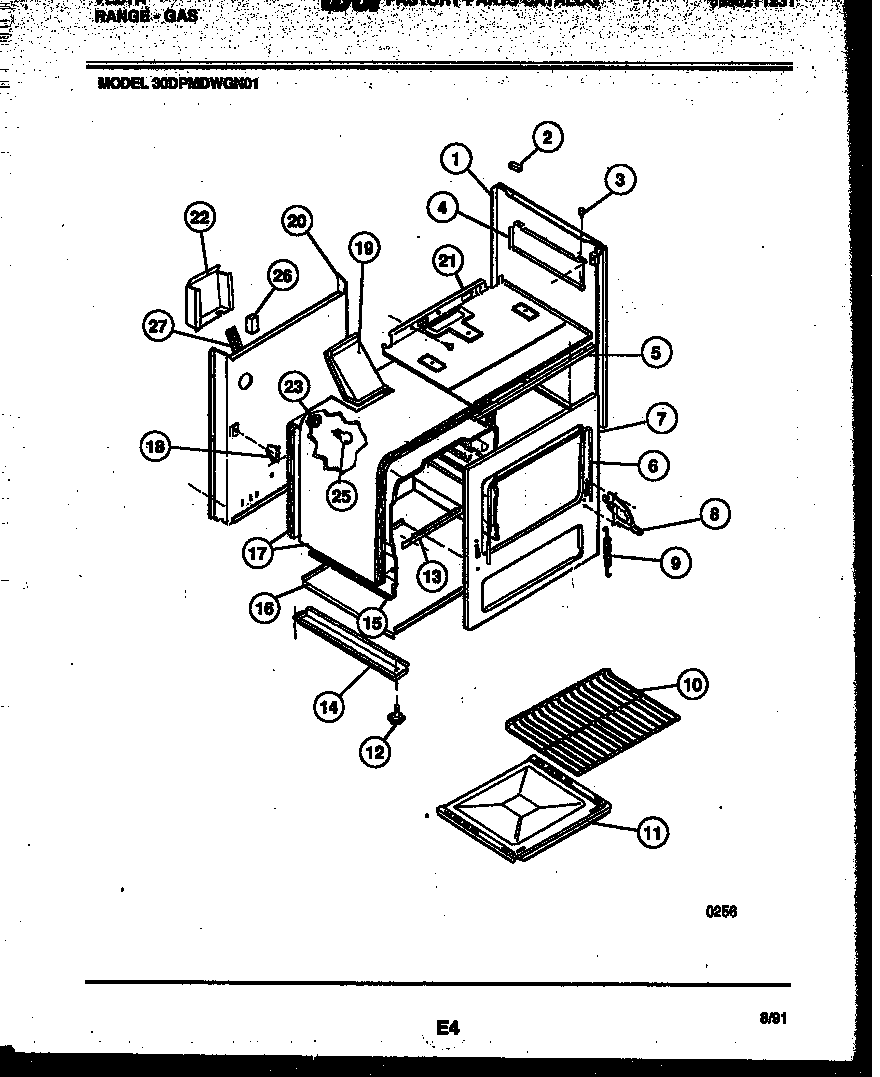

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 5308011085
#23

Body parts diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Hinge 5303204672
#8A

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Spark Module 5303209931
#26

Body parts diagram

Spark module

Part #5303209931

Replaced by #5303912606

?
Manufacturer substitution
This part replaces 5303209931. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Bracket 5308008076
#12

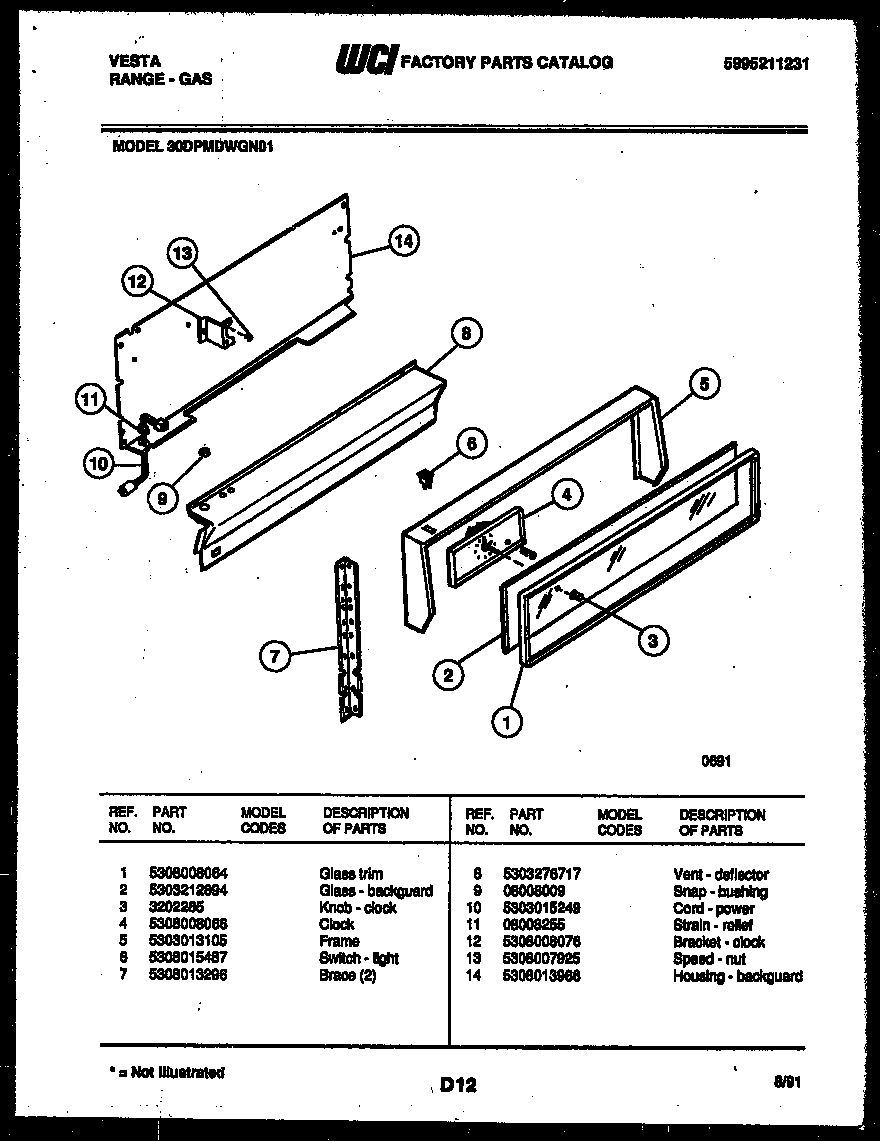

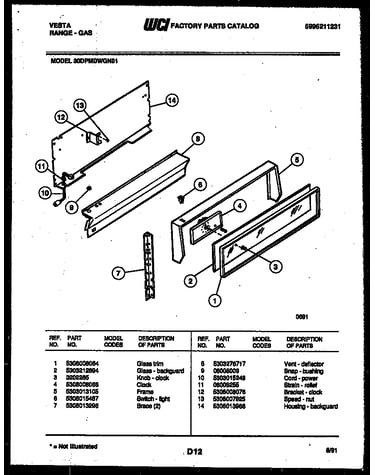

Backguard diagram

Bracket

Part #5308008076

This item is not returnable
$2.29
In Stock
Nut 3051038
#5

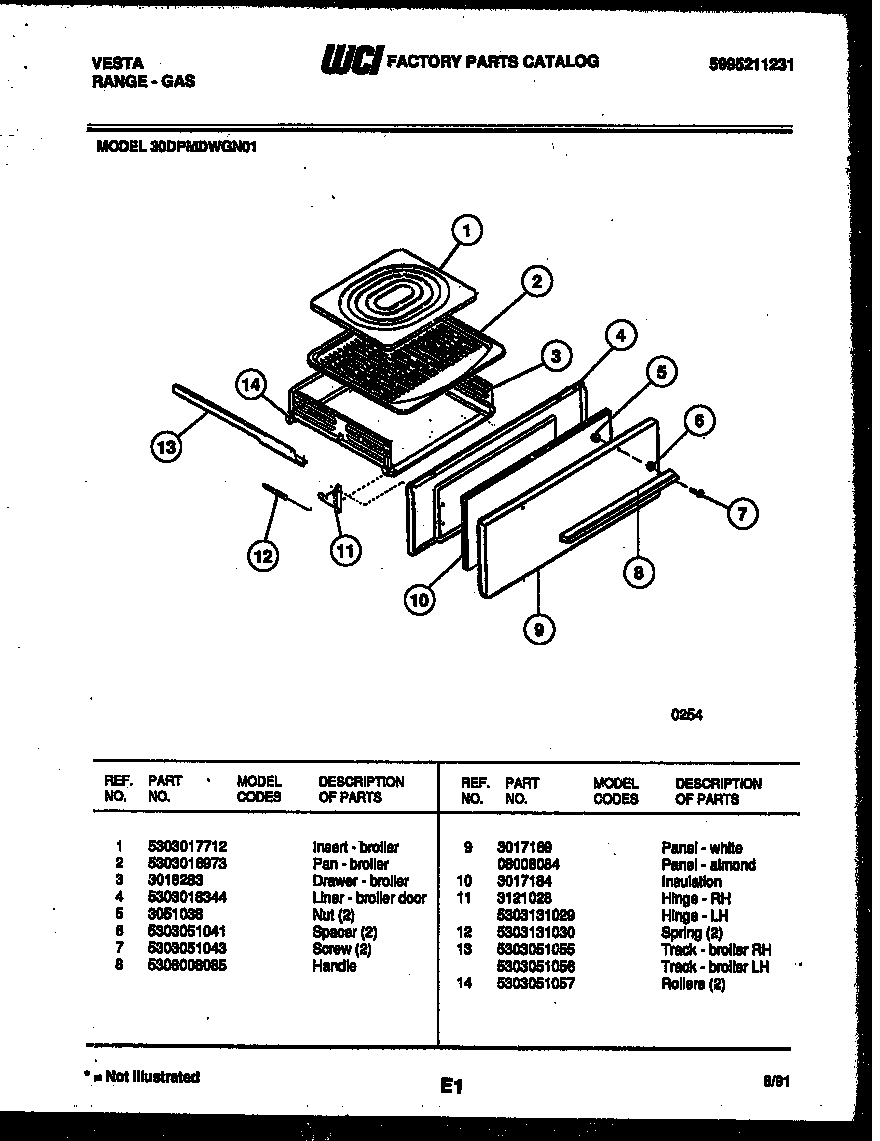

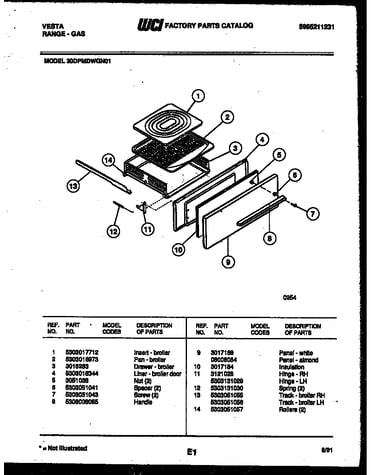

Broiler drawer parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Range Surface Burner Knob 5308013898
#3

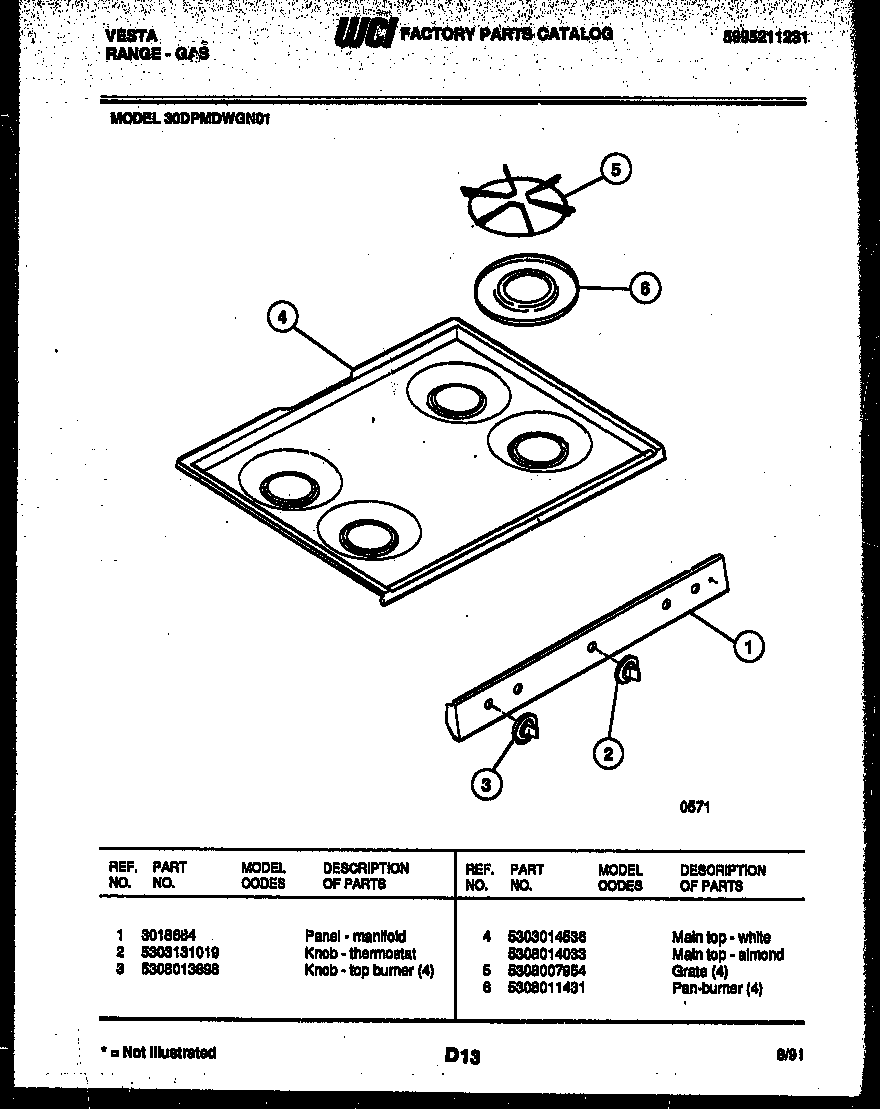

Cooktop parts diagram

Range surface burner knob

Part #5308013898

$26.73
In Stock
Bushing 08008009
#9

Backguard diagram

Bushing

Part #08008009

$10.20
In Stock
Range Pressure Regulator 5308007974
#1

Burner, manifold and gas control diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
