Model # 1105918400 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 1105918400 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Terminal Block 230148
#6

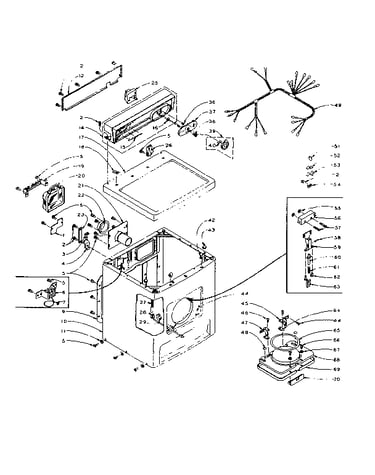

Machine sub-assembly diagram

Terminal block

Part #230148

Replaced by #279320

?
Manufacturer substitution
This part replaces 230148. Substitute parts can look different from the original.
$34.89 |
15% OFF Phone Price : $40.89
In Stock
Thrust Washer 233520
#29

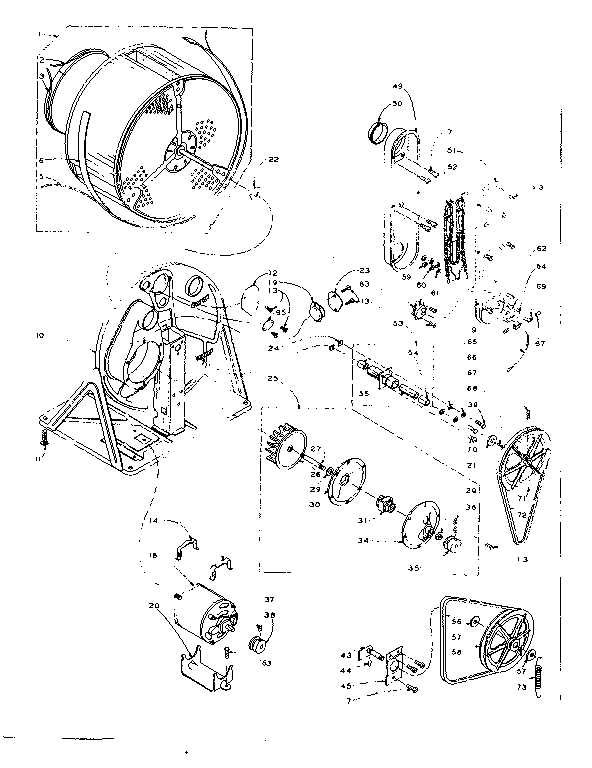

Base and bulkhead assembly diagram

Thrust washer

Part #233520

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 233520. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Top Panel Clip 18776
#42

Machine sub-assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Cabinet Hinge 229807
#47

Machine sub-assembly diagram

Cabinet hinge

Part #229807

Replaced by #WP238460

?
Manufacturer substitution
This part replaces 229807. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Door Seal 234800
#65

Machine sub-assembly diagram

Door seal

Part #234800

Replaced by #W11613302

?
Manufacturer substitution
This part replaces 234800. Substitute parts can look different from the original.
$18.76
In Stock
Cap (white) 233863
#48

Machine sub-assembly diagram

Cap (white)

Part #233863

Replaced by #WP660975

?
Manufacturer substitution
This part replaces 233863. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw 172455
#63

Base and bulkhead assembly diagram

Screw

Part #172455

Replaced by #3400500

?
Manufacturer substitution
This part replaces 172455. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Thermostat 229724
#83

Base and bulkhead assembly diagram

Thermostat

Part #229724

Replaced by #WP696818

?
Manufacturer substitution
This part replaces 229724. Substitute parts can look different from the original.
$44.09 |
12% OFF Phone Price : $50.09
In Stock
Washer Lid Hinge Bumper 18849
#3

Machine sub-assembly diagram

Washer lid hinge bumper

Part #18849

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Foot 233550
#11

Base and bulkhead assembly diagram

Foot

Part #233550

Replaced by #WP233550

?
Manufacturer substitution
This part replaces 233550. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
