KitchenAid
Warming Drawer

Model # KEWD105HWH4 Official KitchenAid 30" electric built-in warming drawer

Here are the diagrams and repair parts for Official KitchenAid KEWD105HWH4 30" electric built-in warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Broiler Element 4452154
#4

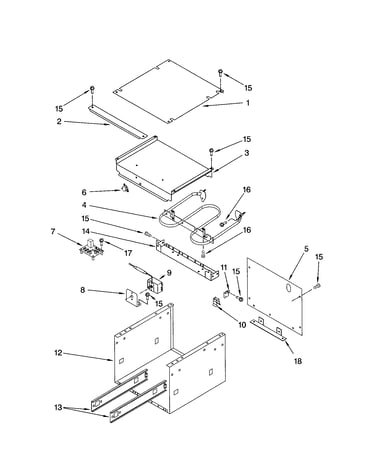

Internal warming drawer diagram

Broiler element

Part #4452154

Replaced by #WP9760767

?
Manufacturer substitution
This part replaces 4452154. Substitute parts can look different from the original.
$73.97
8% OFF Phone Price : $79.97
In Stock
Range Screw 4449809
#16

Internal warming drawer diagram

Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 3400805
Screw

Part #3400805

Replaced by #WP3400805

?
Manufacturer substitution
This part replaces 3400805. Substitute parts can look different from the original.
This item is not returnable
$4.46
18% OFF Phone Price : $5.46
In Stock
Range Screw WPW10132940
#23

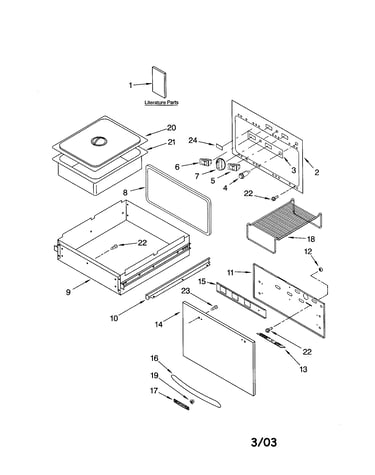

Control door and drawer diagram

Range screw

Part #WPW10132940

This item is not returnable
$5.49
15% OFF Phone Price : $6.49
In Stock
Range Ground Screw 4450800

#NI04

All parts diagram

Range ground screw

Part #4450800

In Stock
Range Light Switch 4452841
#5

Control door and drawer diagram

Range light switch

Part #4452841

In Stock
Whirlpool Grommet 4452601

#NI03

All parts diagram

Whirlpool grommet

Part #4452601

In Stock
Range Thermostat Knob 4455984
#7

Control door and drawer diagram

Range thermostat knob

Part #4455984

Replaced by #W10854530

?
Manufacturer substitution
This part replaces 4455984. Substitute parts can look different from the original.
This item is not returnable
$15.54
11% OFF Phone Price : $17.54
In Stock
Range High-limit Thermostat 4450934
#6

Internal warming drawer diagram

Range high-limit thermostat

Part #4450934

Replaced by #WP4450934

?
Manufacturer substitution
This part replaces 4450934. Substitute parts can look different from the original.
$84.79
7% OFF Phone Price : $90.79
In Stock
Screw 4448950

#NI06

All parts diagram

Screw

Part #4448950

Replaced by #WP4448950

?
Manufacturer substitution
This part replaces 4448950. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
