Whirlpool
Room Air Conditioner

Model # ACU072XJ1 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACU072XJ1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Washer 789784
#23

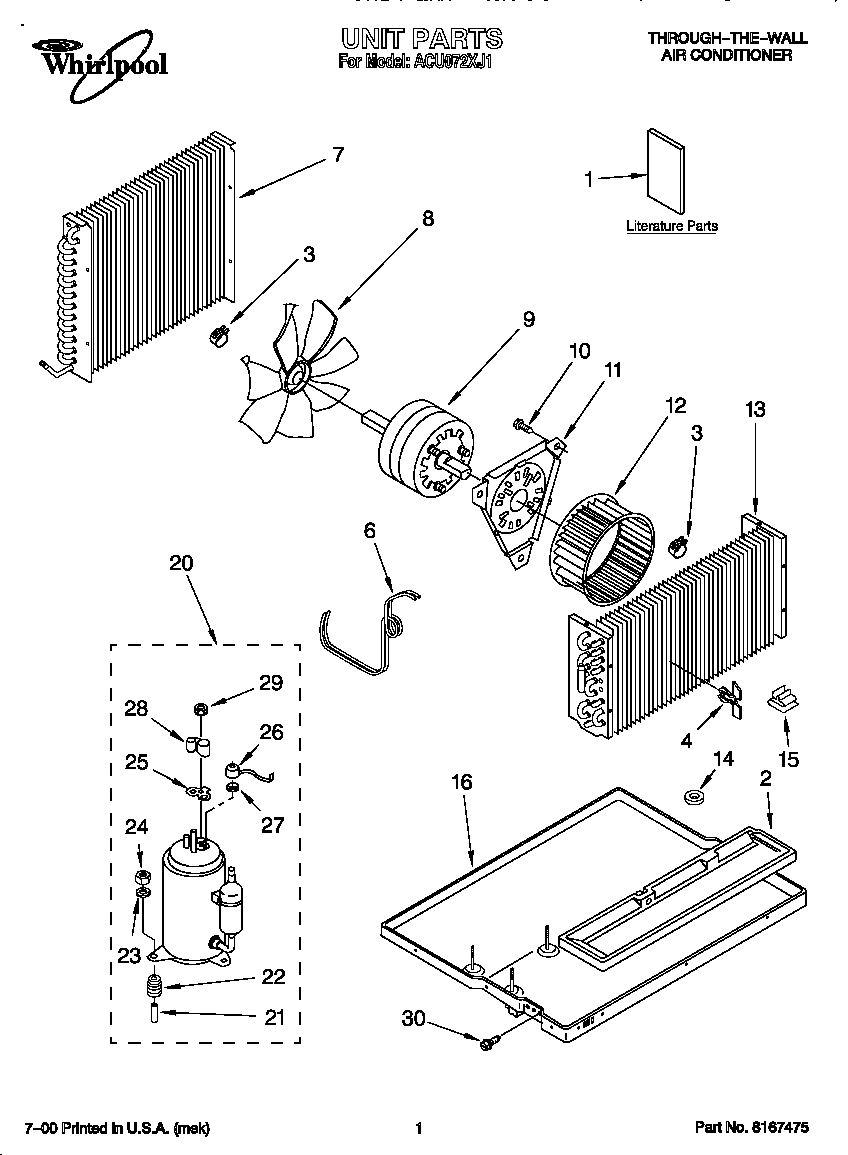

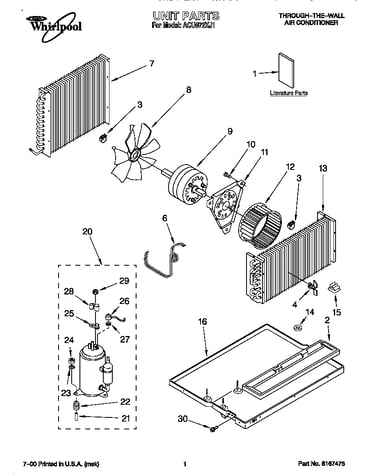

Unit diagram

Washer

Part #789784

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 789784. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Escutcheon 789852
#9

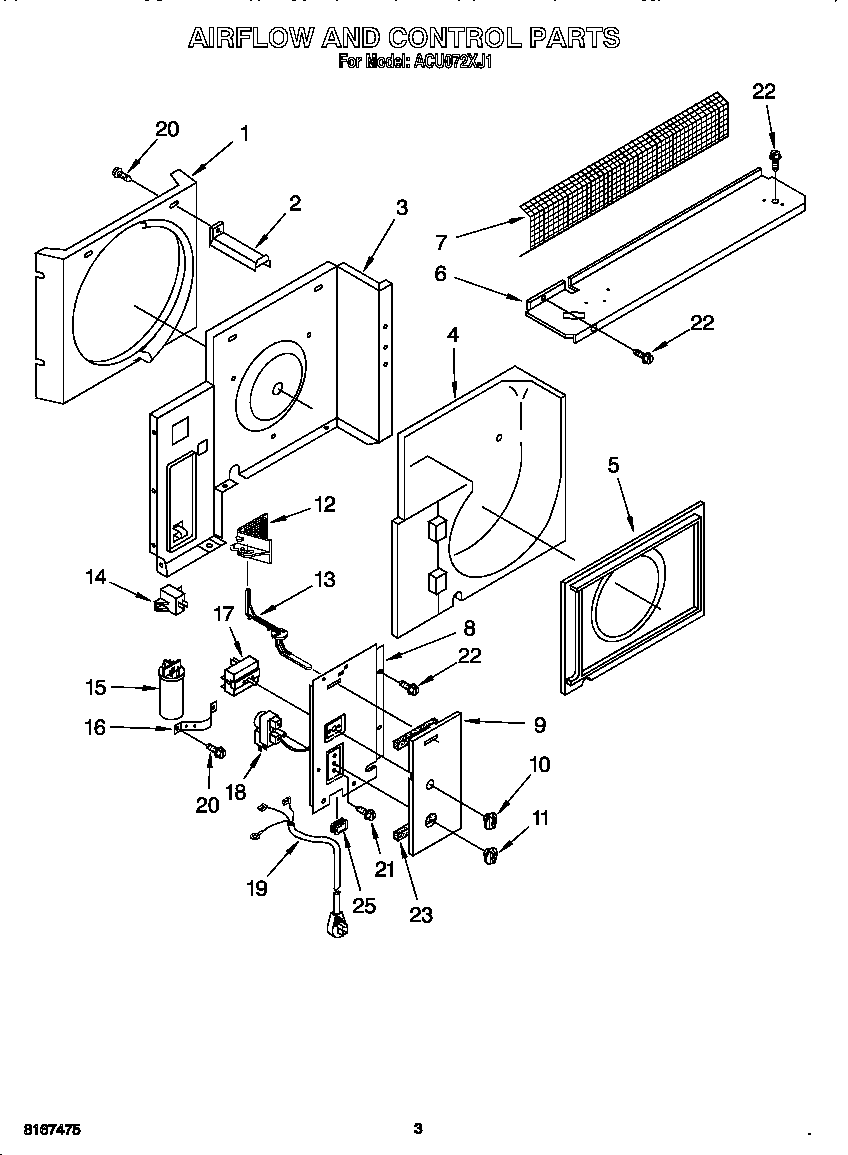

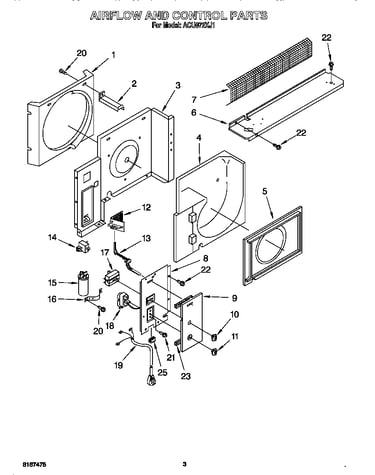

Air flow and control diagram

Escutcheon

Part #789852

$69.73
In Stock
Spacer 789623
#23

Air flow and control diagram

Spacer

Part #789623

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 789623. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Cover Gasket 789831
#25

Unit diagram

Cover gasket

Part #789831

Replaced by #WP950035

?
Manufacturer substitution
This part replaces 789831. Substitute parts can look different from the original.
$29.89
In Stock
Seal Strip 789741
#13

Cabinet diagram

Seal strip

Part #789741

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 789741. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Overload 789940
#26

Unit diagram

Overload

Part #789940

Replaced by #WP1161170

?
Manufacturer substitution
This part replaces 789940. Substitute parts can look different from the original.
$43.09
In Stock
Seal Strip 789742
#11

Cabinet diagram

Seal strip

Part #789742

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 789742. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal Strip 789740
#12

Cabinet diagram

Seal strip

Part #789740

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 789740. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Scroll 789894
#4

Air flow and control diagram

Scroll

Part #789894

The manufacturer no longer makes this part, and there's no substitute part

Frame 789610
#10A

Cabinet diagram

Frame

Part #789610

The manufacturer no longer makes this part, and there's no substitute part
