Model # RCC3024GB0 Official Whirlpool electric cooktop
Here are the diagrams and repair parts for Official Whirlpool RCC3024GB0 electric cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
RCC3024GB0 Cooktops
#7B

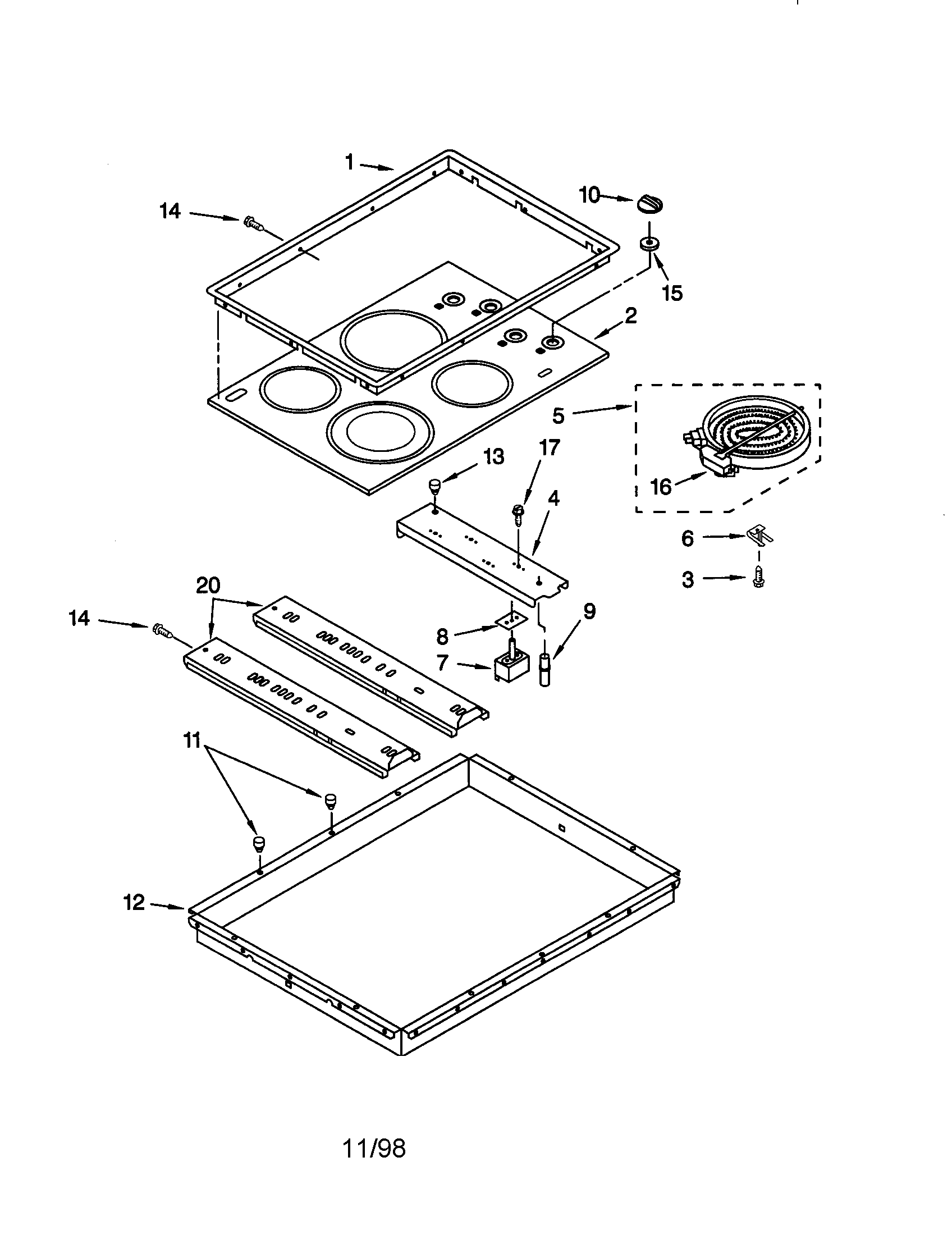

Cooktop diagram
Cooktop element control switch
Part #4454541
Replaced by #WP4454541
?
Manufacturer substitution
This part replaces 4454541. Substitute parts can look different from the original.
$69.36 |
8% OFF Phone Price : $75.36
In Stock
#10A
Cooktop diagram
Range burner control knob
Part #3196232
Replaced by #WP3196232
?
Manufacturer substitution
This part replaces 3196232. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
#8
Cooktop diagram
Cooktop element control switch seal
Part #3183956
This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
#NI
All parts diagram
Cooking appliance 14-gauge splicing wire, 200-degree c (red)
Part #242831
$318.95
In Stock
#7
Cooktop diagram
Range surface element control switch
Part #3191049
Replaced by #WP3191049
?
Manufacturer substitution
This part replaces 3191049. Substitute parts can look different from the original.
$77.73 |
7% OFF Phone Price : $83.73
In Stock
#14
Cooktop diagram
Screw
Part #3196537
Replaced by #WP3196557
?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#10
Cooktop diagram
Range burner control knob
Part #3196231
Replaced by #WP3196231
?
Manufacturer substitution
This part replaces 3196231. Substitute parts can look different from the original.
This item is not returnable
$19.29 |
9% OFF Phone Price : $21.29
In Stock
#5A
Cooktop diagram
Surface element
Part #3191982
Replaced by #W10823693
?
Manufacturer substitution
This part replaces 3191982. Substitute parts can look different from the original.
$142.35 |
8% OFF Phone Price : $154.35
In Stock
#NI
All parts diagram
Hardware
Part #3172515
Replaced by #8184949
?
Manufacturer substitution
This part replaces 3172515. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#7A
Cooktop diagram
Cooktop element control switch
Part #3191050
Replaced by #WP3191050
?
Manufacturer substitution
This part replaces 3191050. Substitute parts can look different from the original.
$79.39 |
7% OFF Phone Price : $85.39
In Stock
