Model # DGR486G Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag DGR486G gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Spreader, Fl 70001510
#13

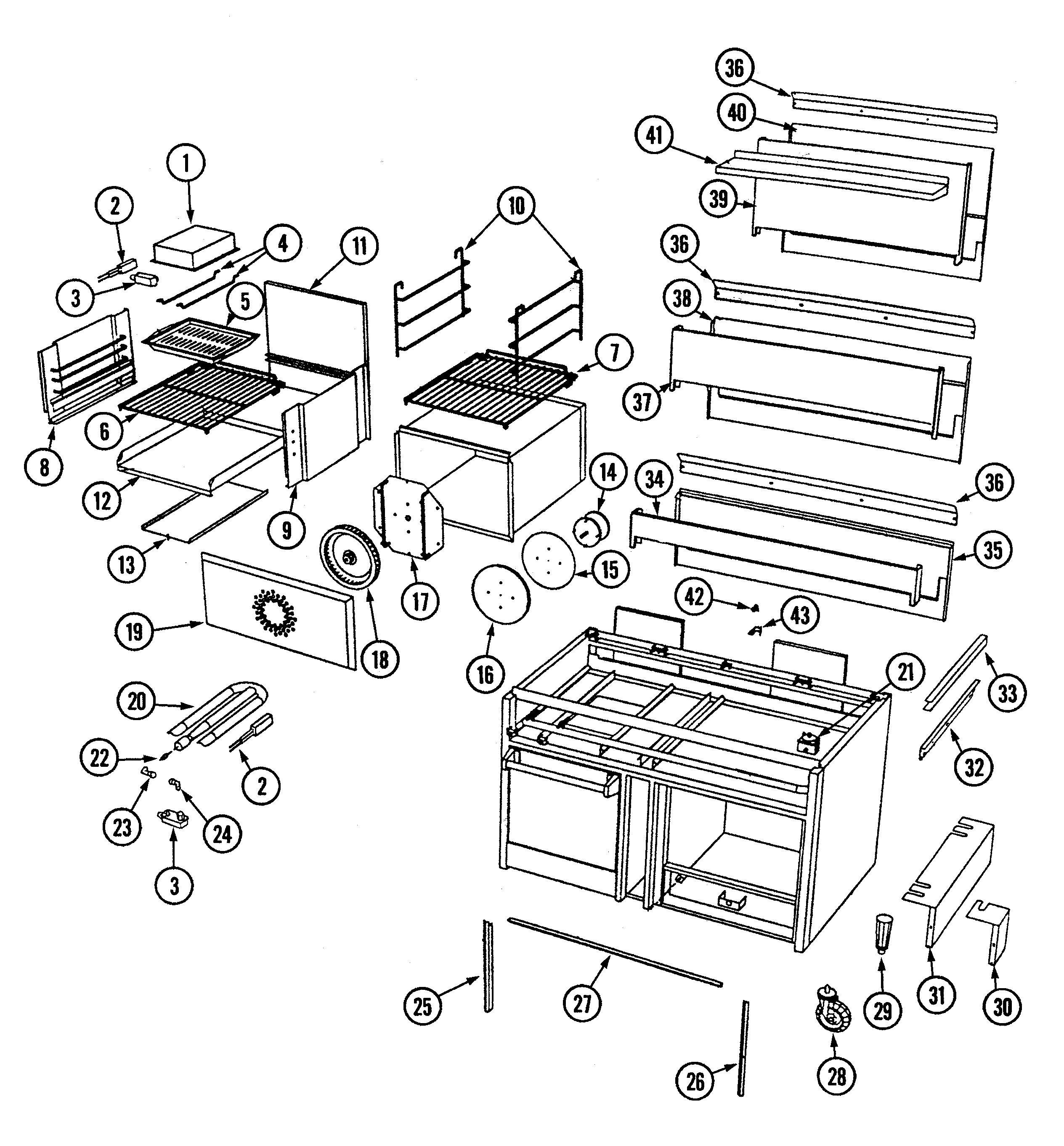

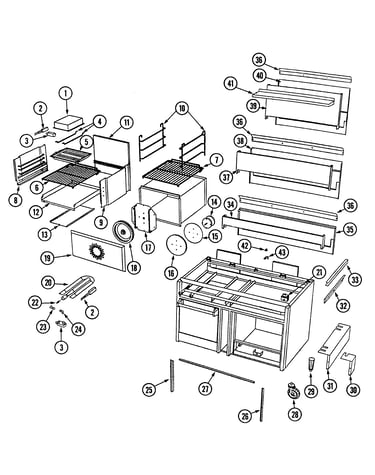

Oven body/gas controls diagram

Spreader, fl

Part #70001510

$50.29
In Stock
Cleaner 20000008
#18

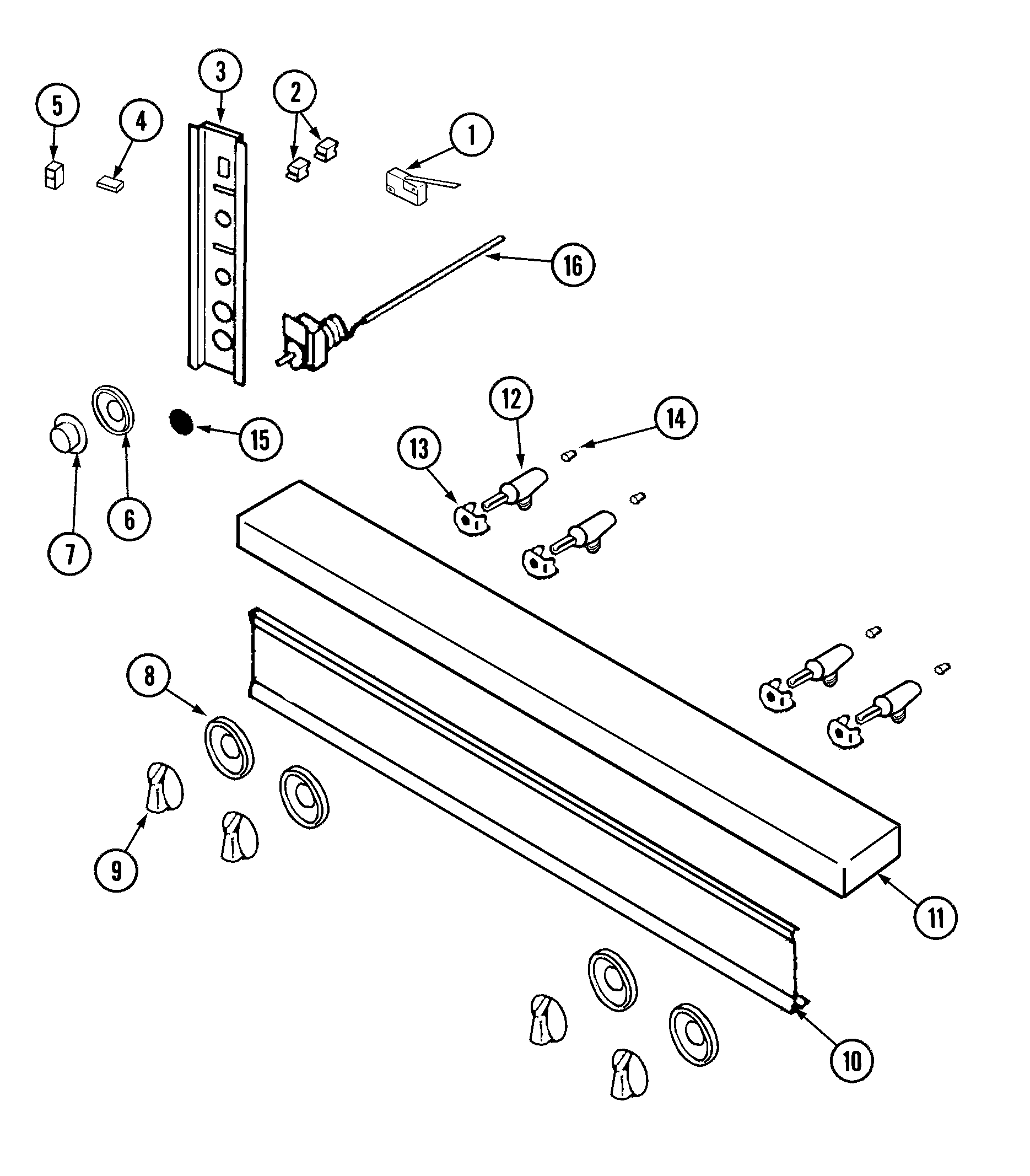

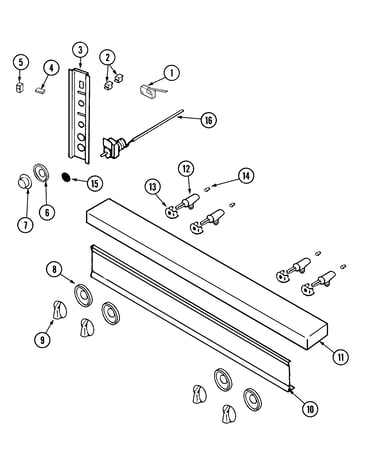

Manifold panel/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Broiler Pan 70001090
#5

Oven body/gas controls diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Hanger Burner 70001470
#6

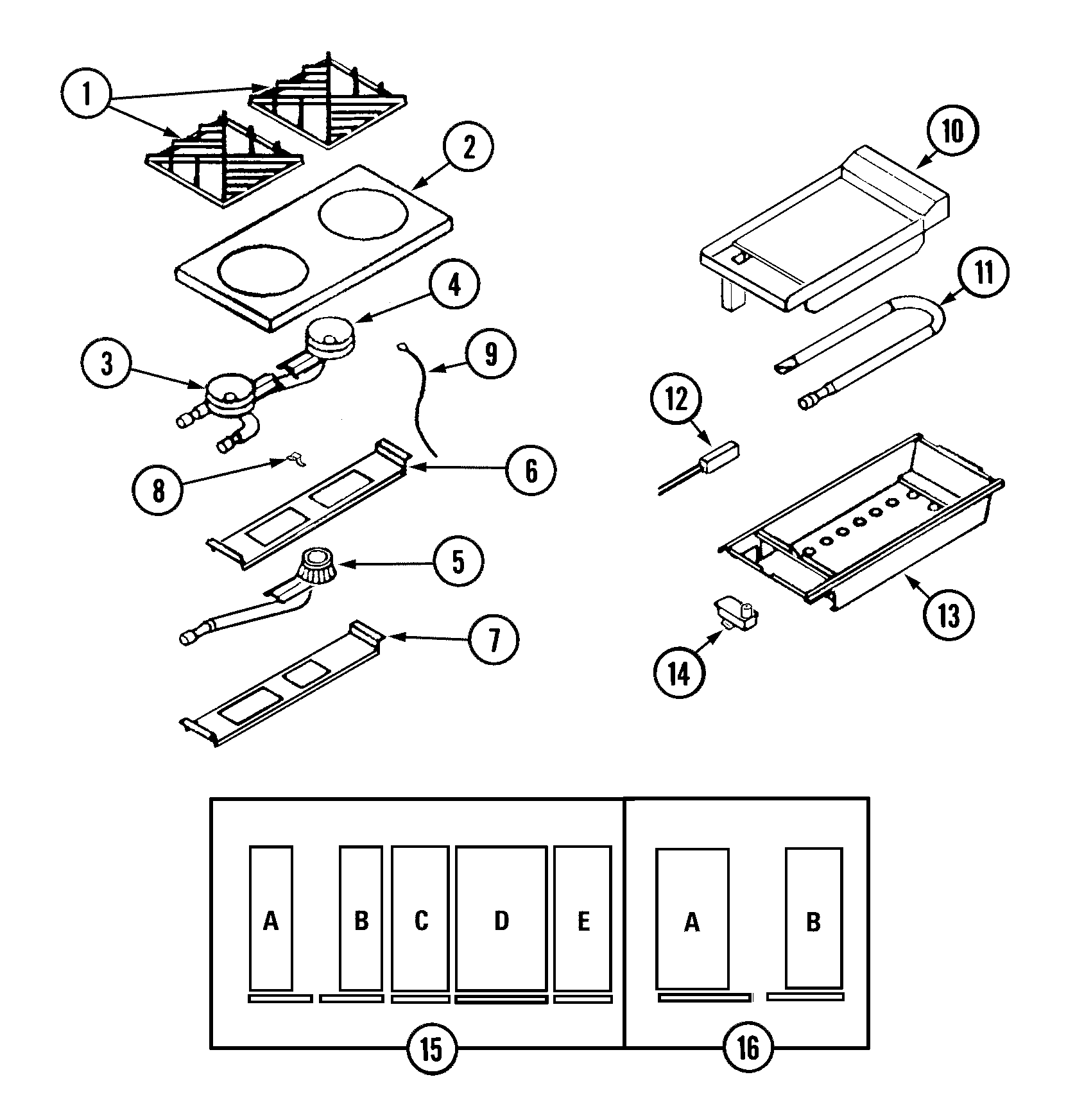

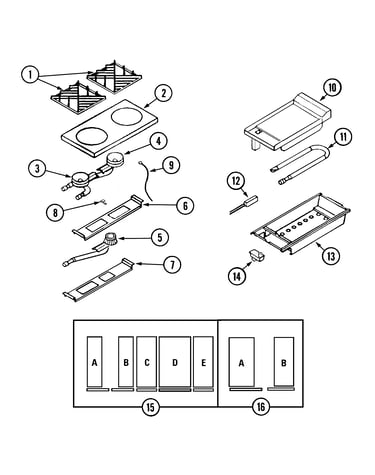

Top assembly/gas controls diagram

Hanger burner

Part #70001470

The manufacturer no longer makes this part, and there's no substitute part

Lower Panel 70001640
#6A

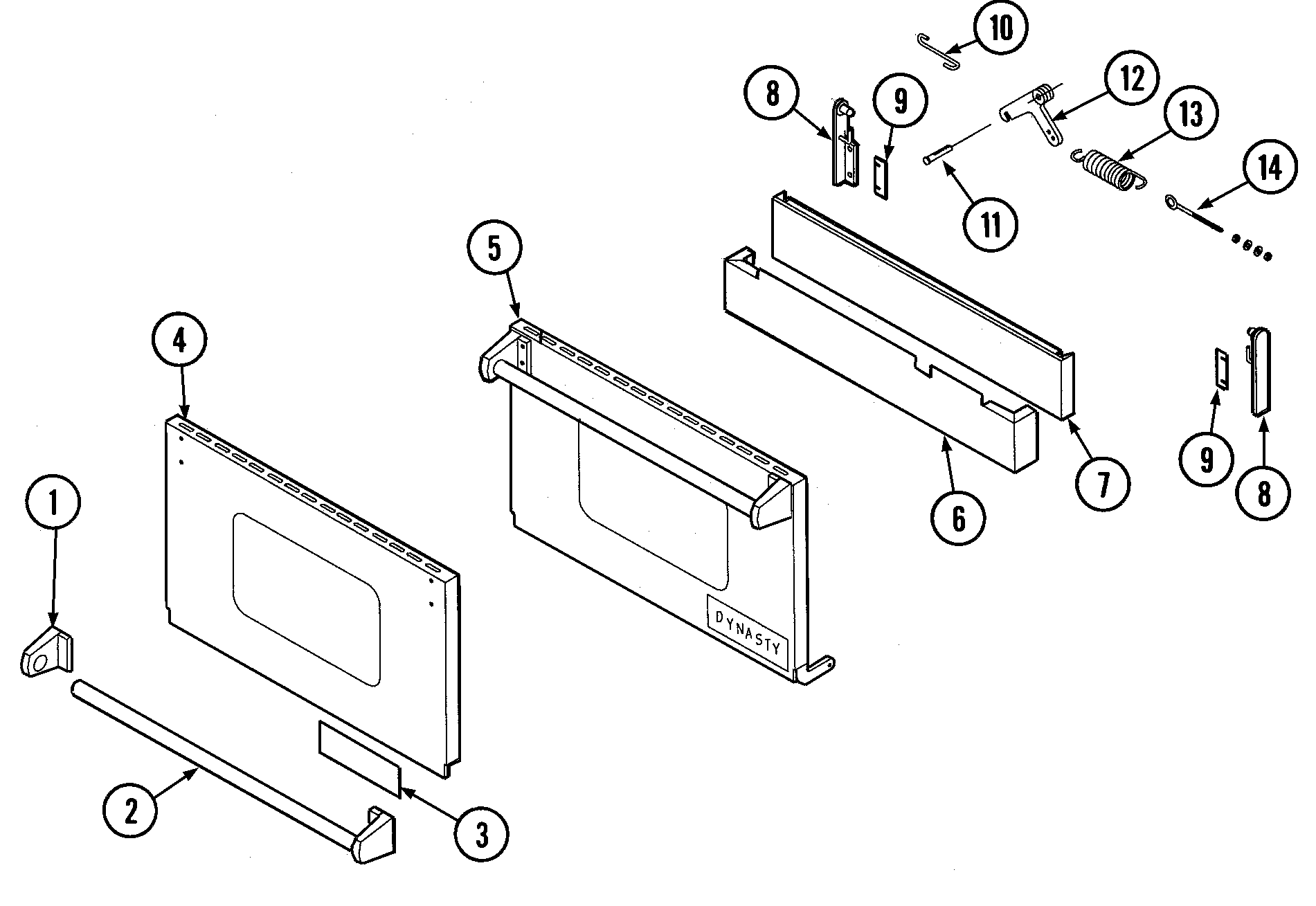

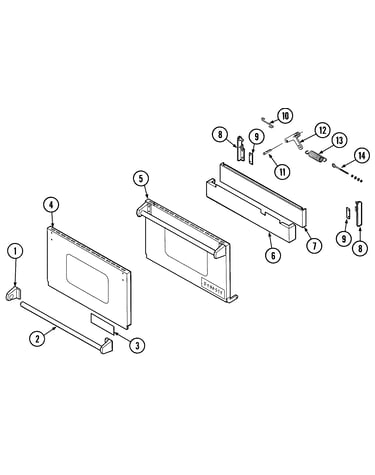

Door diagram

Lower panel

Part #70001640

The manufacturer no longer makes this part, and there's no substitute part

Overlay, The 70001394
#7A

Manifold panel/gas controls diagram

Overlay, the

Part #70001394

The manufacturer no longer makes this part, and there's no substitute part

Curb Base Ss 70001645
#7

Door diagram

Curb base ss

Part #70001645

The manufacturer no longer makes this part, and there's no substitute part

Plate Motor 70001501
#17

Oven body/gas controls diagram

Plate motor

Part #70001501

The manufacturer no longer makes this part, and there's no substitute part

Orifice (sim 70001148
#14C

Manifold panel/gas controls diagram

Orifice (sim

Part #70001148

The manufacturer no longer makes this part, and there's no substitute part

Kickplate (c 70001646
#7A

Door diagram

Kickplate (c

Part #70001646

The manufacturer no longer makes this part, and there's no substitute part
