Model # KESS907SWW06 Official KitchenAid 30" electric slide-in oven

Here are the diagrams and repair parts for Official KitchenAid KESS907SWW06 30" electric slide-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

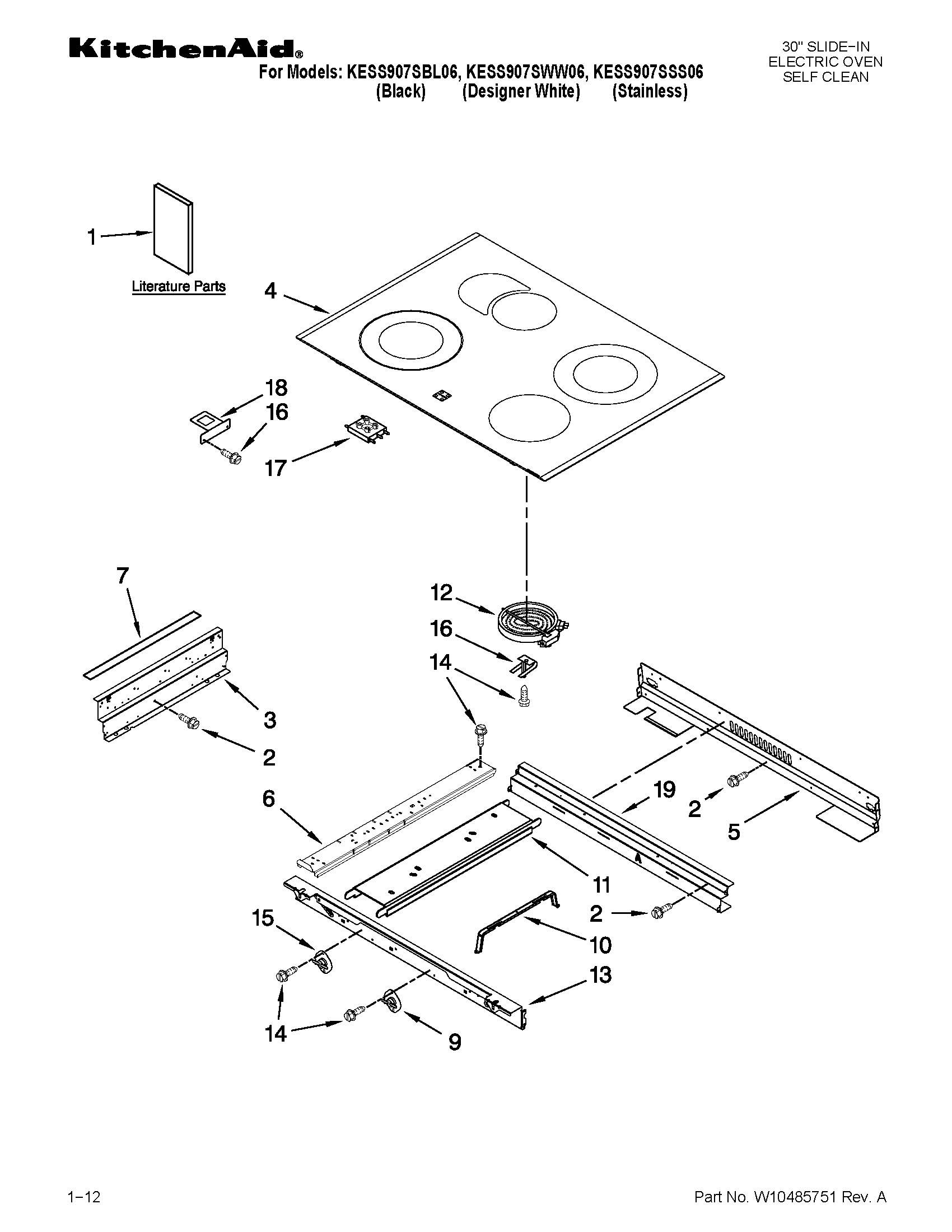

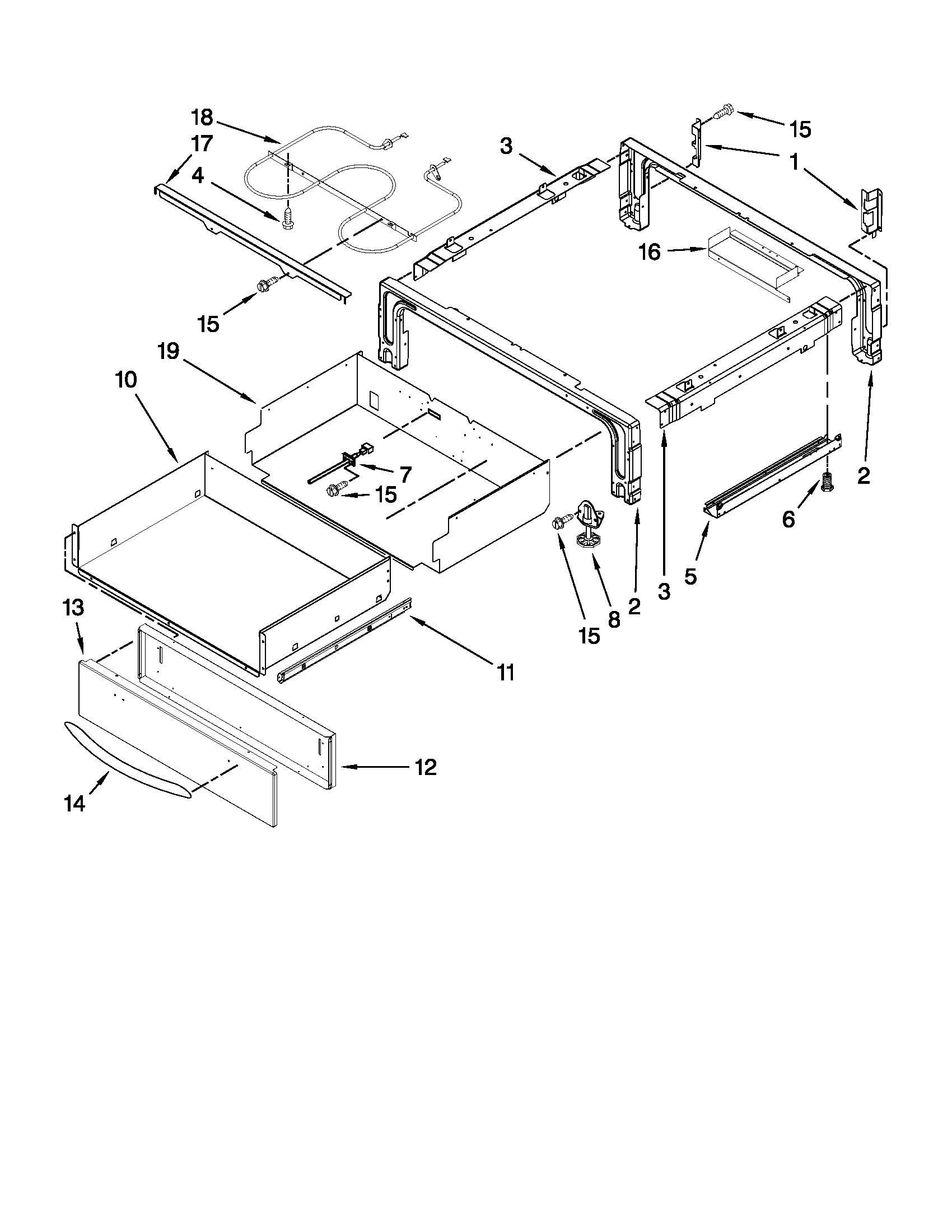

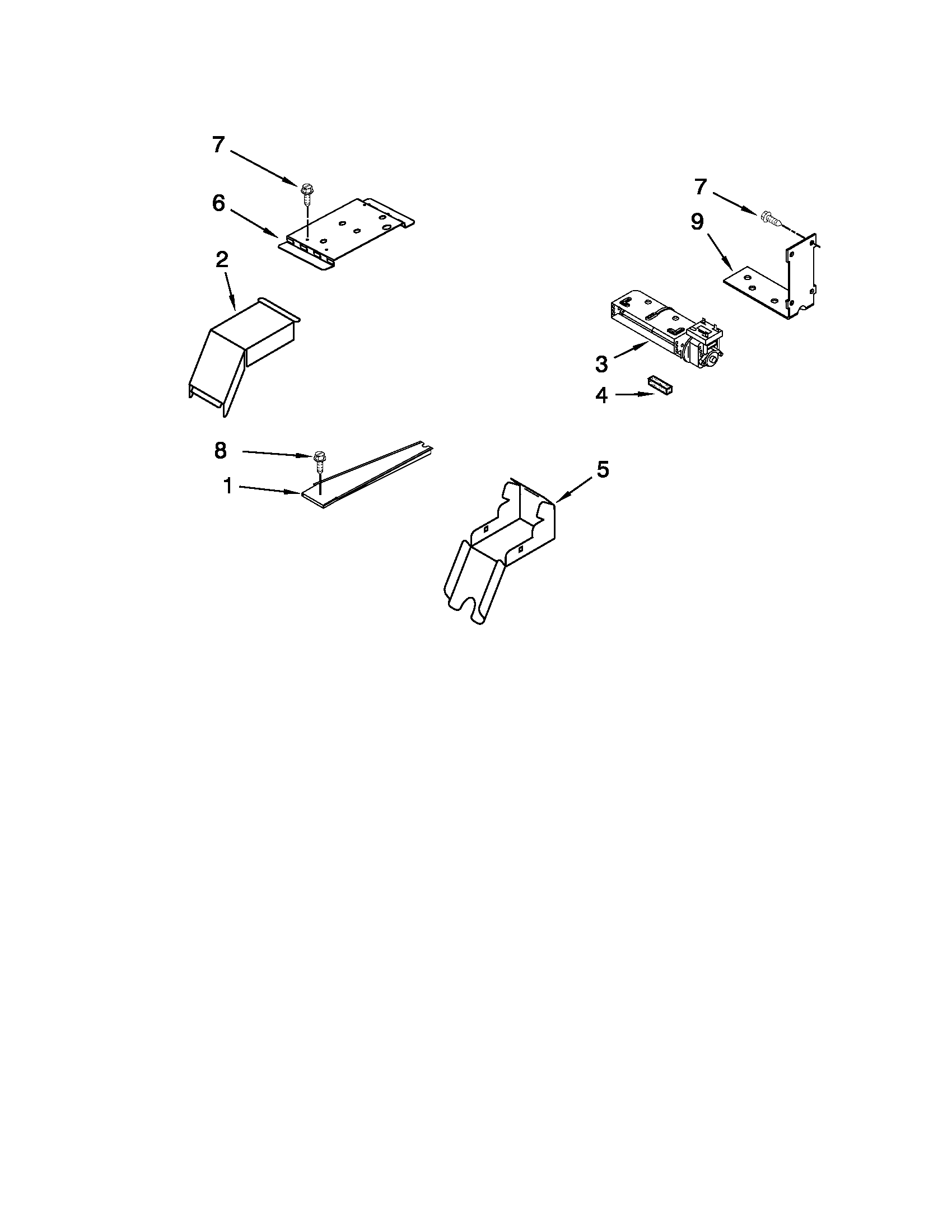

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Wall Oven Temperature Sensor W10131825
#29

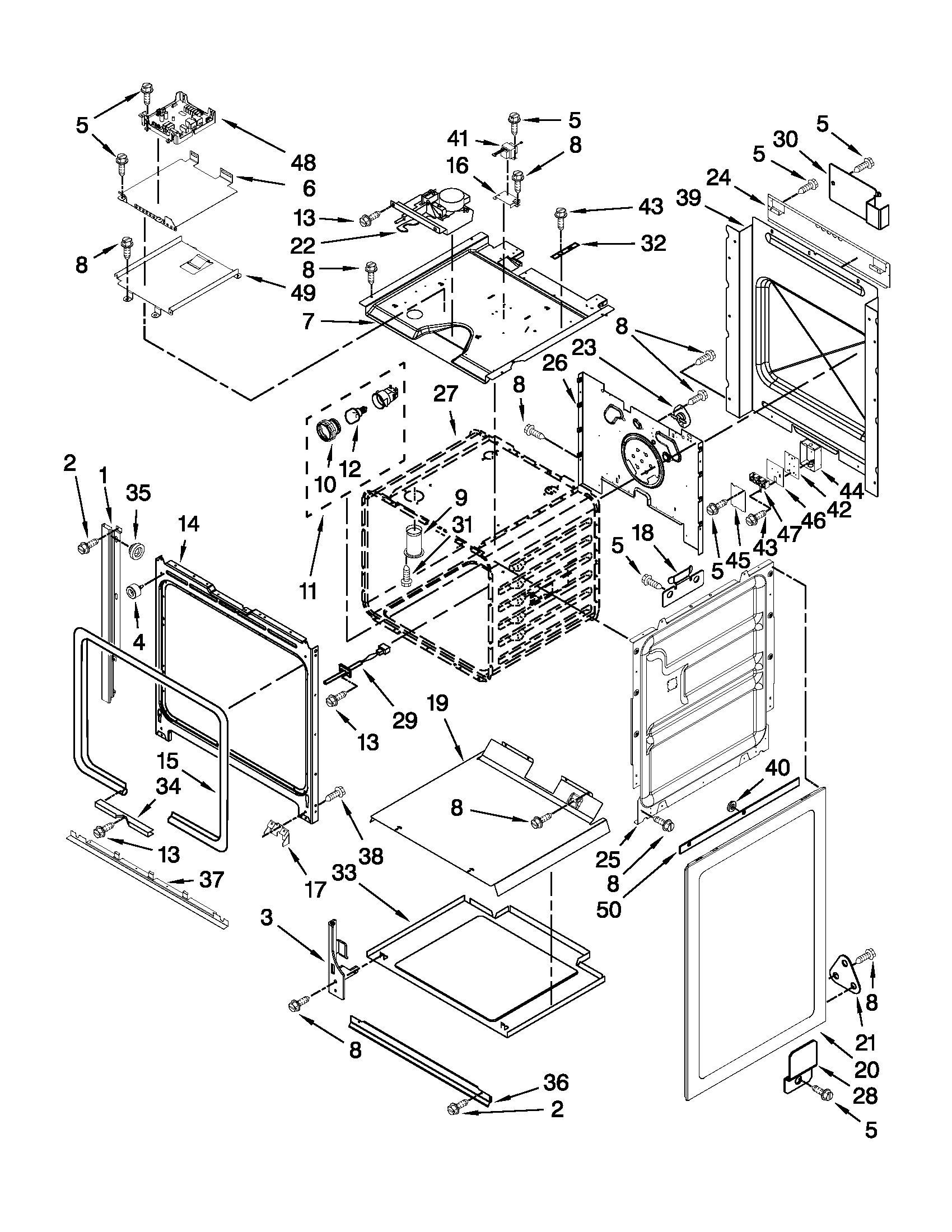

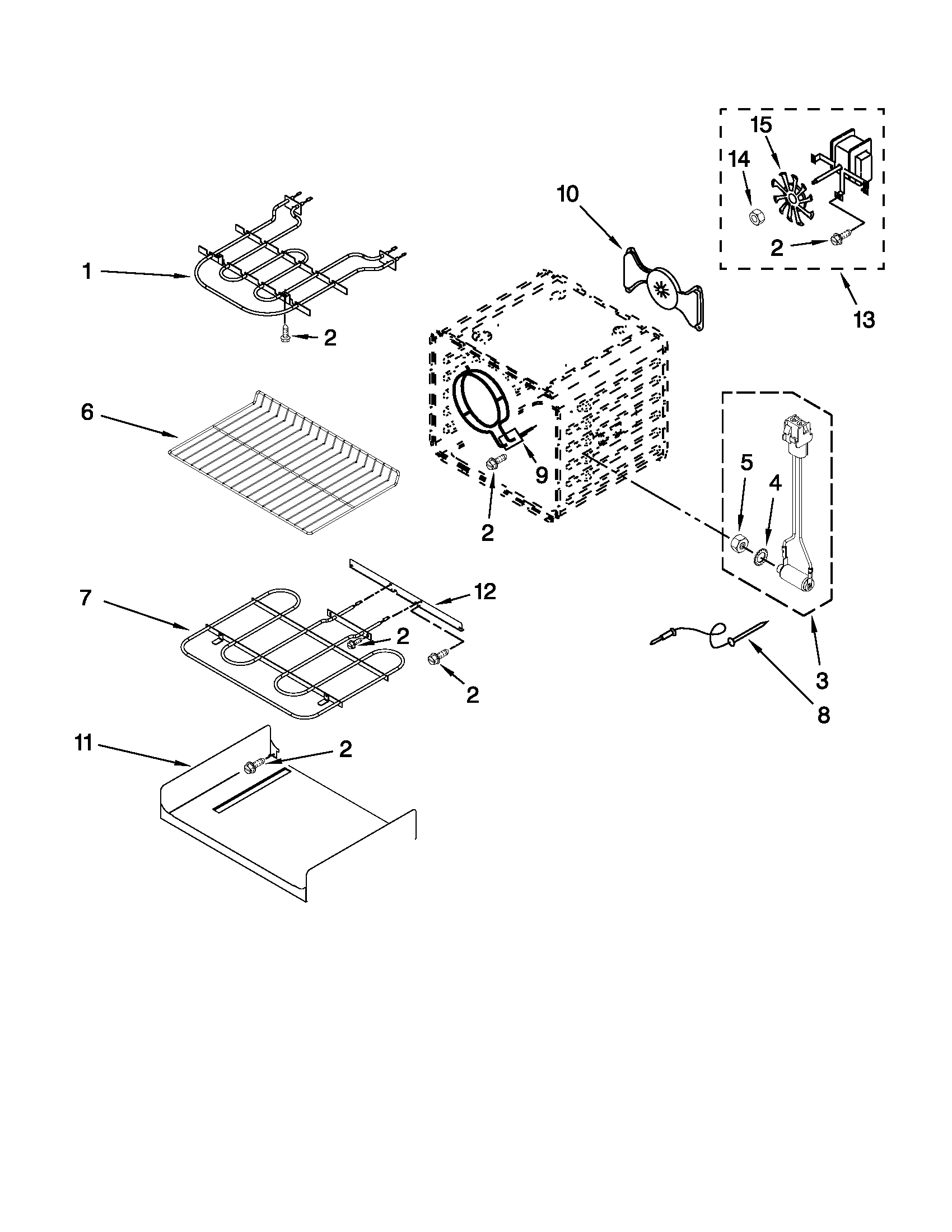

Oven parts diagram

Wall oven temperature sensor

Part #W10131825

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces W10131825. Substitute parts can look different from the original.
BEST SELLER
$63.52 |
9% OFF Phone Price : $69.52
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range High-limit Thermostat 9759242
#23

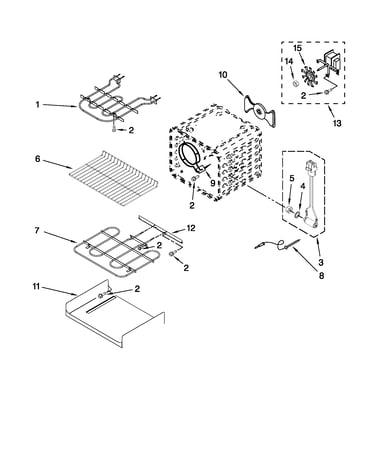

Oven parts diagram

Range high-limit thermostat

Part #9759242

Replaced by #WP9759242

?
Manufacturer substitution
This part replaces 9759242. Substitute parts can look different from the original.
BEST SELLER
$48.75 |
11% OFF Phone Price : $54.75
In Stock
Spray W 350930
#NI

Optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Adhesive 482338
#NI

Optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Light Lens 3196068
#14

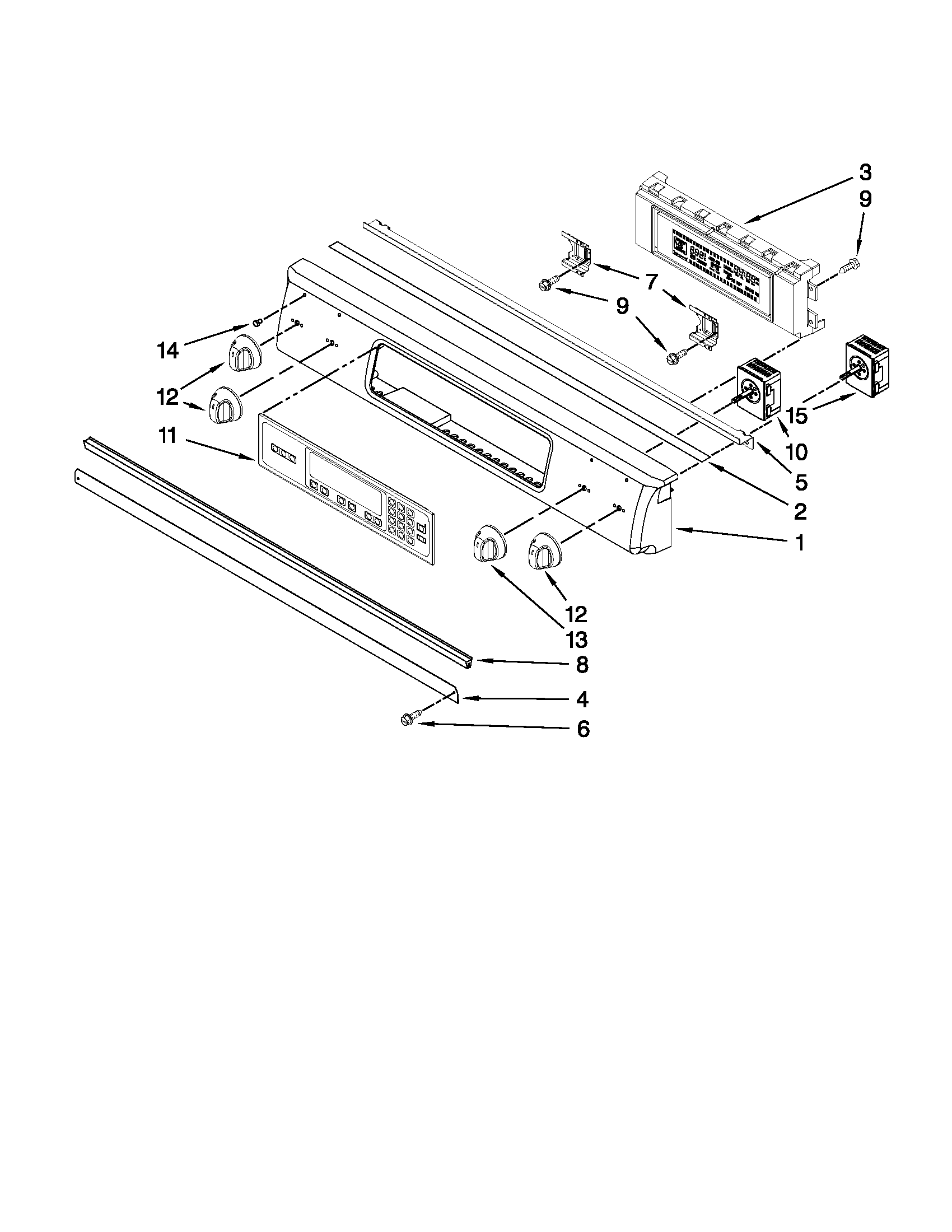

Control panel parts diagram

Light lens

Part #3196068

Replaced by #WP3196068

?
Manufacturer substitution
This part replaces 3196068. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Range Dual Surface Element Control Switch 9763762
#15

Control panel parts diagram

Range dual surface element control switch

Part #9763762

Replaced by #WP9763762

?
Manufacturer substitution
This part replaces 9763762. Substitute parts can look different from the original.
$151.27 |
7% OFF Phone Price : $163.27
In Stock
Screw 3400832
#2

Oven parts diagram

Screw

Part #3400832

Replaced by #WP3400832

?
Manufacturer substitution
This part replaces 3400832. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Door Hinge (blue) 9760574
#5A

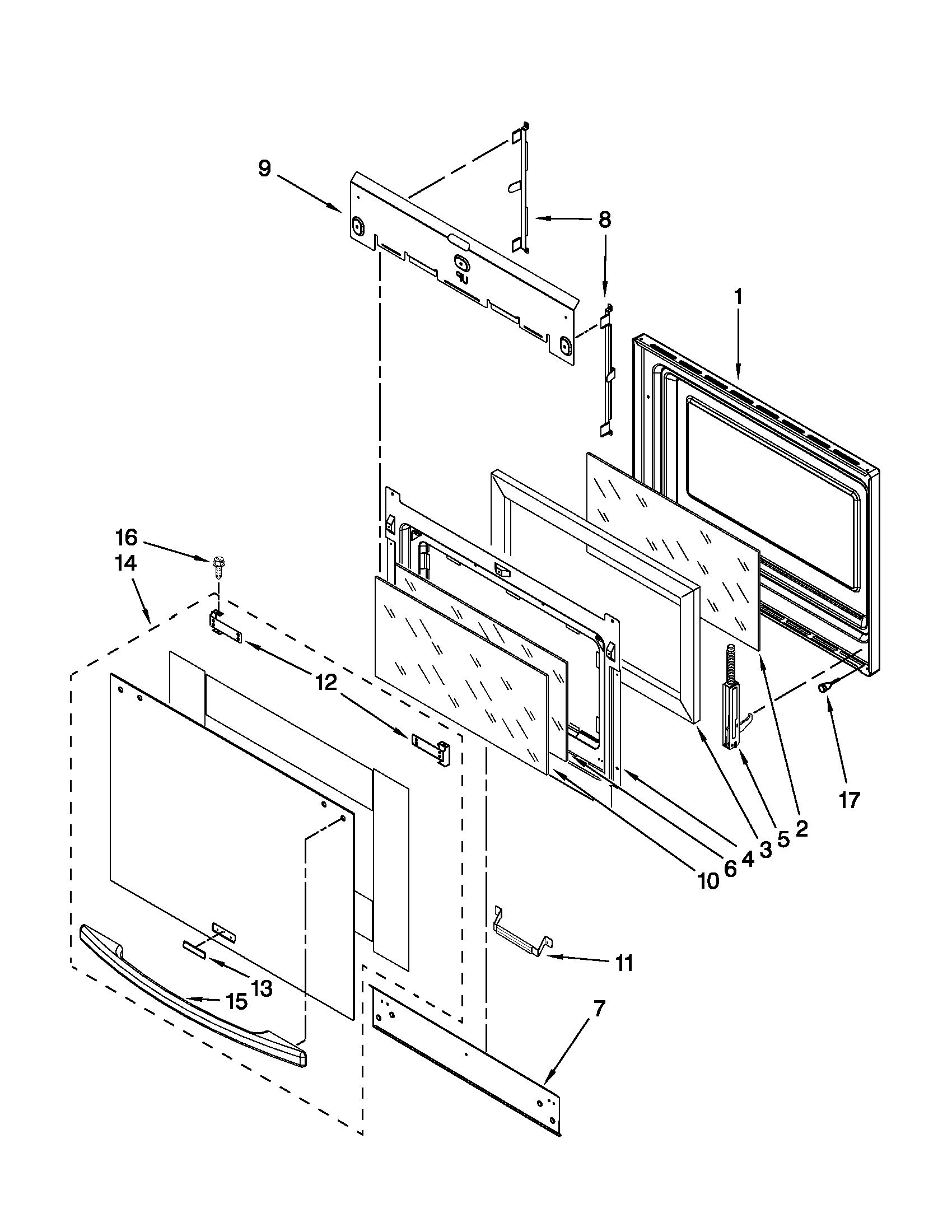

Door parts diagram

Oven door hinge (blue)

Part #9760574

Replaced by #WP9760574

?
Manufacturer substitution
This part replaces 9760574. Substitute parts can look different from the original.
$47.23 |
11% OFF Phone Price : $53.23
In Stock
Range Surface Element Control Switch 9763761
#10

Control panel parts diagram

Range surface element control switch

Part #9763761

Replaced by #WP9763761

?
Manufacturer substitution
This part replaces 9763761. Substitute parts can look different from the original.
$136.85 |
8% OFF Phone Price : $148.85
In Stock
