Model # VT612301 Official Campbell Hausfeld air compressor
Here are the diagrams and repair parts for Official Campbell Hausfeld VT612301 air compressor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

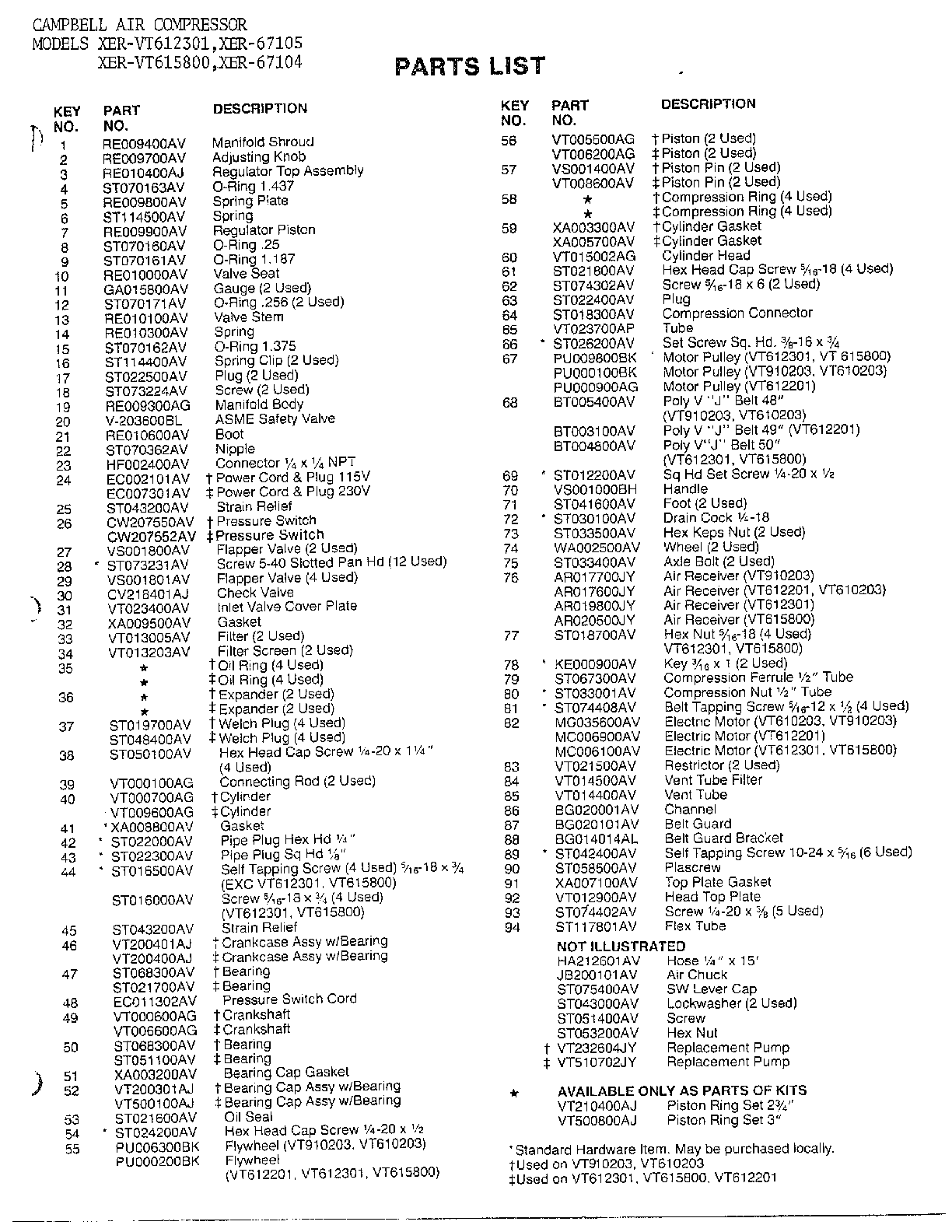

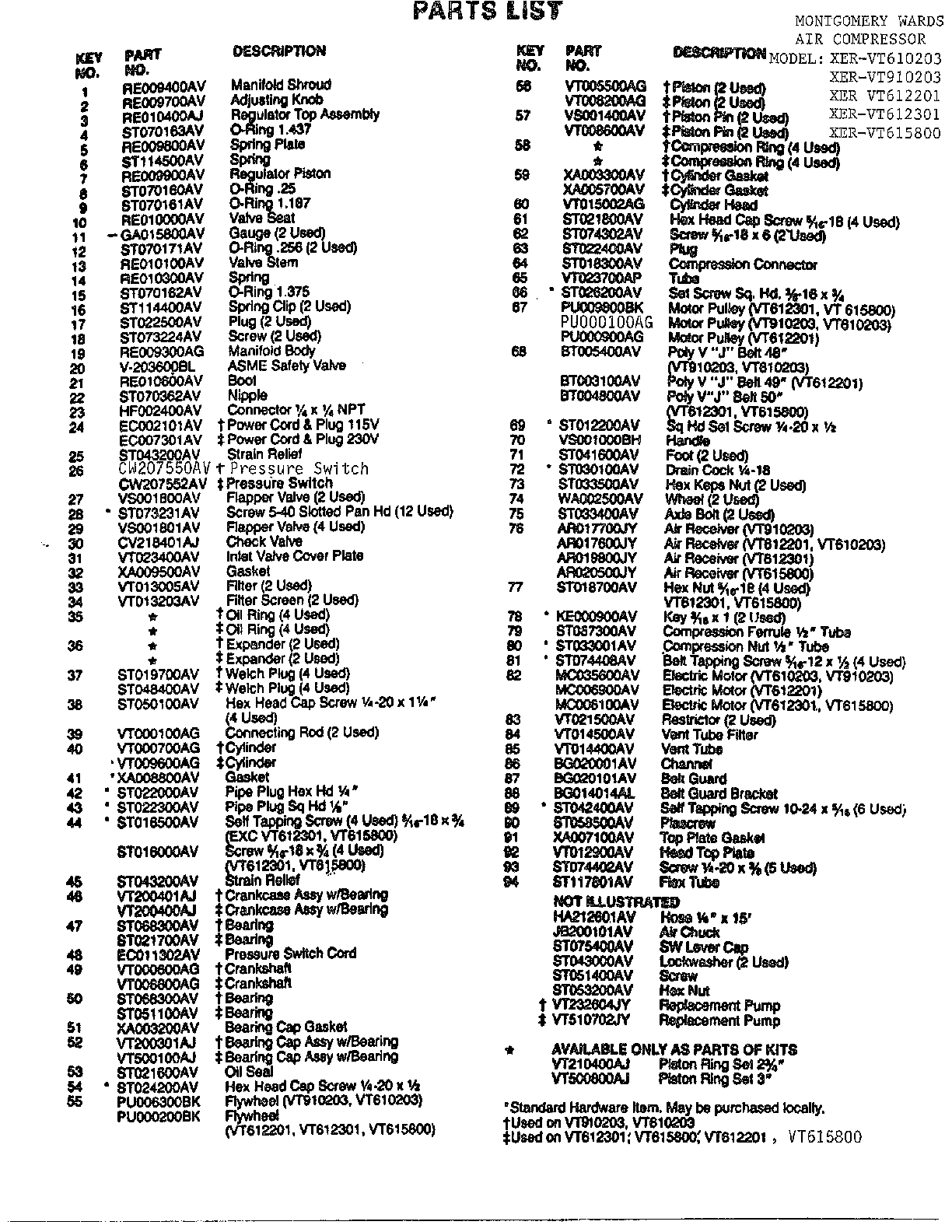

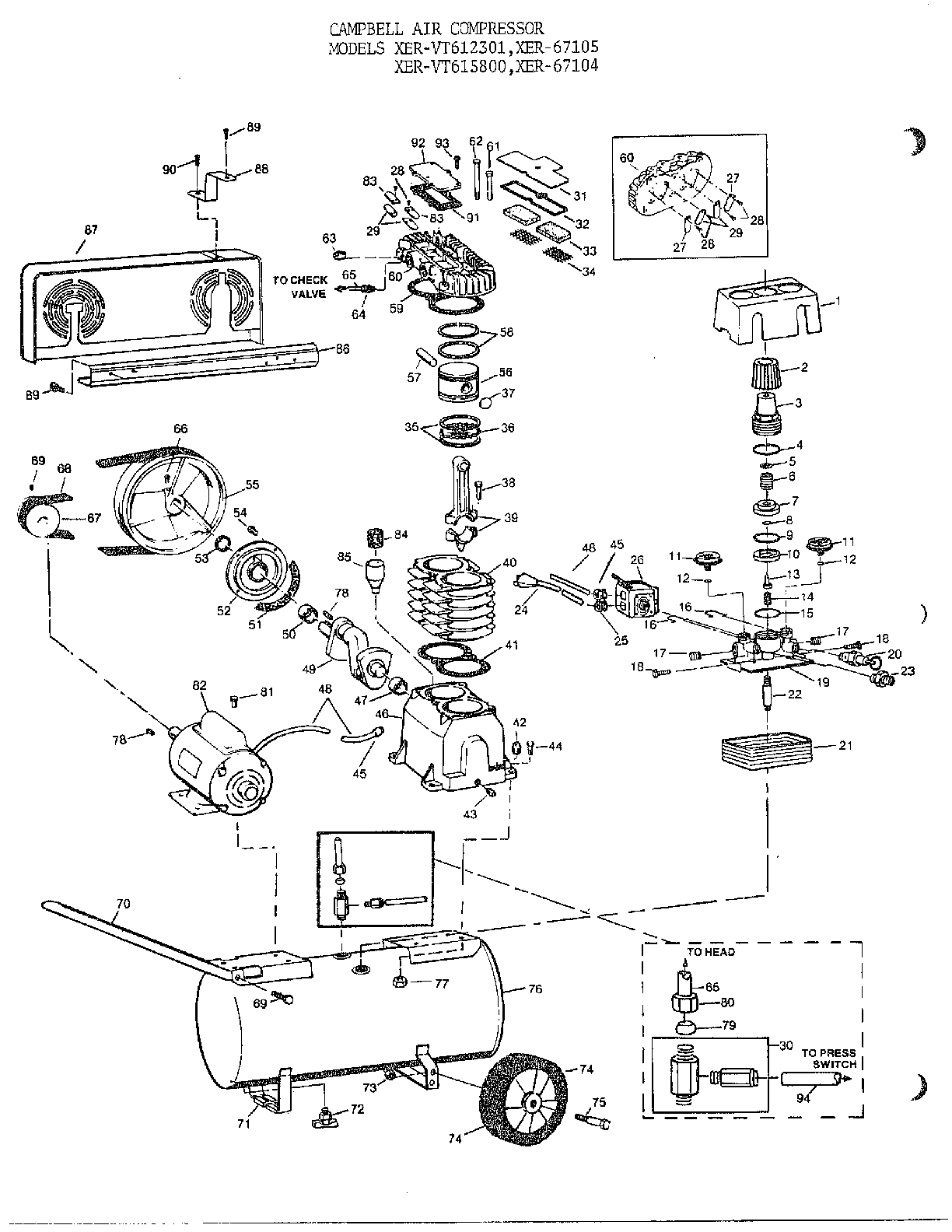

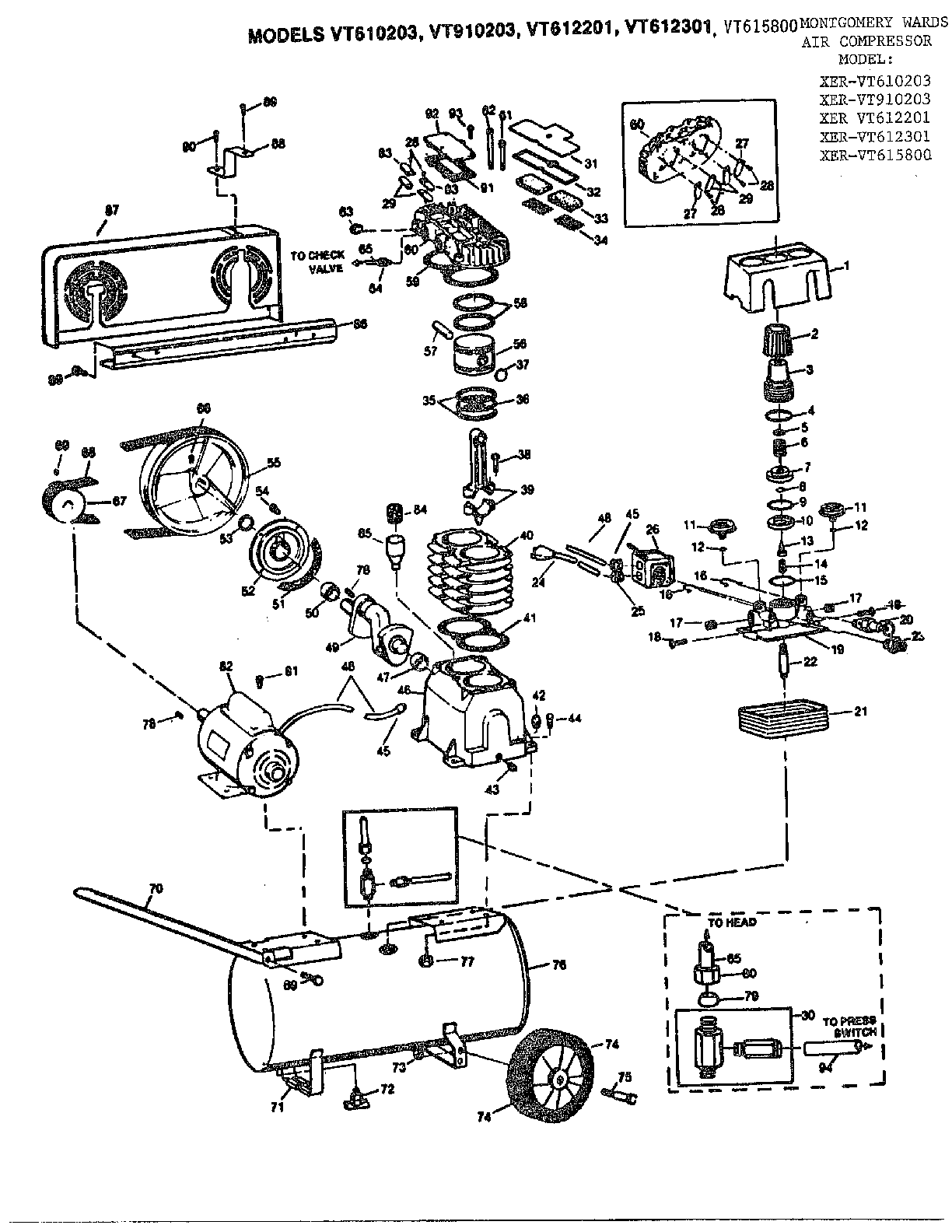

Model diagram and schematic
SEARCH WITHIN THIS MODEL
Most common symptoms to help you fix your air compressors
Choose a symptom to see related air compressor repairs.
Main cause: bad check valve…
Main causes: lack of electrical power, check valve failure, bad pressure switch…
Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…
Main causes: bad safety valve, pressure switch failure…
Main cause: faulty output air pressure regulator…
Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…
Main cause: bad air tank pressure gauge…
Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…
Most common repair guides to help fix your air compressors
These step-by-step repair guides will help you safely fix what’s broken on your air compressor.
How to replace an air compressor pressure switch
You can replace a broken air compressor pressure switch in about 45 minutes. …
How to rebuild an air compressor pump
If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …
How to replace an air compressor check valve
You can replace a defective air compressor check valve in about 10 minutes.…
