Maytag
Electric Wall Oven

Model # MEW5530BCW Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW5530BCW electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

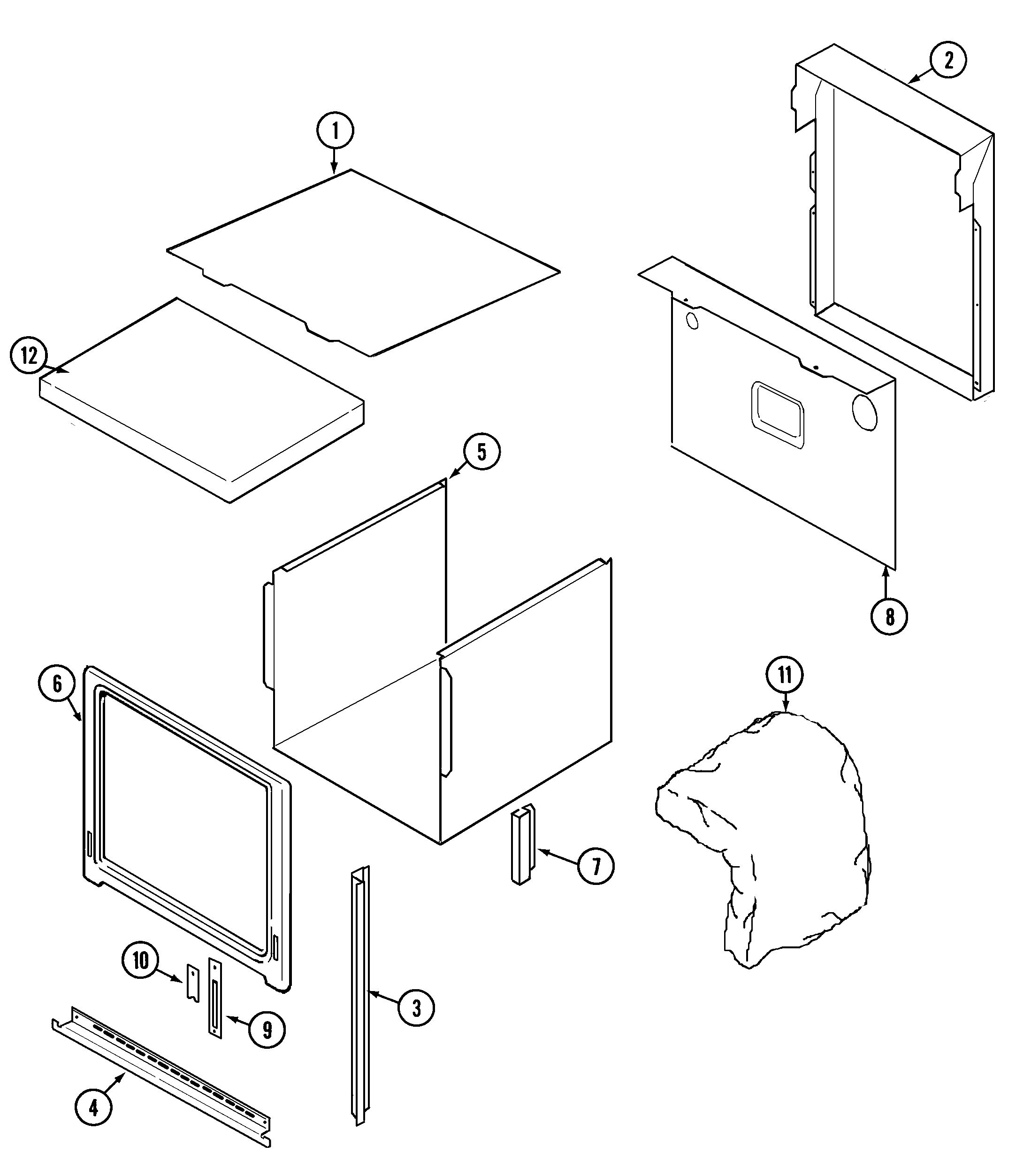

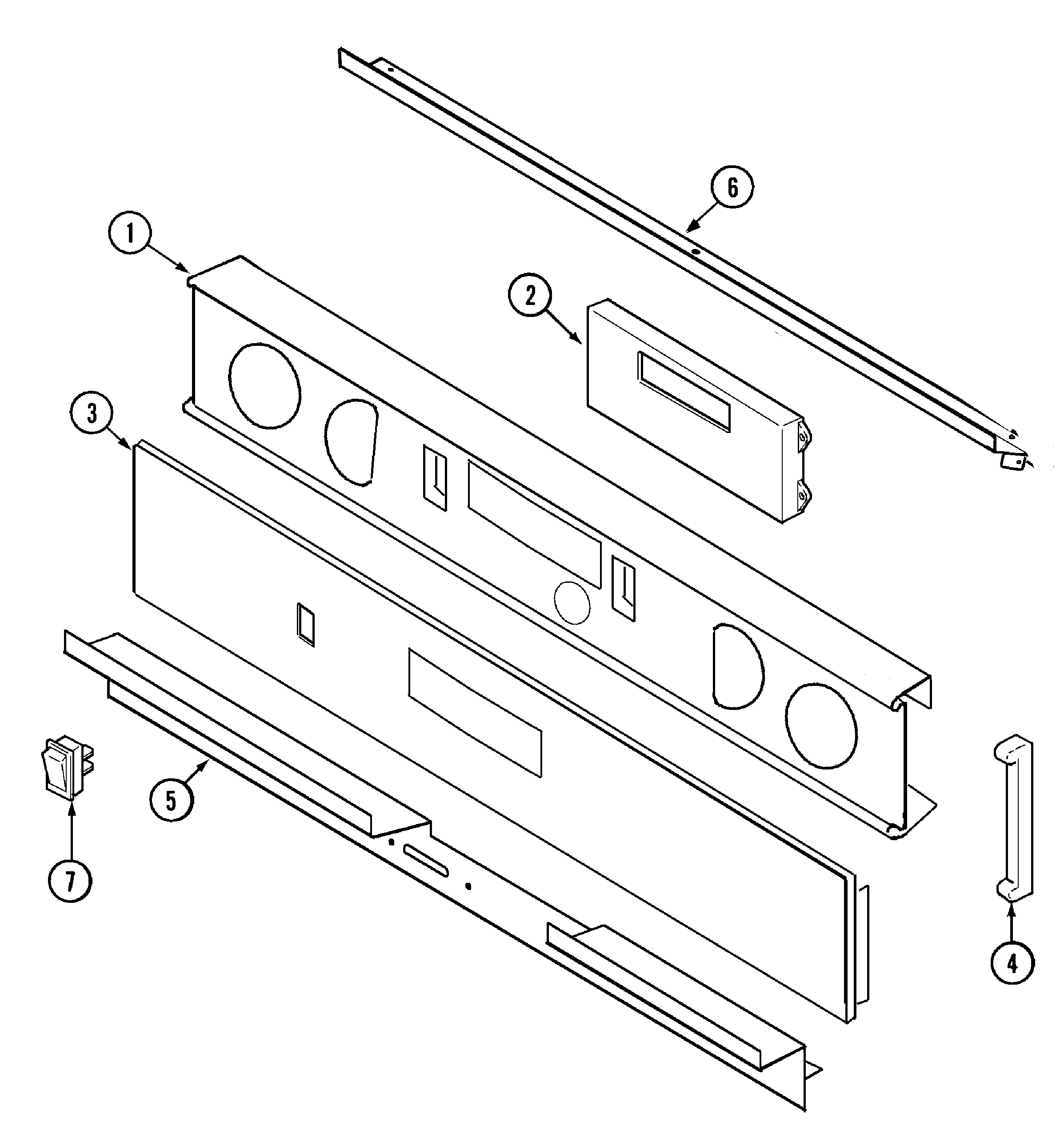

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Oven Sensor 71003083
#12

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Door Switch 71001129
#3

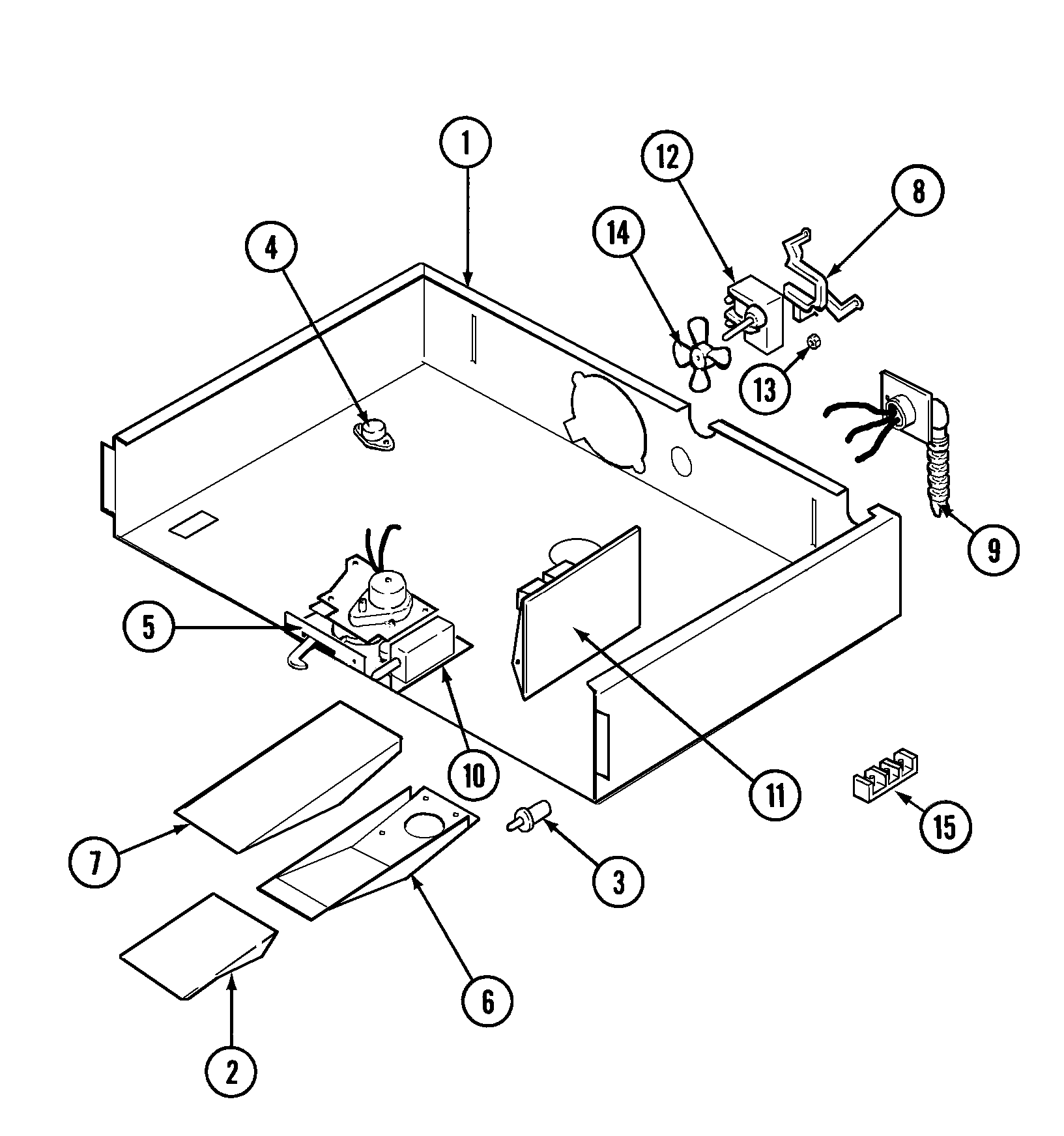

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Bake Element 71001638
#1

Oven diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Screw 700725
#14

Door diagram

Screw

Part #700725

Replaced by #WP355214

?
Manufacturer substitution
This part replaces 700725. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
"switch, Hi-l" 702548
#4

Internal controls diagram

"switch, hi-l"

Part #702548

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 702548. Substitute parts can look different from the original.
$88.32 |
6% OFF Phone Price : $94.32
In Stock
Oven Rack 71001865
#8

Oven diagram

Oven rack

Part #71001865

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001865. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Oven Rack 71001862
#2

Oven diagram

Oven rack

Part #71001862

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Receptacle 71001866
#9

Oven diagram

Receptacle

Part #71001866

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 71001866. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Hinge Screw 7101P270-60
#2B

Door diagram

Hinge screw

Part #7101P270-60

Replaced by #W10828565

?
Manufacturer substitution
This part replaces 7101P270-60. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
