Maytag
Electric Wall Oven

Model # CWE5020ACB Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag CWE5020ACB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Panel Screw 7101P041-60
#19

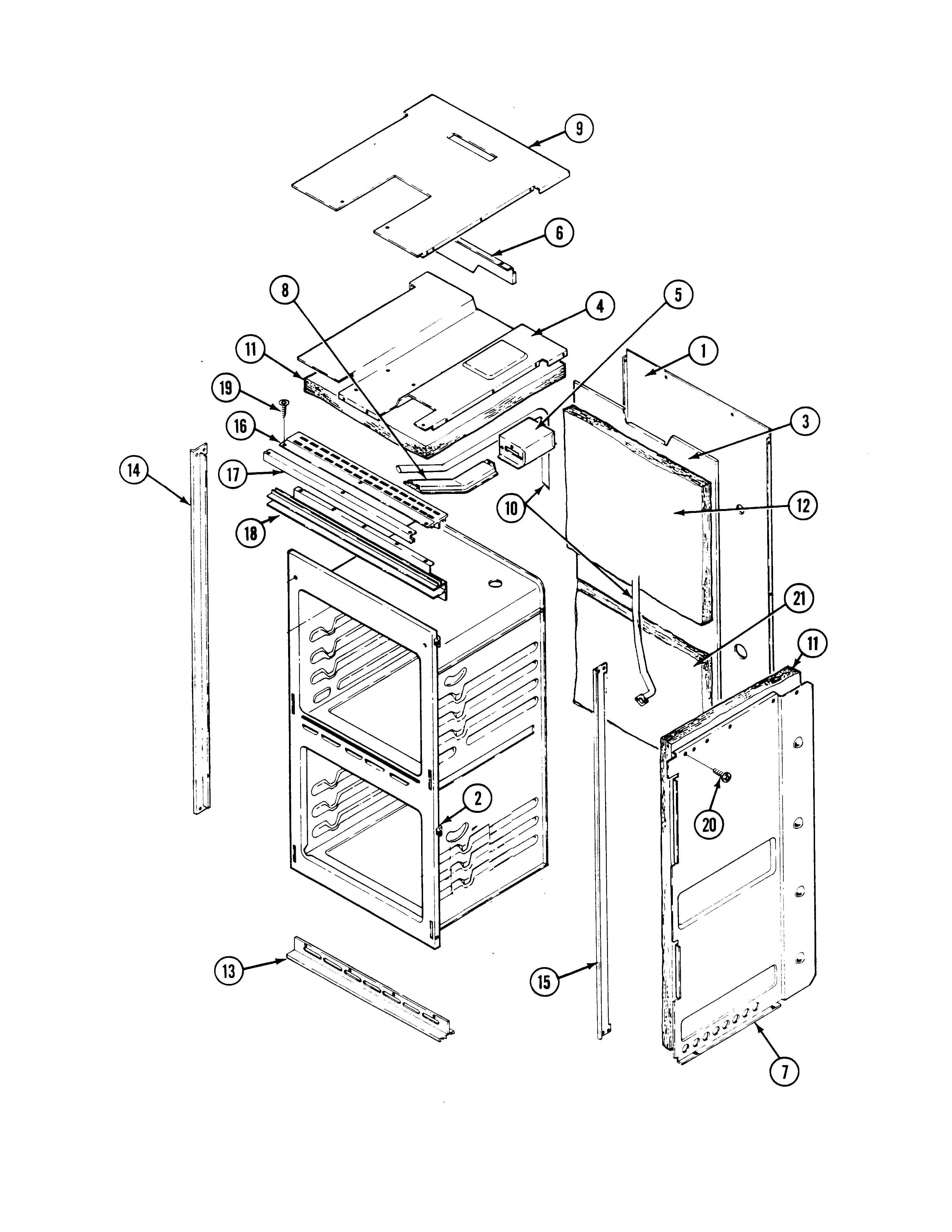

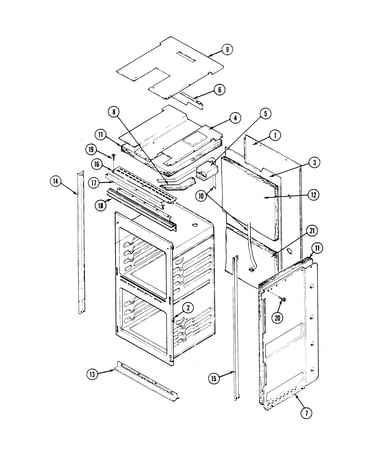

Body (cwe5020acb) diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock

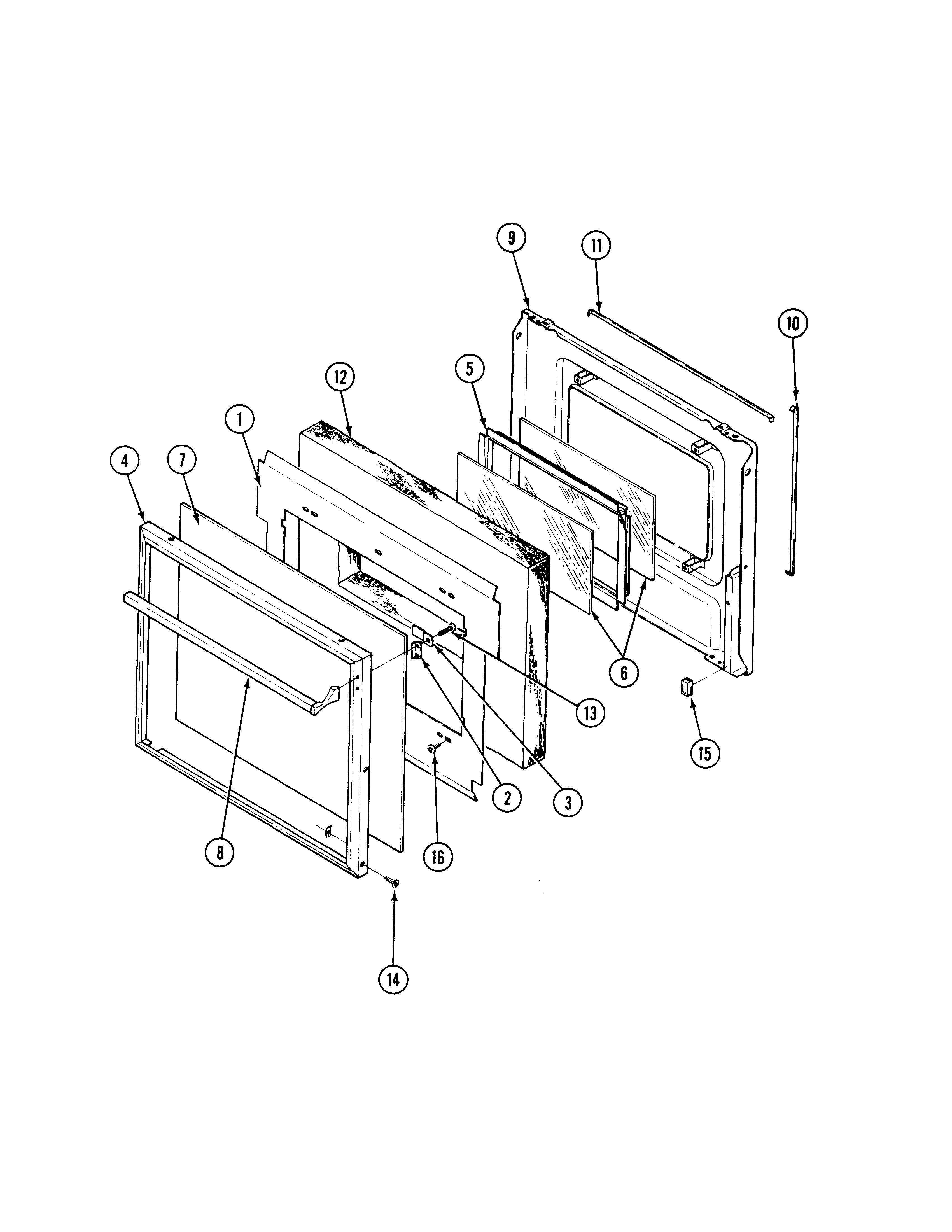

Range Oven Door Seal 7212P006-60
Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Selector Switch 7403P172-60
#16

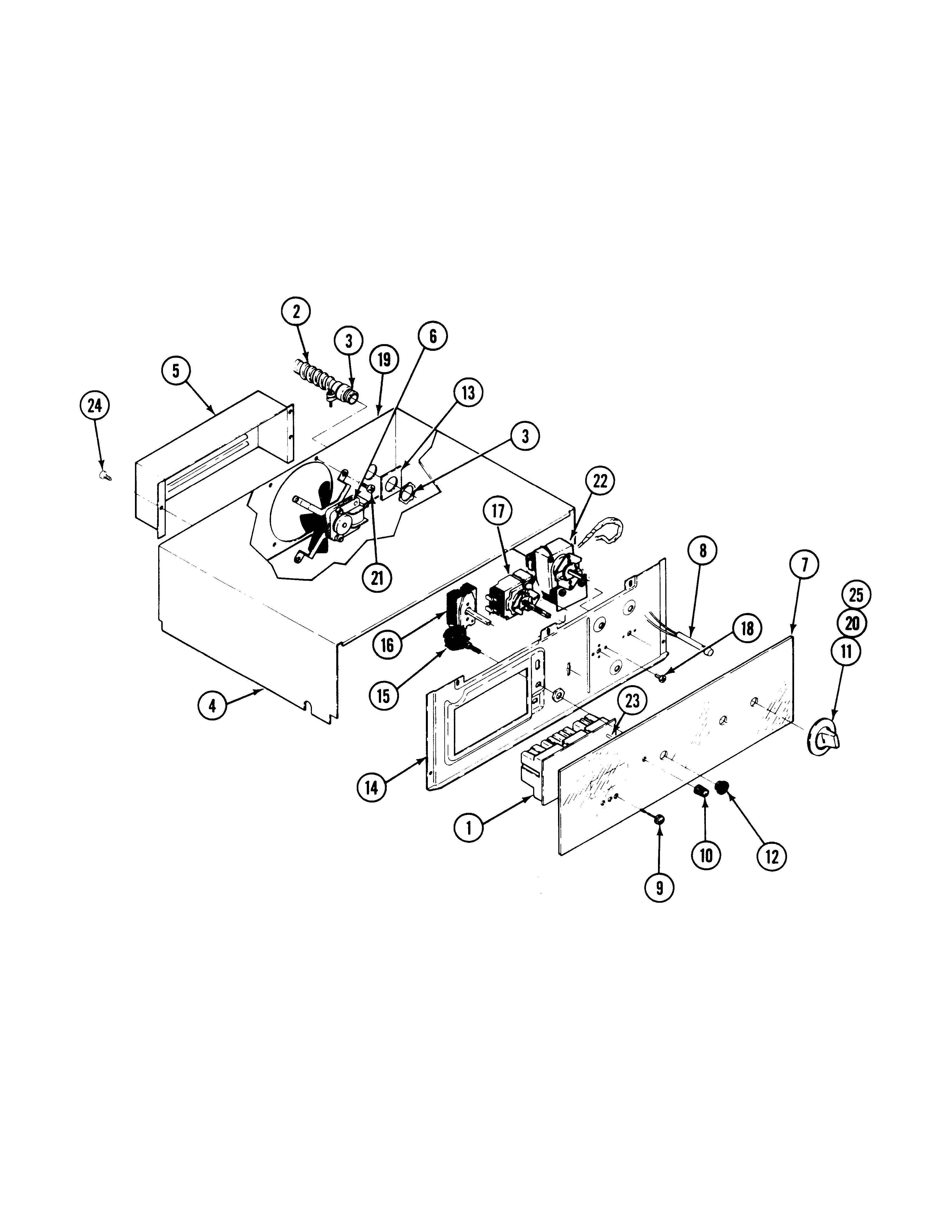

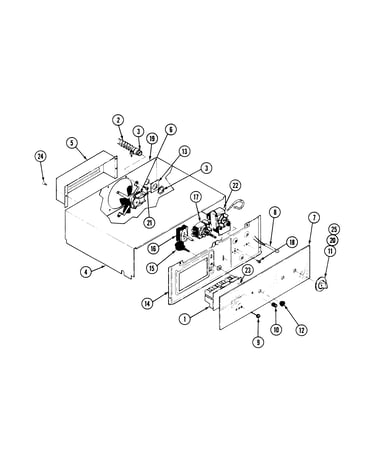

Control panel (cwe5020acb, cwe5500acb) diagram

Selector switch

Part #7403P172-60

Replaced by #WP7403P172-60

?
Manufacturer substitution
This part replaces 7403P172-60. Substitute parts can look different from the original.
$70.80
In Stock
Screw 7101P061-60
Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw, #10-1 7101P221-60
Screw, #10-1

Part #7101P221-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P221-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#9

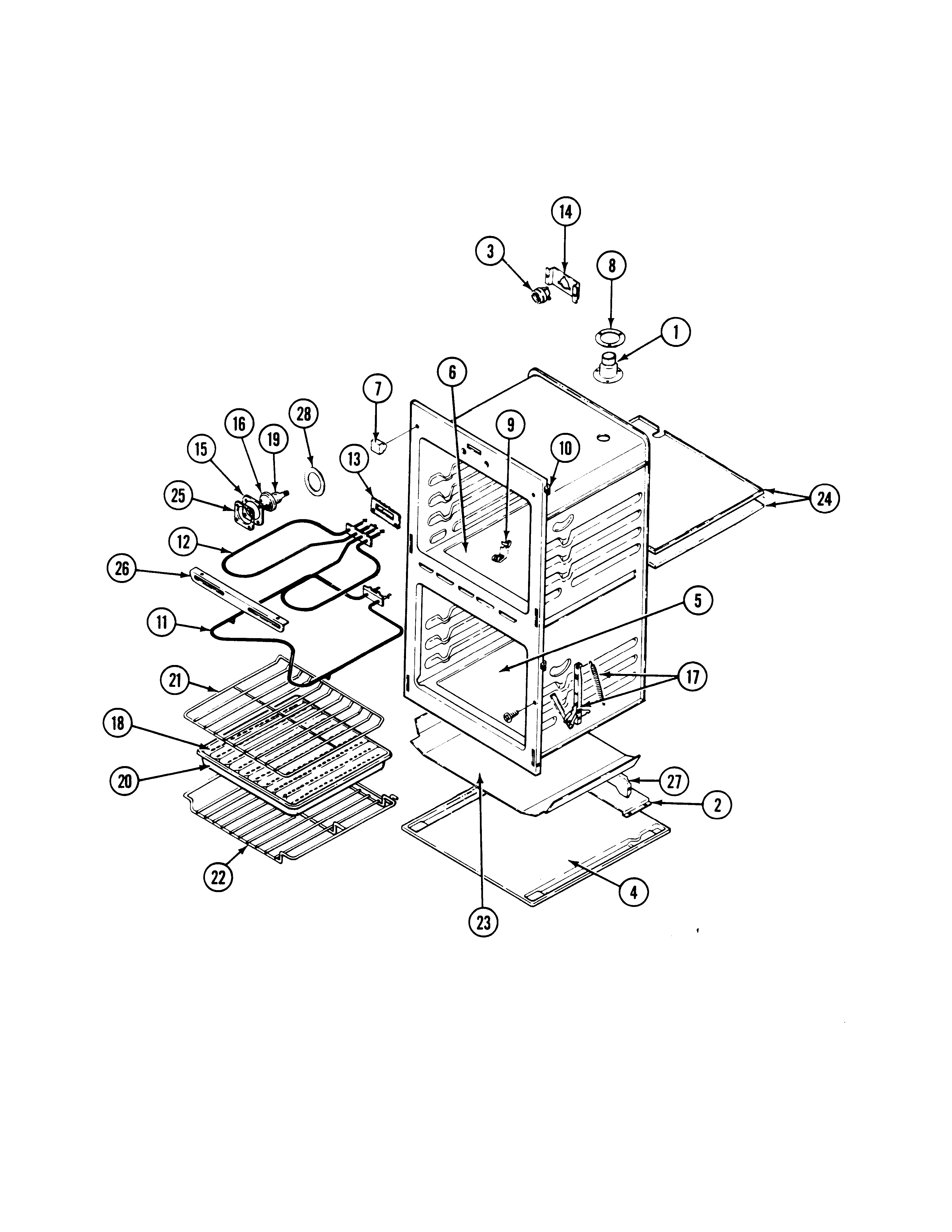

Oven (cwe5020acb, cwe5500acb) diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Seal 7208P011-60
Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Shaft, Bit G 8312P015-60
#23

Control panel (cwe5020acb, cwe5500acb) diagram

Shaft, bit g

Part #8312P015-60

Replaced by #WP8312P015-60

?
Manufacturer substitution
This part replaces 8312P015-60. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Door Seal 7212P007-60
#10

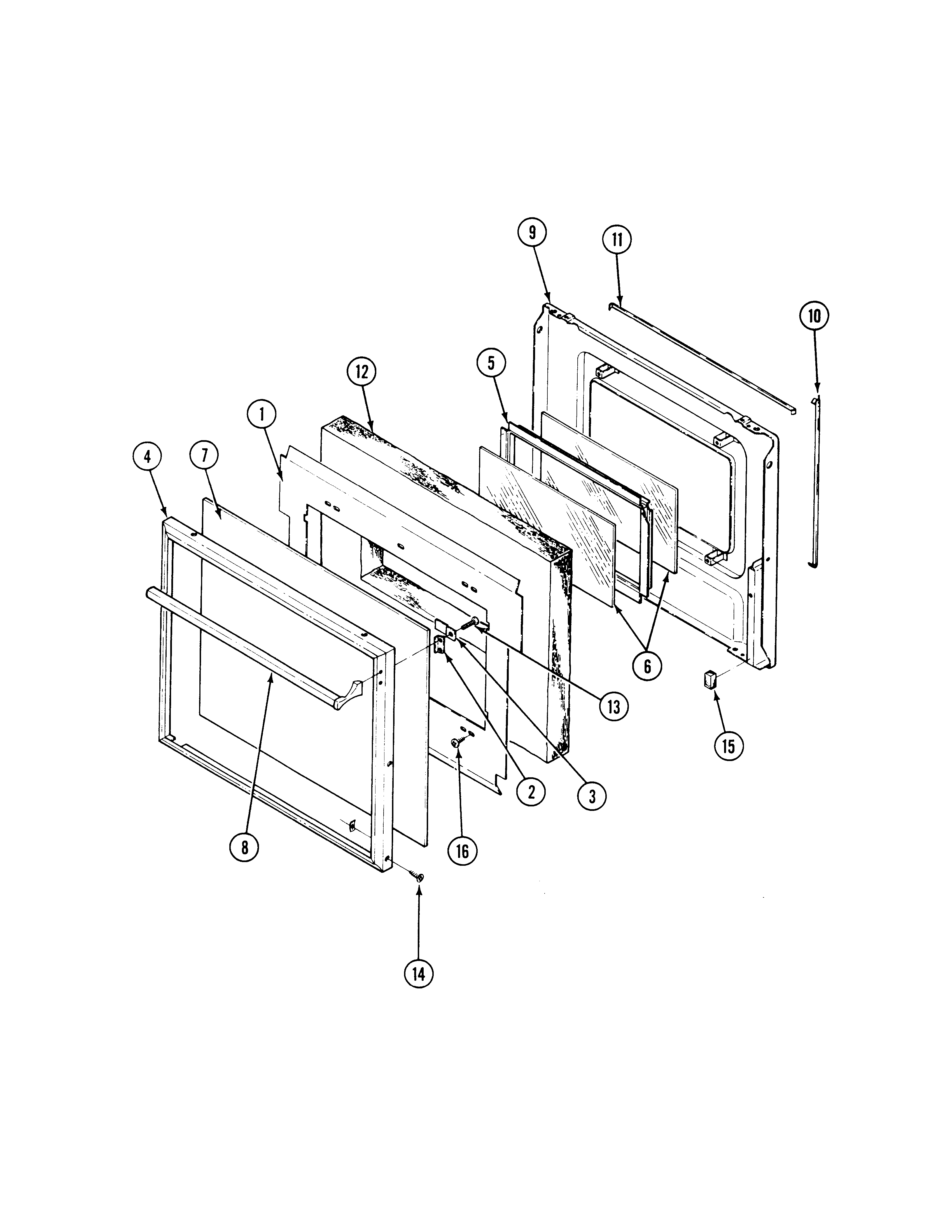

Door-lower (cwe5520acb, cwe5500acb) diagram

Door seal

Part #7212P007-60

Replaced by #WP7212P007-60

?
Manufacturer substitution
This part replaces 7212P007-60. Substitute parts can look different from the original.
$47.99 |
11% OFF Phone Price : $53.99
In Stock
Pan Insert 3413F012-19
#18

Oven (cwe5020acb, cwe5500acb) diagram

Pan insert

Part #3413F012-19

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F012-19. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
