Model # CFES3025PSA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFES3025PSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

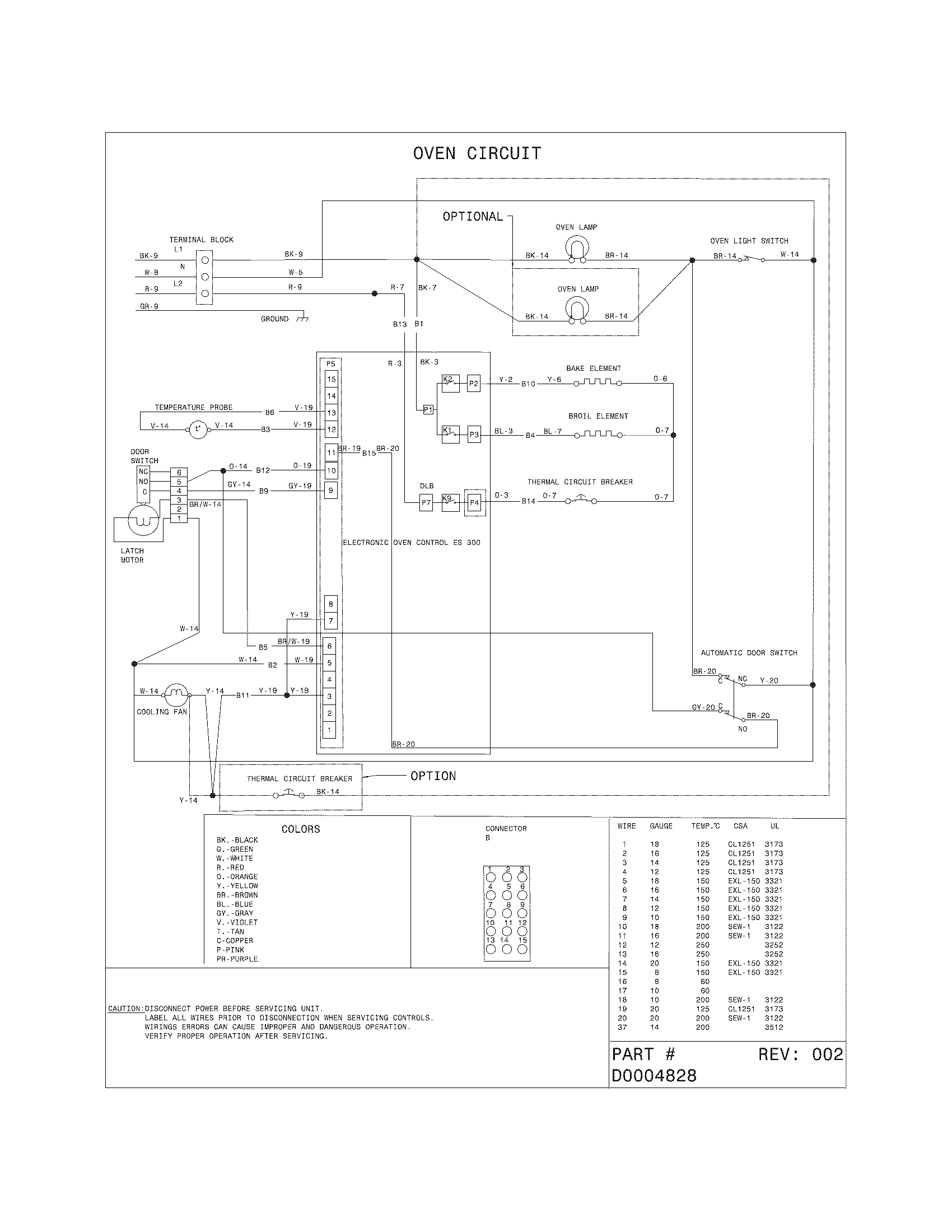

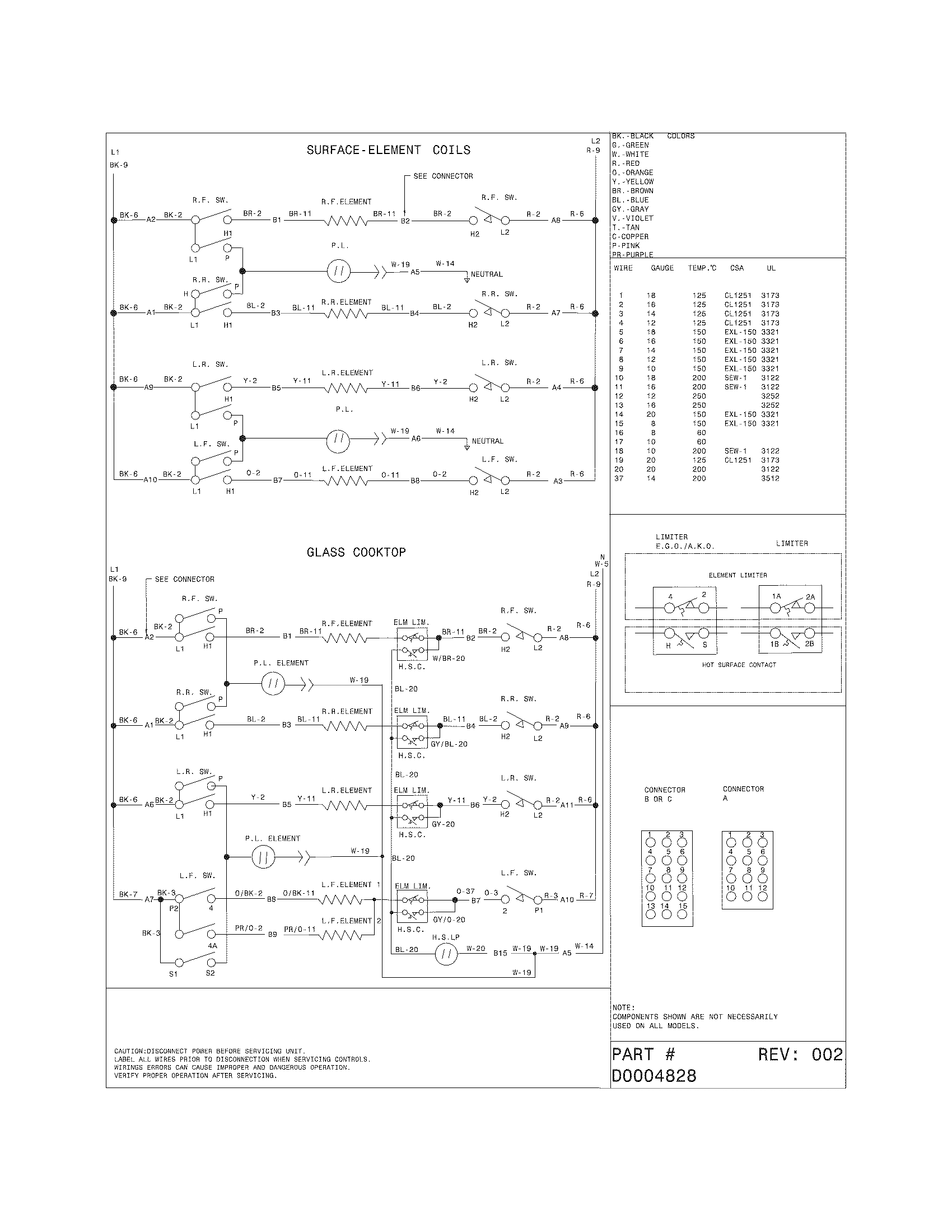

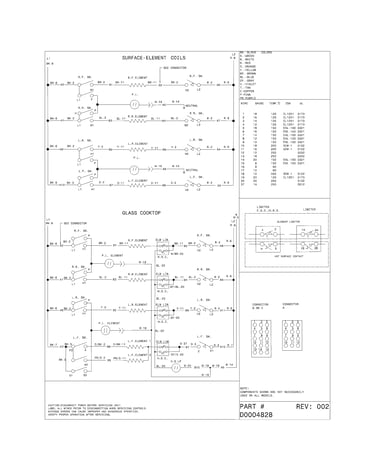

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Range Oven Temperature Sensor 318562500
#37

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

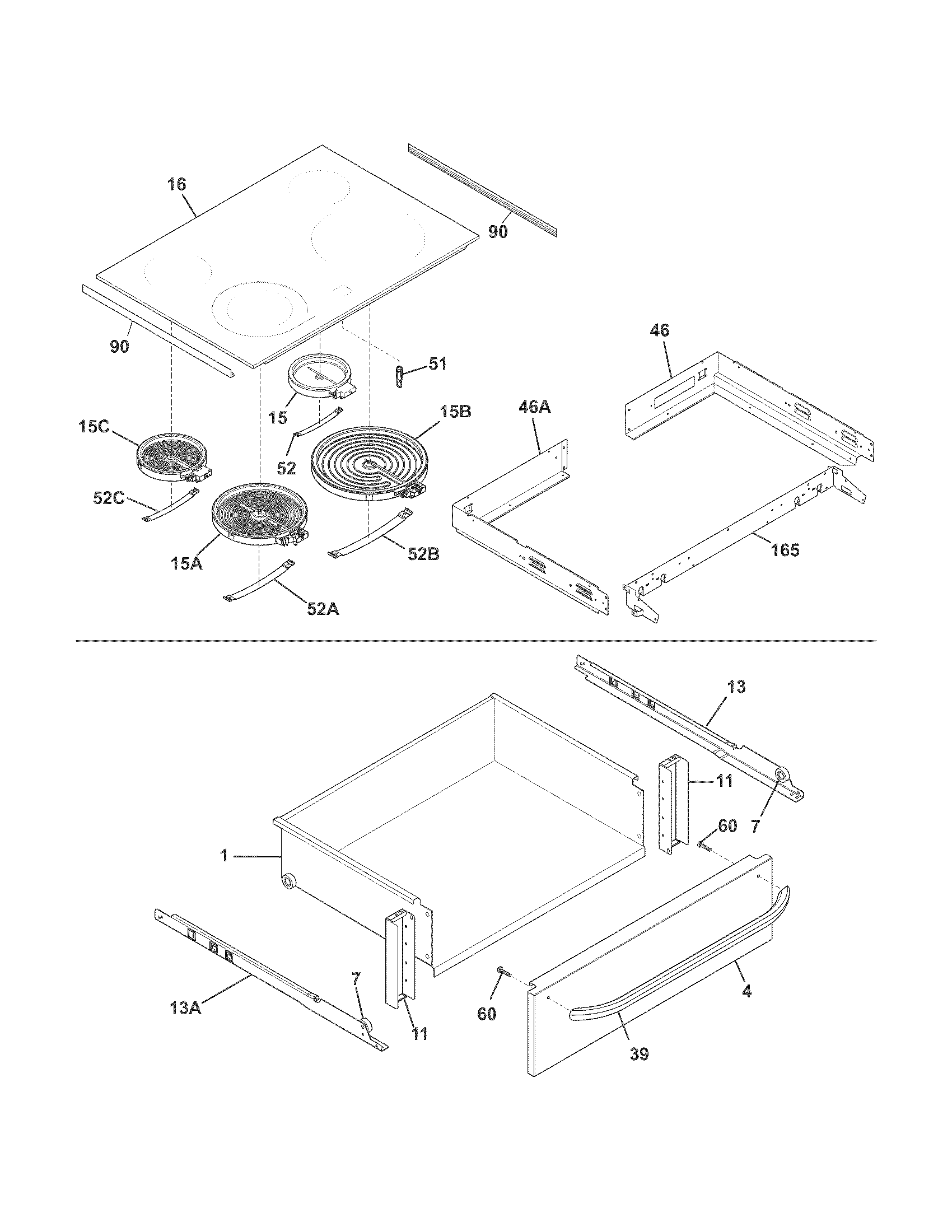

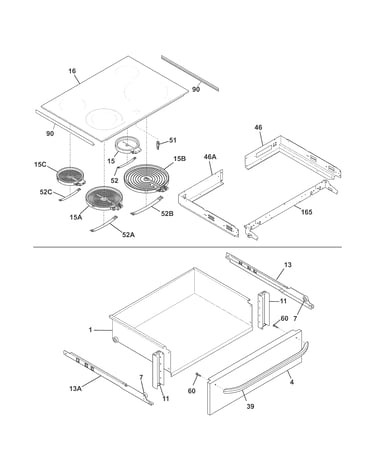

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Oven Door Inner Glass 316117502
#8

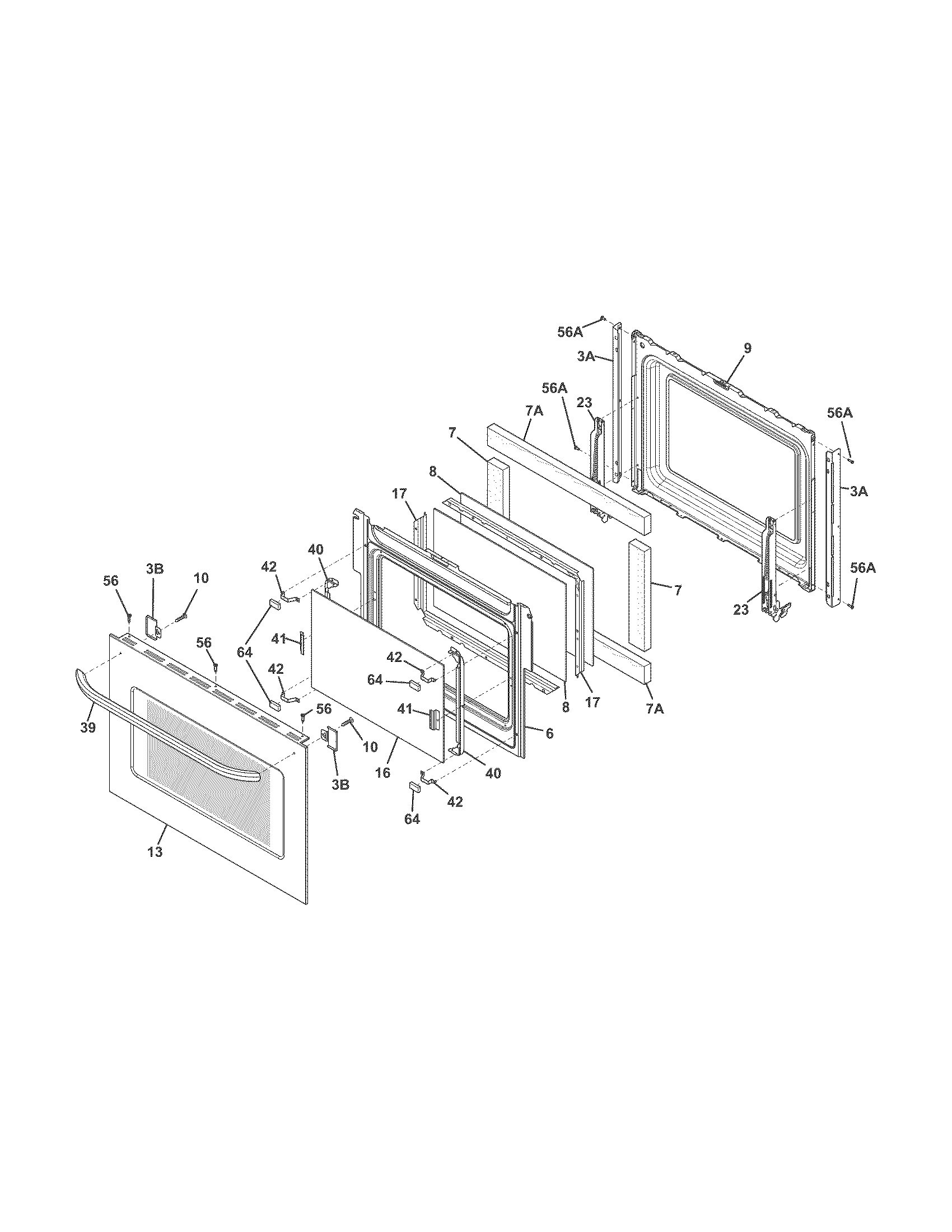

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Kenmore Range Oven Control Overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142) 316419141
#20A

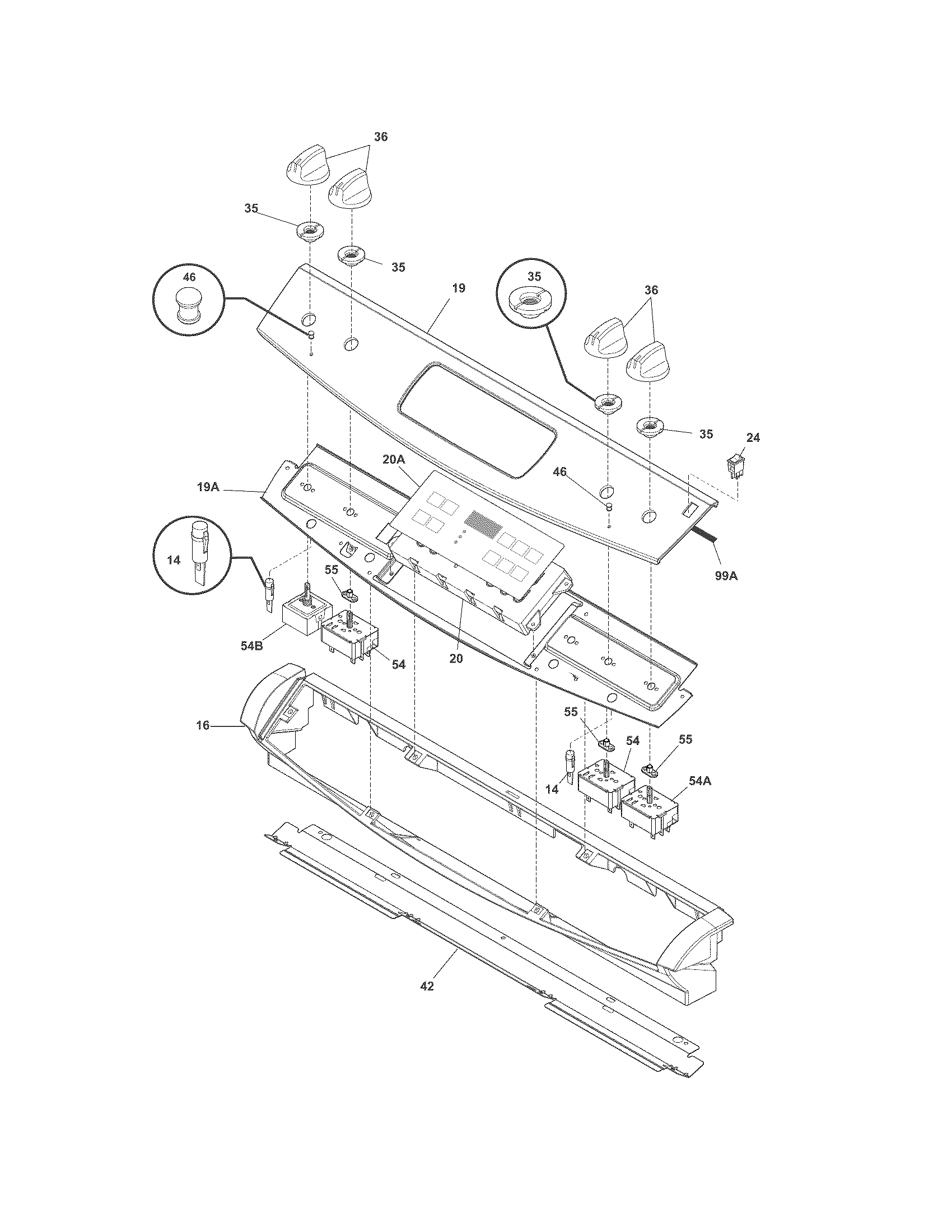

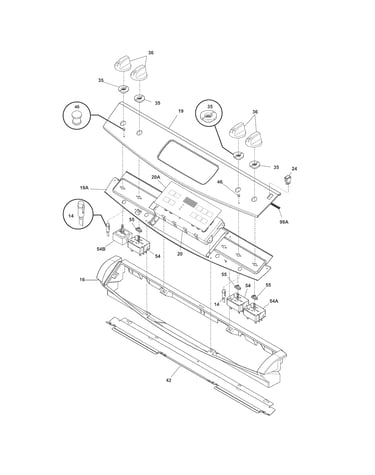

Backguard diagram

Kenmore range oven control overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142)

Part #316419141

BEST SELLER
$36.85 |
14% OFF Phone Price : $42.85
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Broil Element 139008900
#66

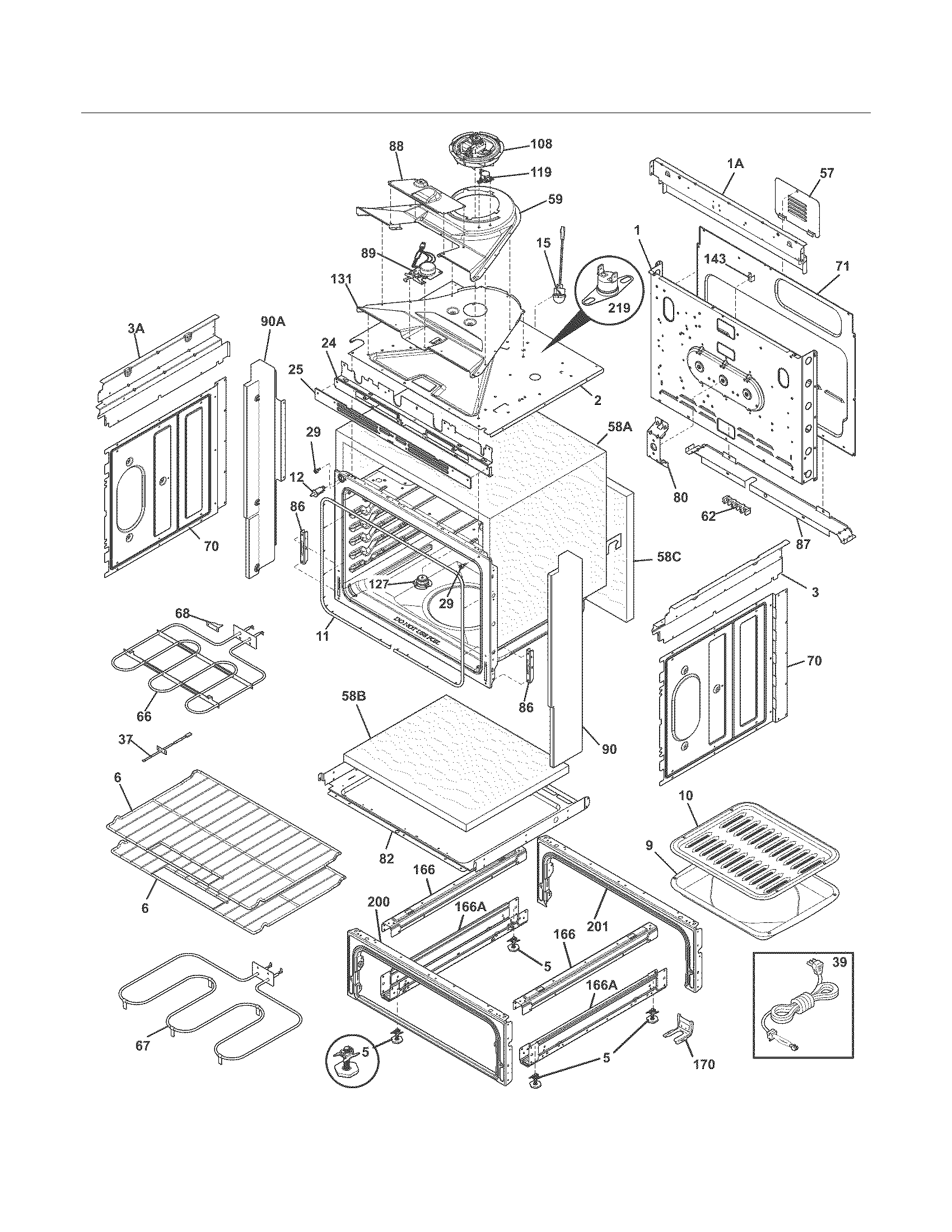

Body diagram
