Washer

Model # MAH3000AWQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAH3000AWQ washer, as well as links to manuals and error code tables, if available.

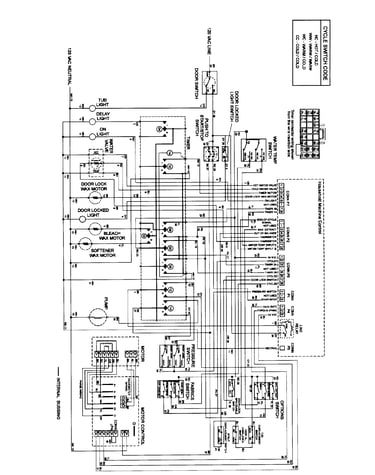

By Schematic
By Part

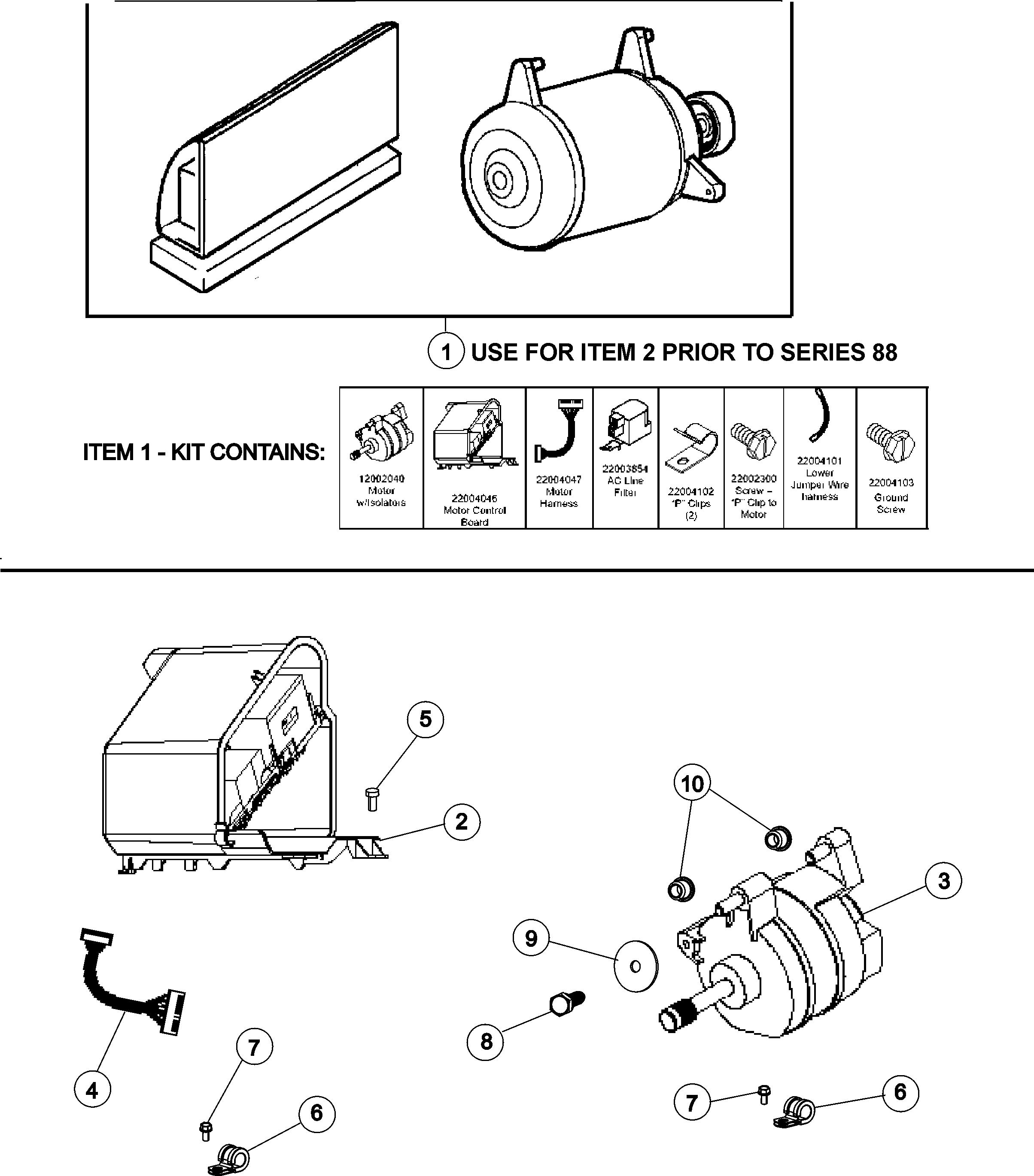

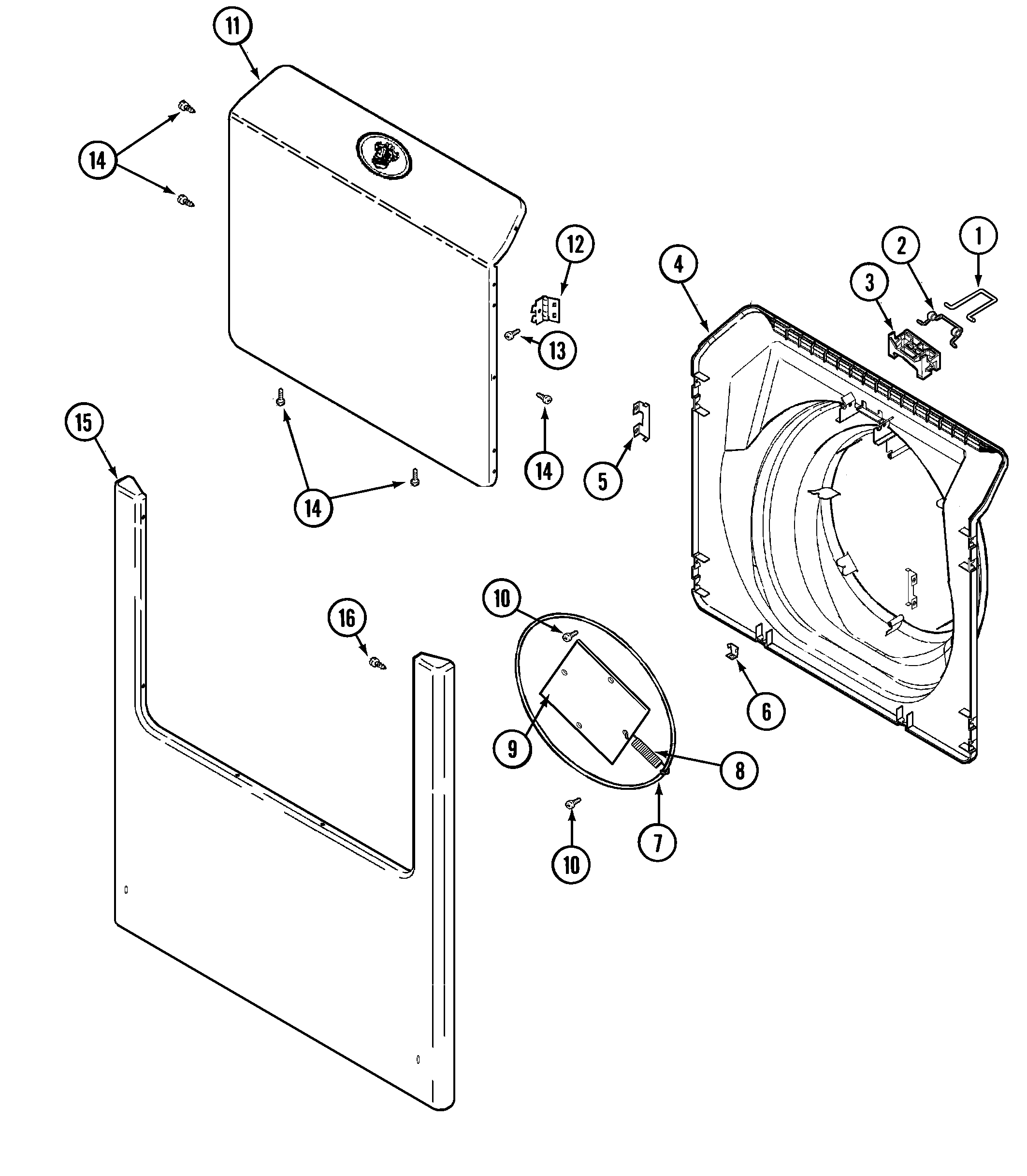

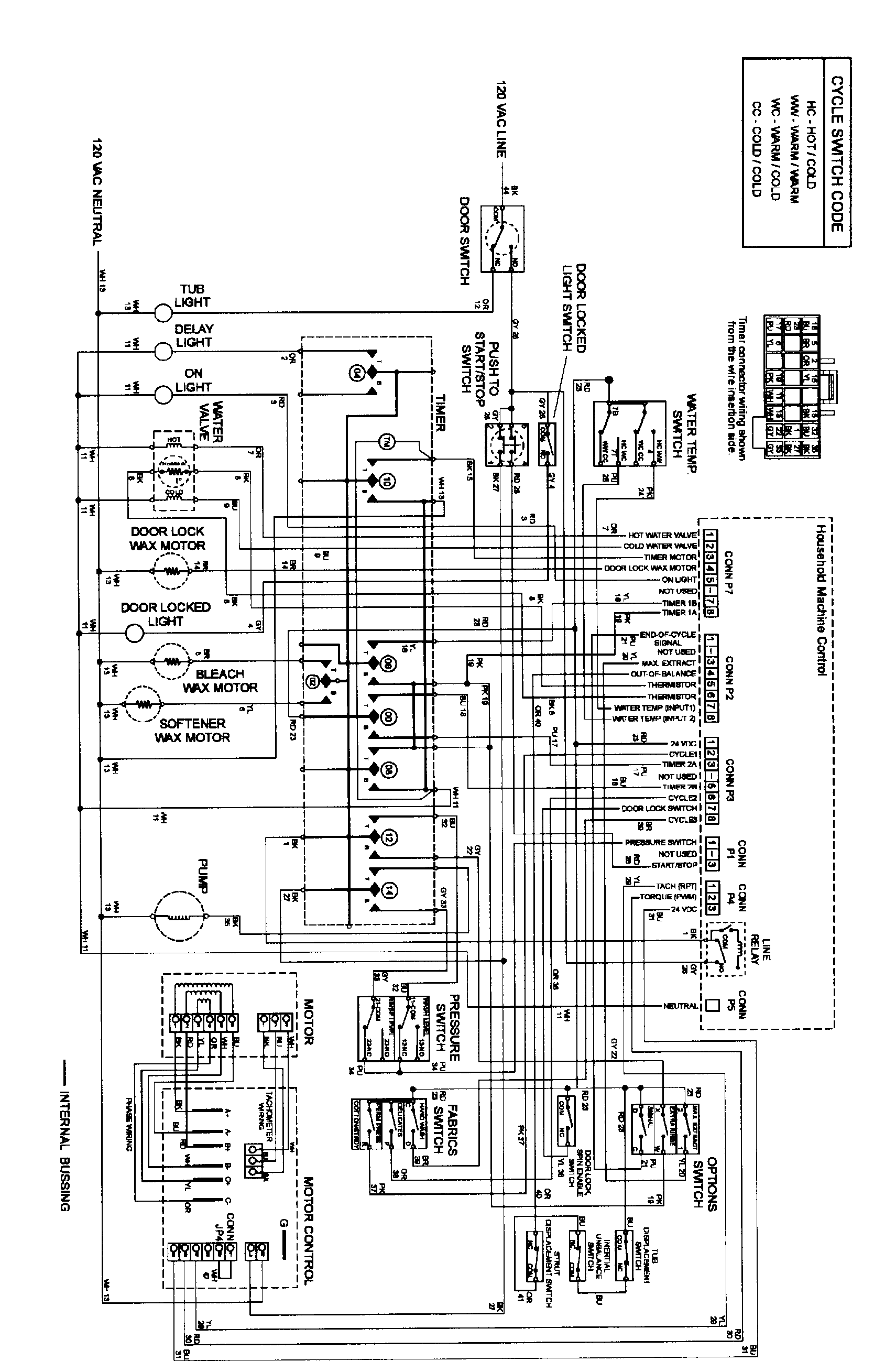

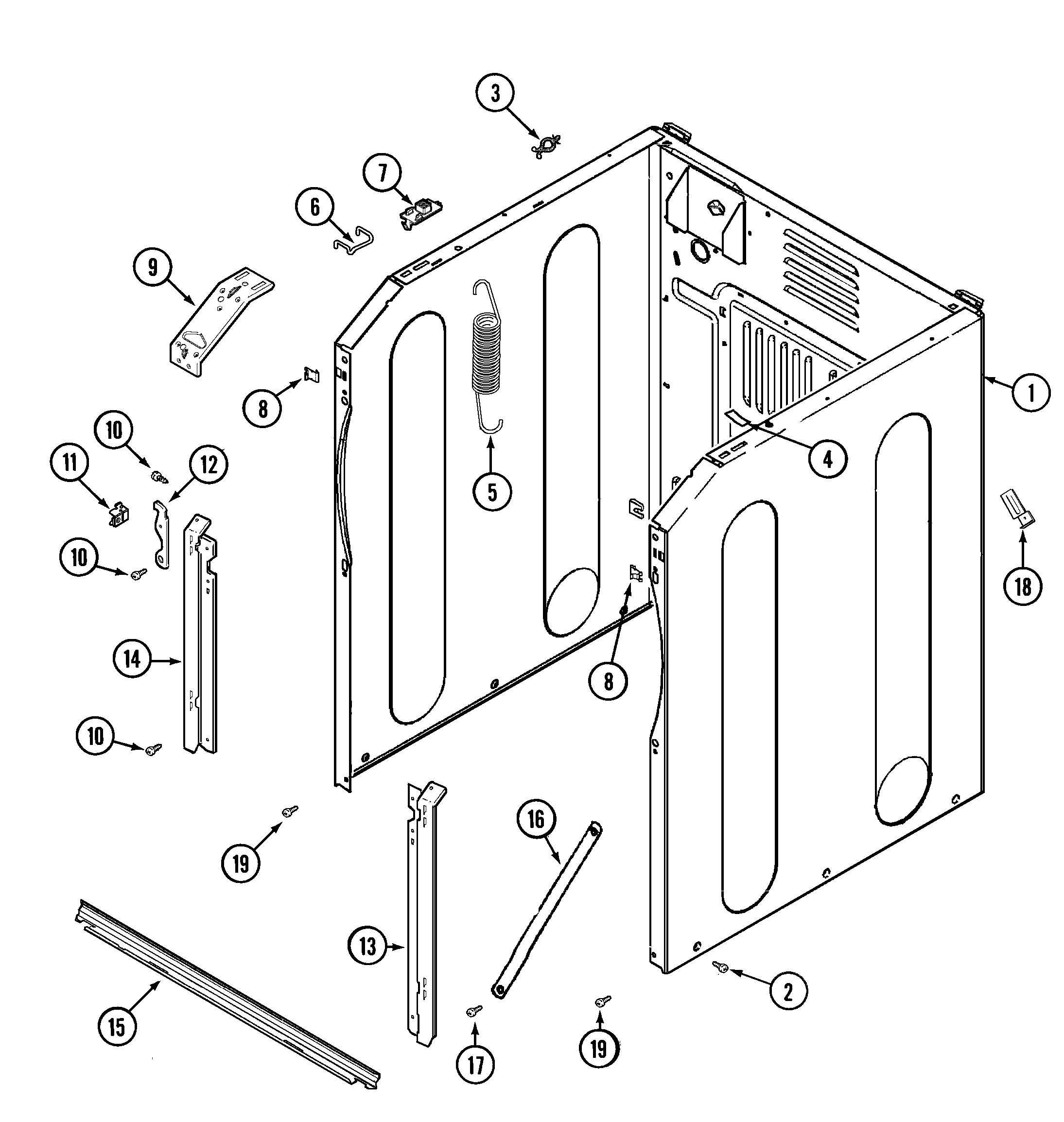

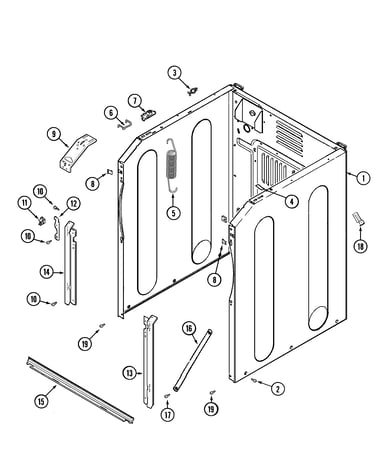

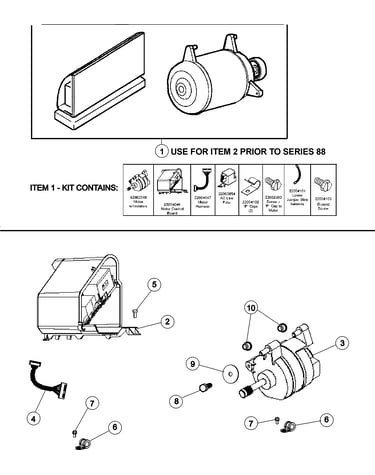

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MAH3000AWQ Washer
Clamp,hose-i 216169
#7

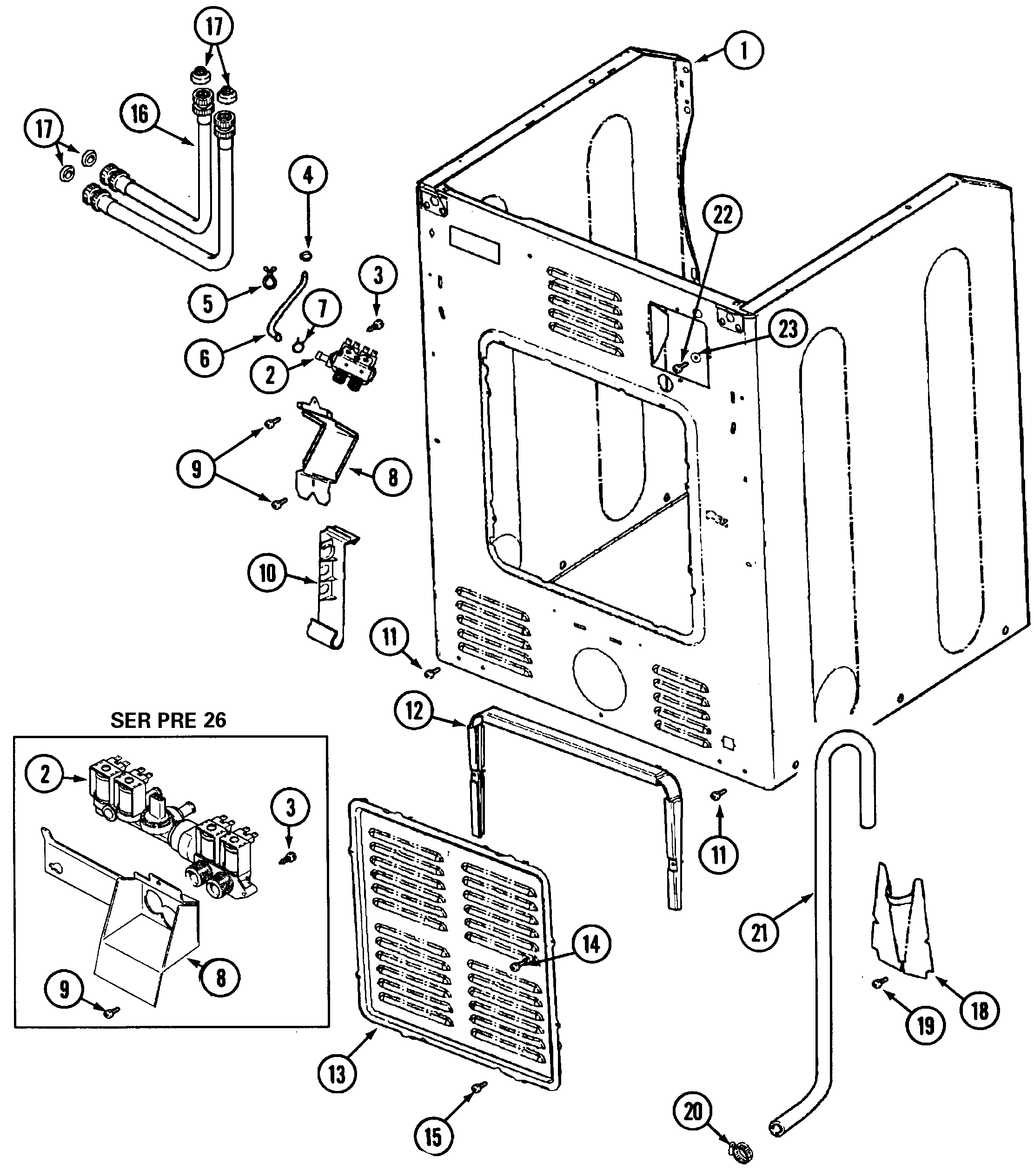

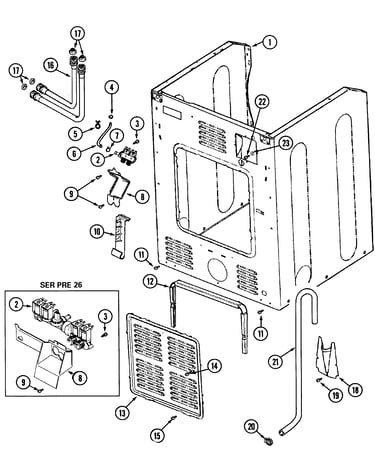

Cabinet-rear (mah3000awq) diagram

Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Washer Boot Clamp Spring 22002099
#19

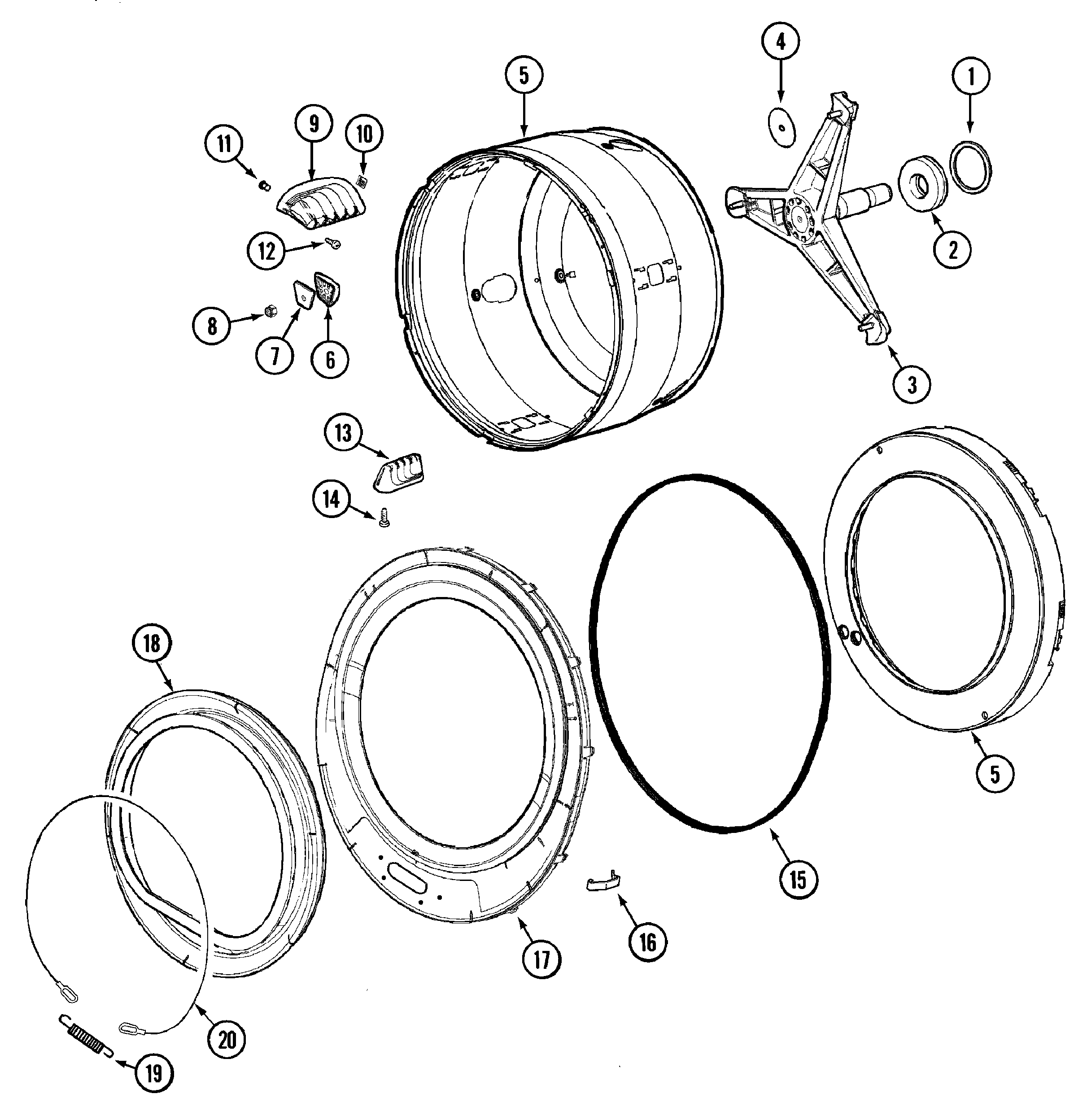

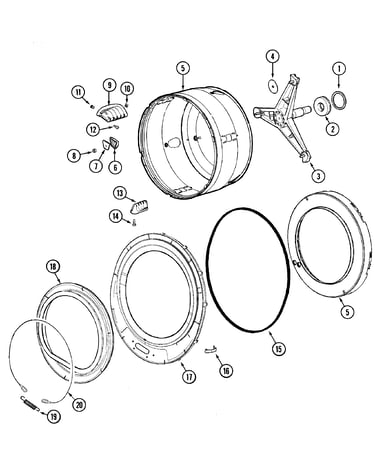

Spinner assy/outer tub cover(mah3000awq) diagram

Washer boot clamp spring

Part #22002099

Replaced by #WP22002099

?
Manufacturer substitution
This part replaces 22002099. Substitute parts can look different from the original.
$20.59
23% OFF Phone Price : $26.59
In Stock

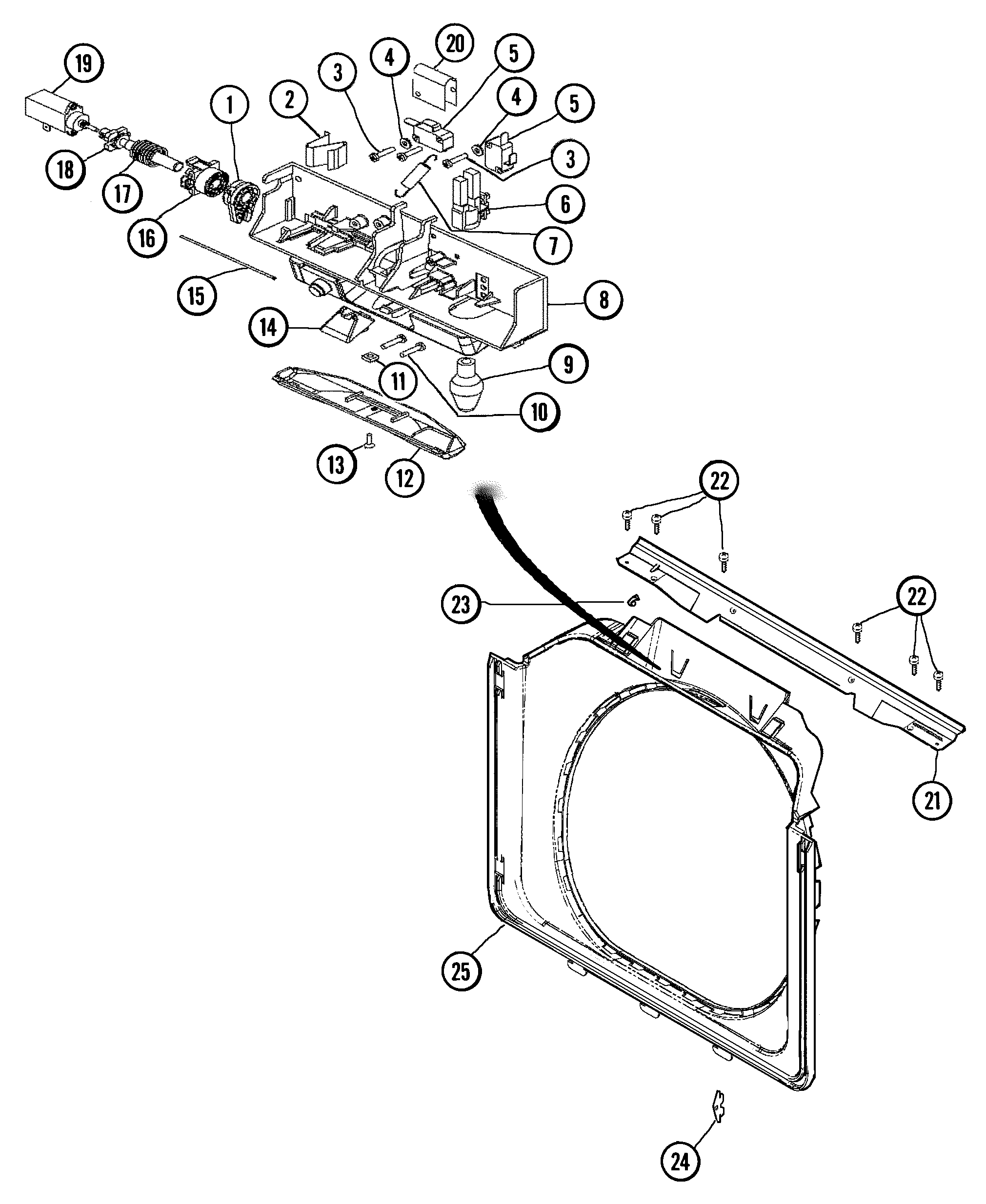

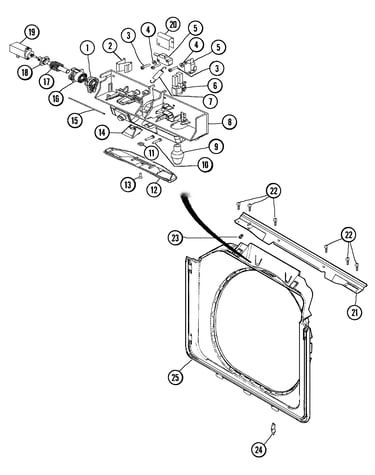

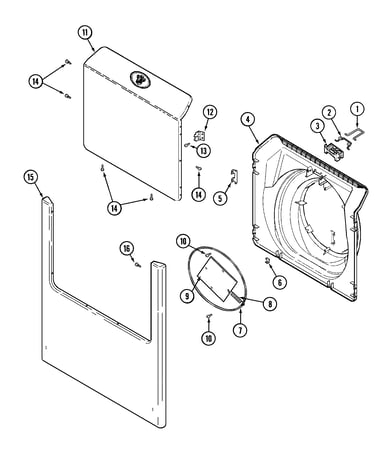

Washer Door Lock Wax Motor 22002119
Washer door lock wax motor

Part #22002119

Replaced by #WP22002119

?
Manufacturer substitution
This part replaces 22002119. Substitute parts can look different from the original.
This item is not returnable
$23.89
20% OFF Phone Price : $29.89
In Stock
Pump 22001982
#5

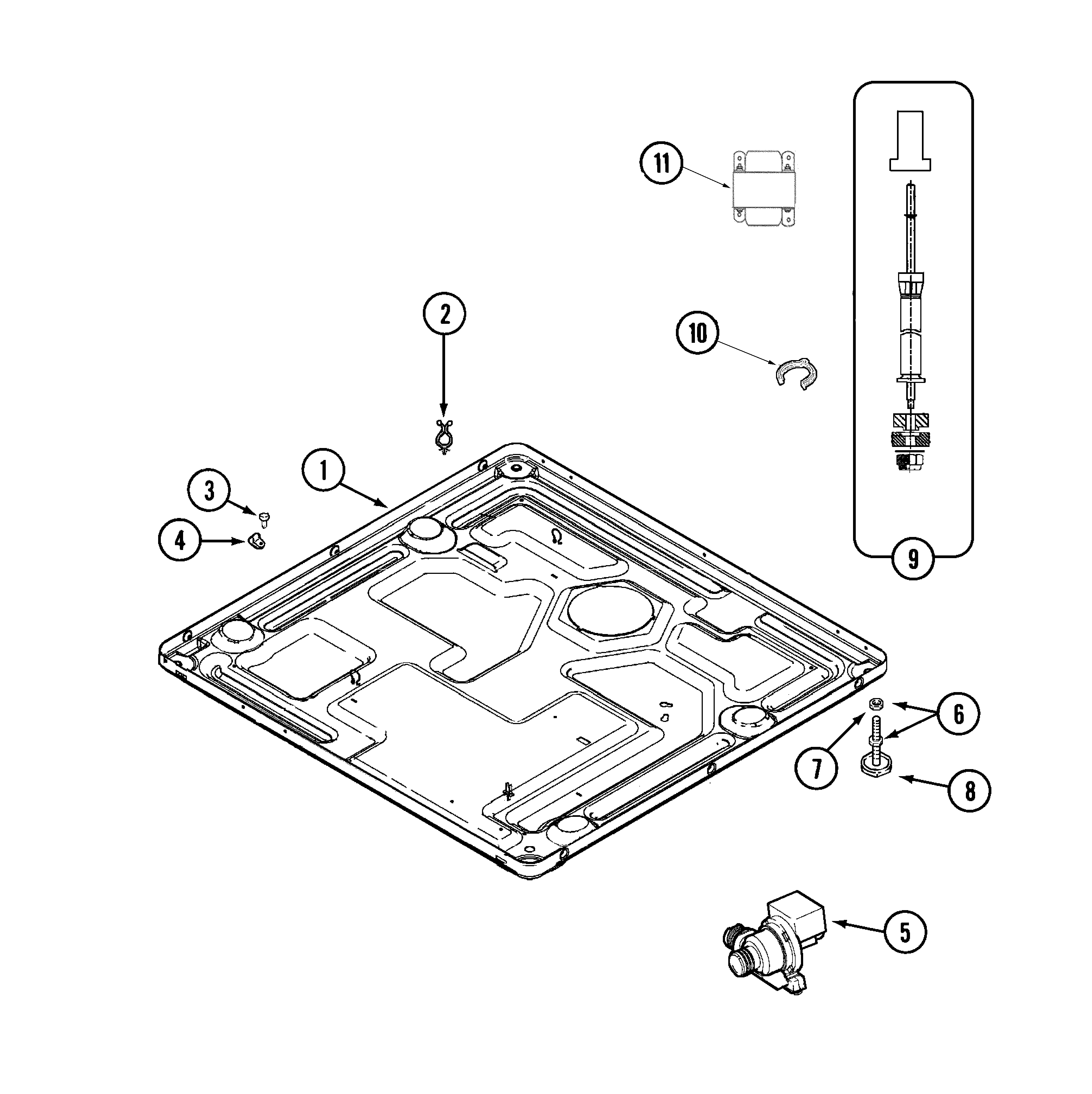

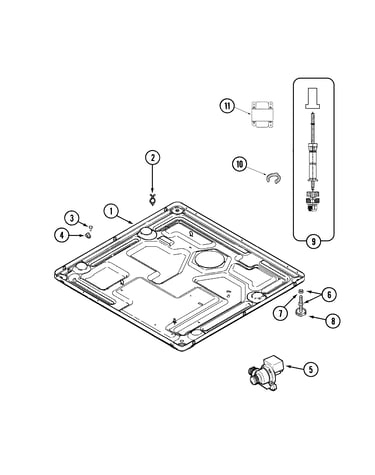

Base (mah3000awq) diagram

Pump

Part #22001982

Replaced by #WP22003059

?
Manufacturer substitution
This part replaces 22001982. Substitute parts can look different from the original.
$136.00
8% OFF Phone Price : $148.00
In Stock
Insert Screw 22002300
#3

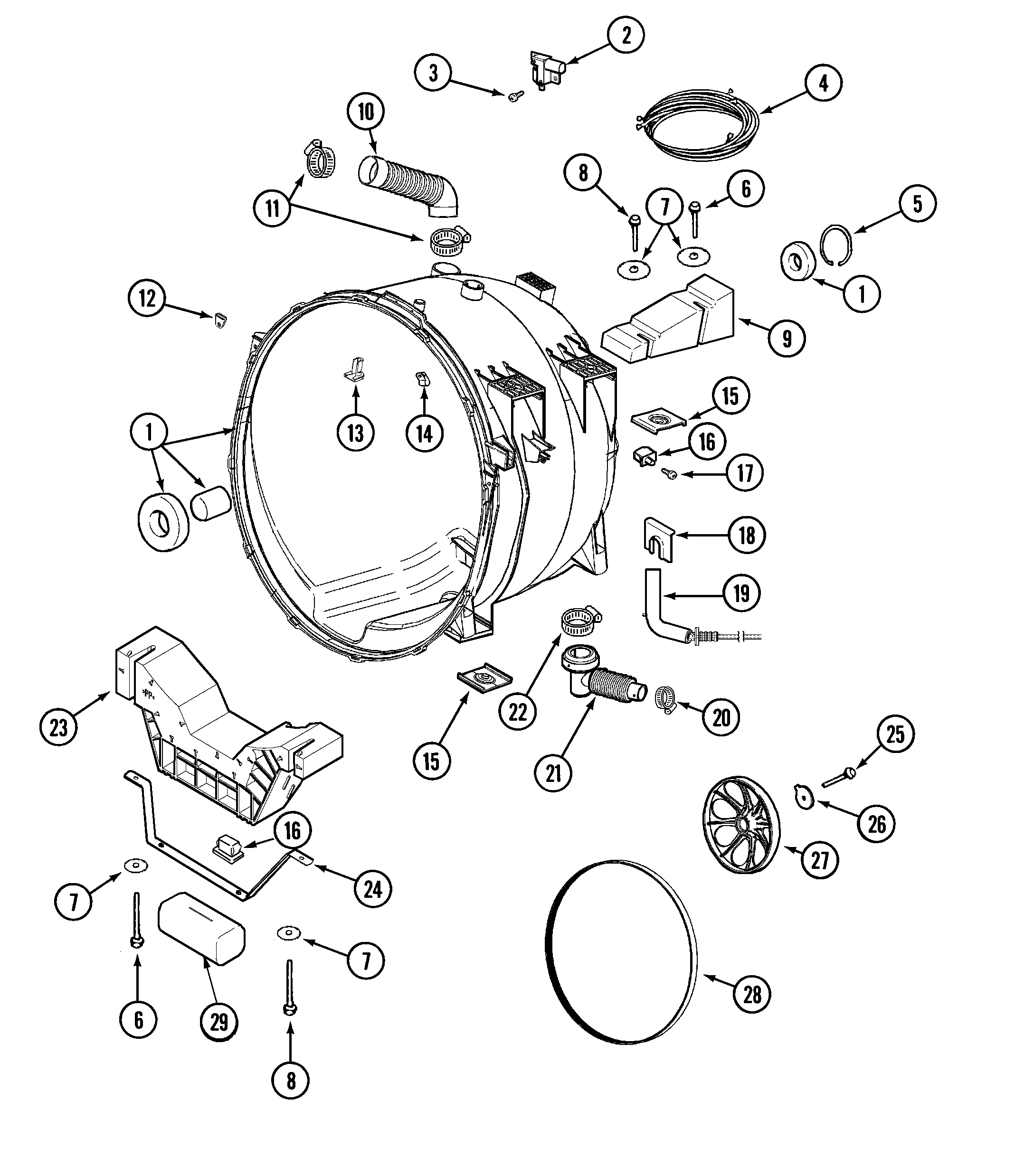

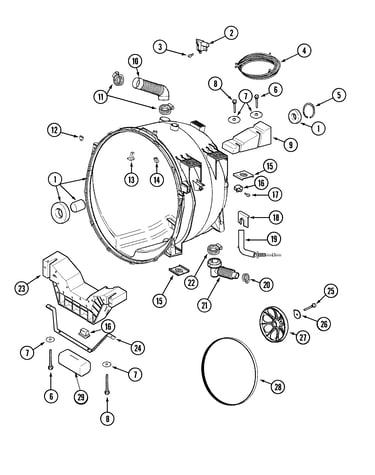

Outer tub (mah3000awq) diagram

Insert screw

Part #22002300

Replaced by #WP9740848

?
Manufacturer substitution
This part replaces 22002300. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Lip Seal Ser 12001478
#2

Spinner assy/outer tub cover(mah3000awq) diagram

Lip seal ser

Part #12001478

Replaced by #12002022

?
Manufacturer substitution
This part replaces 12001478. Substitute parts can look different from the original.
$83.21
7% OFF Phone Price : $89.21
In Stock
Sleeve Shaft 22002029
#1

Spinner assy/outer tub cover(mah3000awq) diagram

Sleeve shaft

Part #22002029

Replaced by #12002022

?
Manufacturer substitution
This part replaces 22002029. Substitute parts can look different from the original.
$83.21
7% OFF Phone Price : $89.21
In Stock
Screw Bezel 22002060
#7

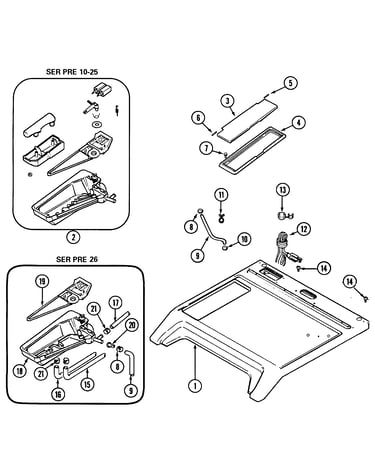

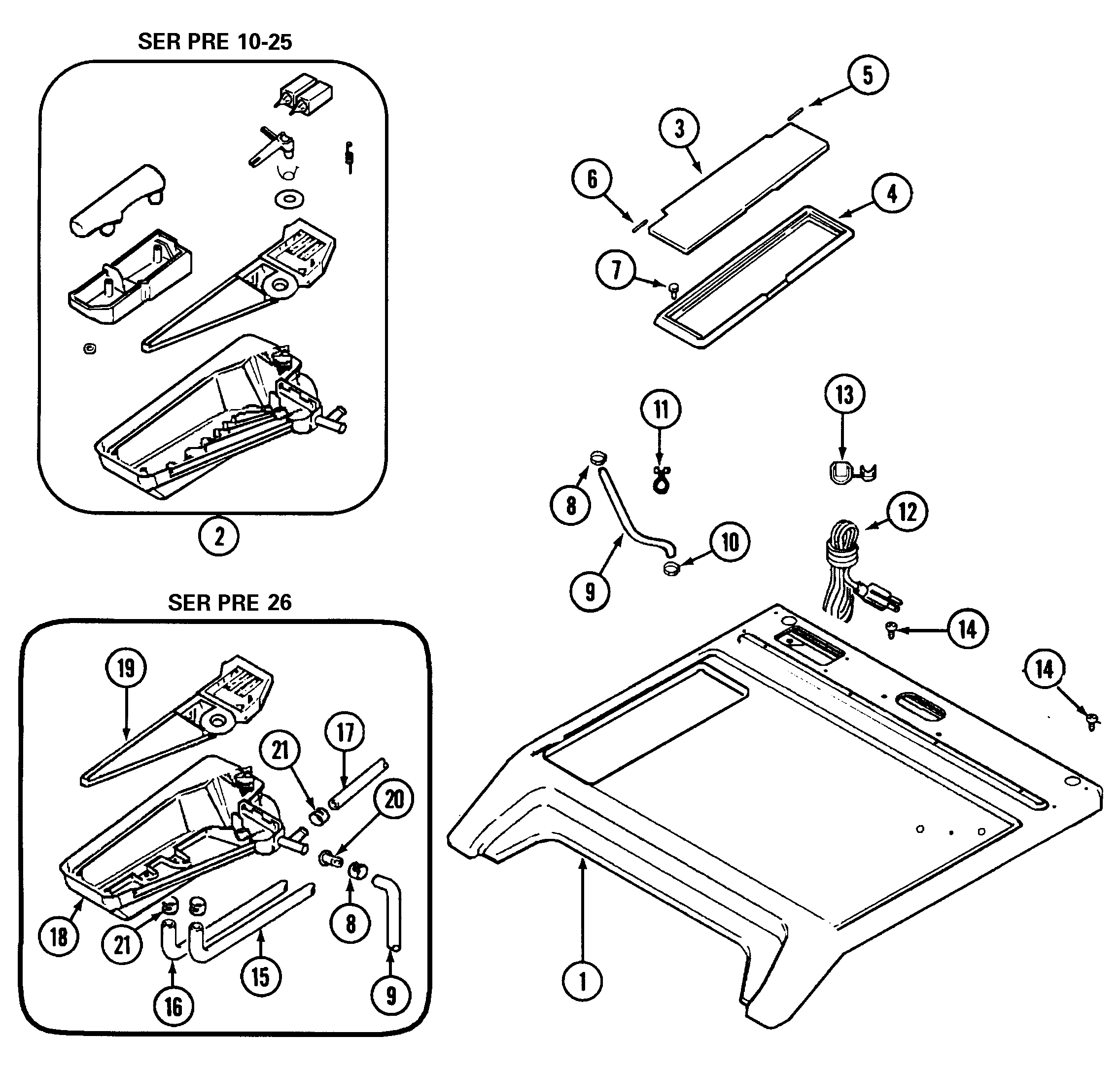

Top (mah3000awq) diagram

Screw bezel

Part #22002060

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 22002060. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Spin Pulley 22001998
#27

Outer tub (mah3000awq) diagram

Spin pulley

Part #22001998

Replaced by #22002315

?
Manufacturer substitution
This part replaces 22001998. Substitute parts can look different from the original.
$101.76
11% OFF Phone Price : $113.76
In Stock
Washer Timer 22002441
#9

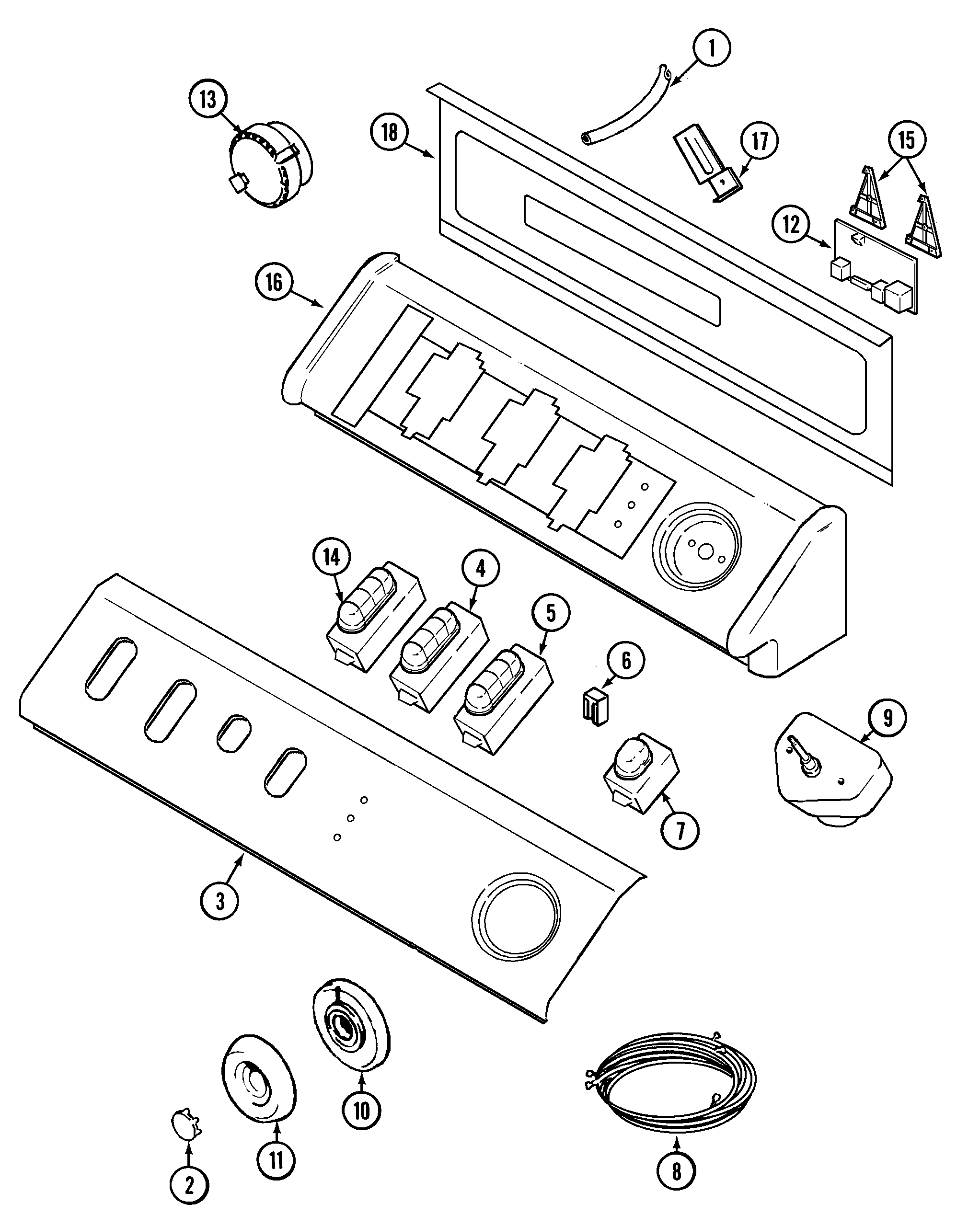

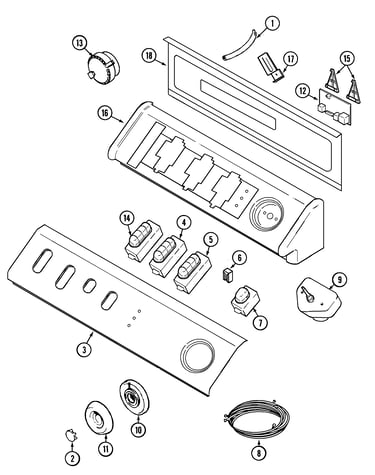

Control panel (mah3000awq) diagram

Washer timer

Part #22002441

Replaced by #WP22002441

?
Manufacturer substitution
This part replaces 22002441. Substitute parts can look different from the original.
$259.58
$12.00 OFF Phone Price : $271.58
In Stock
