GE
Compact Refrigerator

Model # GMR06AAZAWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GMR06AAZAWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Refrigerator Door Handle Assembly WR12X10985
#8

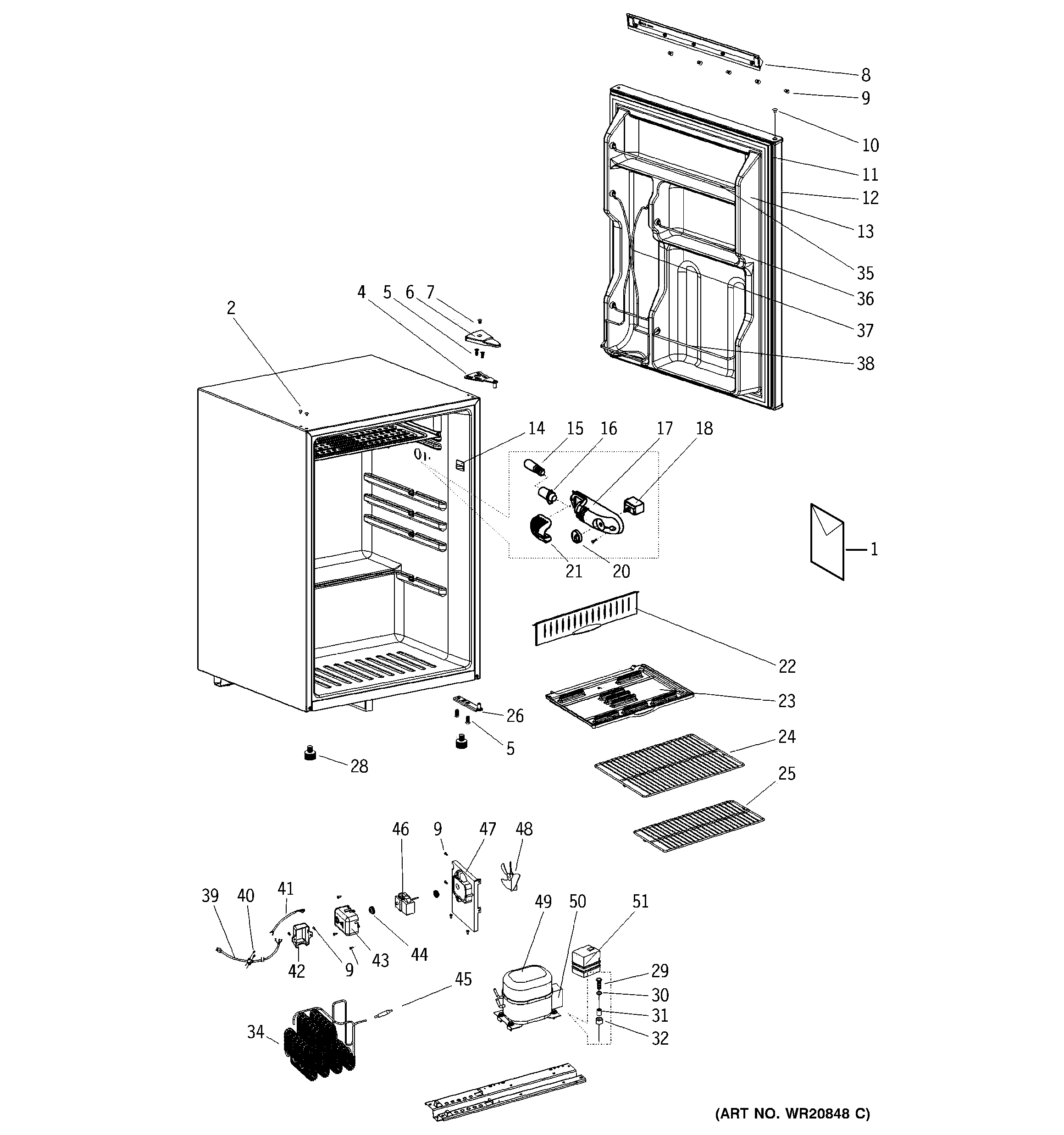

Refrigerator diagram

Refrigerator door handle assembly

Part #WR12X10985

This item is not returnable
$14.31 |
12% OFF Phone Price : $16.31
In Stock
Thermostat Blower WR17X12941
#17

Refrigerator diagram

Thermostat blower

Part #WR17X12941

$28.07 |
18% OFF Phone Price : $34.07
In Stock
Compressor E WR23X10701
#41

Refrigerator diagram

Compressor e

Part #WR23X10701

This item is not returnable
$5.00
In Stock
Refrigerator Power Cord WR23X10614
#39

Refrigerator diagram

Refrigerator power cord

Part #WR23X10614

$34.12 |
15% OFF Phone Price : $40.12
In Stock
Refrigerator Hinge, Upper WR13X10902
#4

Refrigerator diagram

Refrigerator hinge, upper

Part #WR13X10902

$10.20
In Stock
Axis Cover WR02X13441
#10

Refrigerator diagram

Axis cover

Part #WR02X13441

This item is not returnable
$5.00
In Stock
Condensator WR84X10100
#34

Refrigerator diagram

Condensator

Part #WR84X10100

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Refrigerator Hinge Cover, Upper WR02X13433
#6

Refrigerator diagram

Refrigerator hinge cover, upper

Part #WR02X13433

$8.11
In Stock
Refrigerator Evaporator Access Door WR37X10016
#22

Refrigerator diagram

Refrigerator evaporator access door

Part #WR37X10016

$31.51 |
16% OFF Phone Price : $37.51
In Stock
Motor Box WR13X10905
#43

Refrigerator diagram

Motor box

Part #WR13X10905

$8.11
In Stock
