Model # TJ20N-P1106114W Official Amana top-mount stor-mor free-o-frost refrigerator

Here are the diagrams and repair parts for Official Amana TJ20N-P1106114W top-mount stor-mor free-o-frost refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

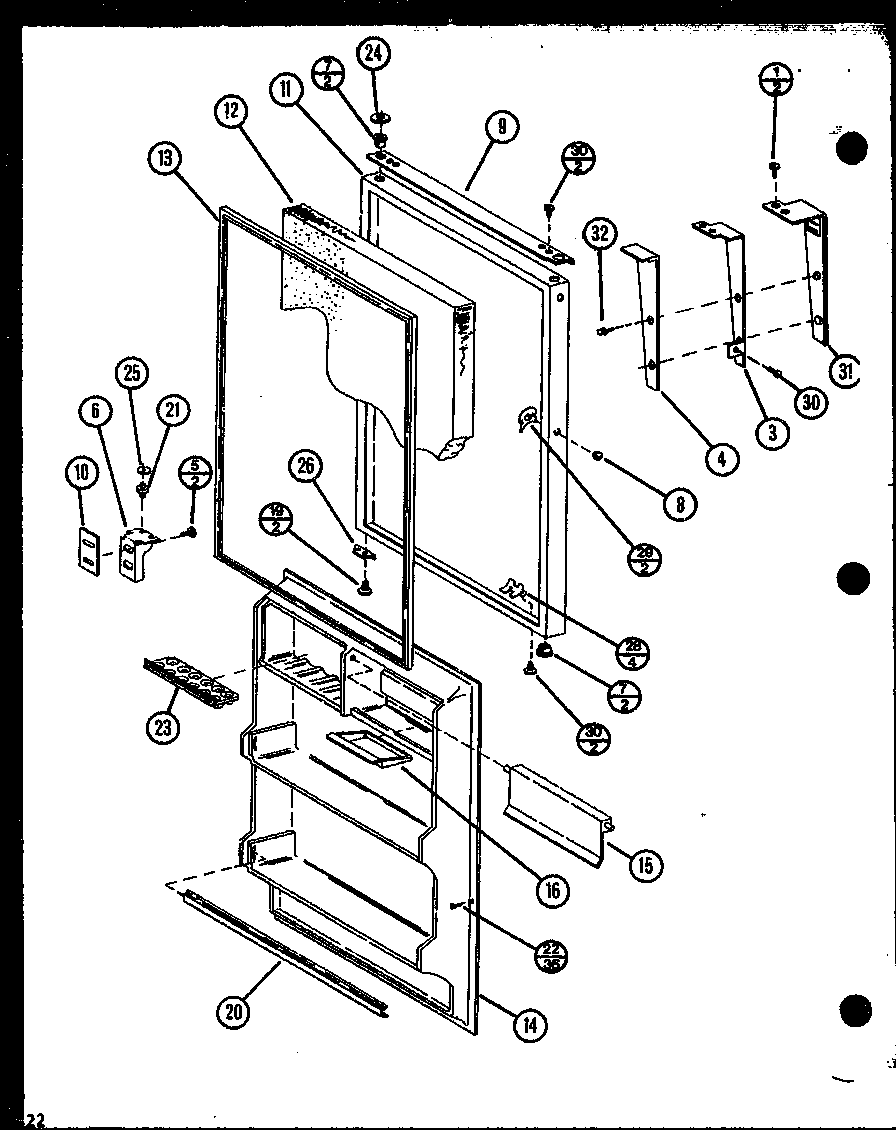

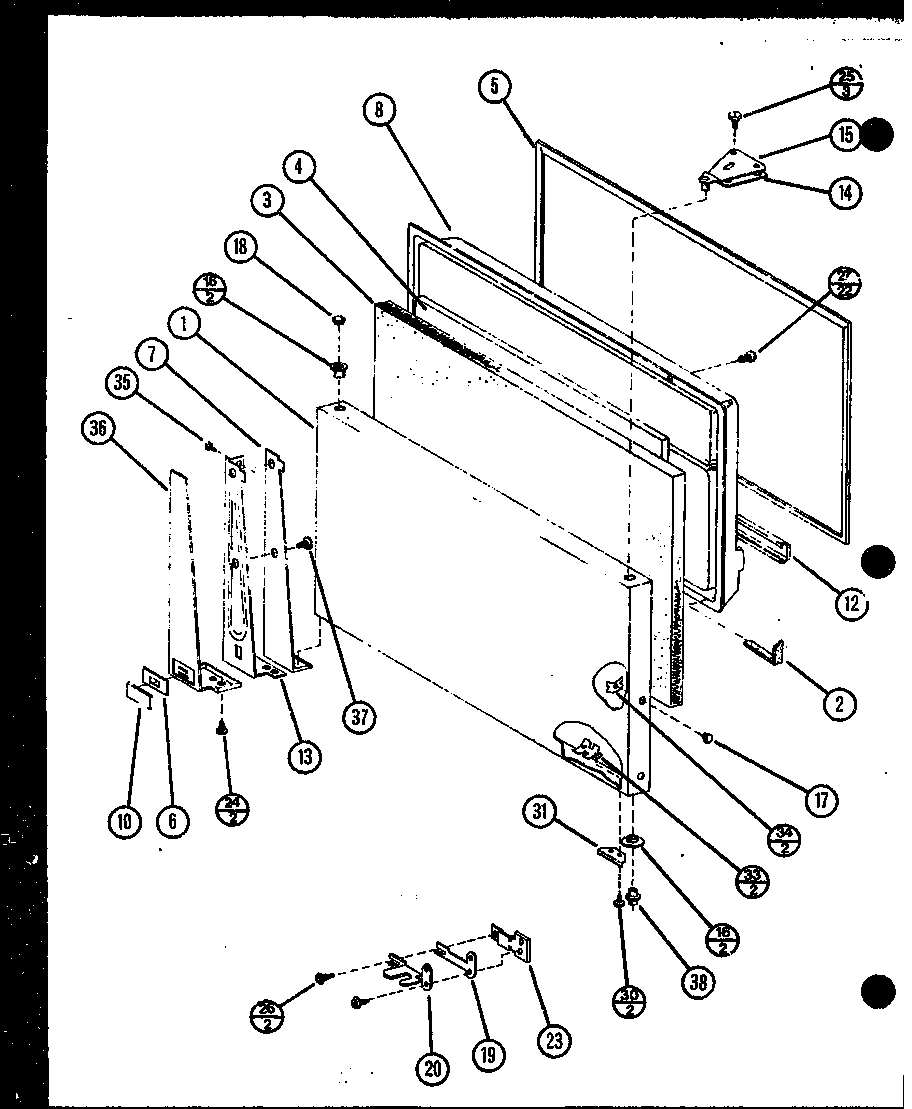

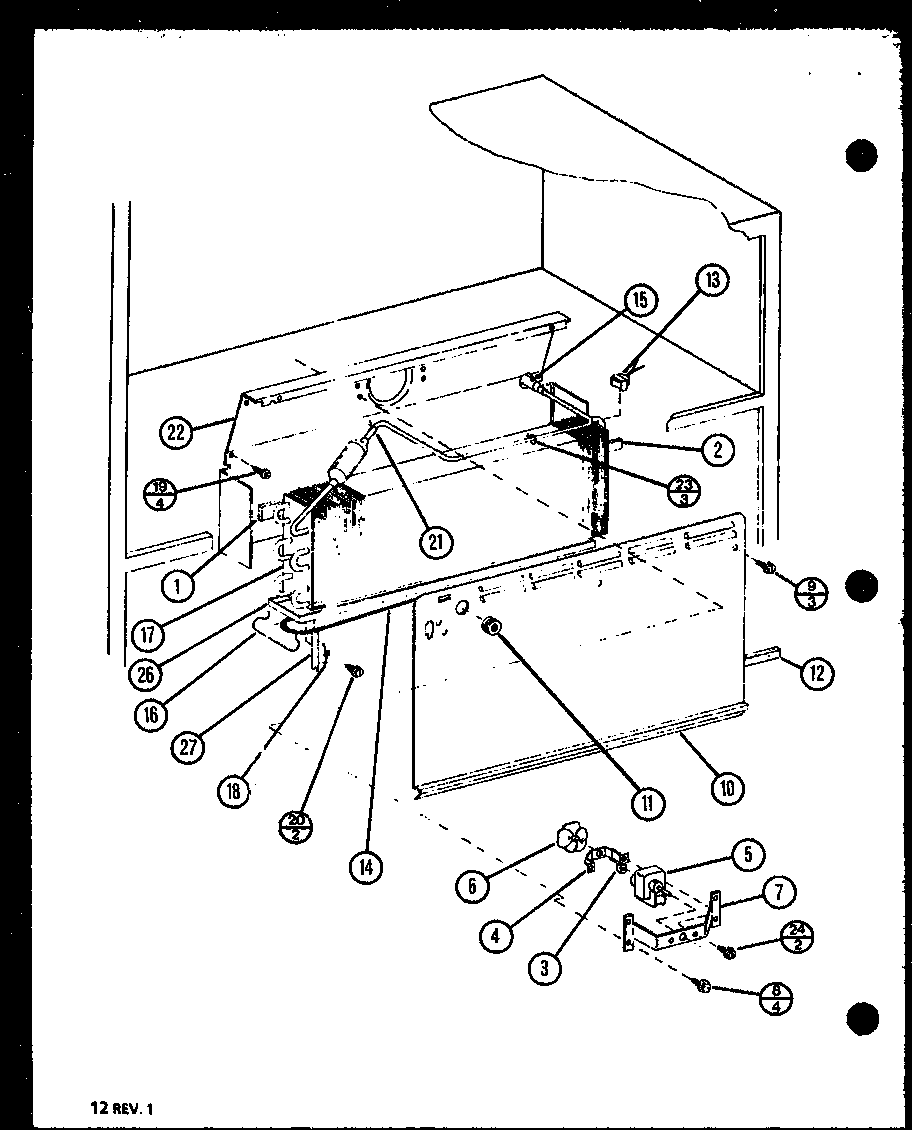

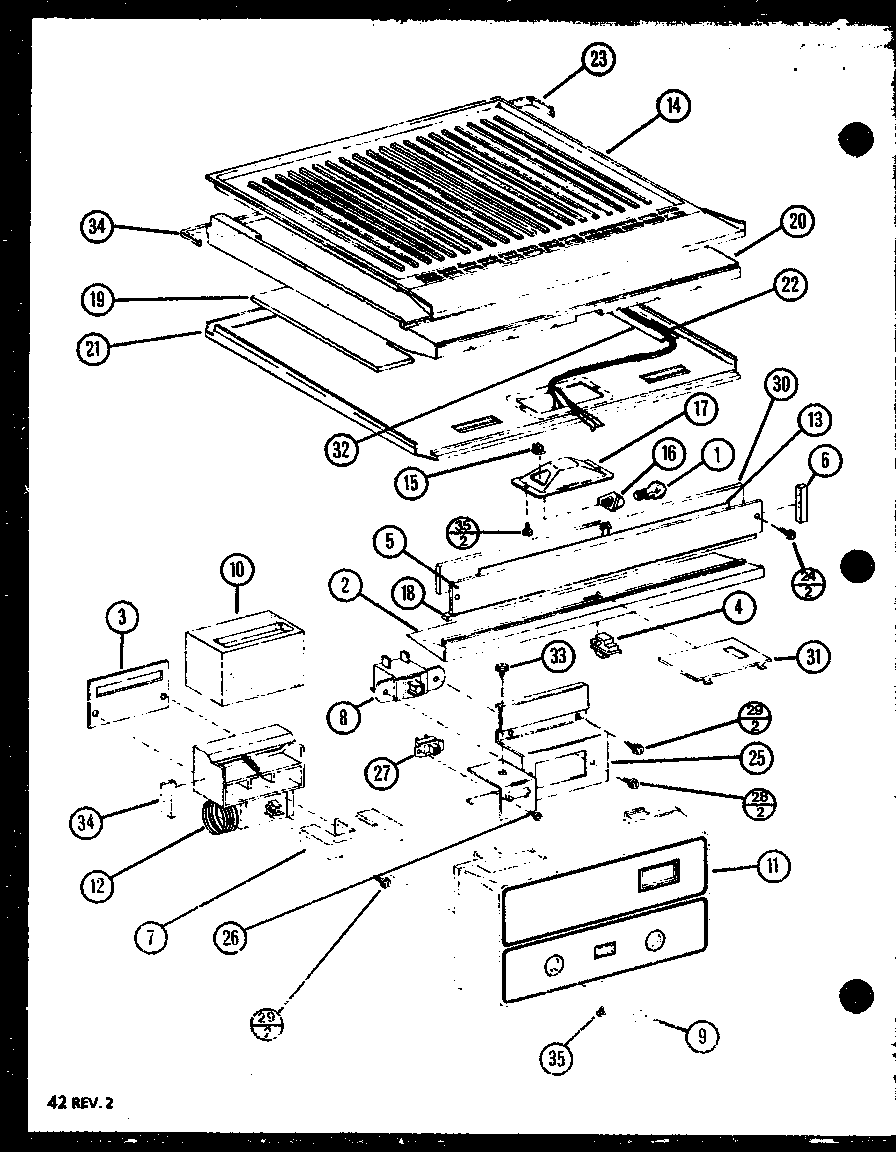

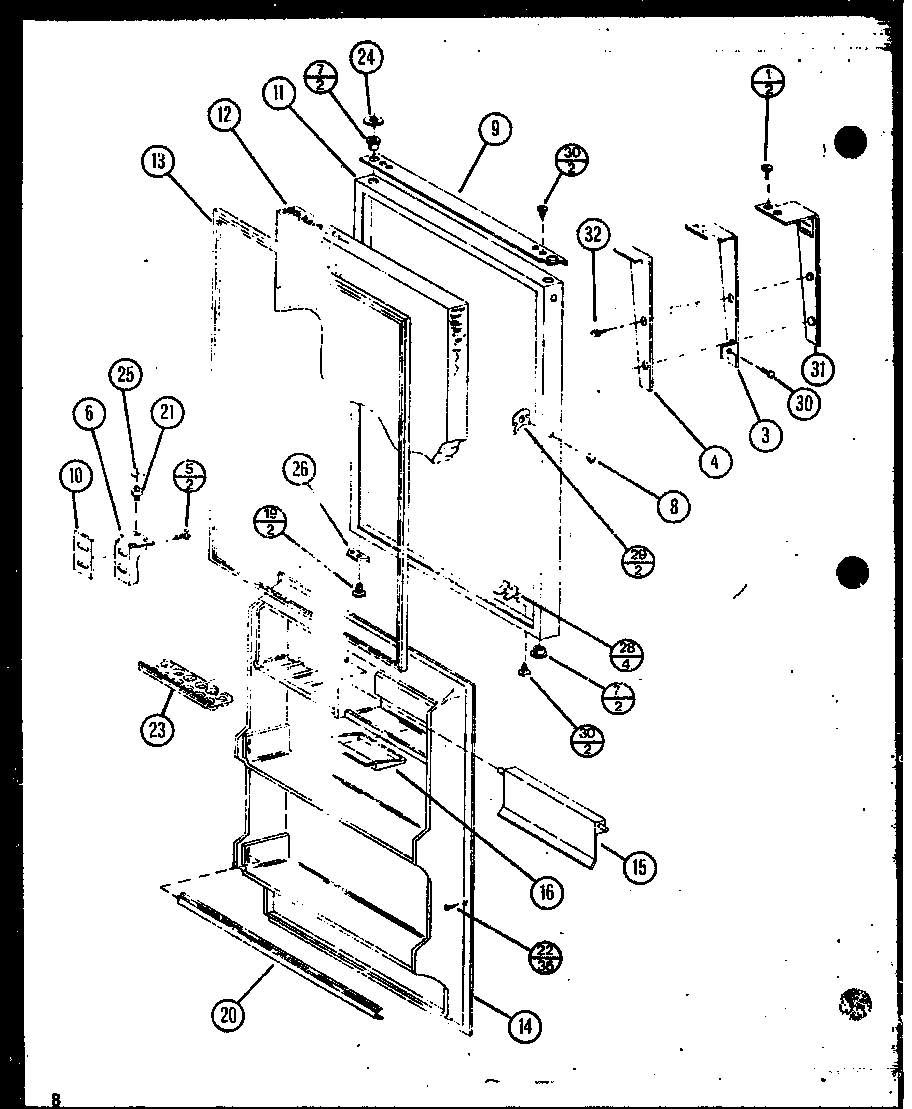

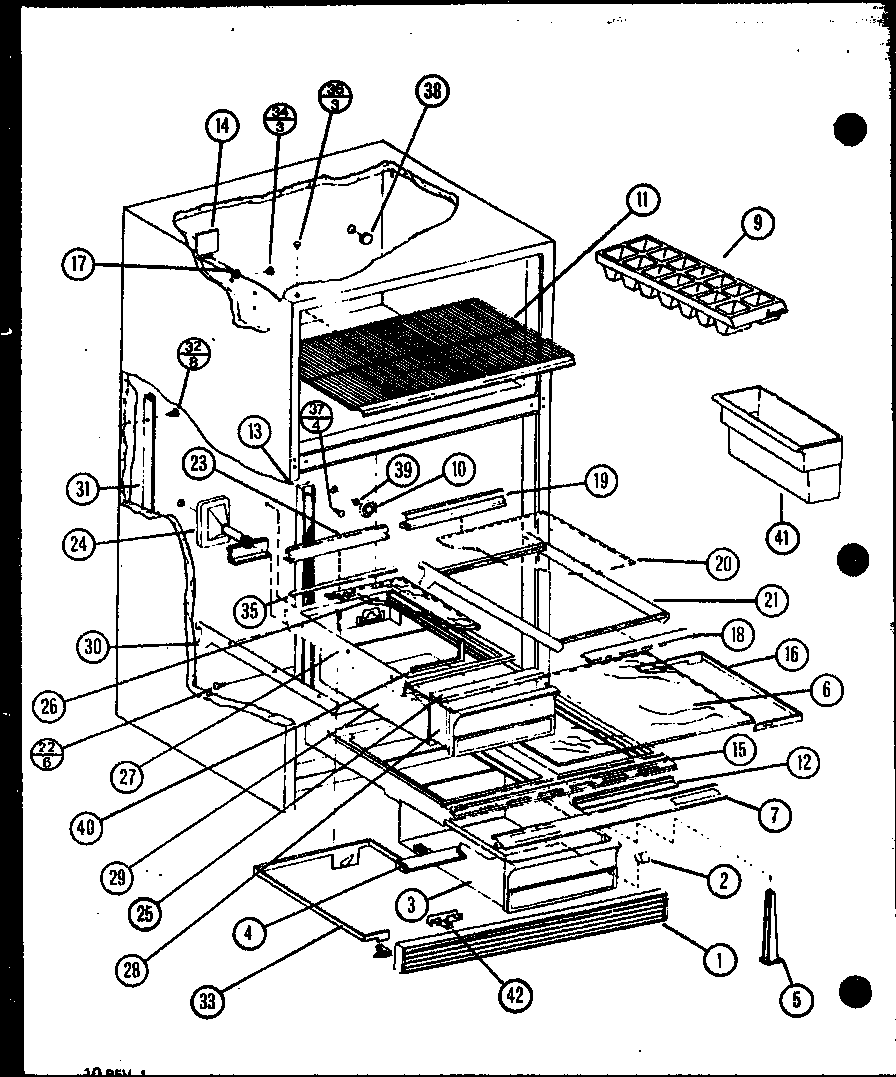

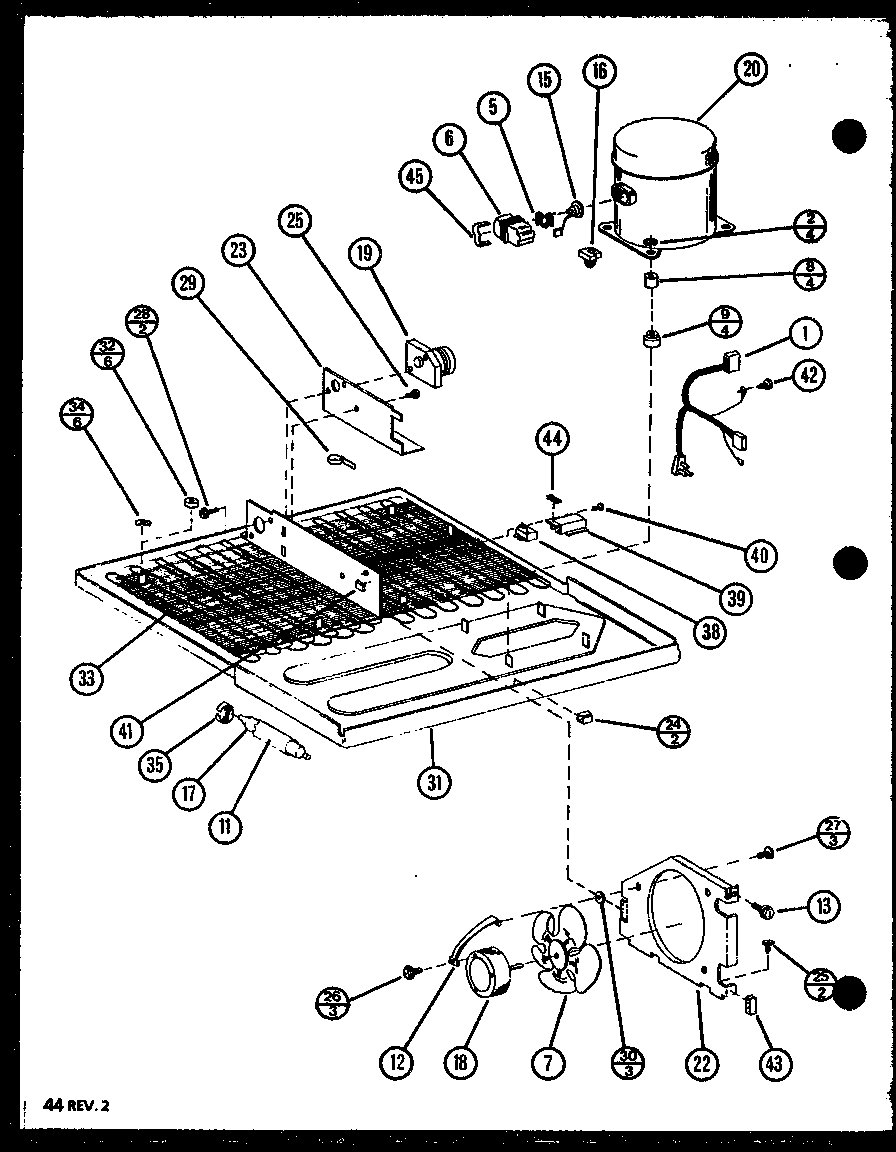

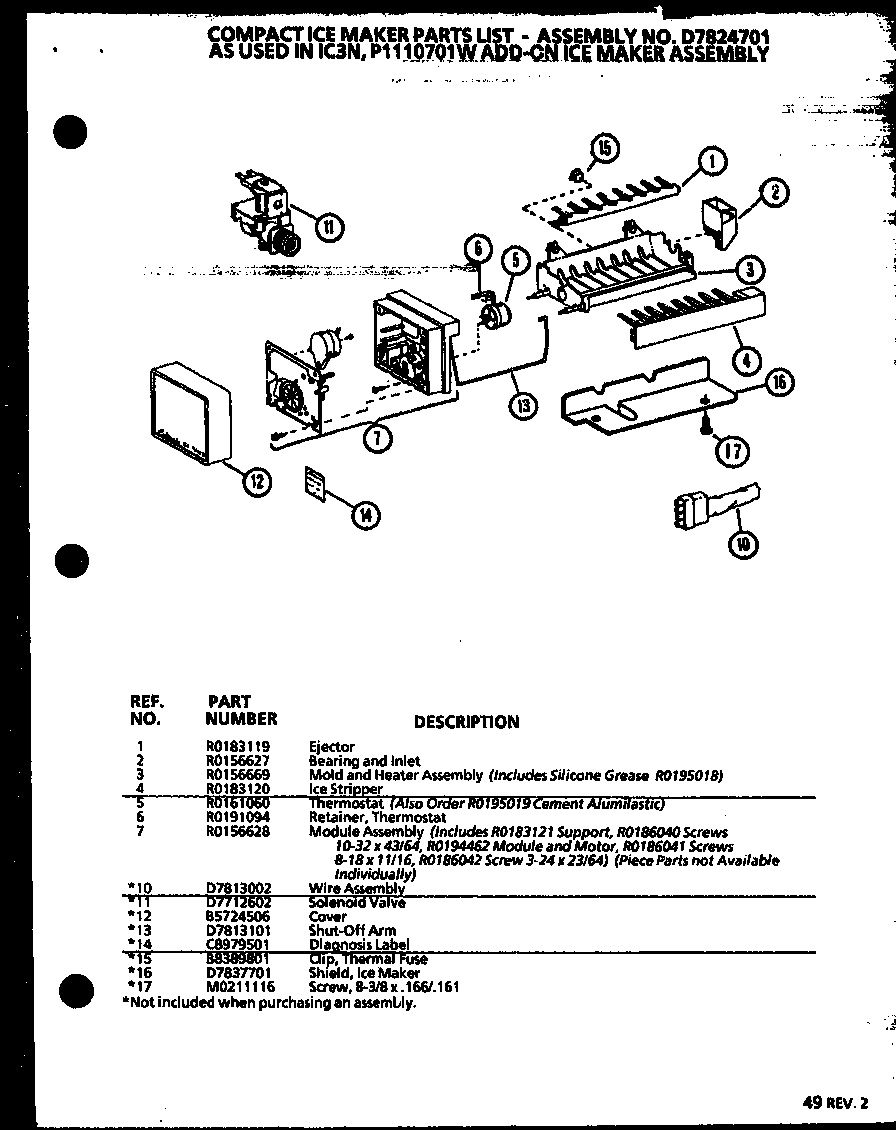

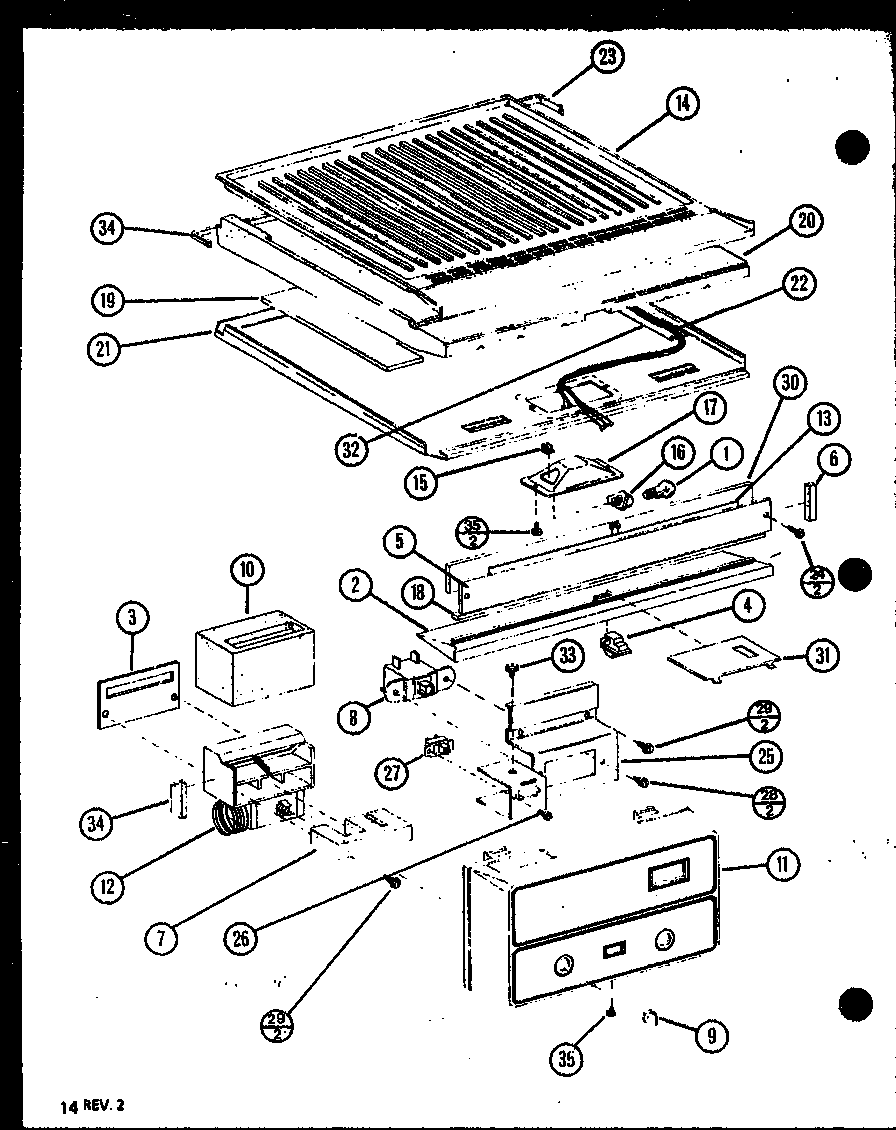

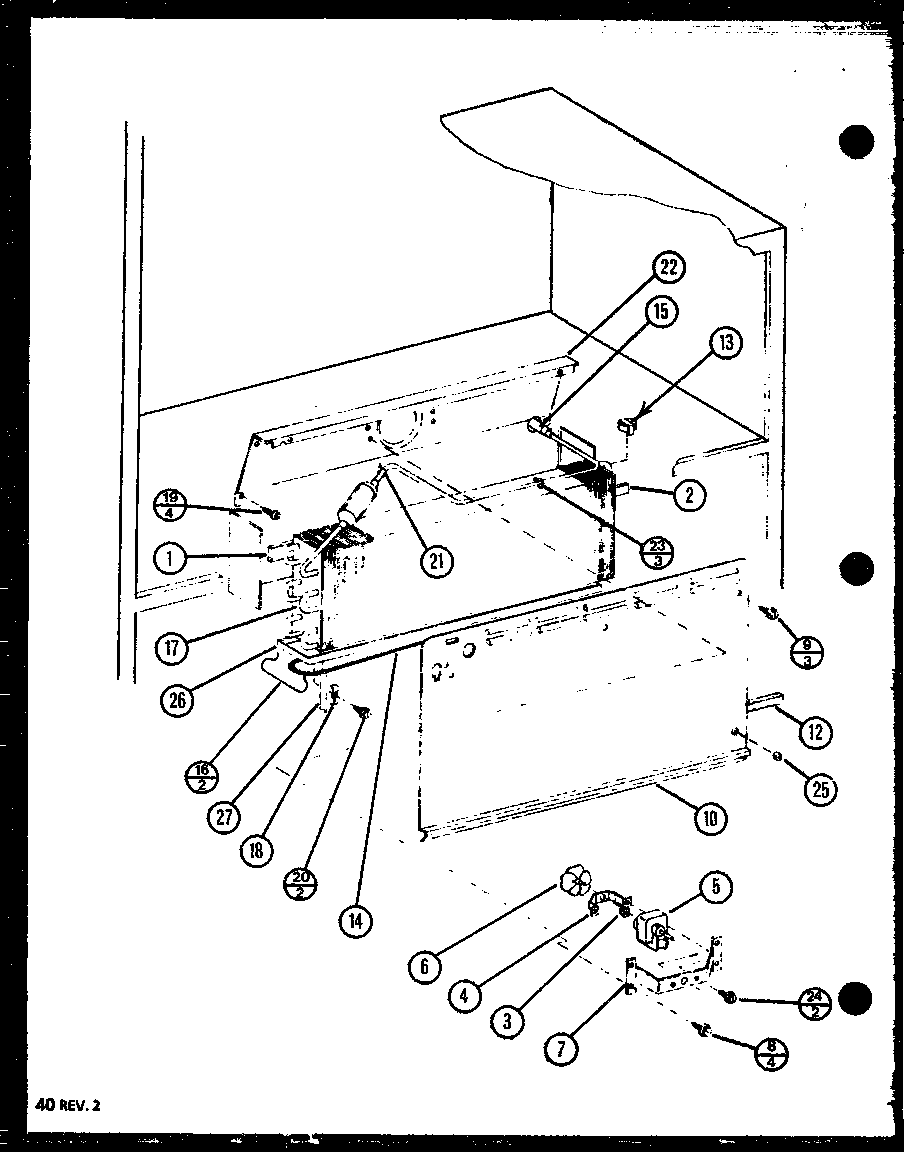

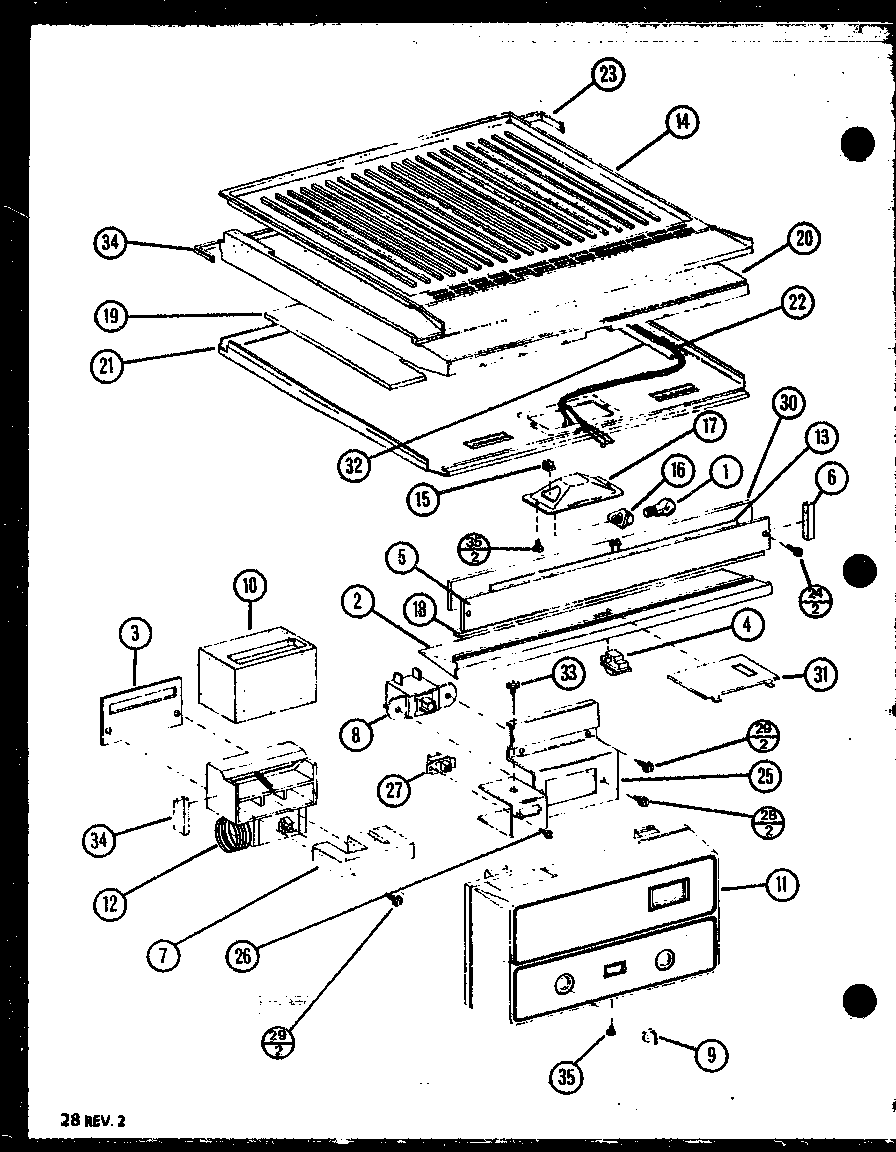

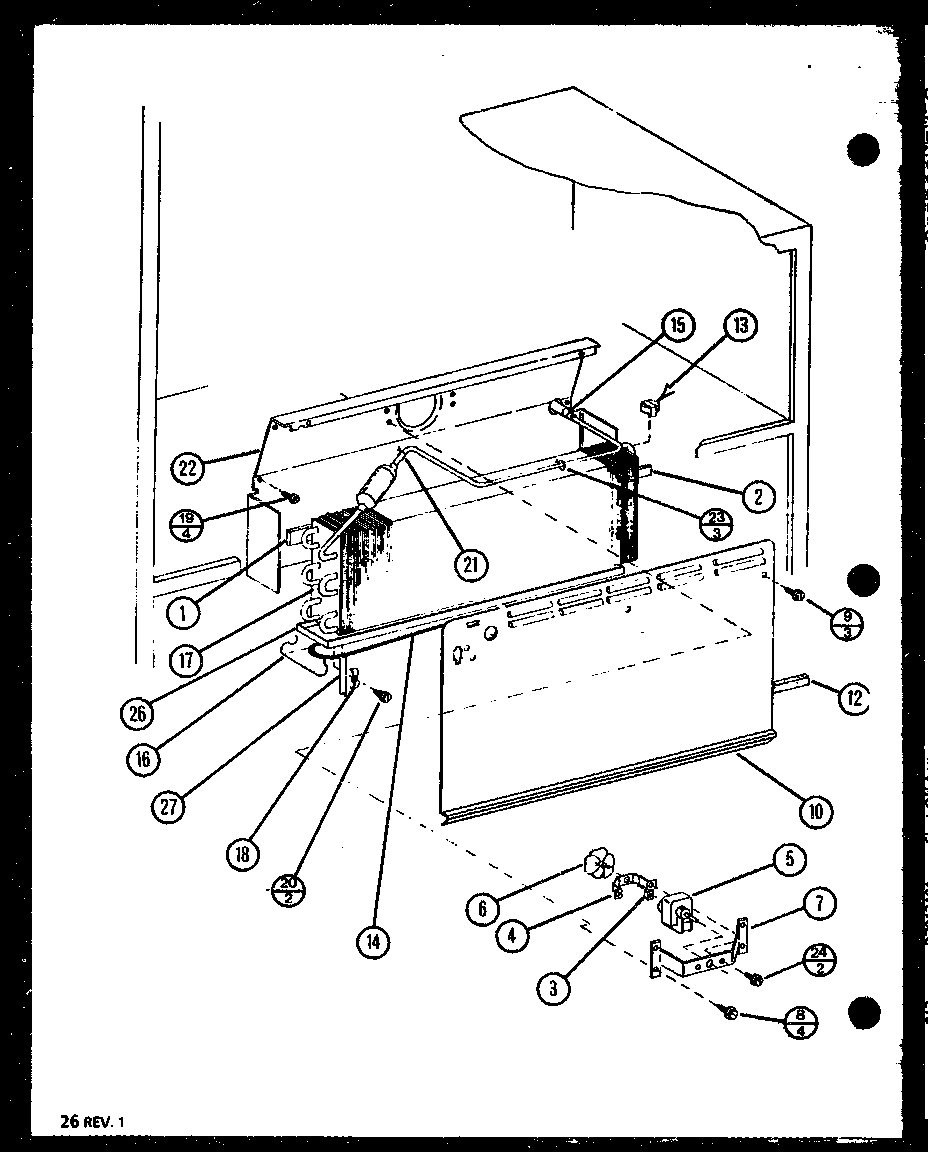

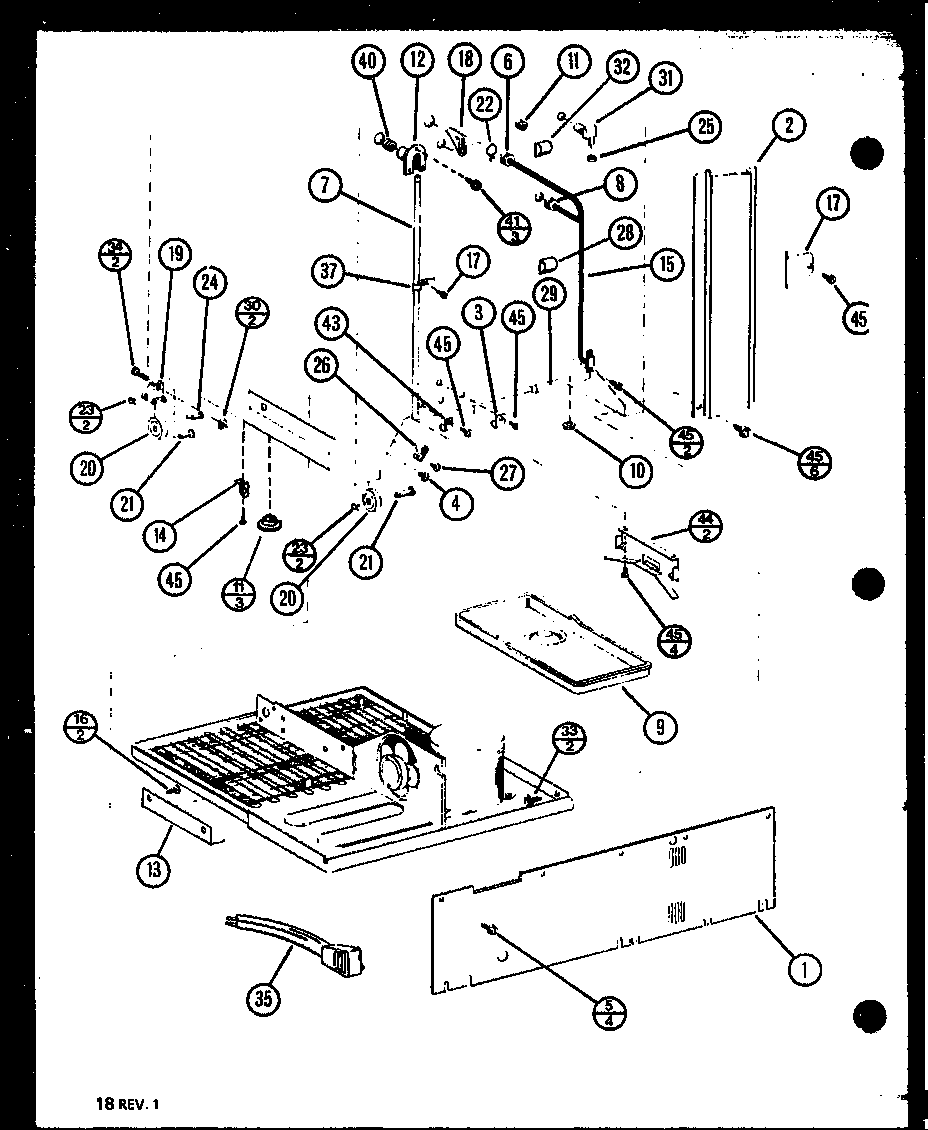

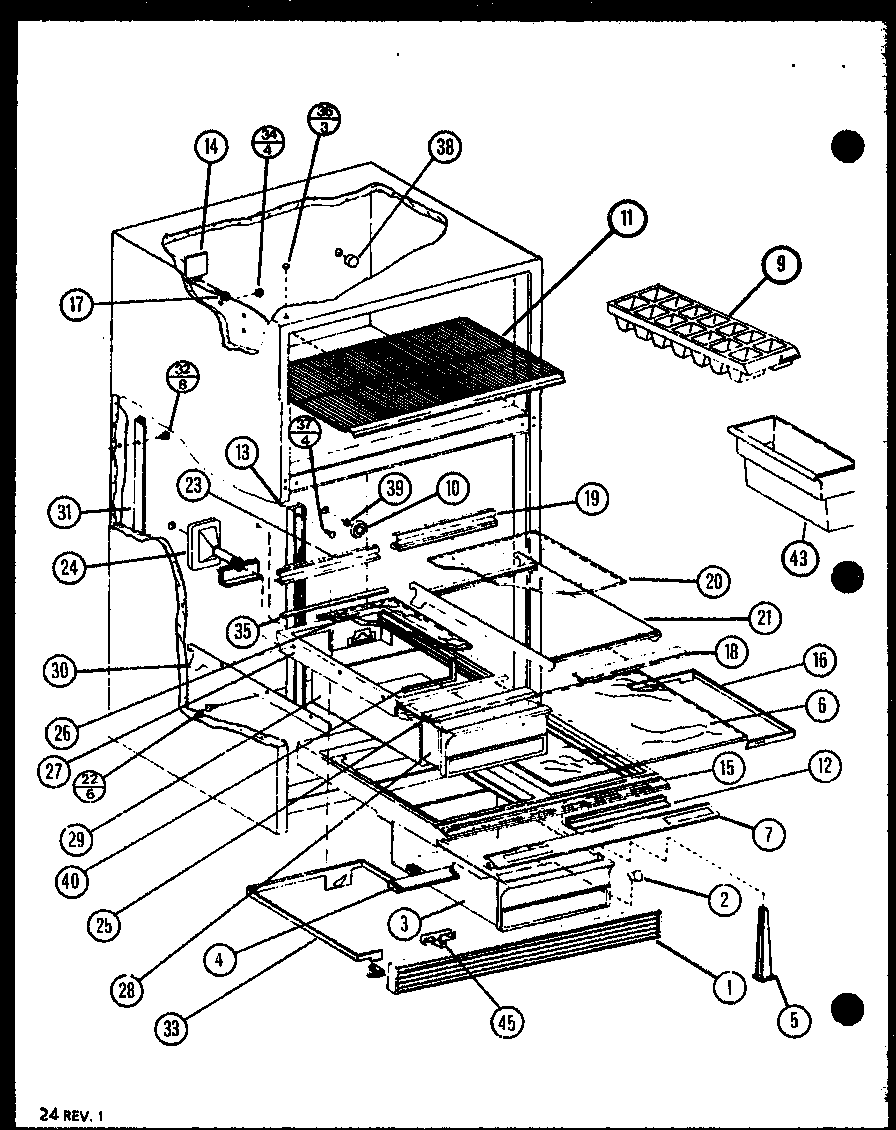

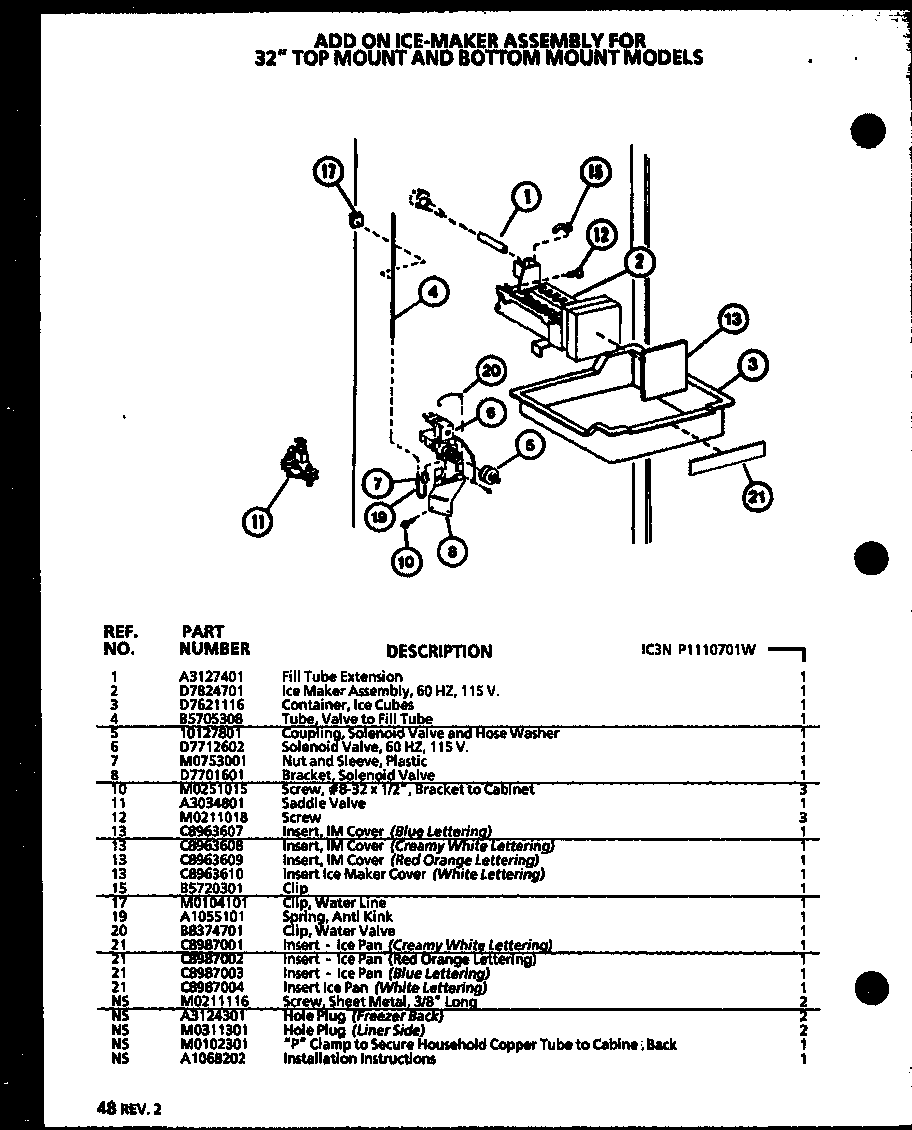

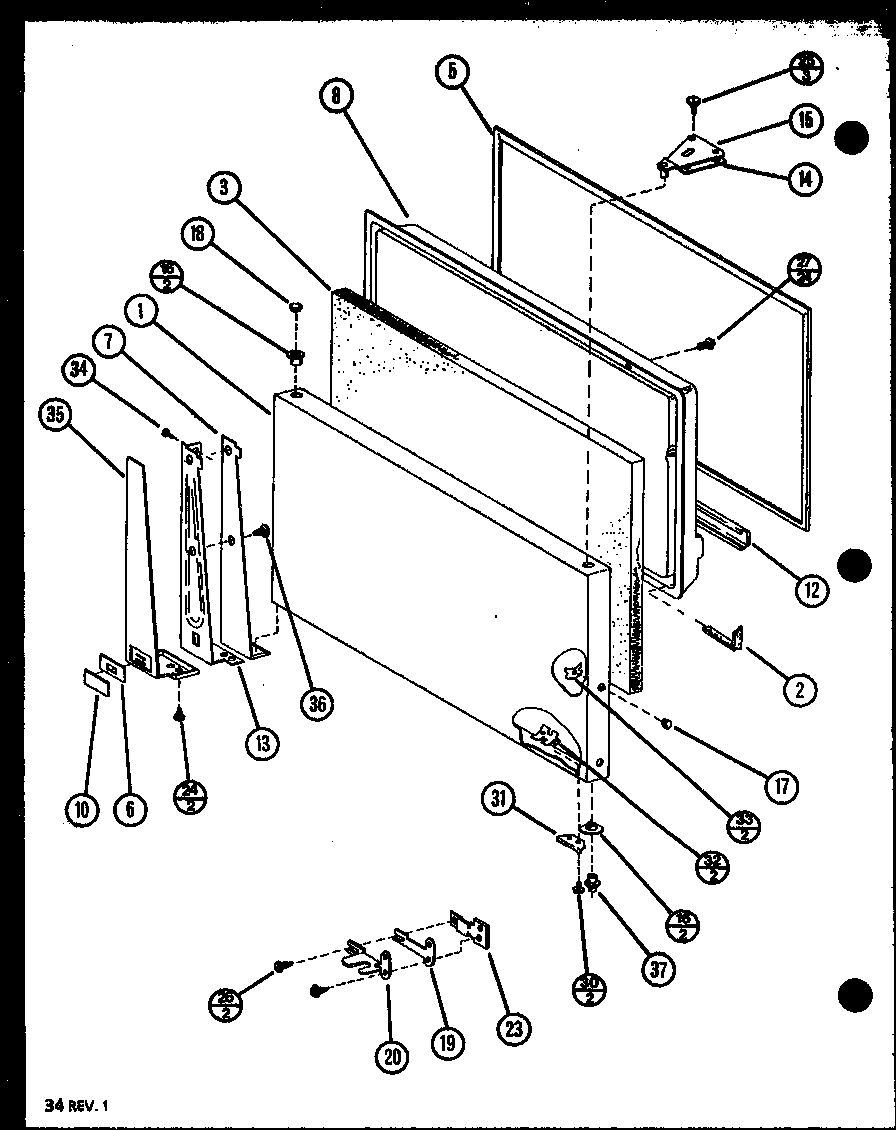

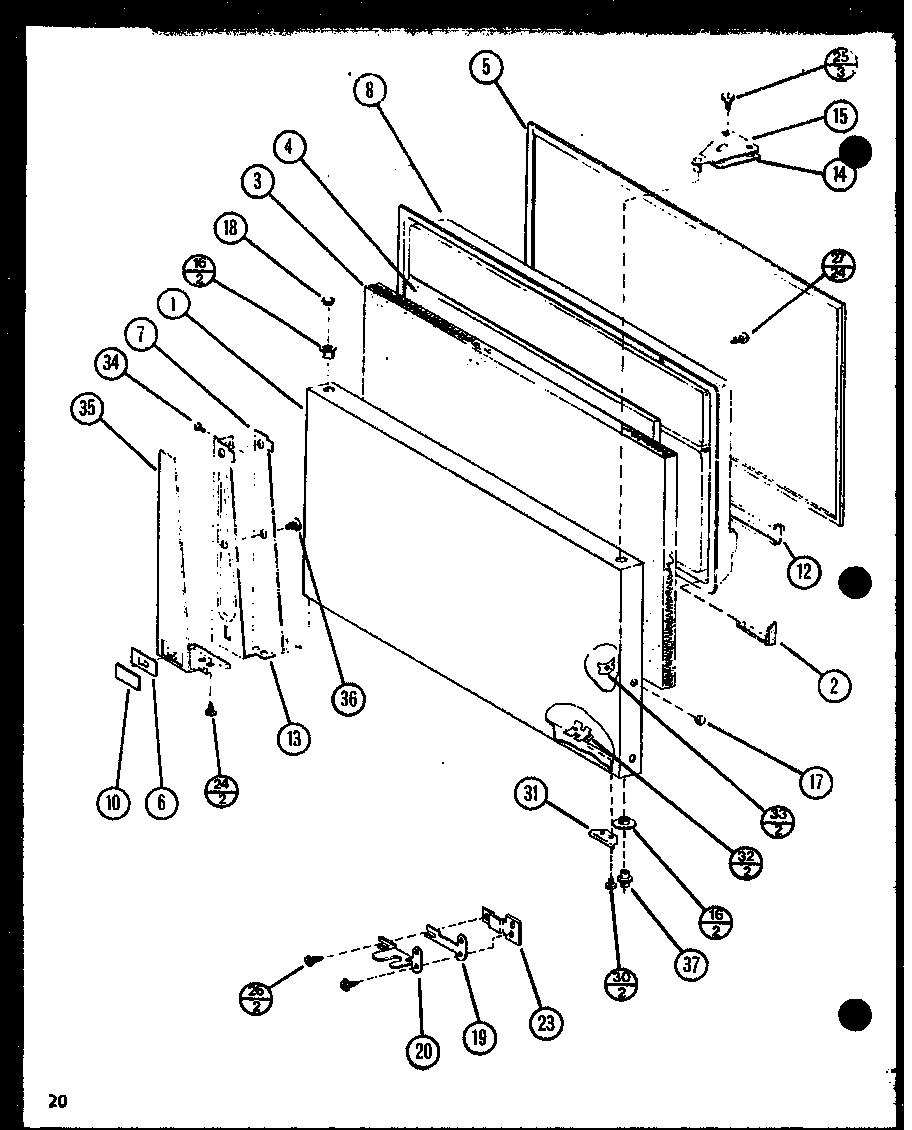

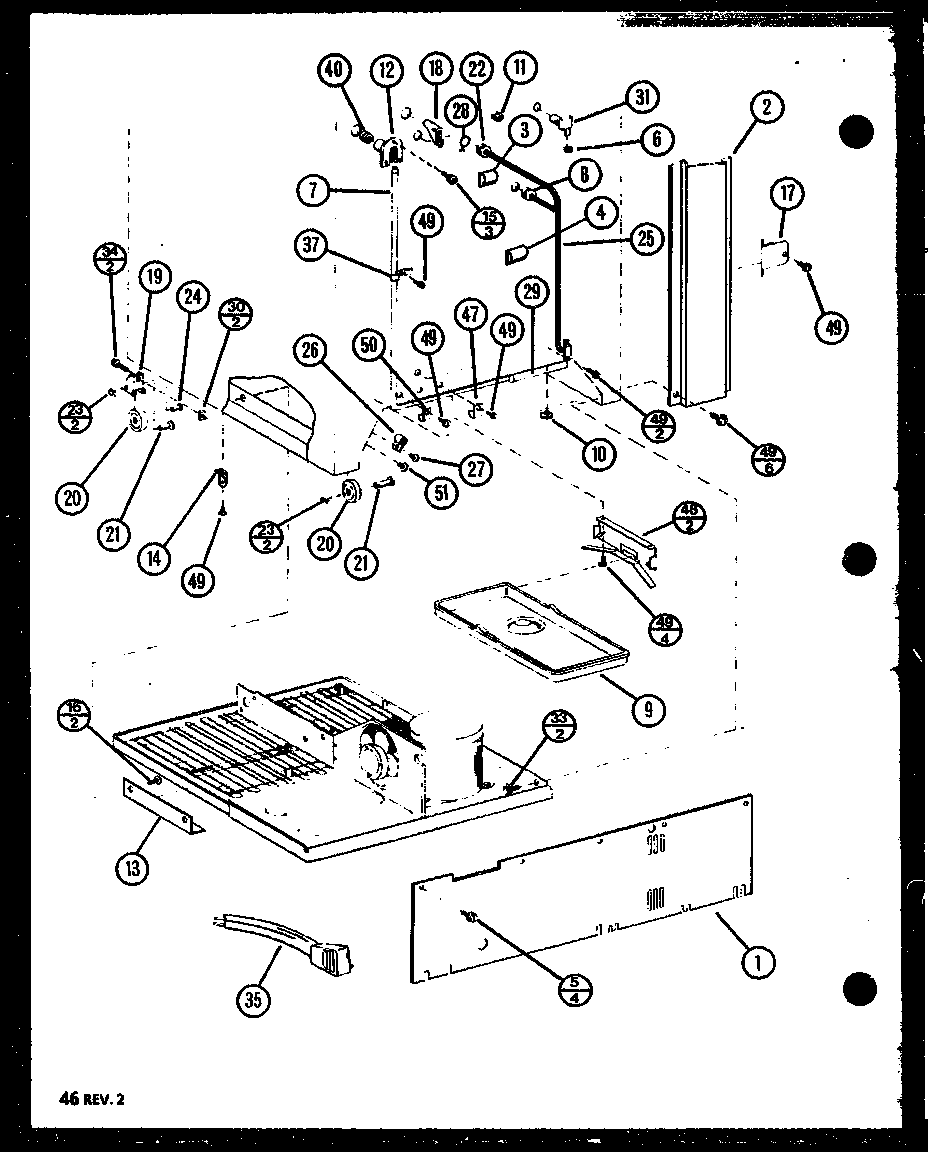

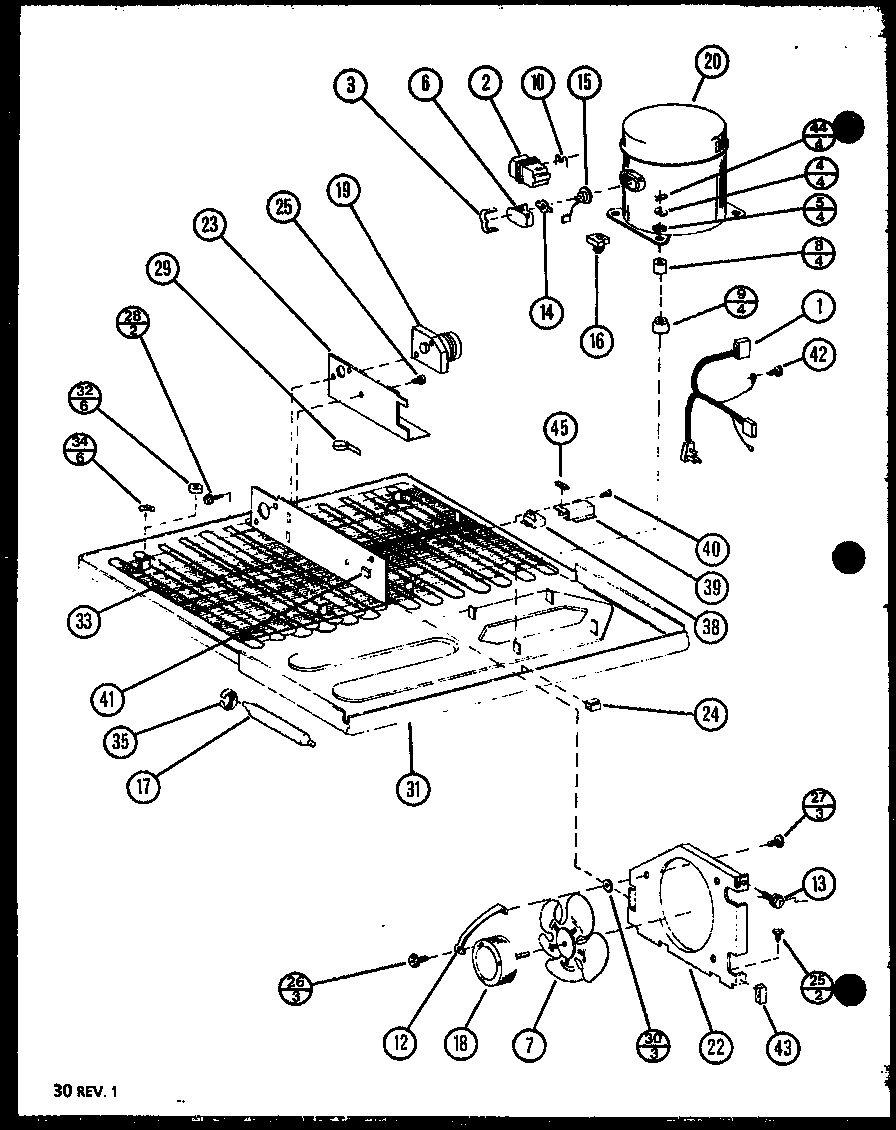

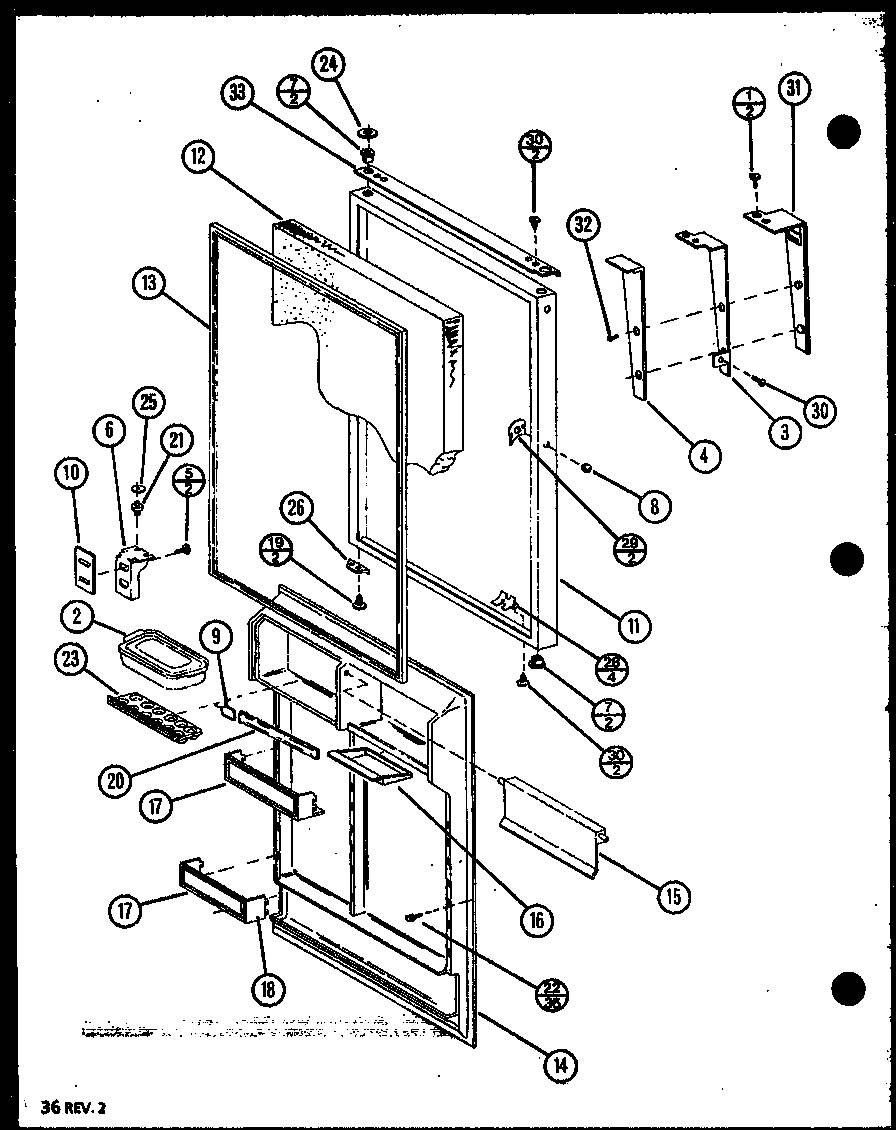

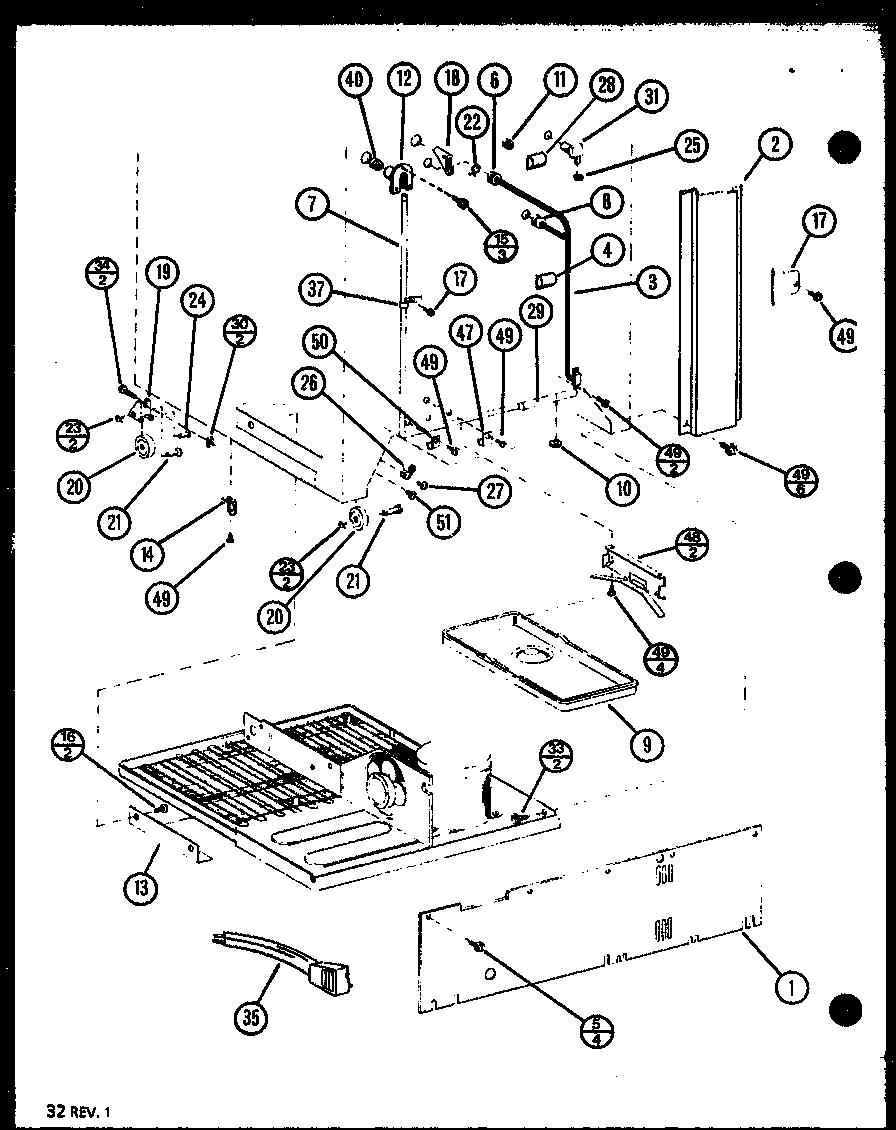

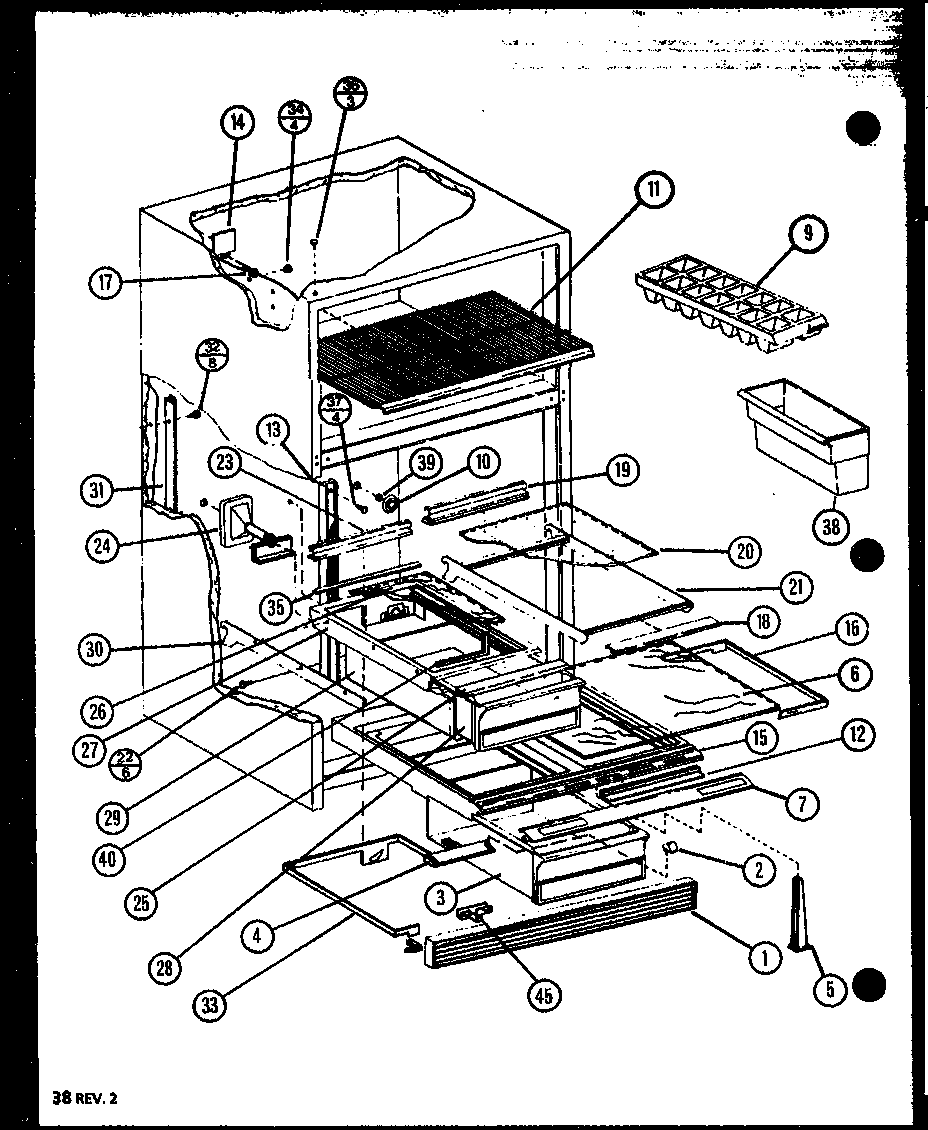

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 341 parts  |
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Capacitor C8931602
Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Screw M0203931
Refrigerator screw

Part #M0203931

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0203931. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0222416
Refrigerator screw

Part #M0222416

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222416. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Thermostat C8978402
Refrigerator thermostat

Part #C8978402

Replaced by #WP10442411

?
Manufacturer substitution
This part replaces C8978402. Substitute parts can look different from the original.
BEST SELLER
$43.51 |
12% OFF Phone Price : $49.51
In Stock
Refrigerator Screw M0209616
Refrigerator screw

Part #M0209616

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0209616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0211017
Refrigerator screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0216515
Refrigerator screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Compressor D7736201
Refrigerator compressor

Part #D7736201

Replaced by #W10439652

?
Manufacturer substitution
This part replaces D7736201. Substitute parts can look different from the original.
$265.04 |
$12.00 OFF Phone Price : $277.04
In Stock
