Troybilt
Gas Walk-Behind Mower

Model # 11A-106N063-2001 Official Troybilt gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Troybilt 11A-106N063-2001 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Bell Support 736-0524A
#43

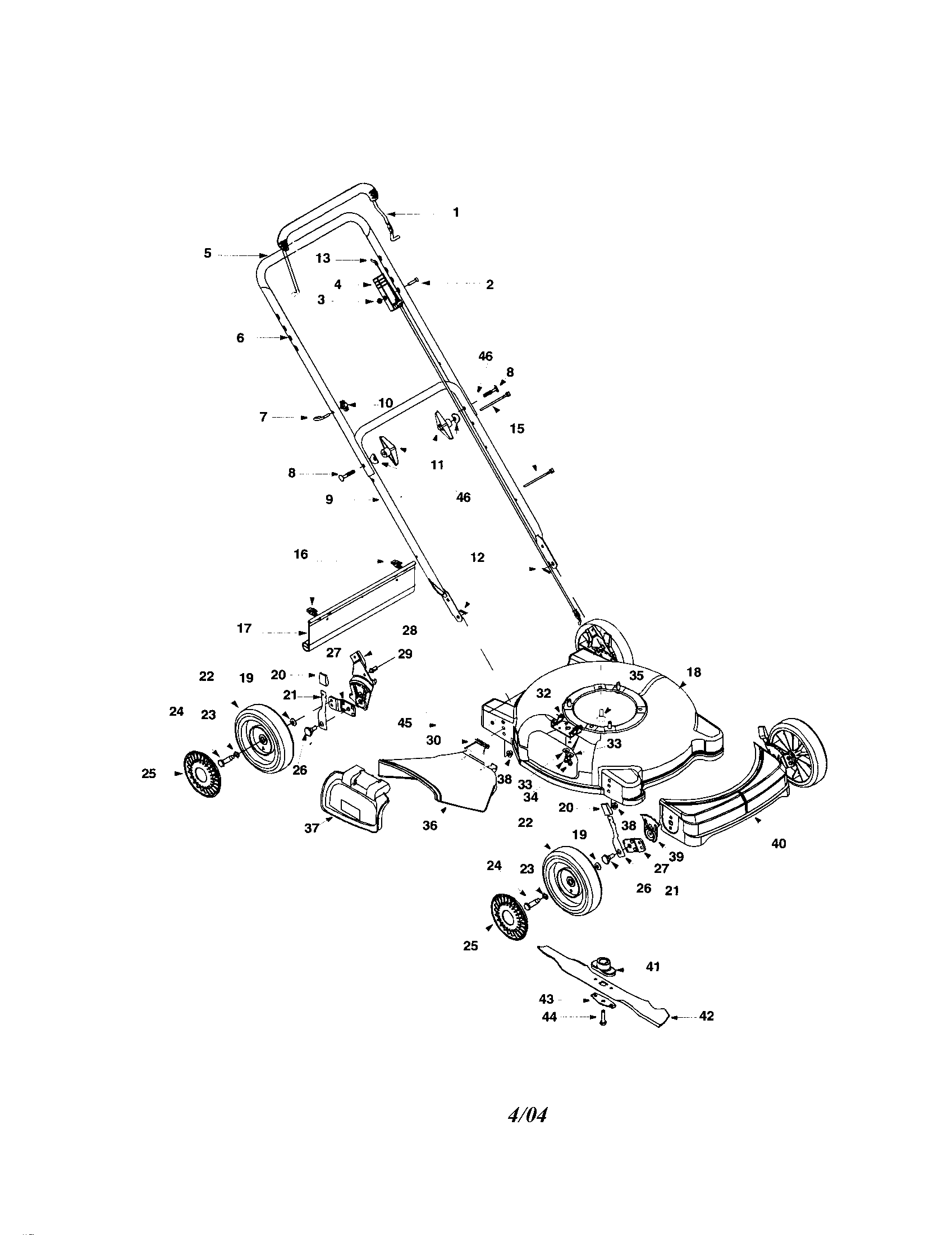

Deck/handle/chute/wheels diagram

Bell support

Part #736-0524A

Replaced by #736-0524B-1

?
Manufacturer substitution
This part replaces 736-0524A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$6.58 |
13% OFF Phone Price : $7.58
In Stock
Yard Machines Lawn & Garden Equipment Hex Bolt, 3/8-24 X 1-1/2-in (replaces 910-1044) 710-1044
#44

Deck/handle/chute/wheels diagram

Yard machines lawn & garden equipment hex bolt, 3/8-24 x 1-1/2-in (replaces 910-1044)

Part #710-1044

BEST SELLER
This item is not returnable
$5.33 |
16% OFF Phone Price : $6.33
In Stock
Lawn Mower Blade Adapter 748-0376C
#41

Deck/handle/chute/wheels diagram

Lawn mower blade adapter

Part #748-0376C

Replaced by #748-0376E

?
Manufacturer substitution
This part replaces 748-0376C. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$23.53 |
20% OFF Phone Price : $29.53
In Stock
Yard Machines Lawn & Garden Equipment Wing Nut (replaces 01002925, 920-0279) 720-0279
#10

Deck/handle/chute/wheels diagram

Yard machines lawn & garden equipment wing nut (replaces 01002925, 920-0279)

Part #720-0279

This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
Yard Machines Lawn & Garden Equipment Guide Bolt 710-1205
#7

Deck/handle/chute/wheels diagram

Yard machines lawn & garden equipment guide bolt

Part #710-1205

This item is not returnable
$5.01 |
17% OFF Phone Price : $6.01
In Stock
Nut 712-0431
#38

Deck/handle/chute/wheels diagram

Nut

Part #712-0431

Replaced by #912-0431

?
Manufacturer substitution
This part replaces 712-0431. Substitute parts can look different from the original.
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Lawn Mower Lever 732-0404
#21

Deck/handle/chute/wheels diagram

Lawn mower lever

Part #732-0404

Replaced by #94832

?
Manufacturer substitution
This part replaces 732-0404. Substitute parts can look different from the original.
This item is not returnable
$17.05 |
10% OFF Phone Price : $19.05
In Stock
Yard Machines Lawn & Garden Equipment Washer (replaces 936-0105) 736-0105
#19

Deck/handle/chute/wheels diagram

Yard machines lawn & garden equipment washer (replaces 936-0105)

Part #736-0105

This item is not returnable
$6.29
In Stock
Yard Machines Lawn & Garden Equipment Bolt 710-1174
#8

Deck/handle/chute/wheels diagram

Yard machines lawn & garden equipment bolt

Part #710-1174

This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Wave Washer 736-0504
#23

Deck/handle/chute/wheels diagram

Wave washer

Part #736-0504

Replaced by #936-0504

?
Manufacturer substitution
This part replaces 736-0504. Substitute parts can look different from the original.
$7.71
In Stock
