Model # 143536032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143536032 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

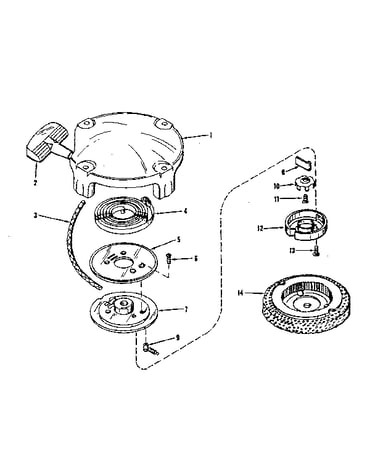

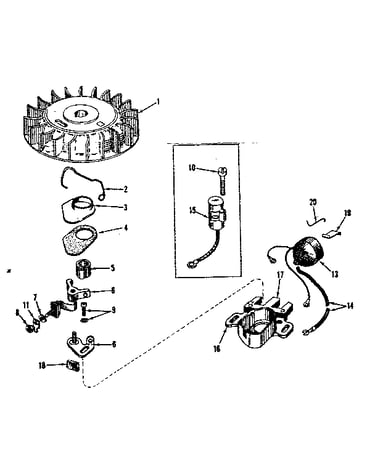

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143536032 4-Cycle Engine
Gasket 27110
#20

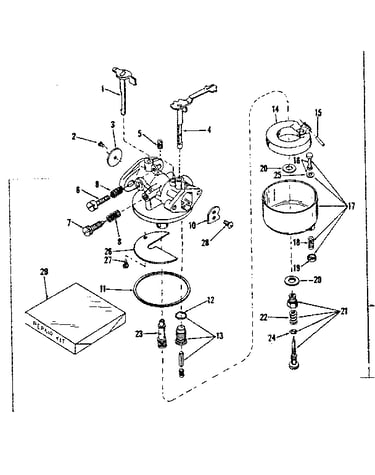

Carburetor no. 630985 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#40

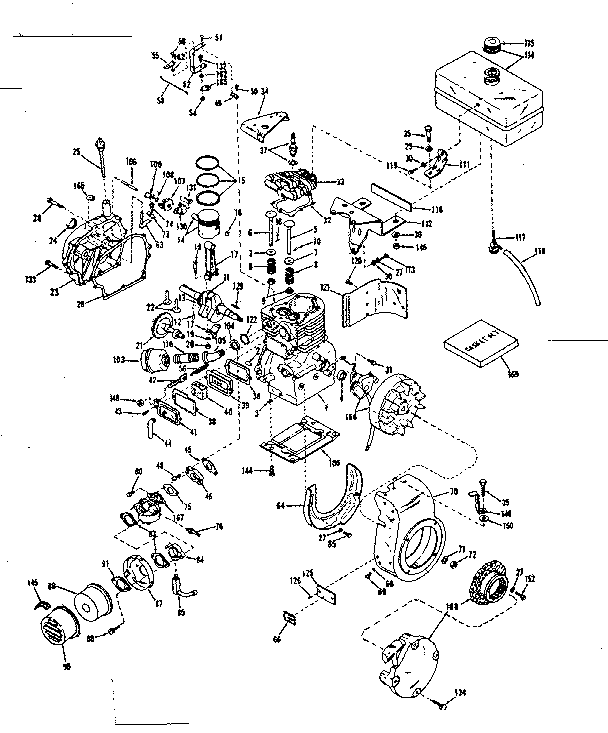

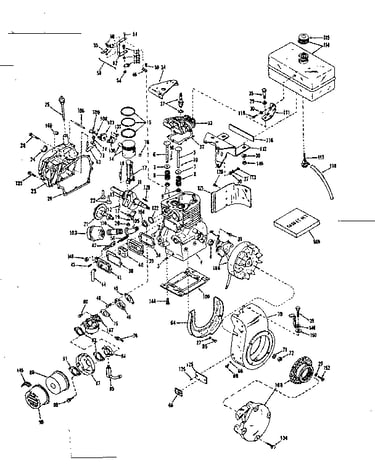

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

Carburetor no. 630985 diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#71

Basic engine diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part

Cover 28425
#41

Basic engine diagram

Cover

Part #28425

The manufacturer no longer makes this part, and there's no substitute part

Cap 30998
#115

Basic engine diagram

Cap

Part #30998

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588
#109

Basic engine diagram

Spool

Part #30588

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#165

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Gear 27884
#13

Basic engine diagram

Gear

Part #27884

The manufacturer no longer makes this part, and there's no substitute part
