Model # LC-40LE820UN Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-40LE820UN lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Television Speaker RSP-ZA456WJZZ
#31

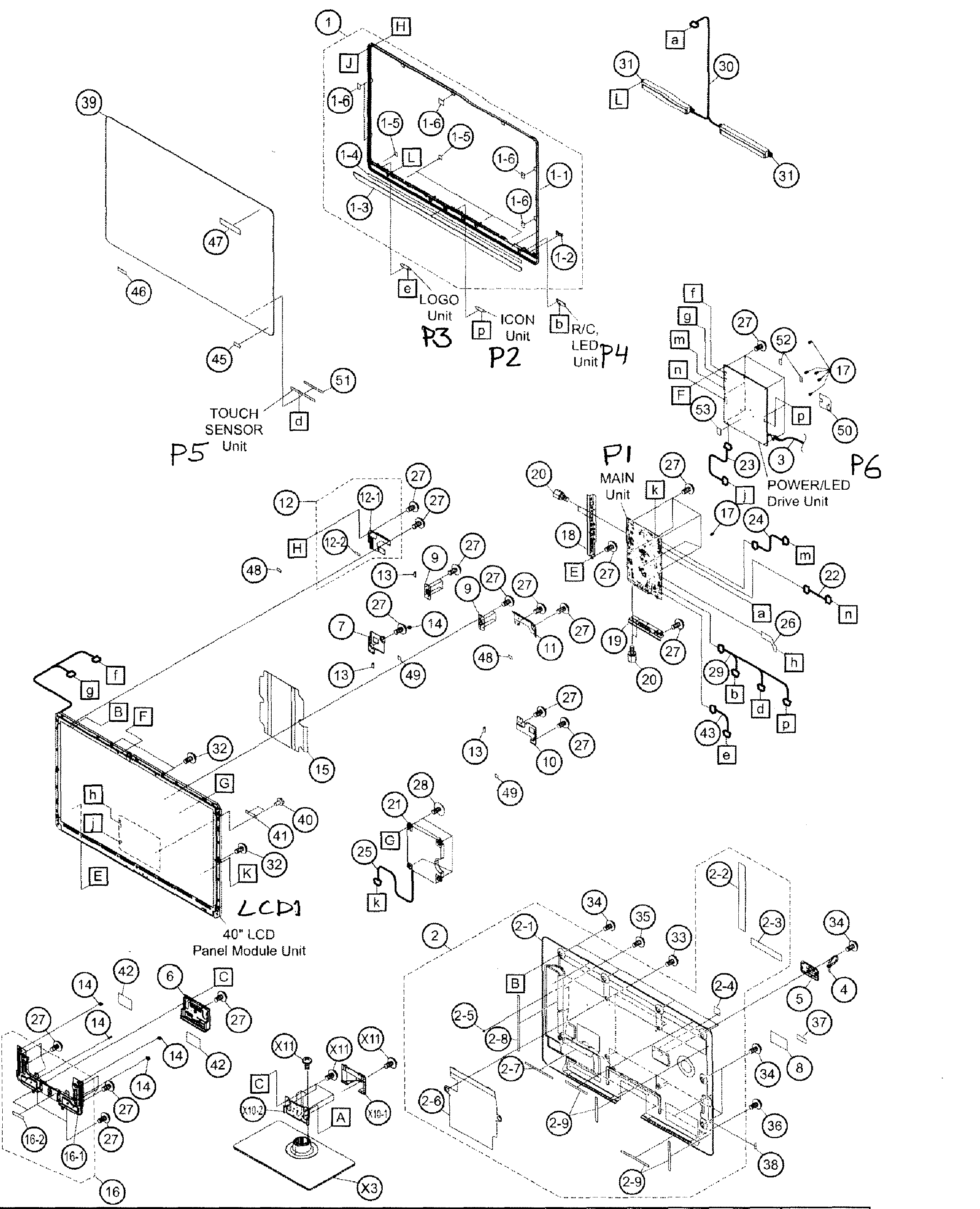

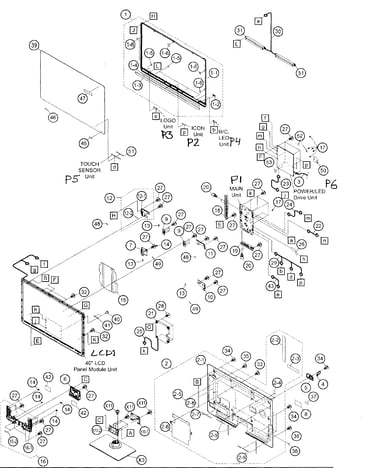

Cabinet parts diagram

Television speaker

Part #RSP-ZA456WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Connection Cord QCNW-K550WJQZ
#23

Cabinet parts diagram

Connection cord

Part #QCNW-K550WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Icon Pcb DUNTKF493FM01
#P2

Cabinet parts diagram

Icon pcb

Part #DUNTKF493FM01

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker RSP-ZA458WJZZ
#21

Cabinet parts diagram

Television speaker

Part #RSP-ZA458WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Television Ir Sensor And Power Board DUNTKF494FM01
#P4

Cabinet parts diagram

Television ir sensor and power board

Part #DUNTKF494FM01

The manufacturer no longer makes this part, and there's no substitute part

Cord Cover GCOVAD699WJ3A
#5

Cabinet parts diagram

Cord cover

Part #GCOVAD699WJ3A

The manufacturer no longer makes this part, and there's no substitute part

Screw XBPS830P08JS0
#34

Cabinet parts diagram

Screw

Part #XBPS830P08JS0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZA170WJF9
#33

Cabinet parts diagram

Screw

Part #LX-BZA170WJF9

The manufacturer no longer makes this part, and there's no substitute part

No. Label TLABNB037WJZZ
#37

Cabinet parts diagram

No. label

Part #TLABNB037WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Connection Cord QCNW-K548WJQZ
#22

Cabinet parts diagram

Connection cord

Part #QCNW-K548WJQZ

The manufacturer no longer makes this part, and there's no substitute part
