Model # AKR3001WW-P1143727NWW Official Amana cooktop
Here are the diagrams and repair parts for Official Amana AKR3001WW-P1143727NWW cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
AKR3001WW-P1143727NWW Cooktops
#2

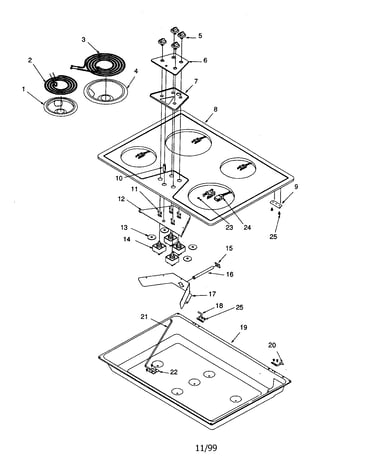

All components diagram
Coil
Part #31734602
Replaced by #WPW10259868
?
Manufacturer substitution
This part replaces 31734602. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
#3
All components diagram
R f burner
Part #31734607
Replaced by #WP3191454
?
Manufacturer substitution
This part replaces 31734607. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
#24
All components diagram
Thermal blck
Part #0089336
Replaced by #330031
?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
$9.08 |
10% OFF Phone Price : $10.08
In Stock
#1
All components diagram
Drip bowl
Part #308648K
Replaced by #WPW10196406
?
Manufacturer substitution
This part replaces 308648K. Substitute parts can look different from the original.
This item is not returnable
$7.46 |
12% OFF Phone Price : $8.46
In Stock
#11
All components diagram
Screw
Part #M0234422
Replaced by #M0234422
?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
#4
All components diagram
Burner bowl
Part #308649K
Replaced by #WPW10196405
?
Manufacturer substitution
This part replaces 308649K. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
#NI
All parts diagram
Screw, #6-32
Part #31750310
Replaced by #WP74004005
?
Manufacturer substitution
This part replaces 31750310. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#NI
All parts diagram
Parts list
Part #RP2420022
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Mounting bracket, plug block (qty 4)
Part #0309128
The manufacturer no longer makes this part, and there's no substitute part
#6B
All components diagram
Control panel
Part #315678L
The manufacturer no longer makes this part, and there's no substitute part
