Craftsman
Angle Grinder

Model # 17227270 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 17227270 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Craftsman Gear Case A12.2.01.0
#19

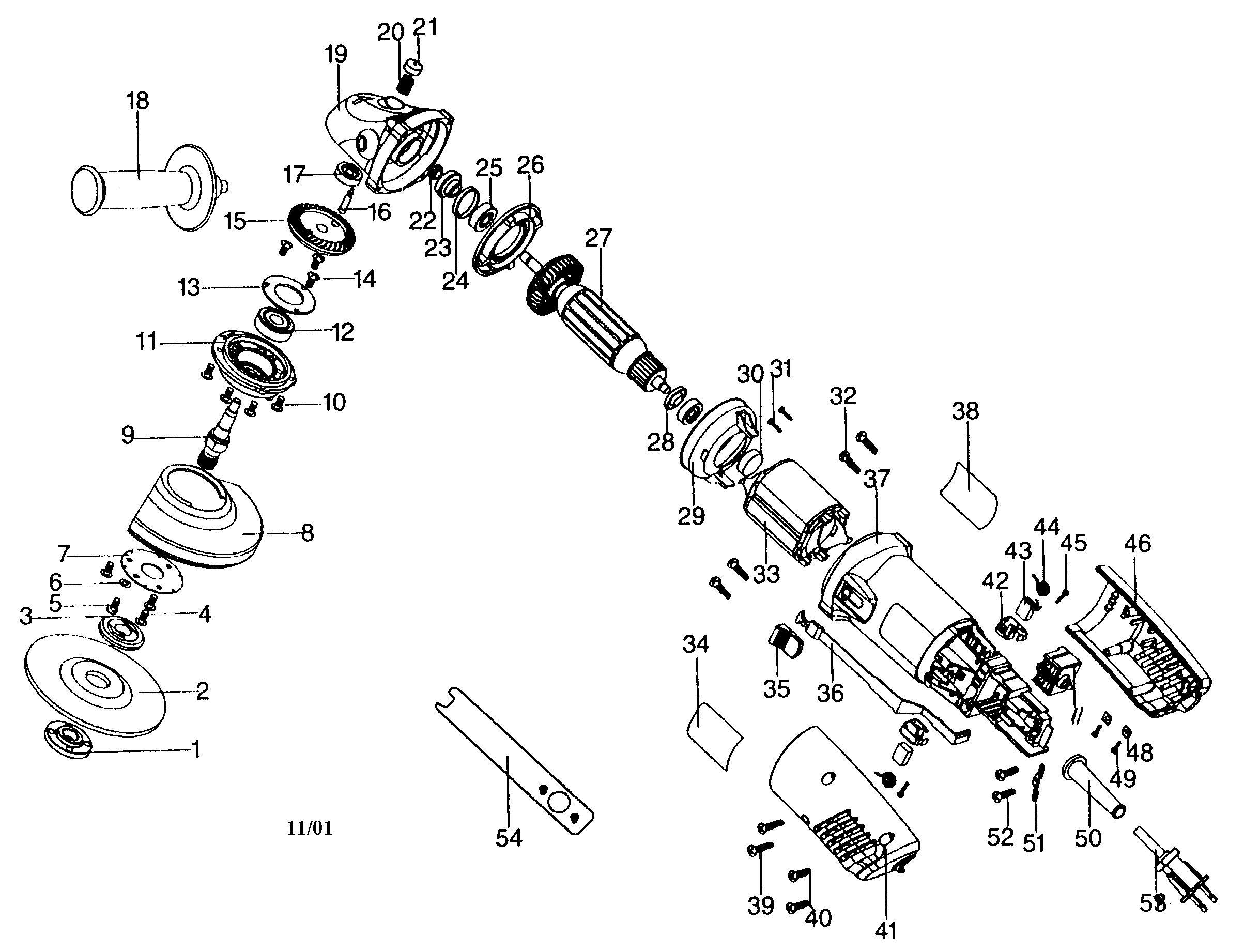

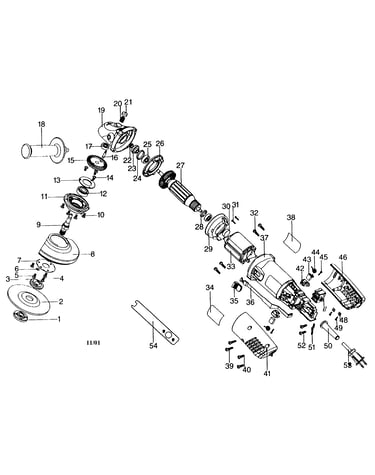

Cabinet parts diagram

Craftsman gear case

Part #A12.2.01.0

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Wind Guide A12.0.08.0
#26

Cabinet parts diagram

Craftsman wind guide

Part #A12.0.08.0

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rod Switch A12.0.09.0
#36

Cabinet parts diagram

Craftsman rod switch

Part #A12.0.09.0

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw W55.40.0
#39

Cabinet parts diagram

Craftsman screw

Part #W55.40.0

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer T8.01.04
#48

Cabinet parts diagram

Craftsman washer

Part #T8.01.04

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring T04.03.05
#20

Cabinet parts diagram

Craftsman spring

Part #T04.03.05

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Housing A12.0.01.0
#37

Cabinet parts diagram

Craftsman housing

Part #A12.0.01.0

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ring T05.02.04
#24

Cabinet parts diagram

Craftsman ring

Part #T05.02.04

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rotor TA51.01.00
#27

Cabinet parts diagram

Craftsman rotor

Part #TA51.01.00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Clamp T08.01.03
#51

Cabinet parts diagram

Craftsman clamp

Part #T08.01.03

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
