Model # WTVC553CUC/10 Official Bosch dryer

Here are the diagrams and repair parts for Official Bosch WTVC553CUC-10 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

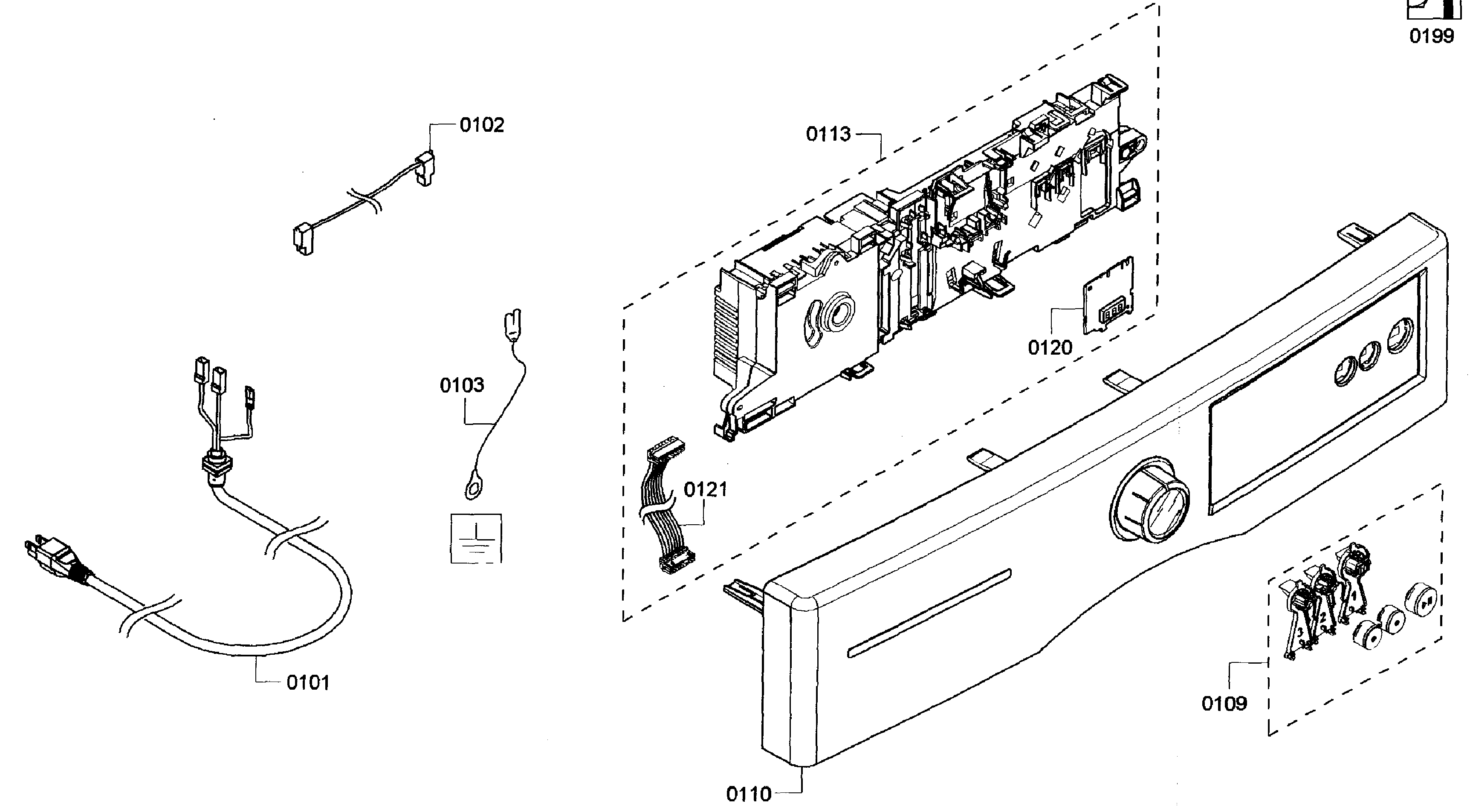

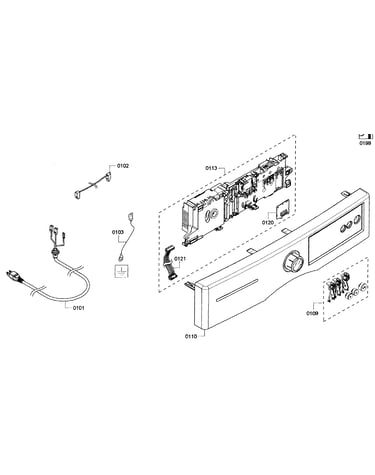

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Dryer Door Seal 649747
#313

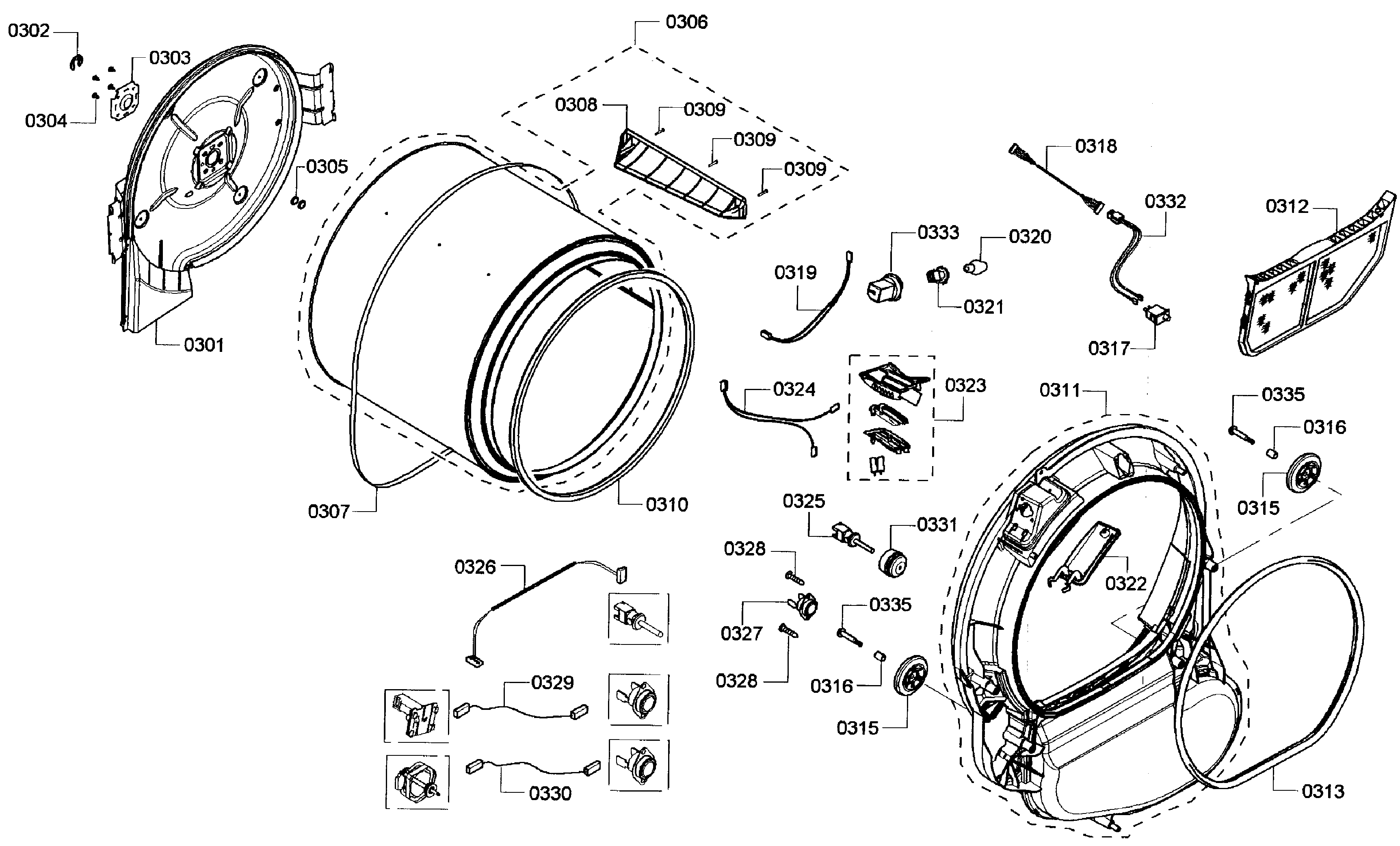

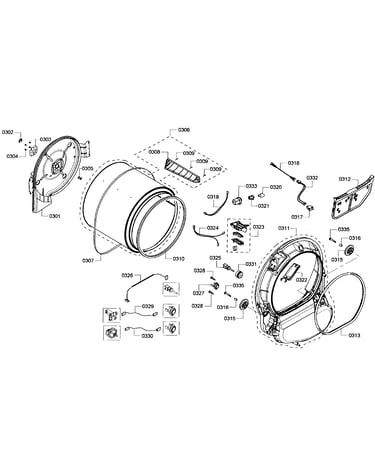

Drum assy diagram

Dryer door seal

Part #649747

Replaced by #00649747

?
Manufacturer substitution
This part replaces 649747. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Fluff Filter 677826
#312

Drum assy diagram

Fluff filter

Part #677826

Replaced by #00677826

?
Manufacturer substitution
This part replaces 677826. Substitute parts can look different from the original.
$92.39 |
6% OFF Phone Price : $98.39
In Stock
Dryer Drive Motor 436441
#422

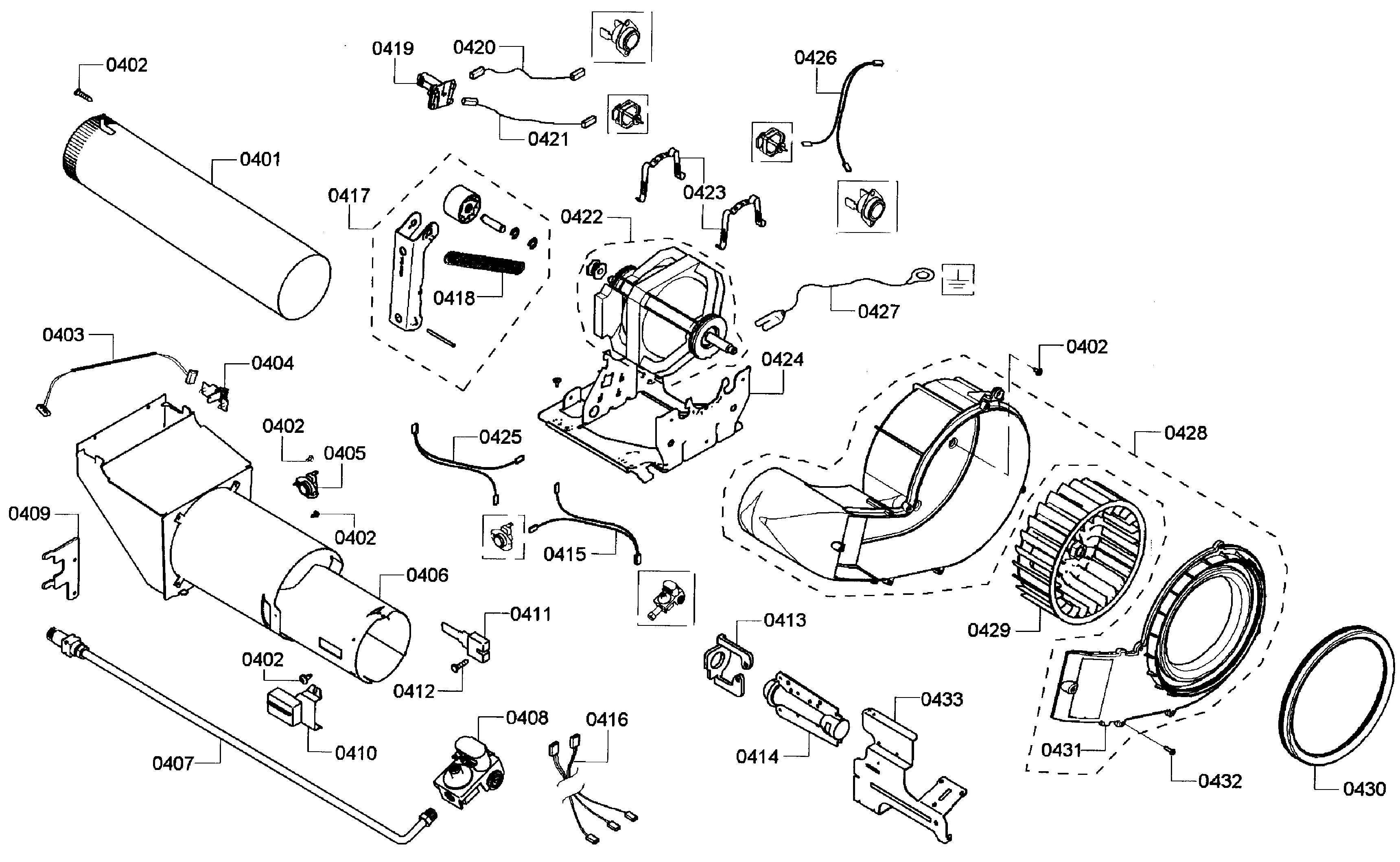

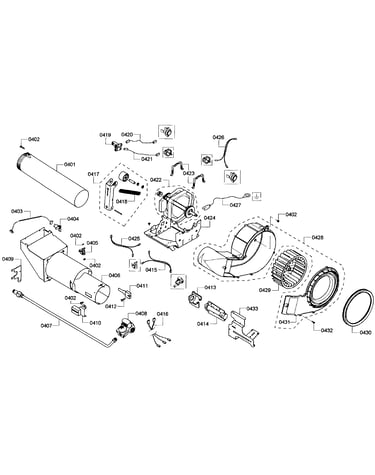

Motor assy diagram

Dryer drive motor

Part #436441

The manufacturer no longer makes this part, and there's no substitute part

Dryer Igniter 491648
#411

Motor assy diagram

Dryer igniter

Part #491648

Replaced by #00491648

?
Manufacturer substitution
This part replaces 491648. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
Water Tap 618330
#513

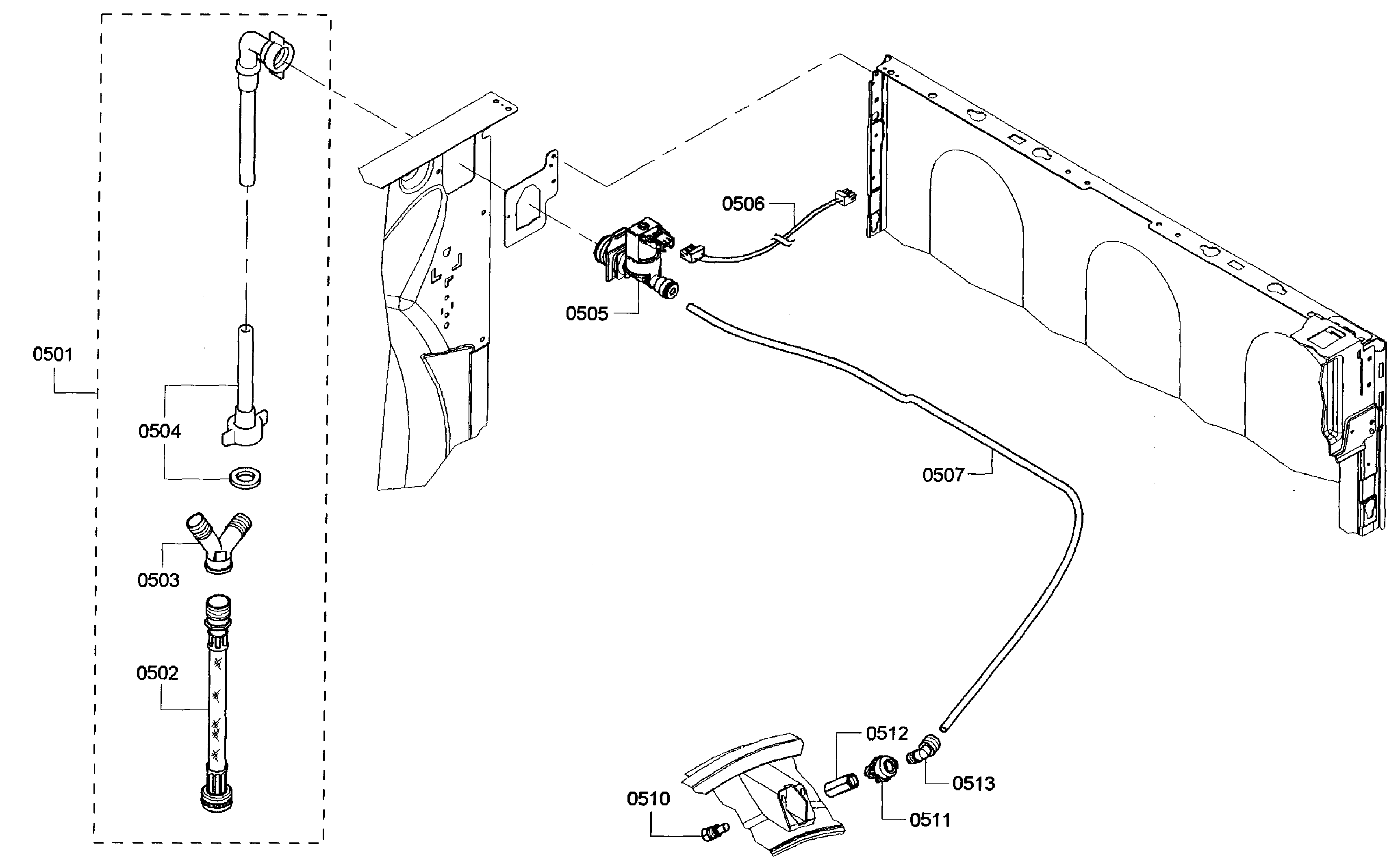

Mist assy diagram

Water tap

Part #618330

$23.17
In Stock
Dryer Drum Lamp 422173
#320

Drum assy diagram

Dryer drum lamp

Part #422173

This item is not returnable
$20.34
In Stock
Wheel 600427
#315

Drum assy diagram

Wheel

Part #600427

Replaced by #00613598

?
Manufacturer substitution
This part replaces 600427. Substitute parts can look different from the original.
This item is not returnable
$28.84
In Stock
Protector 422273
#405

Motor assy diagram

Protector

Part #422273

Replaced by #00422273

?
Manufacturer substitution
This part replaces 422273. Substitute parts can look different from the original.
$39.49 |
13% OFF Phone Price : $45.49
In Stock
Vent Pipe 436457
#401

Motor assy diagram

Vent pipe

Part #436457

Replaced by #00436457

?
Manufacturer substitution
This part replaces 436457. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dryer Window 684438
#227

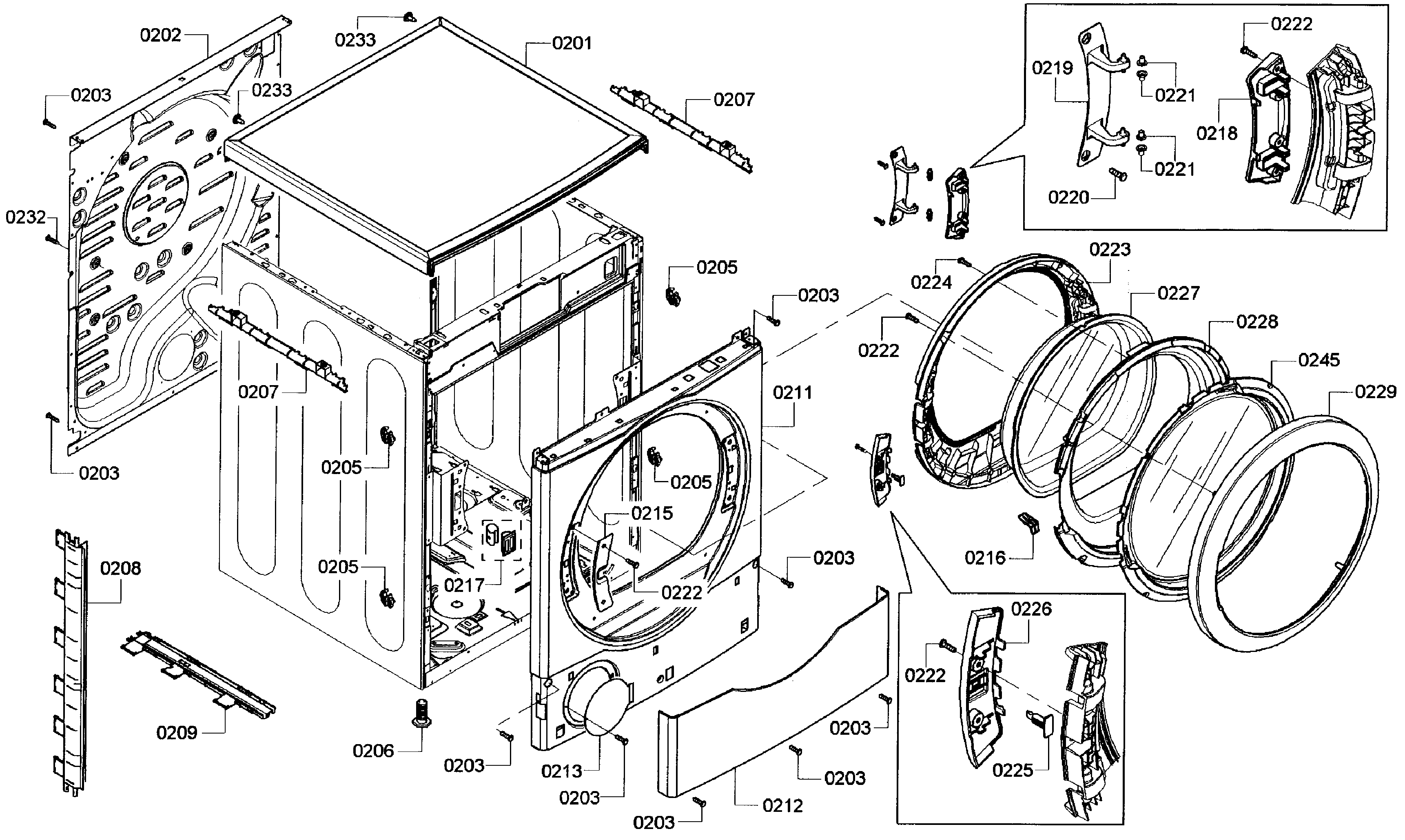

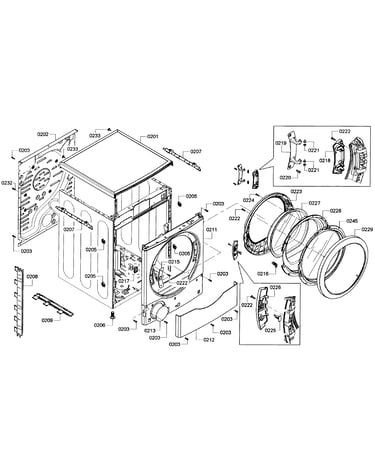

Cabinet diagram

Dryer window

Part #684438

Replaced by #00684438

?
Manufacturer substitution
This part replaces 684438. Substitute parts can look different from the original.
$100.12
In Stock
