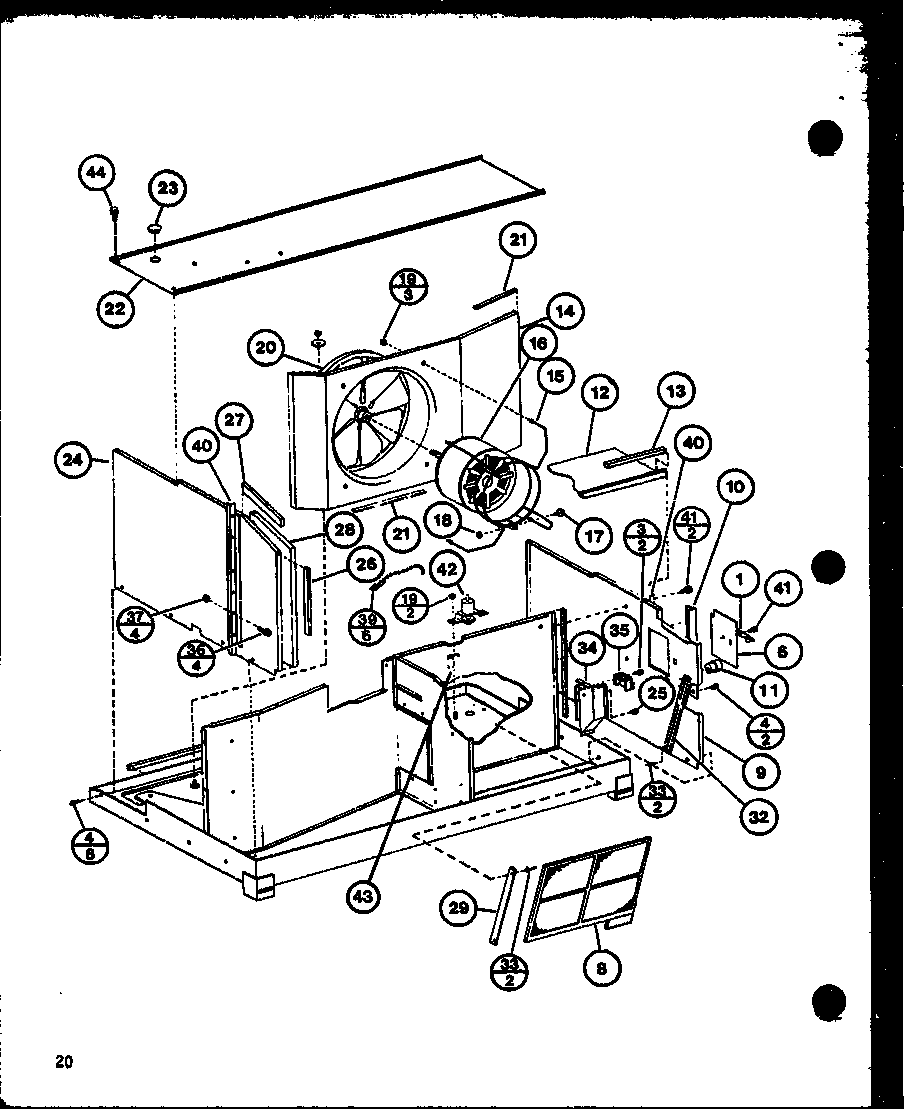

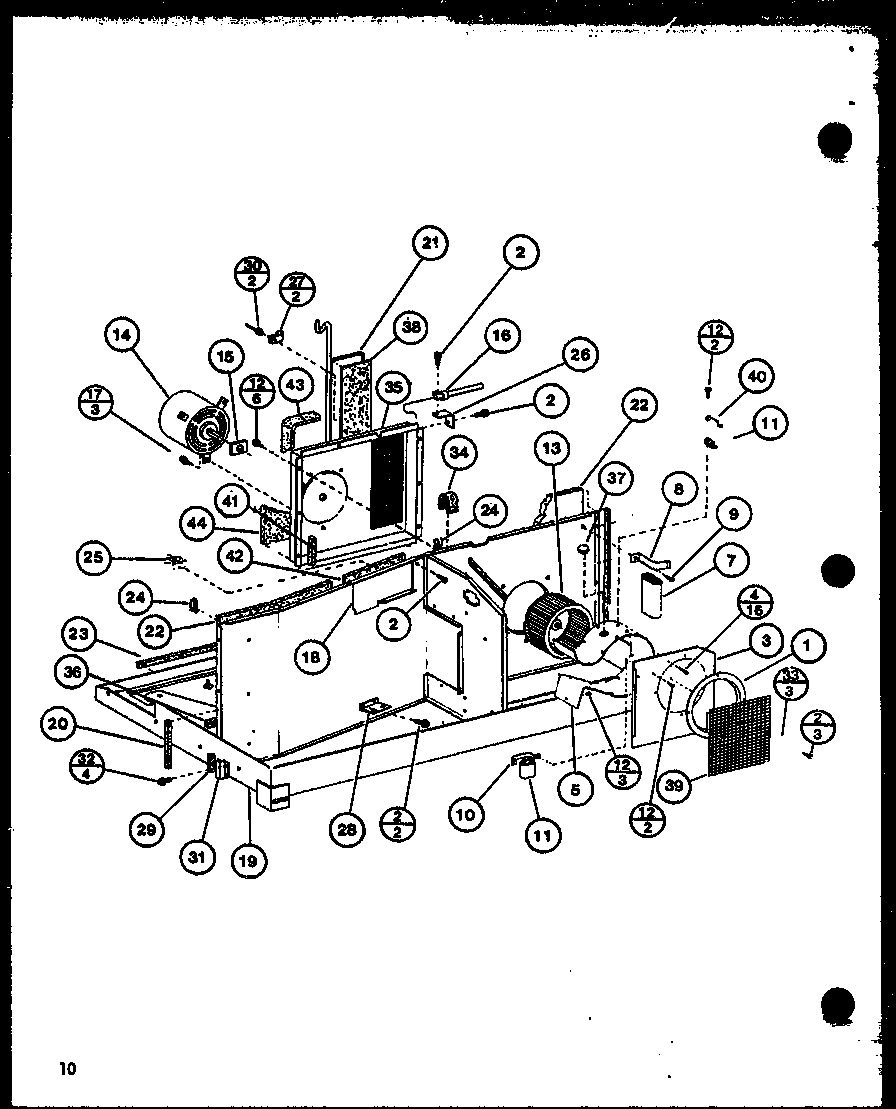

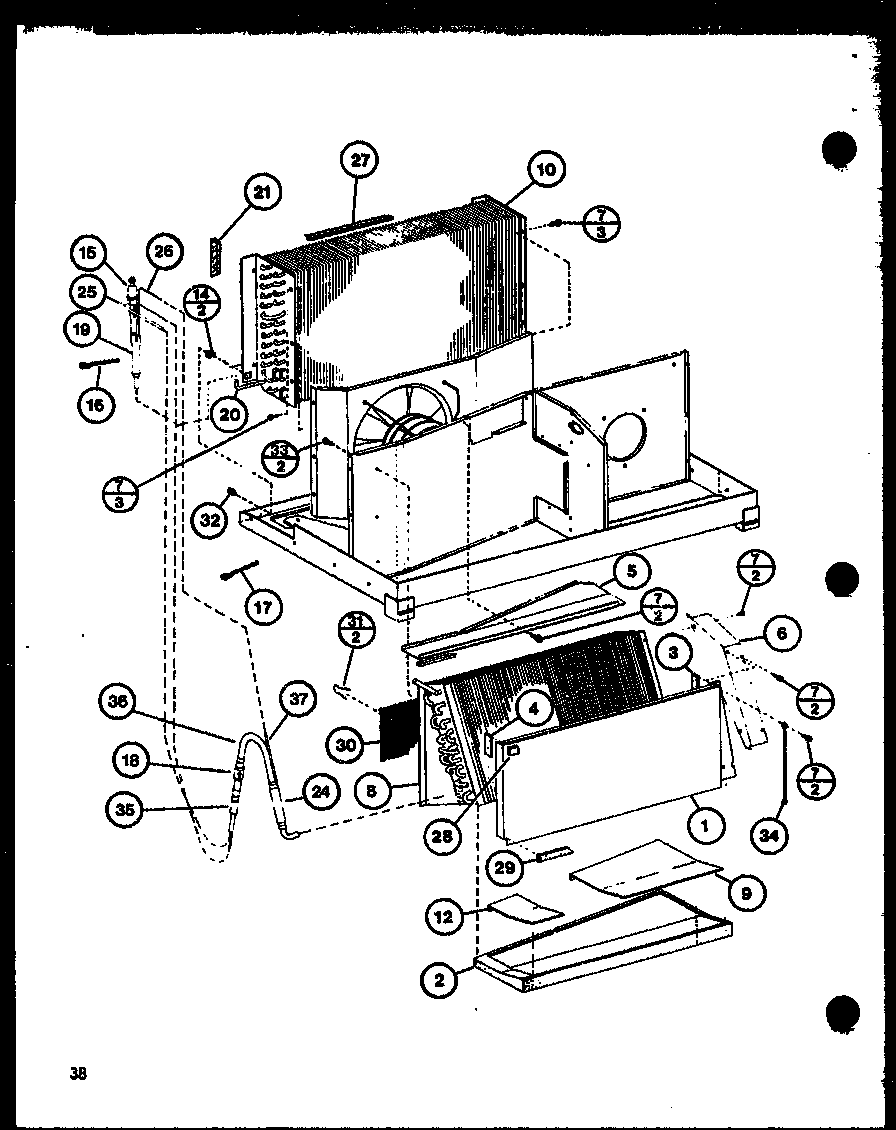

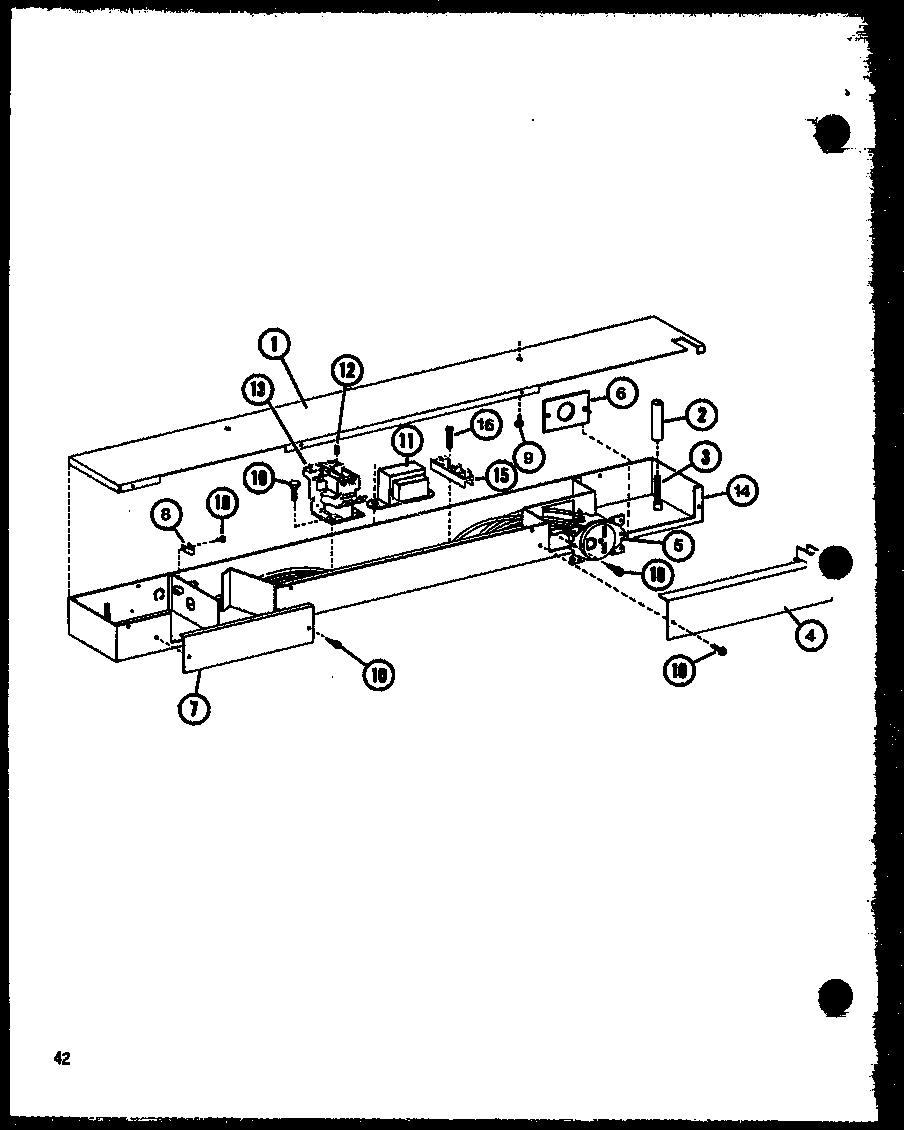

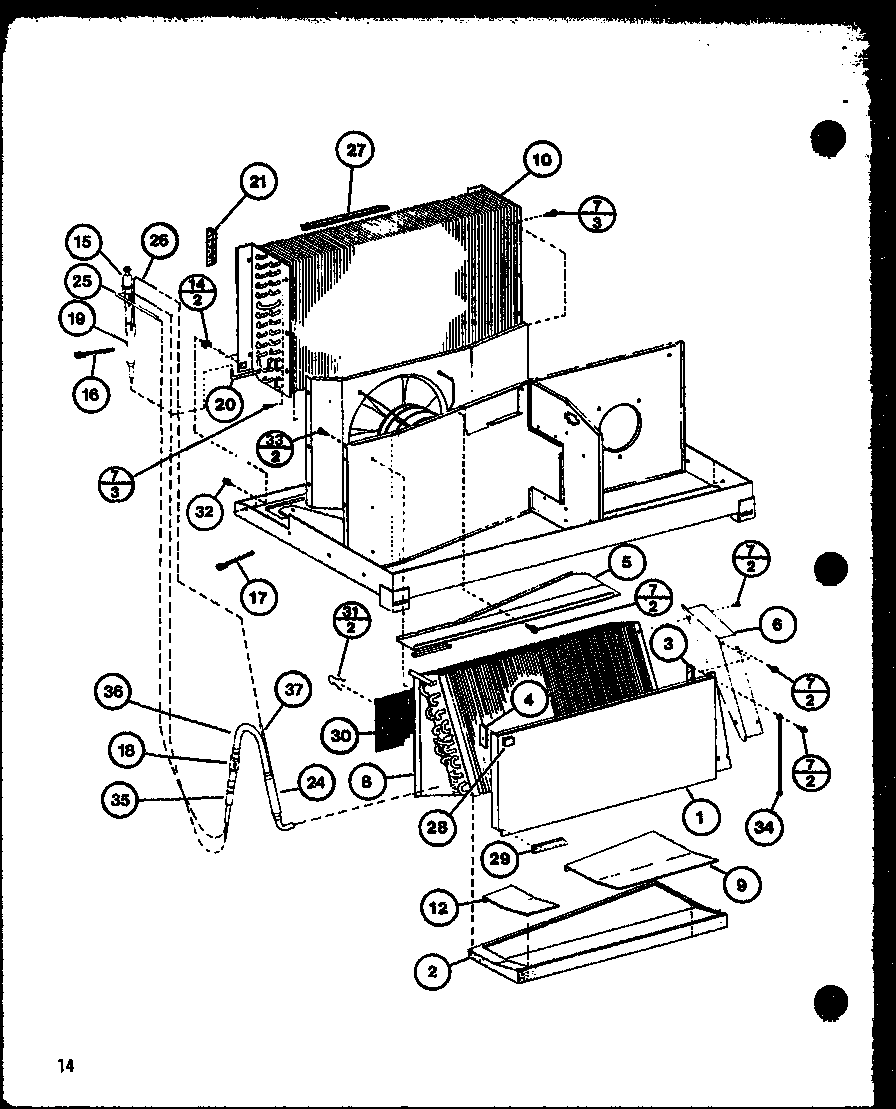

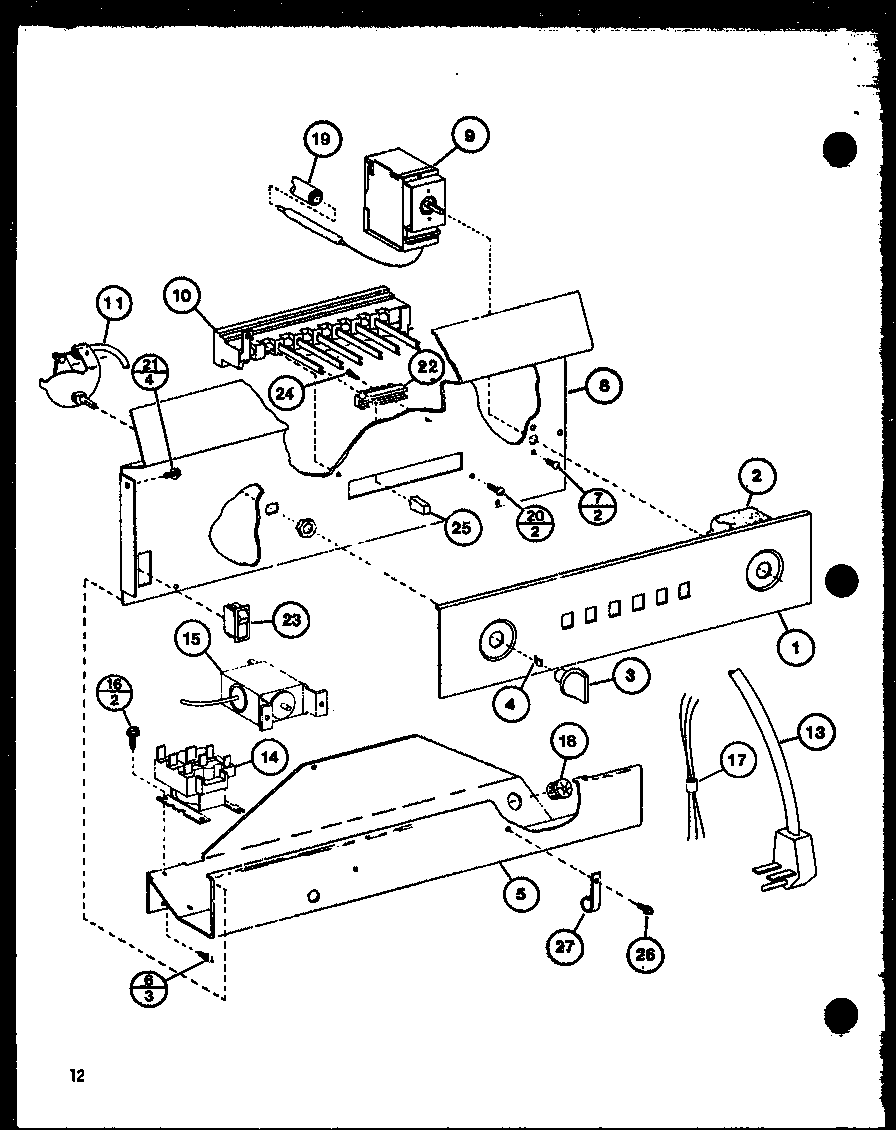

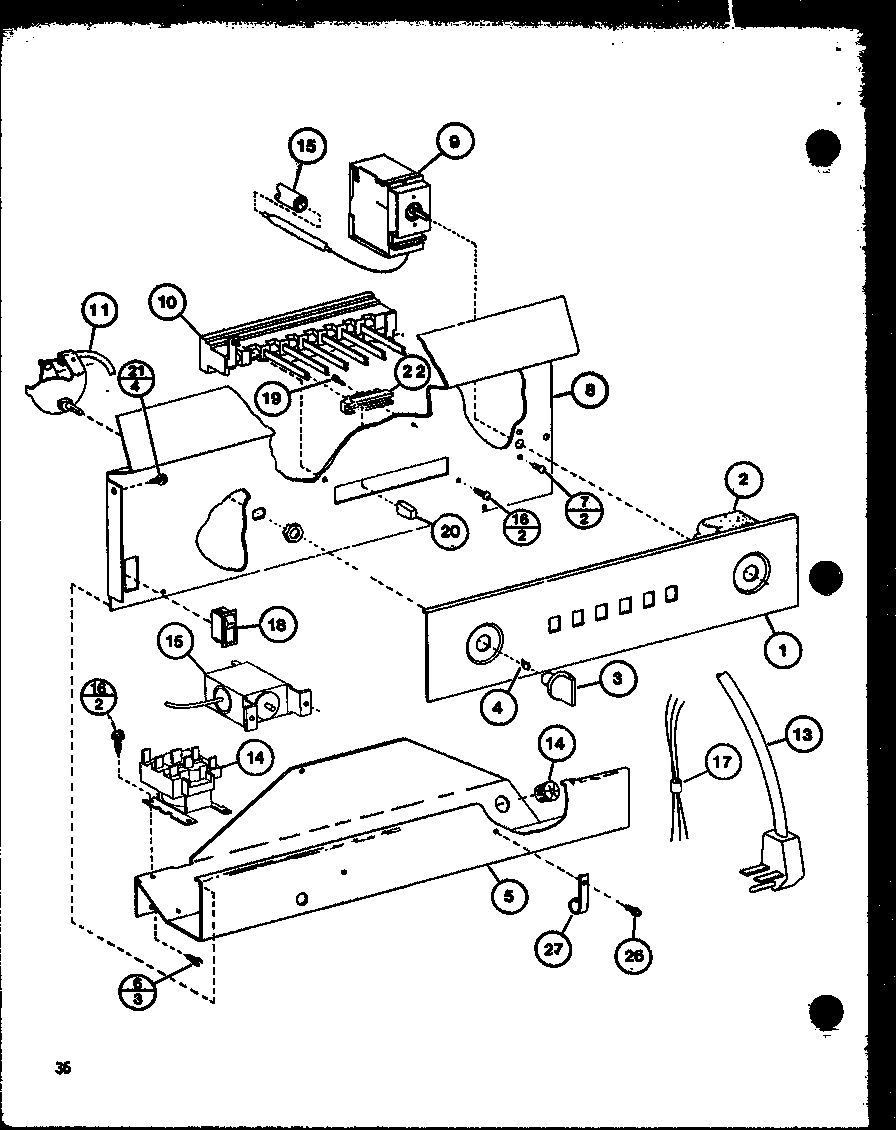

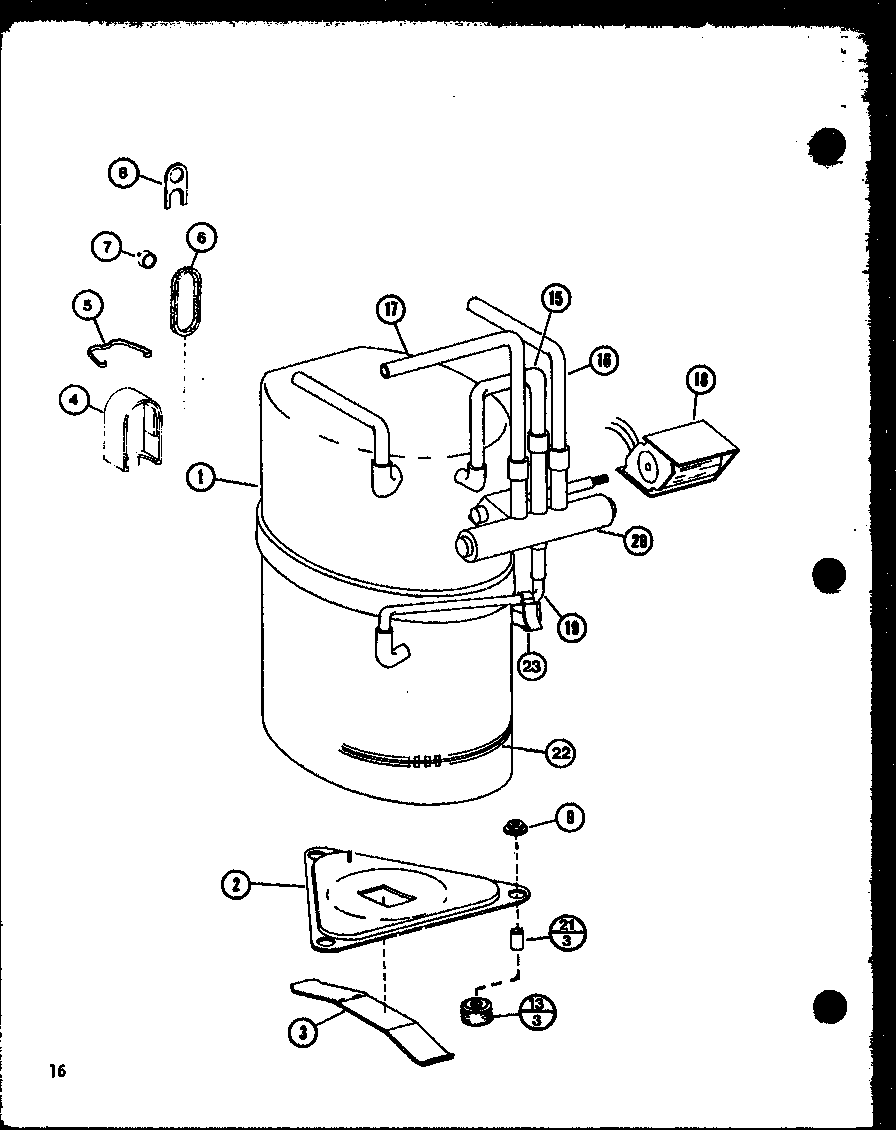

Model # PTH12-400B/P69003-46R Official Amana package terminal unit - pth series

Here are the diagrams and repair parts for Official Amana PTH12-400B-P69003-46R package terminal unit - pth series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

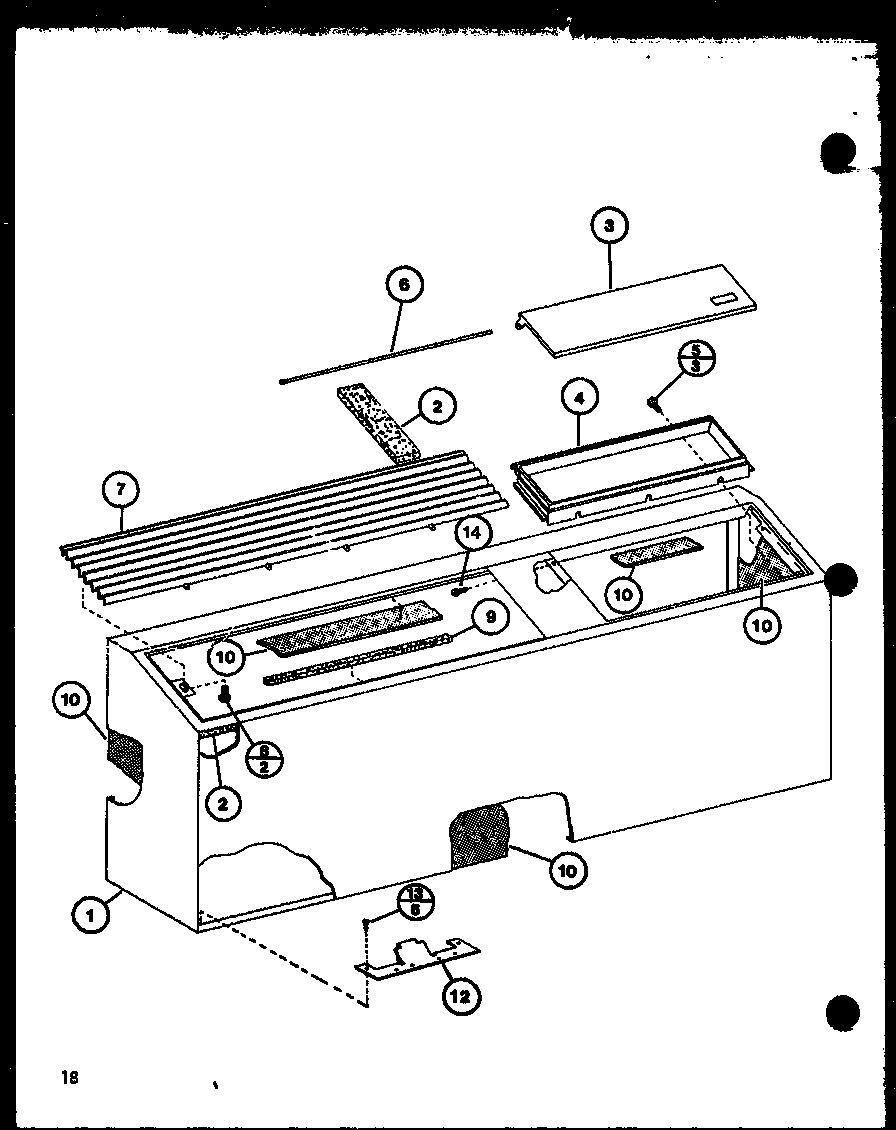

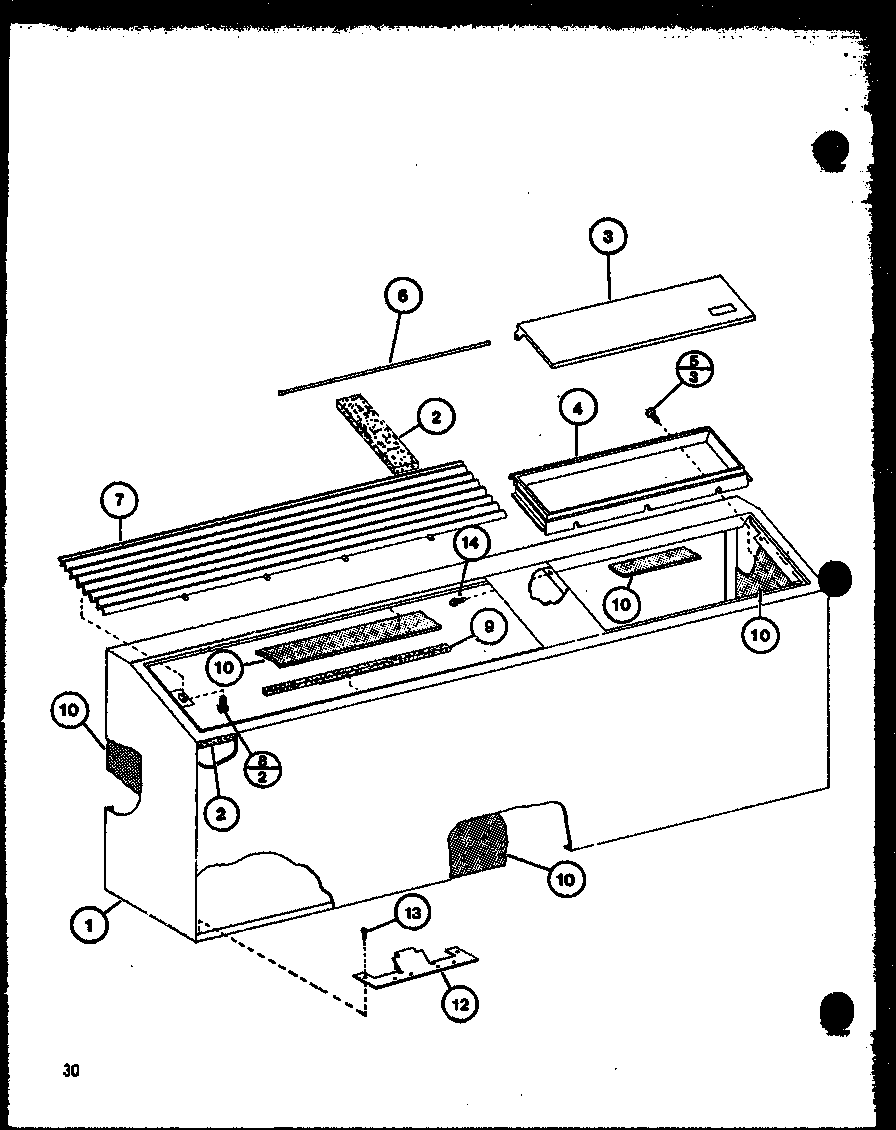

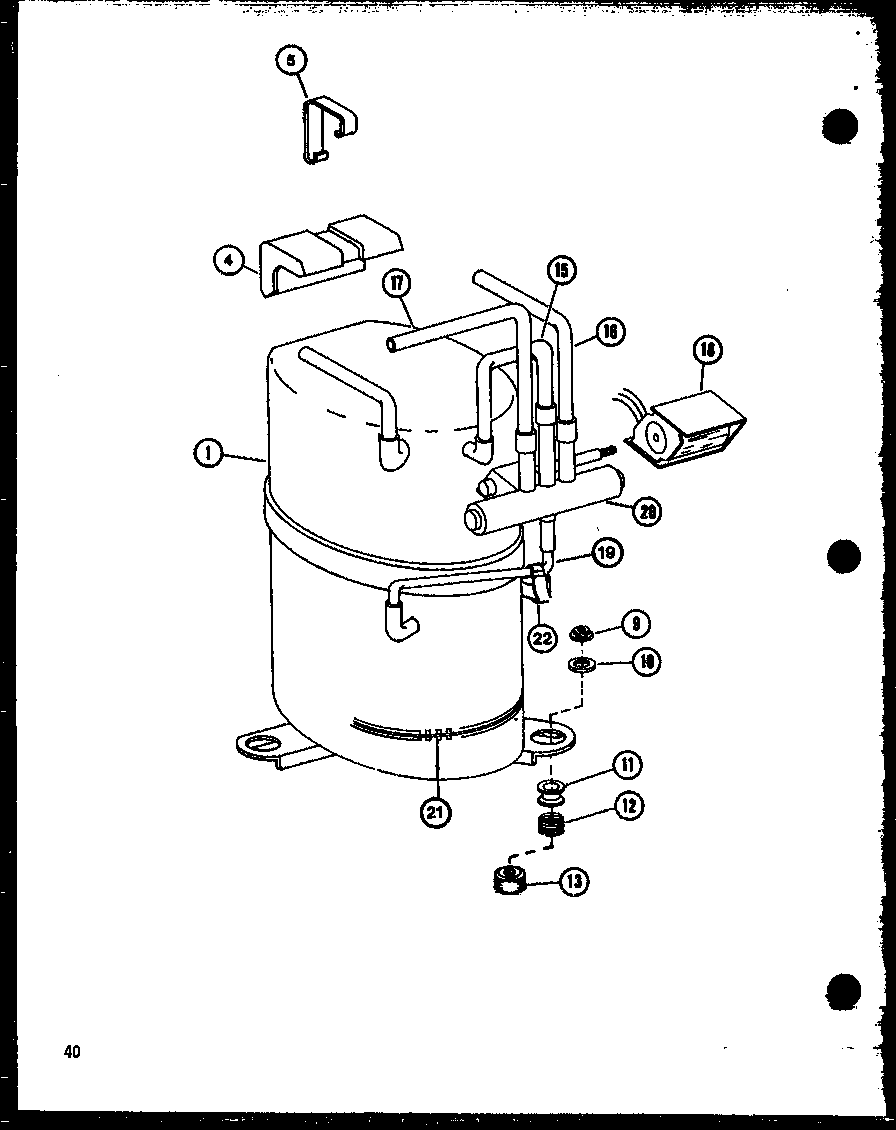

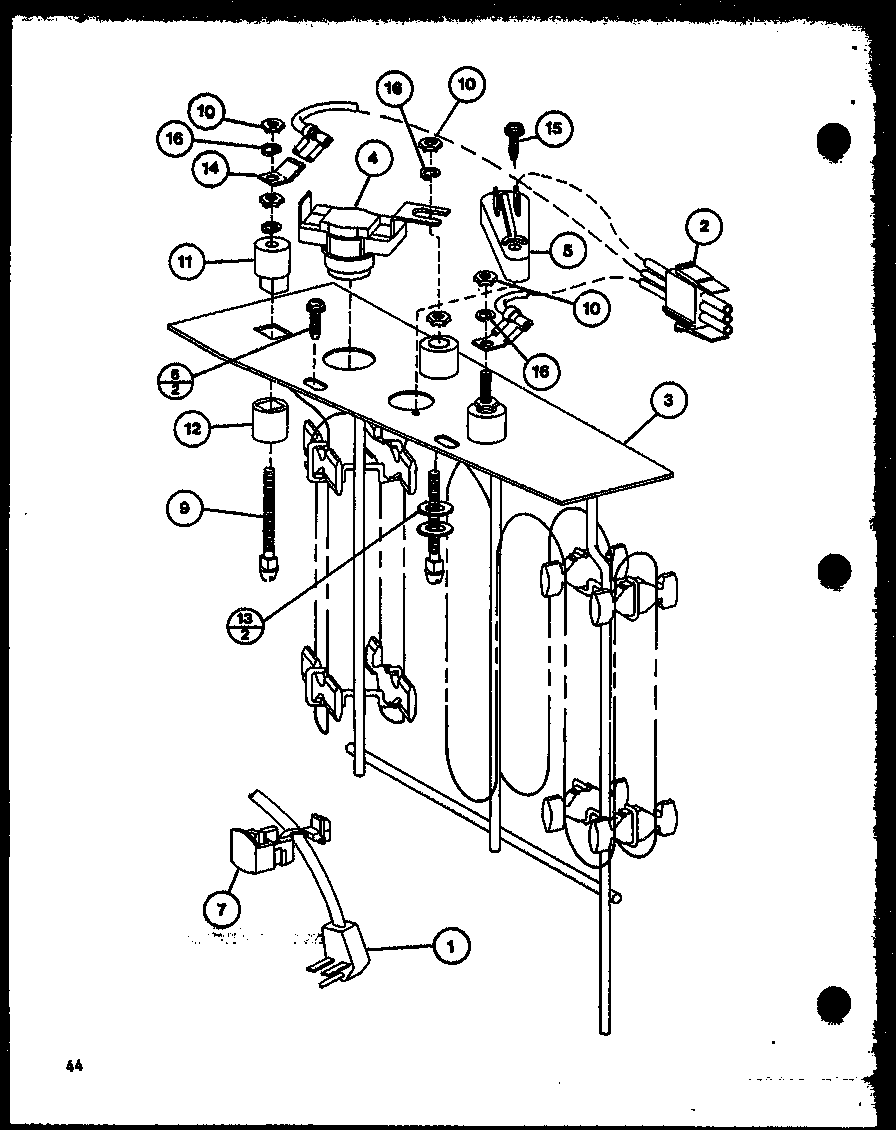

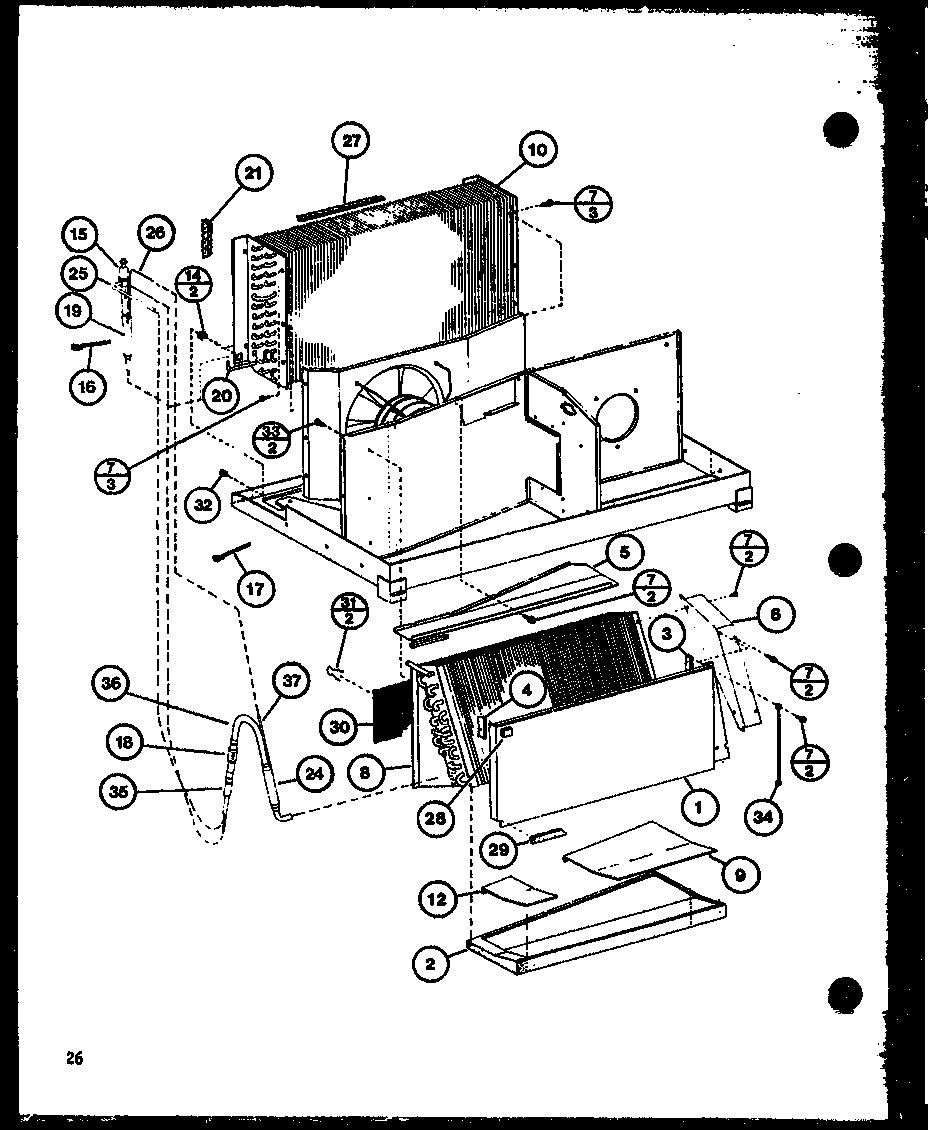

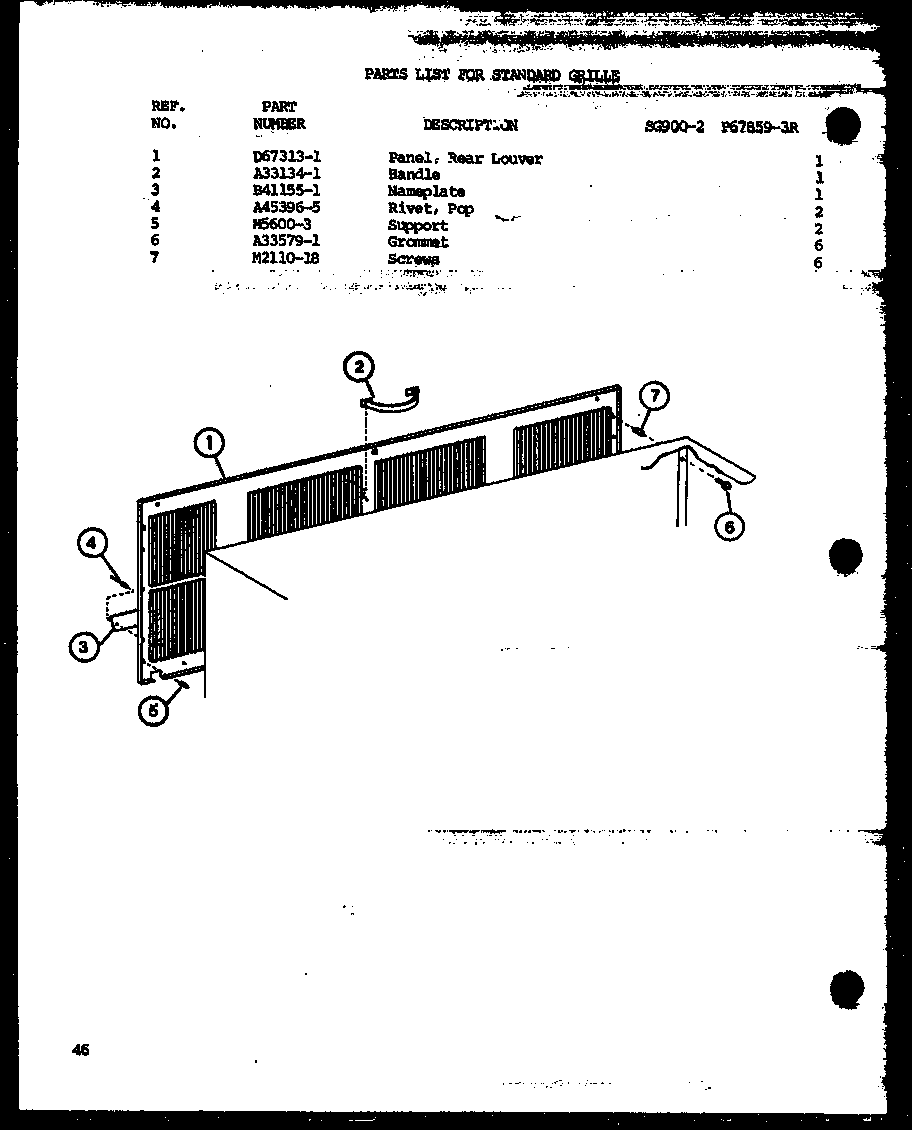

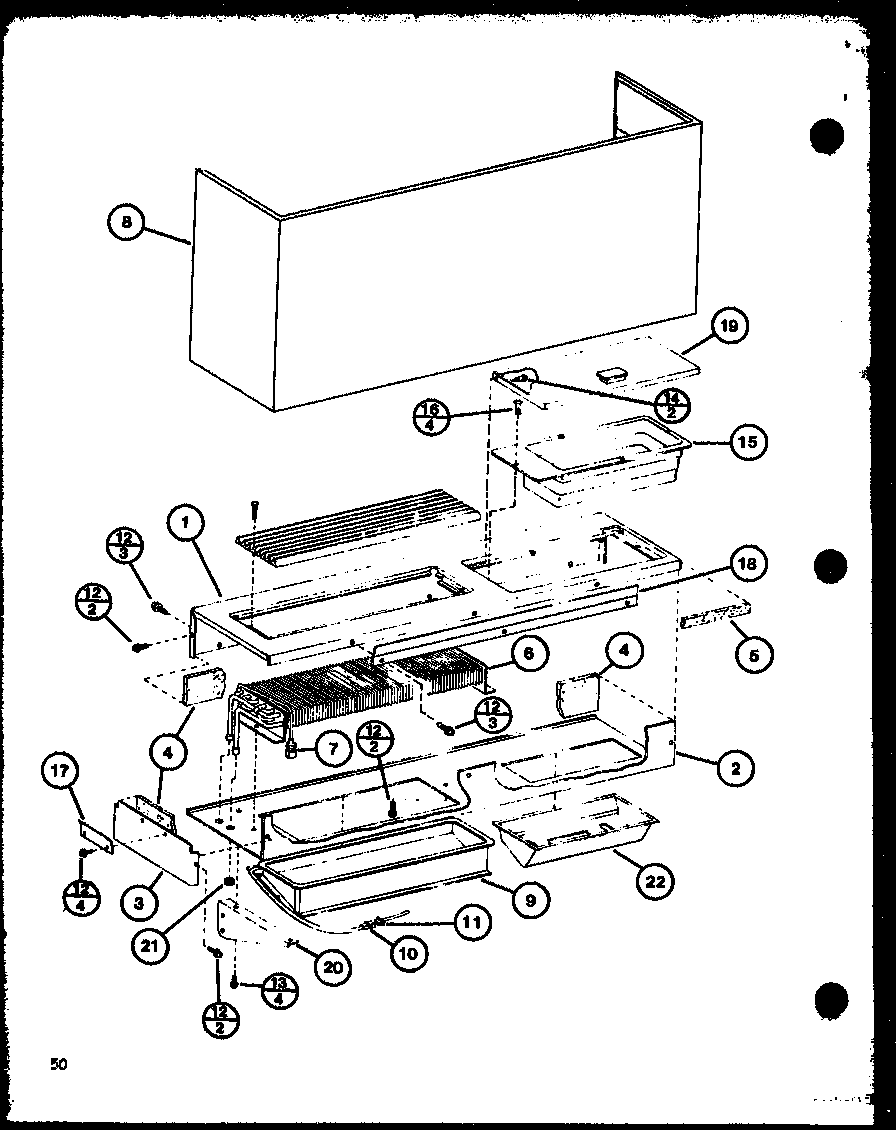

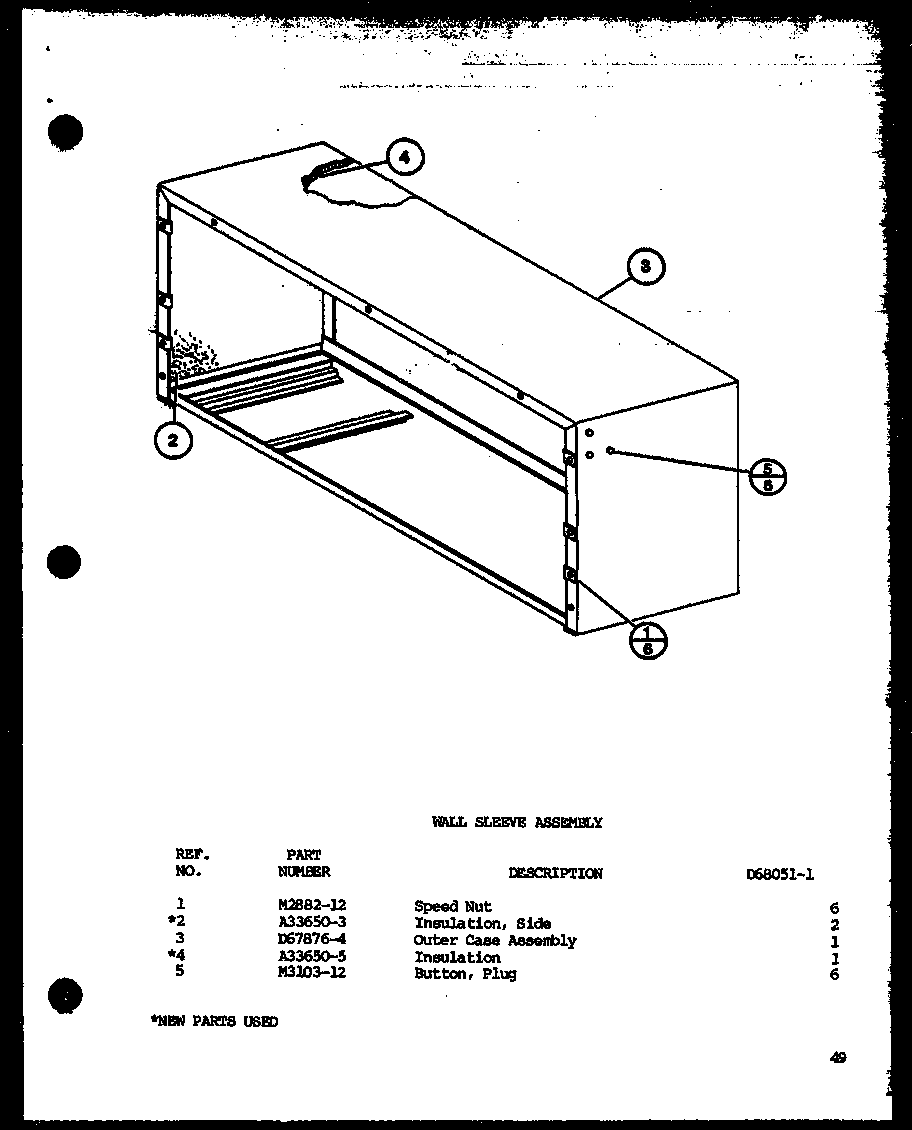

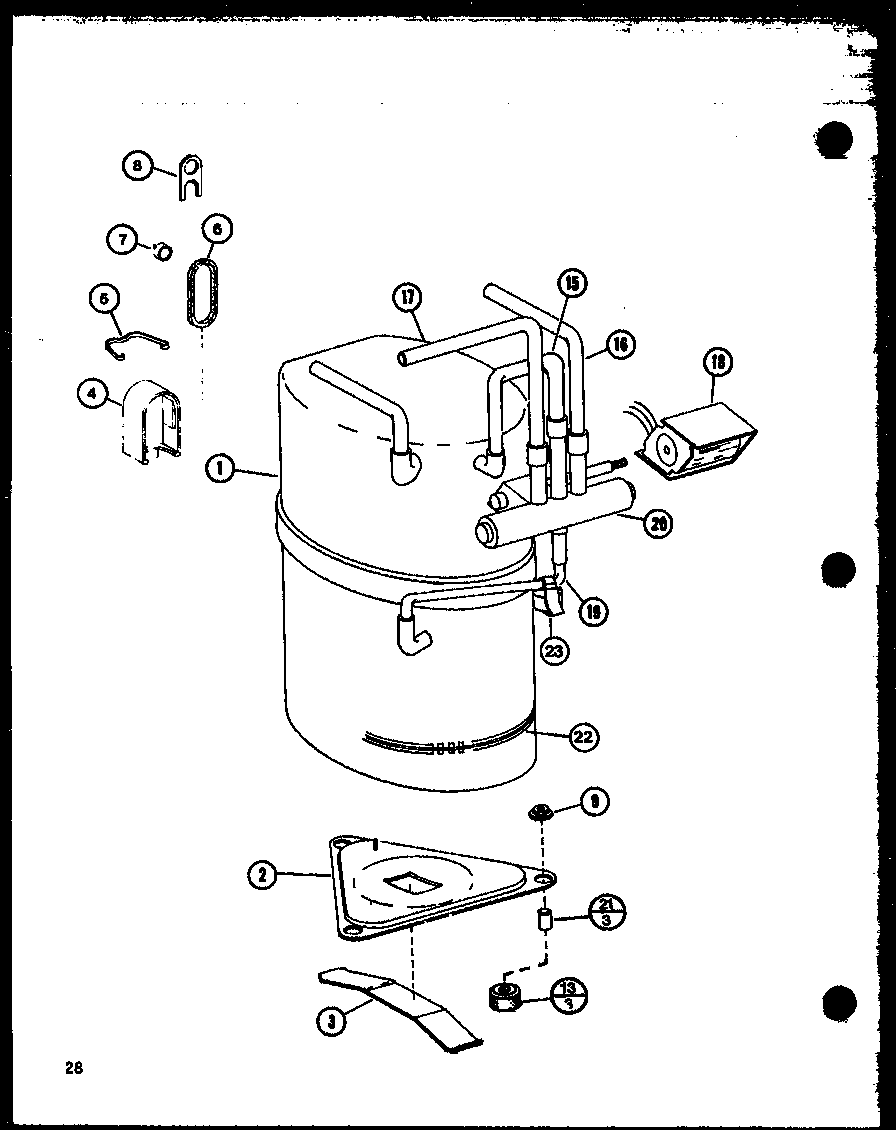

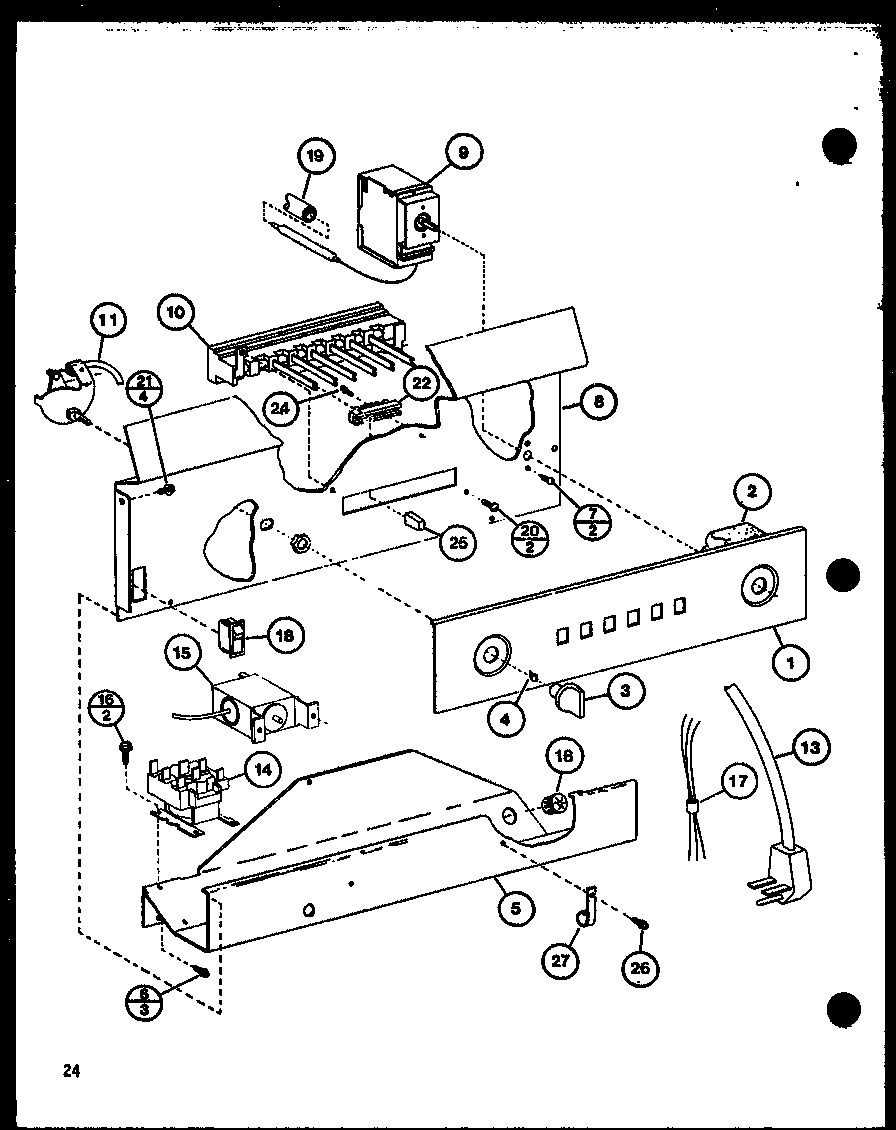

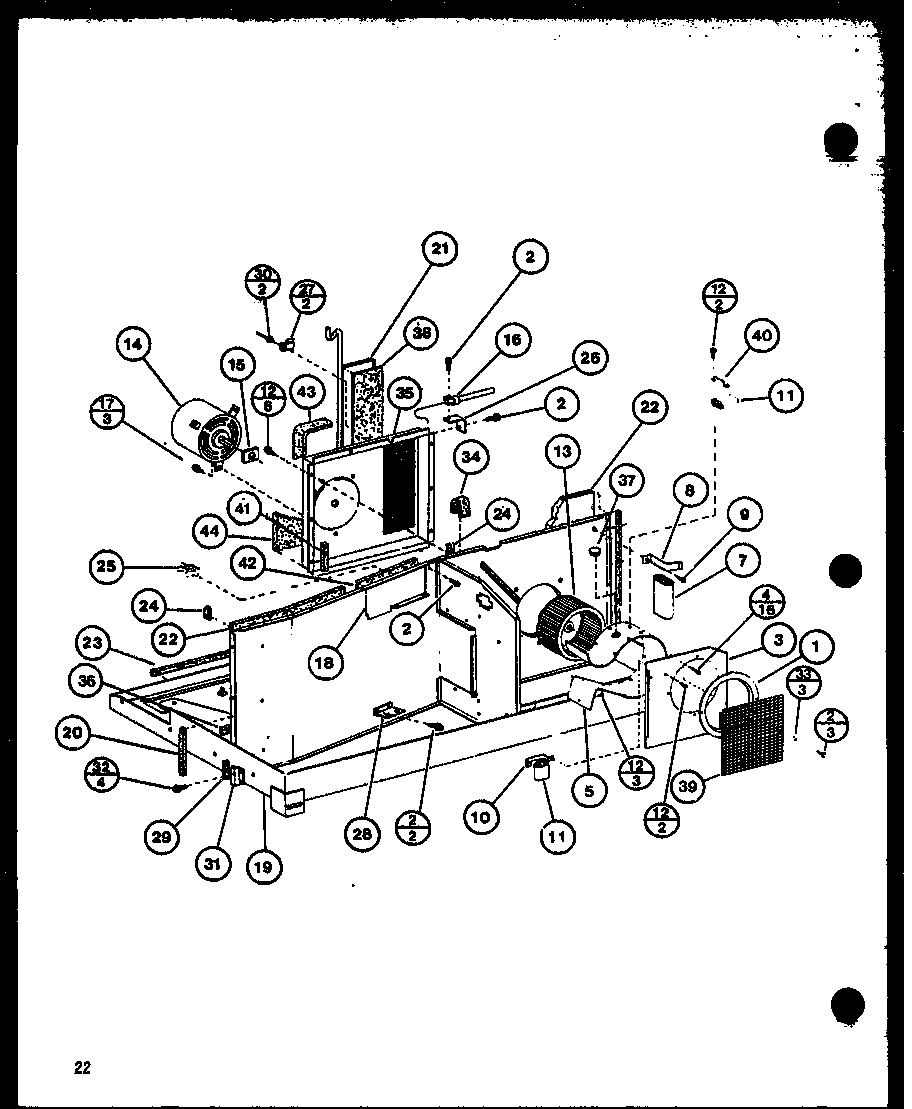

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 202 parts |

Screw

Part #M0211021

Replaced by #WP489474

This item is not returnable

$4.86 |

17% OFF Phone Price : $5.86

In Stock

Qty

Screw

Part #M0211018

Replaced by #M0211018

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Use m2820-15

Part #M0282013

Replaced by #WP487939

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Screw

Part #M0211345

Replaced by #W10841059

This item is not returnable

$2.16

In Stock

Qty

Screw

Part #M0211016

Replaced by #M0211016

This item is not returnable

$3.40

In Stock

Qty

Cord clip

Part #M0104101

Replaced by #WPM0104106

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Use m0321202

Part #M0321203

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #M0211217

Replaced by #WP489464

This item is not returnable

$6.60 |

13% OFF Phone Price : $7.60

In Stock

Qty

Button plug

Part #M0570801

The manufacturer no longer makes this part, and there's no substitute part

Knob

Part #D7009804

The manufacturer no longer makes this part, and there's no substitute part
