Model # ZICP720ASESS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE ZICP720ASESS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

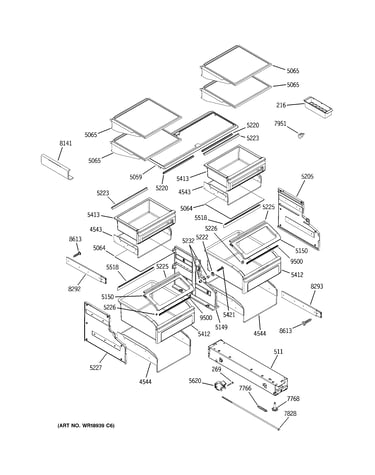

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Refrigerator Temperature Sensor WR55X10028
Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
G.e. Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

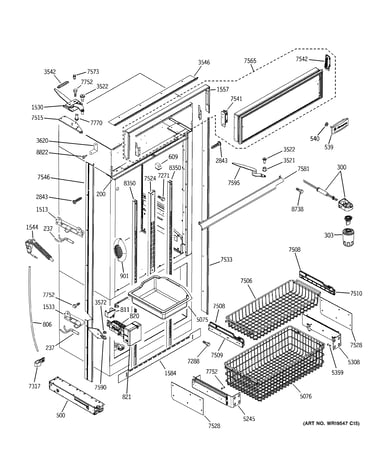

Freezer section, trim & components diagram

G.e. refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Toe Kick WR74X10125
#706

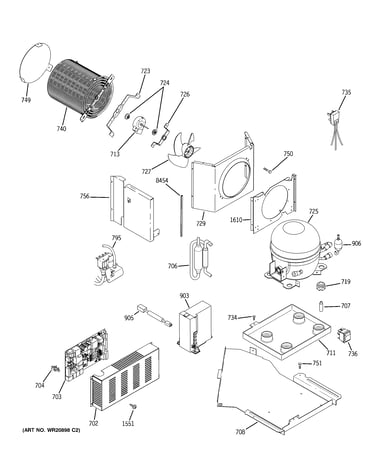

Sealed system & mother board diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#7507

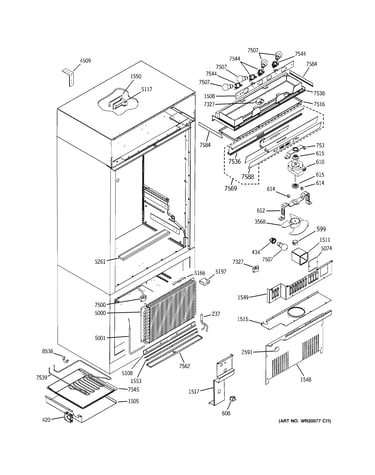

Controls & components diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#303

Freezer section, trim & components diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
BEST SELLER
$64.22
In Stock
G.e. Refrigerator Compressor (replaces Wr87x10044, Wr87x10064, Wr87x10121, Wr87x10123, Wr87x10180) WR87X10111
#725

Sealed system & mother board diagram

G.e. refrigerator compressor (replaces wr87x10044, wr87x10064, wr87x10121, wr87x10123, wr87x10180)

Part #WR87X10111

BEST SELLER
$626.82 |
$12.00 OFF Phone Price : $638.82
In Stock
Refrigerator Evaporator Fan Blade WR60X10050
#3568

Controls & components diagram

Refrigerator evaporator fan blade

Part #WR60X10050

Replaced by #WR60X41627

?
Manufacturer substitution
This part replaces WR60X10050. Substitute parts can look different from the original.
BEST SELLER
$8.94
In Stock
Refrigerator Door Gasket WR24X10148
#7567

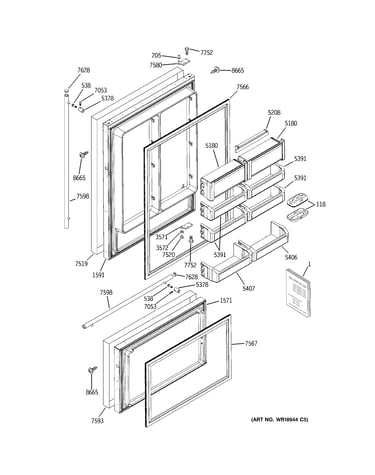

Doors diagram

Refrigerator door gasket

Part #WR24X10148

Replaced by #WR78X20985

?
Manufacturer substitution
This part replaces WR24X10148. Substitute parts can look different from the original.
$108.89 |
10% OFF Phone Price : $120.89
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#599

Controls & components diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Rocker Swt WR23X0475
#609

Freezer section, trim & components diagram

Rocker swt

Part #WR23X0475

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0475. Substitute parts can look different from the original.
$8.11
In Stock
