Model # JB940BB4BB Official GE electric range

Here are the diagrams and repair parts for Official GE JB940BB4BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

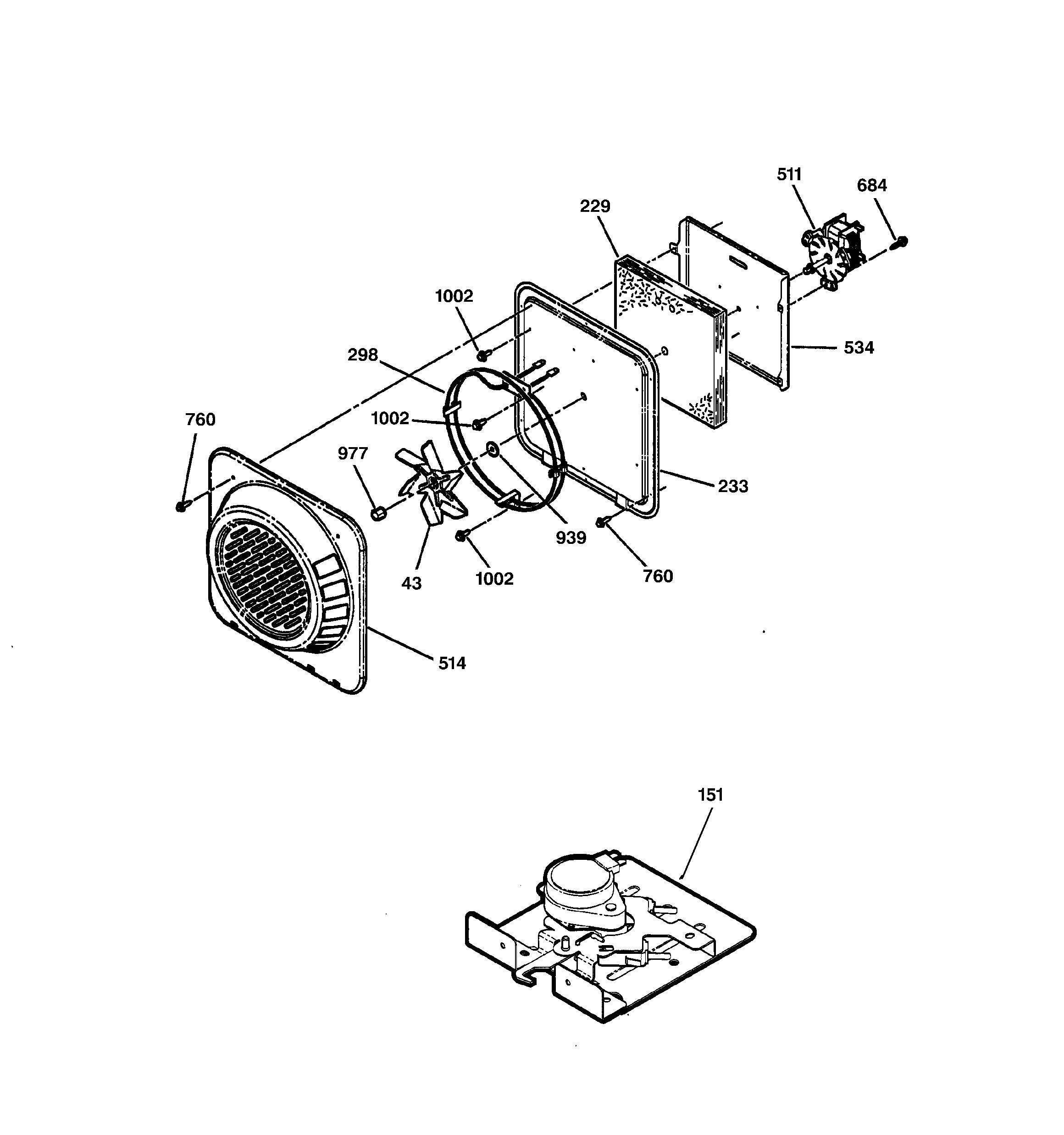

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Range Oven Light Bulb WX12X1510
#257

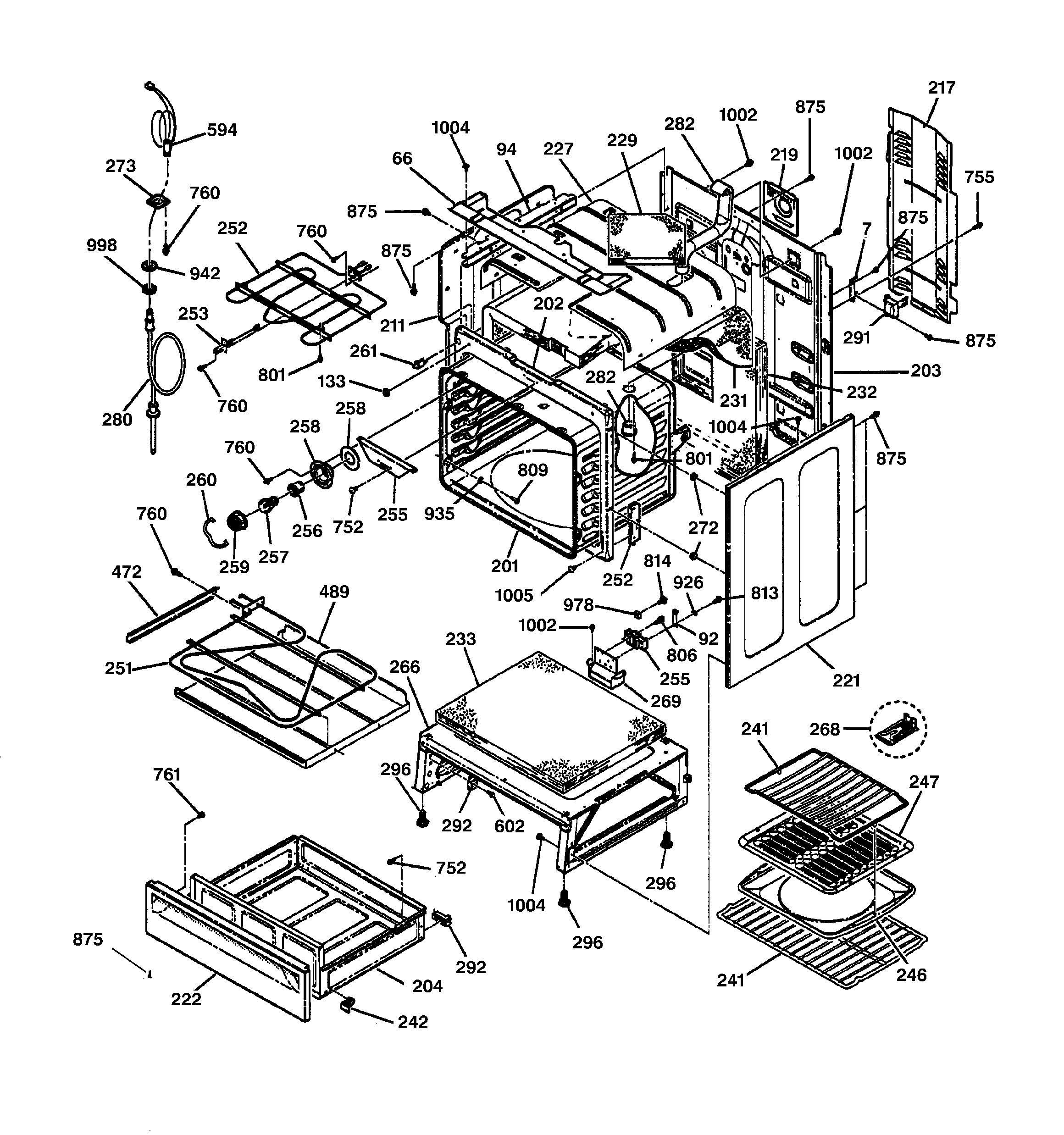

Body & drawer parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Wall Oven Temperature Sensor WB23T10002
#253

Body & drawer parts diagram

Wall oven temperature sensor

Part #WB23T10002

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB23T10002. Substitute parts can look different from the original.
BEST SELLER
$126.20 |
10% OFF Was : $140.22
In Stock
Halogen Element WB30T10050
#58

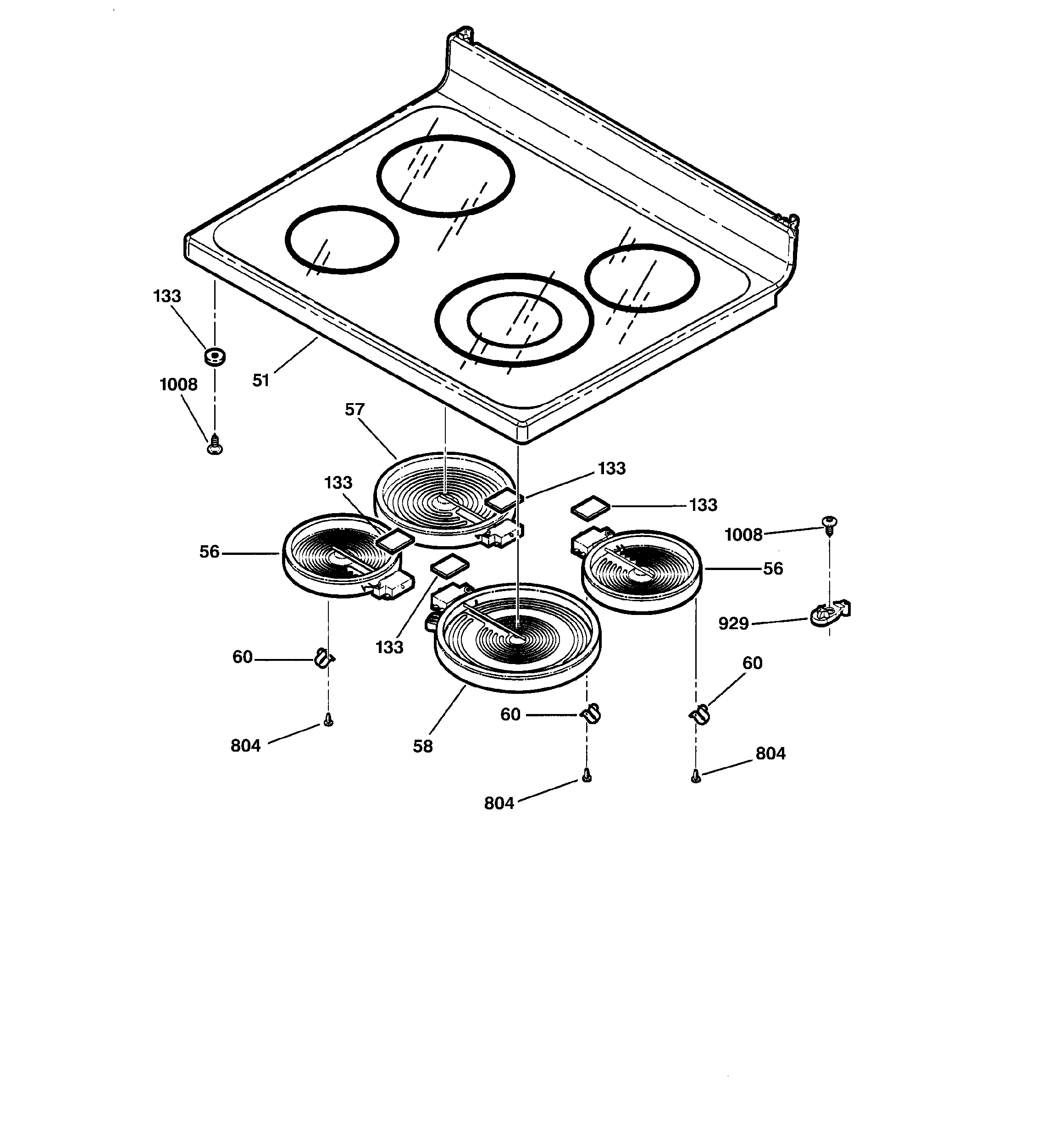

Cooktop diagram

Halogen element

Part #WB30T10050

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10050. Substitute parts can look different from the original.
BEST SELLER
$100.57 |
11% OFF Phone Price : $112.57
In Stock
Infinite Control Switch WB24T10056
#19

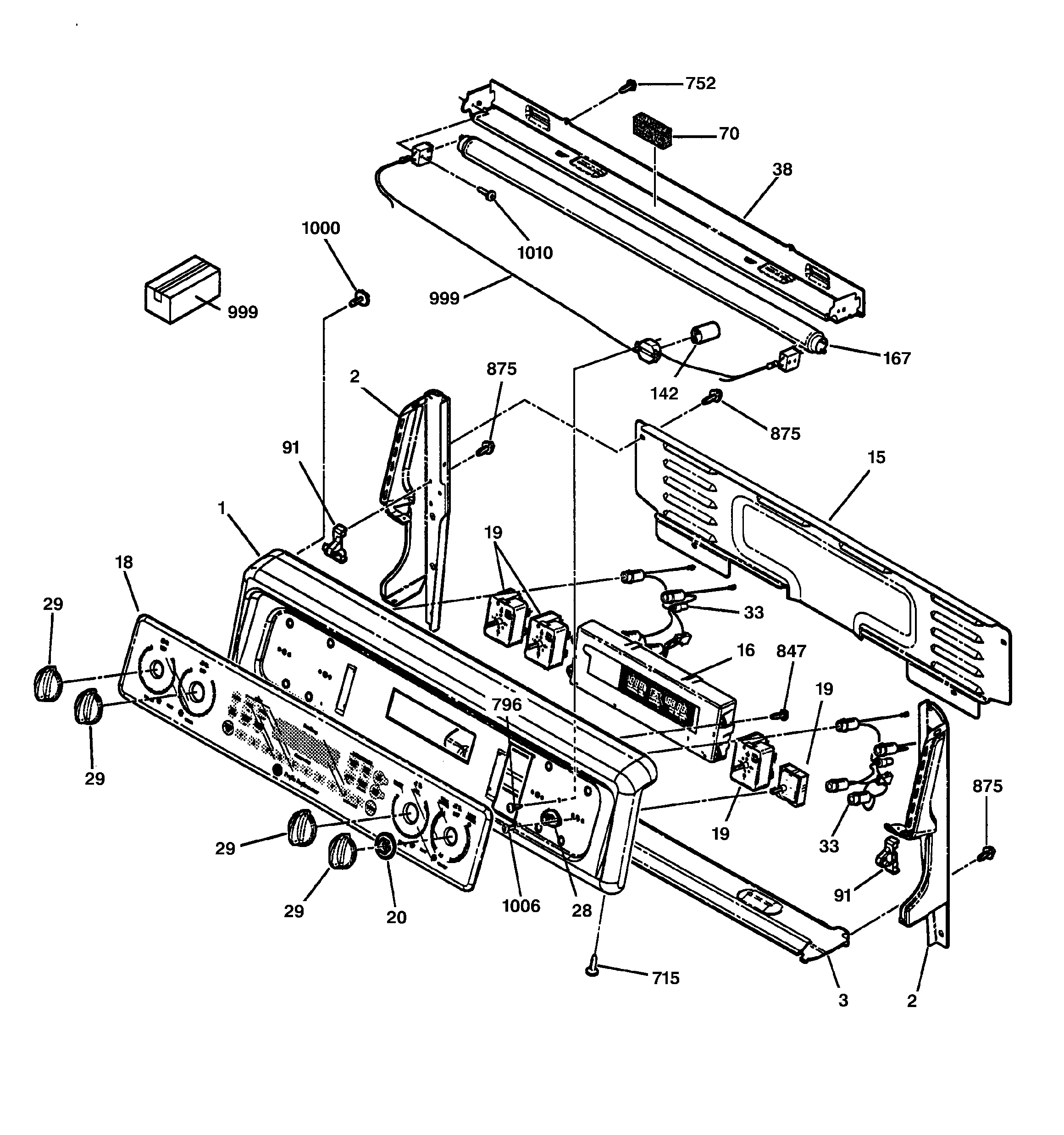

Control panel diagram

Infinite control switch

Part #WB24T10056

Replaced by #WB24T10063

?
Manufacturer substitution
This part replaces WB24T10056. Substitute parts can look different from the original.
BEST SELLER
$70.83 |
8% OFF Phone Price : $76.83
In Stock
Range Surface Element Control Switch, 2,000-watt WB24T10026
#19

Control panel diagram

Range surface element control switch, 2,000-watt

Part #WB24T10026

BEST SELLER
$35.97 |
14% OFF Phone Price : $41.97
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30k5031, Wb30t10007) WB30T10045
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30k5031, wb30t10007)

Part #WB30T10045

$134.96 |
8% OFF Phone Price : $146.96
In Stock
Oven Light Switch WB24X5316
#261

Body & drawer parts diagram

Oven light switch

Part #WB24X5316

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24X5316. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Range Light Socket WB08T10004
#256

Body & drawer parts diagram

Range light socket

Part #WB08T10004

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Light Lens WB36X0389
#259

Body & drawer parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Kenmore Elite Range Oven Door Hinge WB10T10007
#281

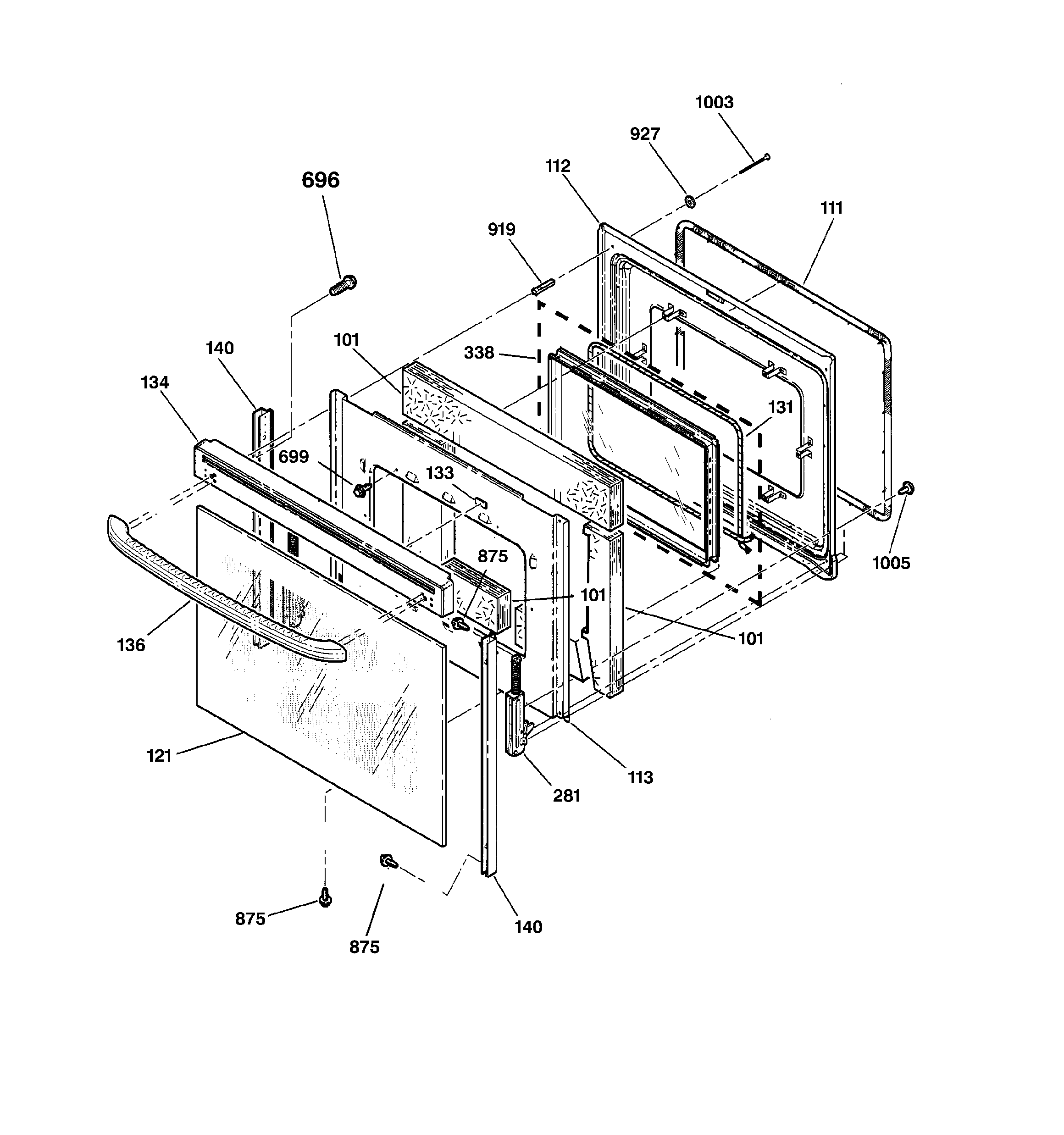

Door diagram

Kenmore elite range oven door hinge

Part #WB10T10007

$59.44 |
9% OFF Phone Price : $65.44
In Stock
