Model # SAV5701AWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag SAV5701AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

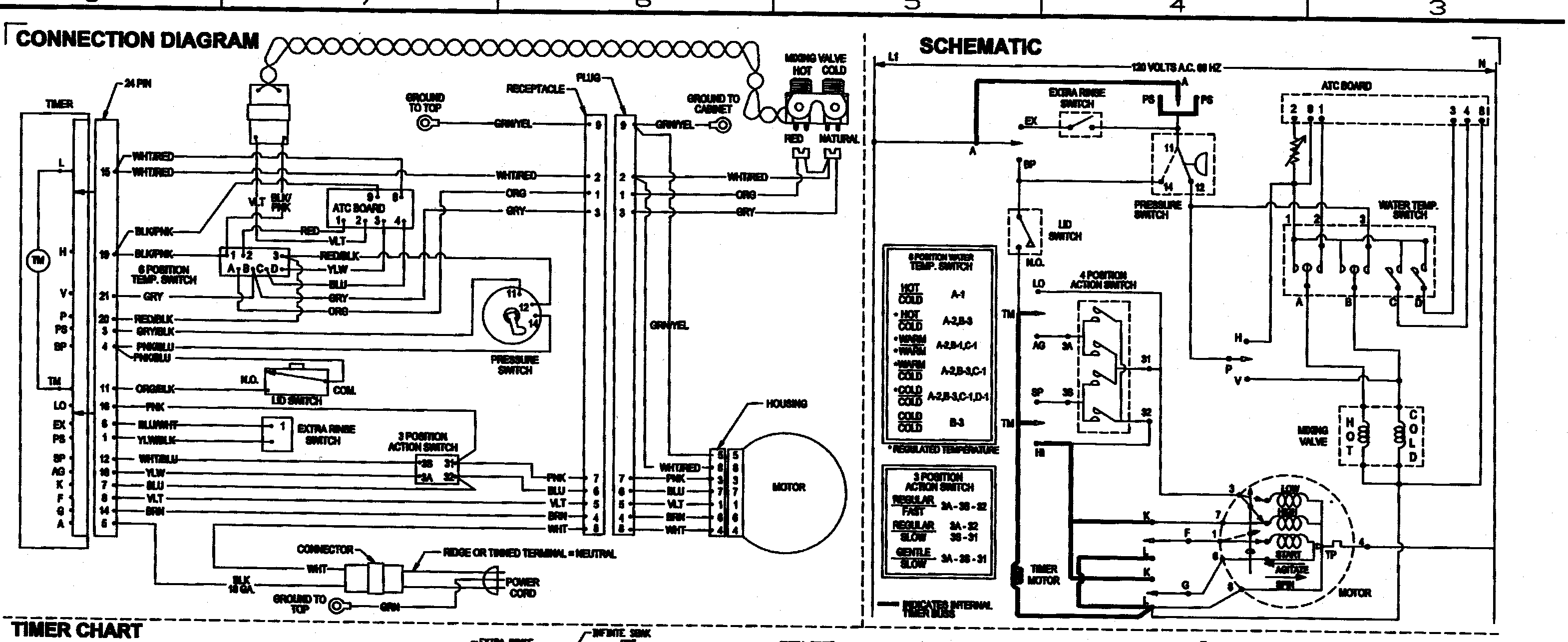

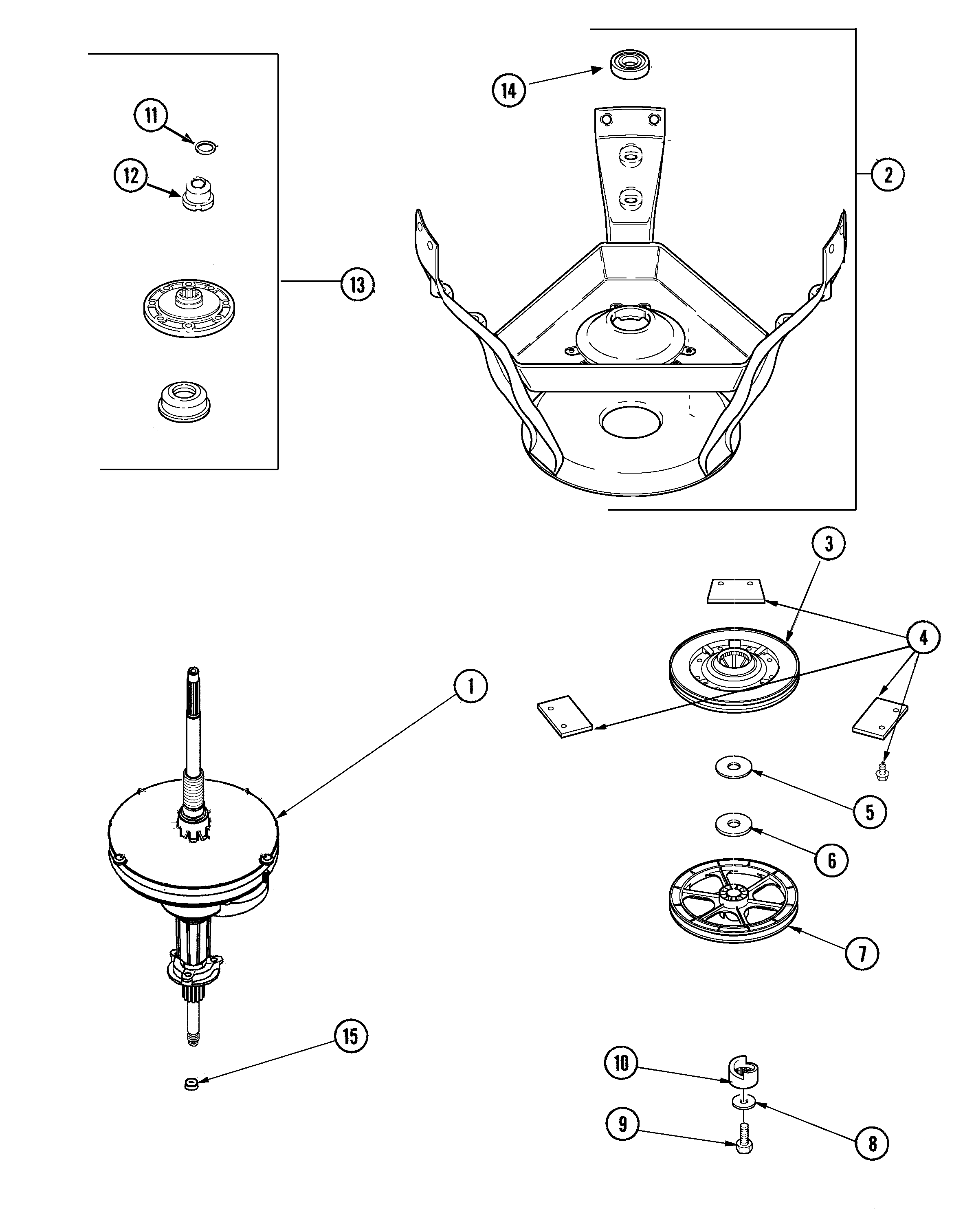

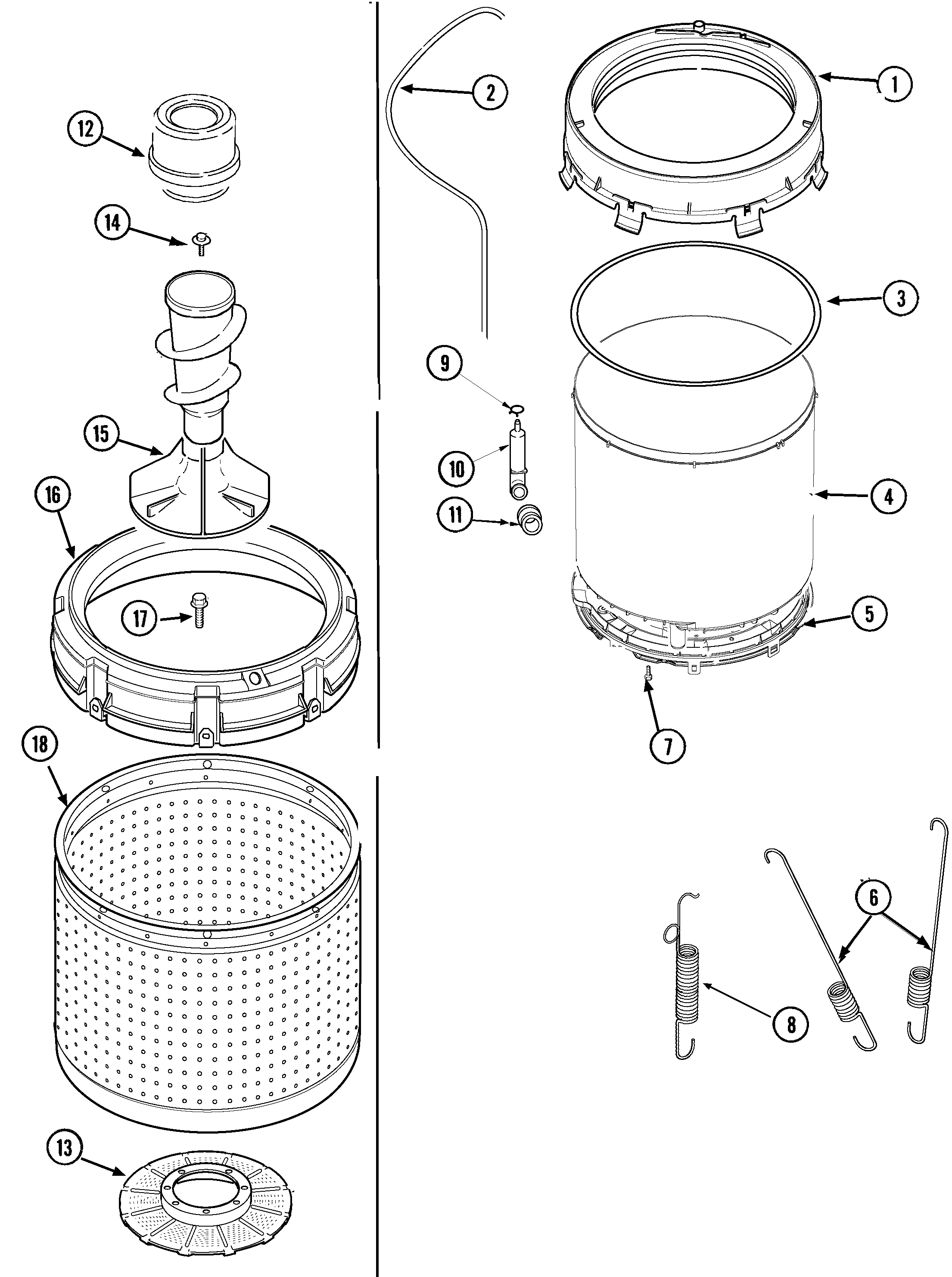

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Hose Clamp 36801
Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 27001024
Hose clamp

Part #27001024

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 27001024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 40039201
#5

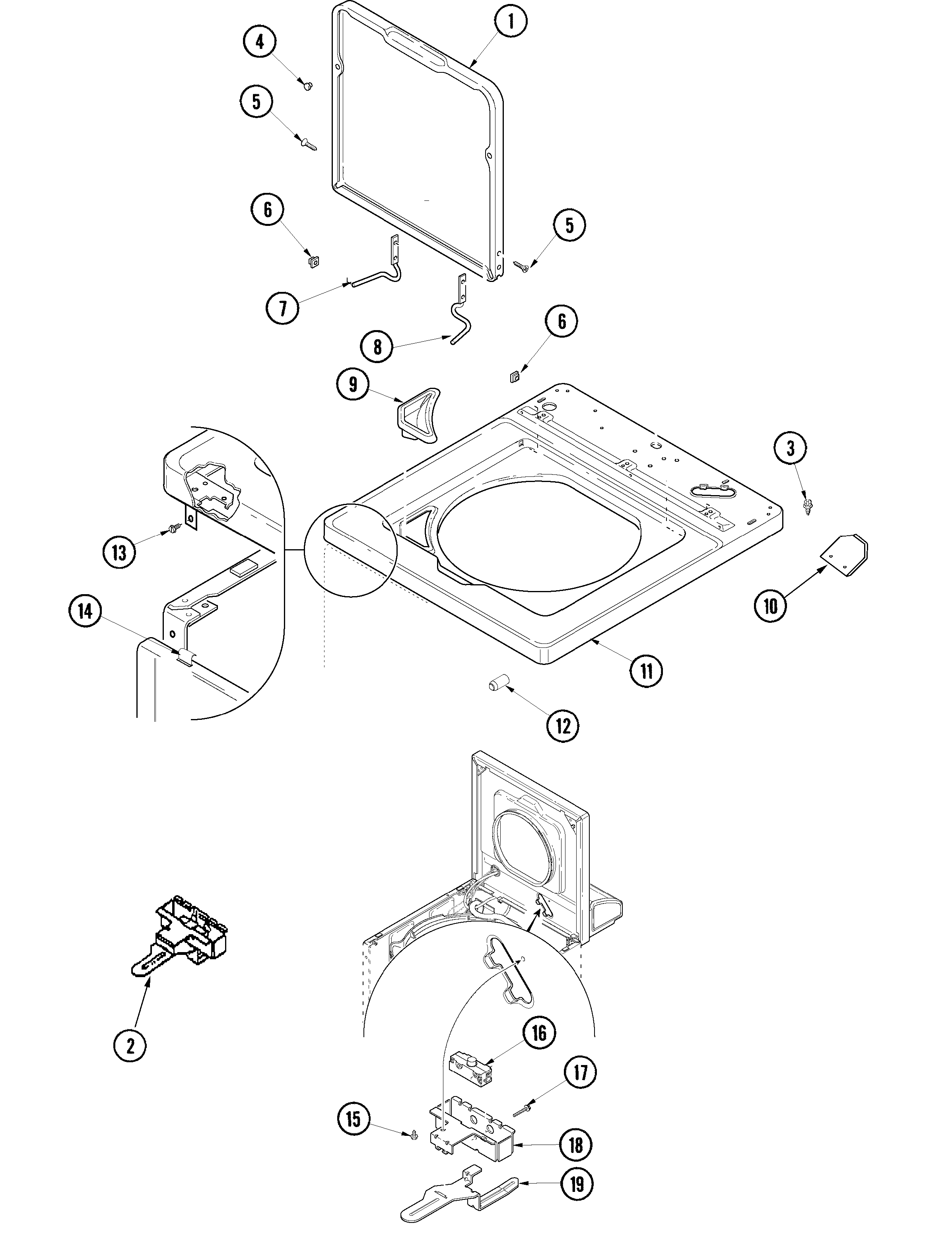

Top and door switch diagram

Screw

Part #40039201

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 40039201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Inlet Hose 33-7891
#9

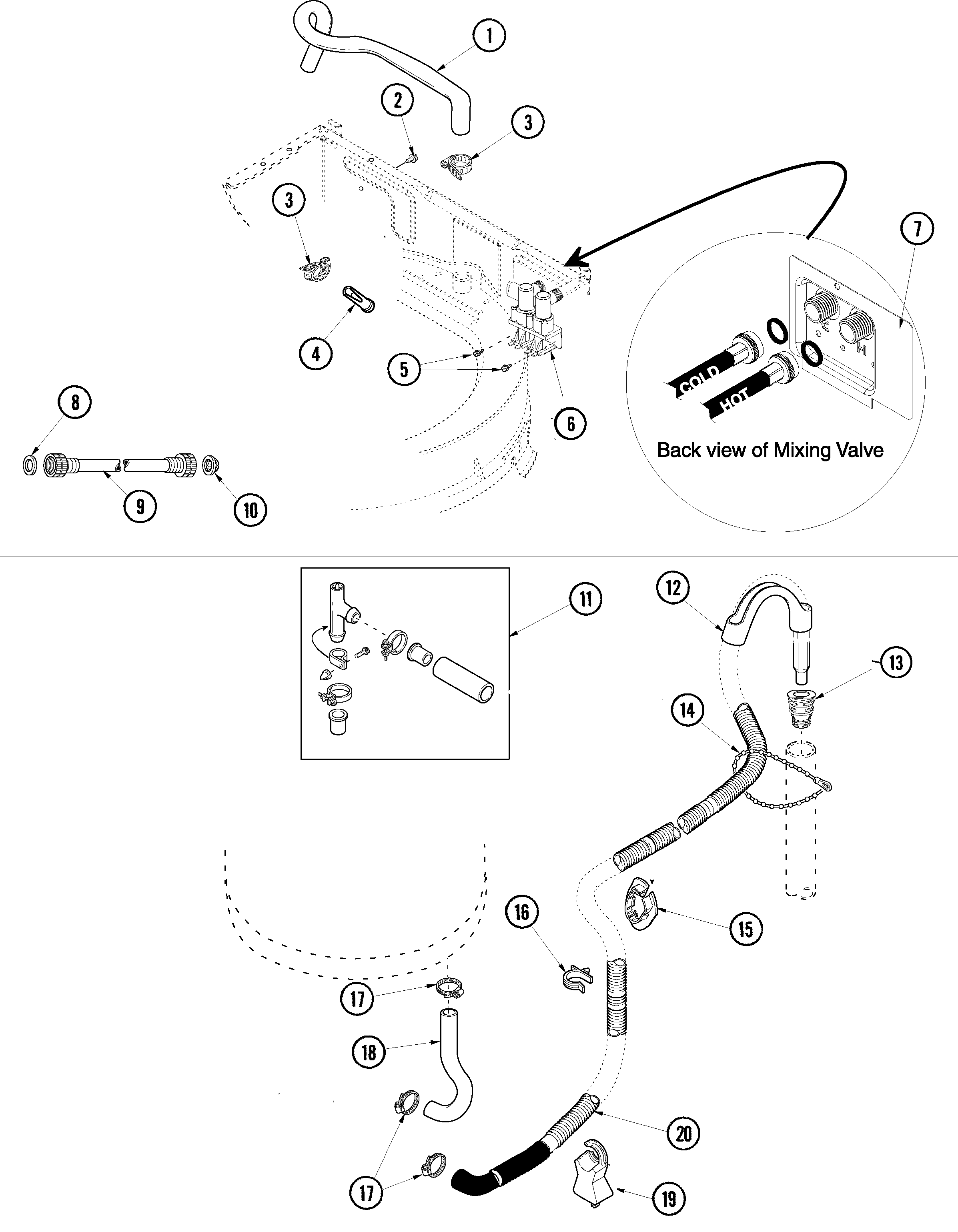

Mixing valve and hoses diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Laundry Appliance Retaining Ring 23748
#11

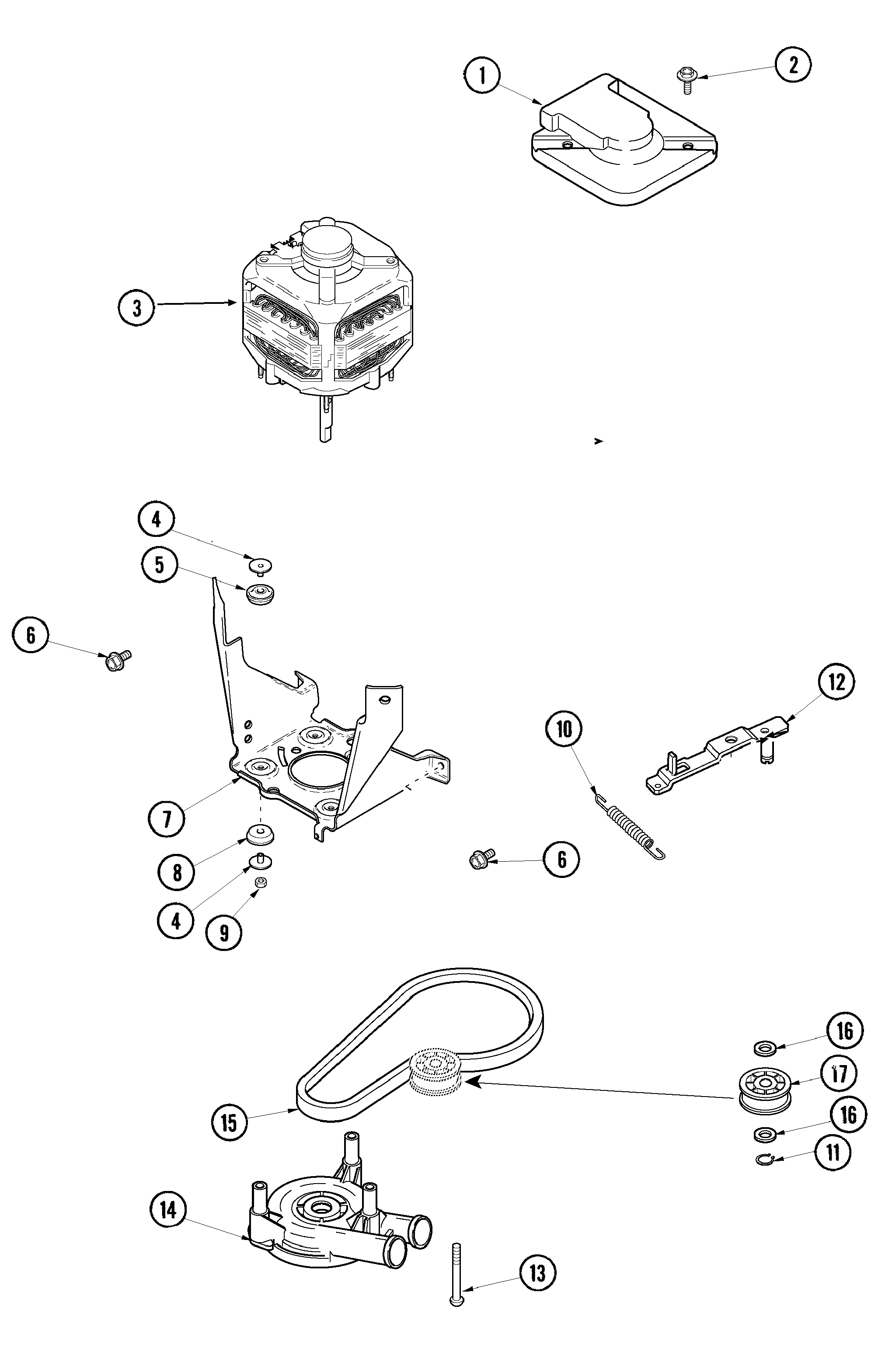

Motor, pump and idler assembly diagram

Laundry appliance retaining ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Clip 56080
Clip

Part #56080

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 56080. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Laundry Appliance Timer Knob Insert 22001664
#12

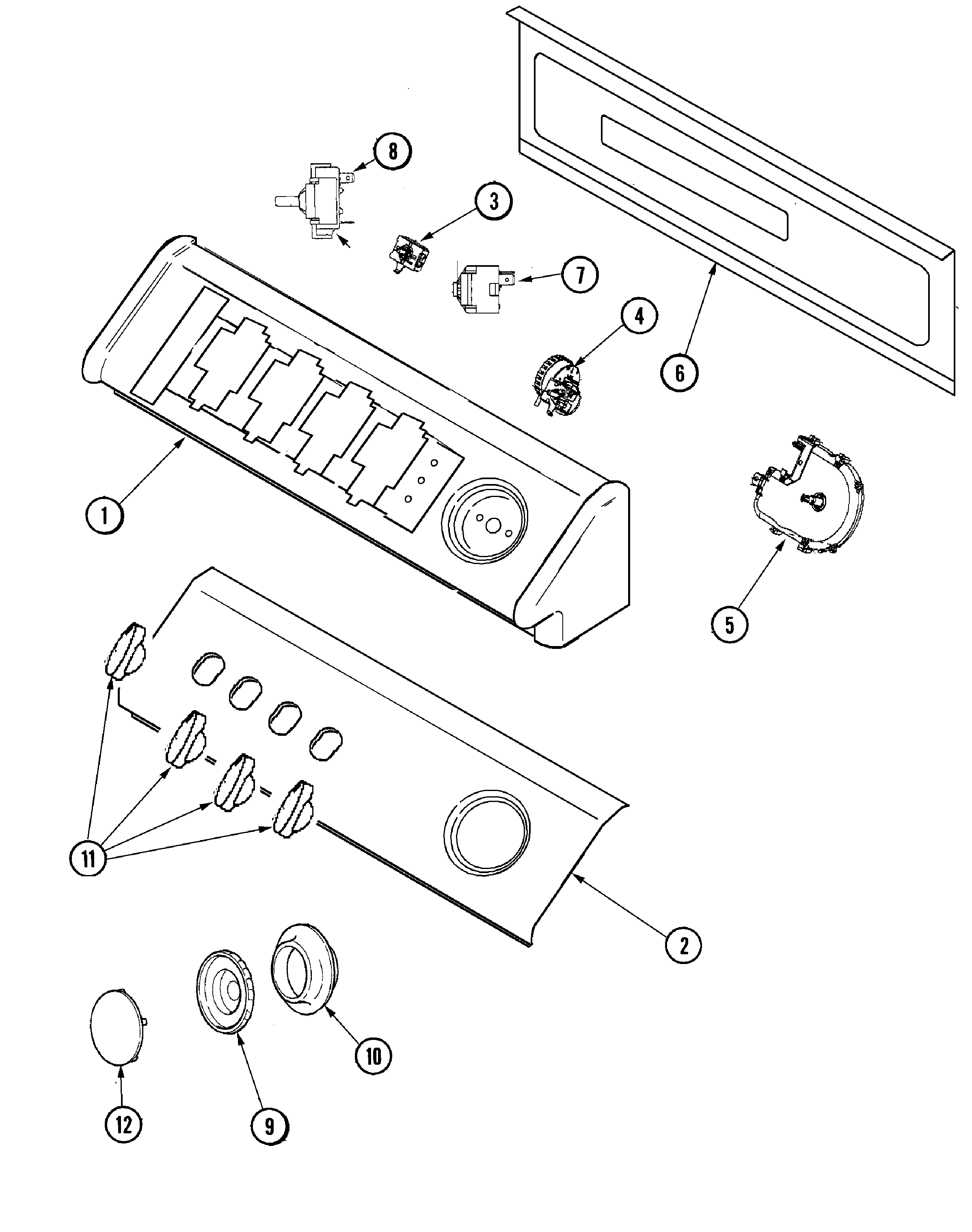

Control panel diagram

Laundry appliance timer knob insert

Part #22001664

Replaced by #WP22001664

?
Manufacturer substitution
This part replaces 22001664. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Drive Belt 27001006
#15

Motor, pump and idler assembly diagram

Washer drive belt

Part #27001006

Replaced by #WP27001006

?
Manufacturer substitution
This part replaces 27001006. Substitute parts can look different from the original.
$34.29 |
15% OFF Phone Price : $40.29
In Stock
Screw 32671
#1

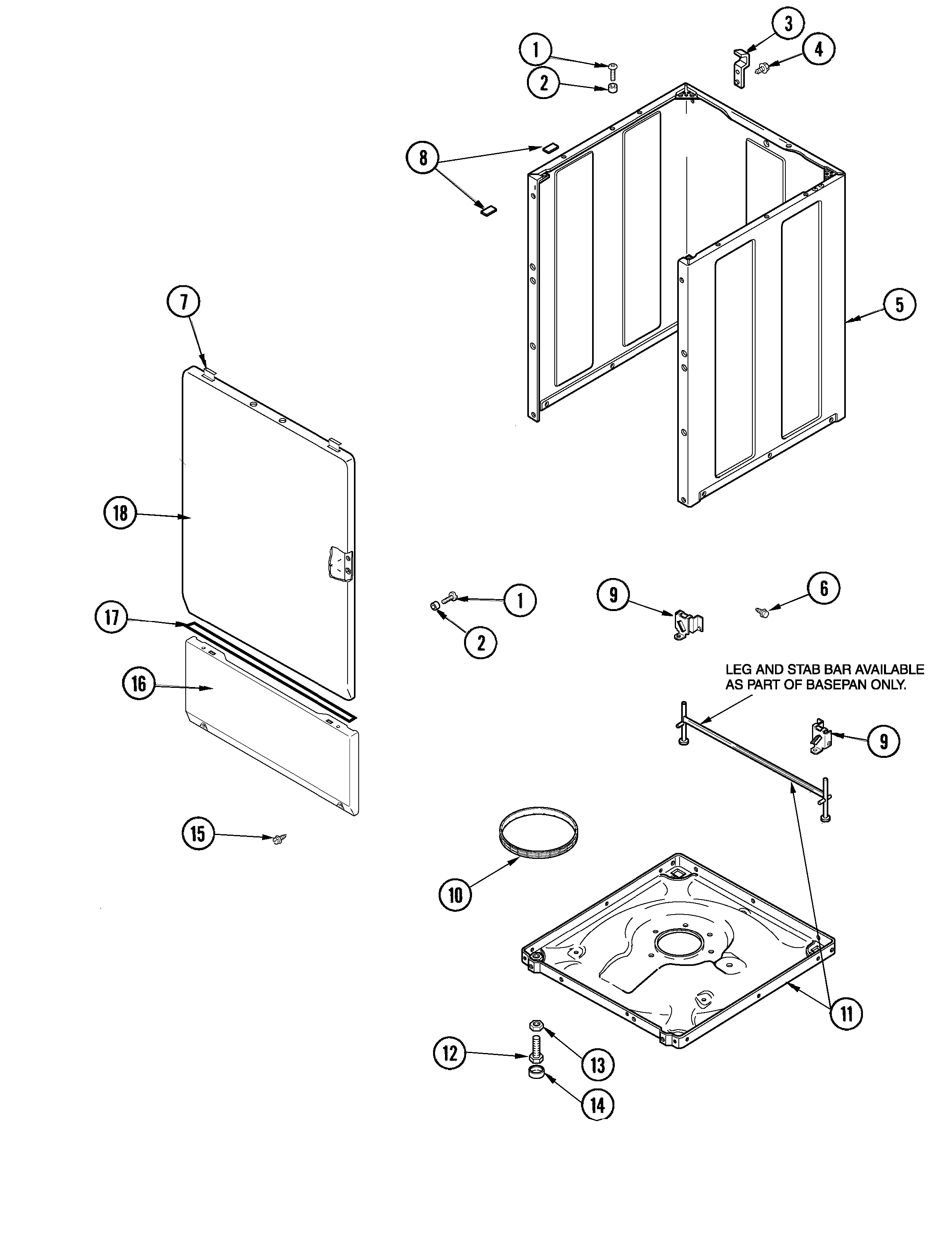

Cabinet & base diagram

Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Leg, Levelng 40039001
#12

Cabinet & base diagram

Leg, levelng

Part #40039001

Replaced by #22003428

?
Manufacturer substitution
This part replaces 40039001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
