Model # JV656VWW Official GE 30" range hood

Here are the diagrams and repair parts for Official GE JV656VWW 30" range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Installation Manual 49-8645

#LITR

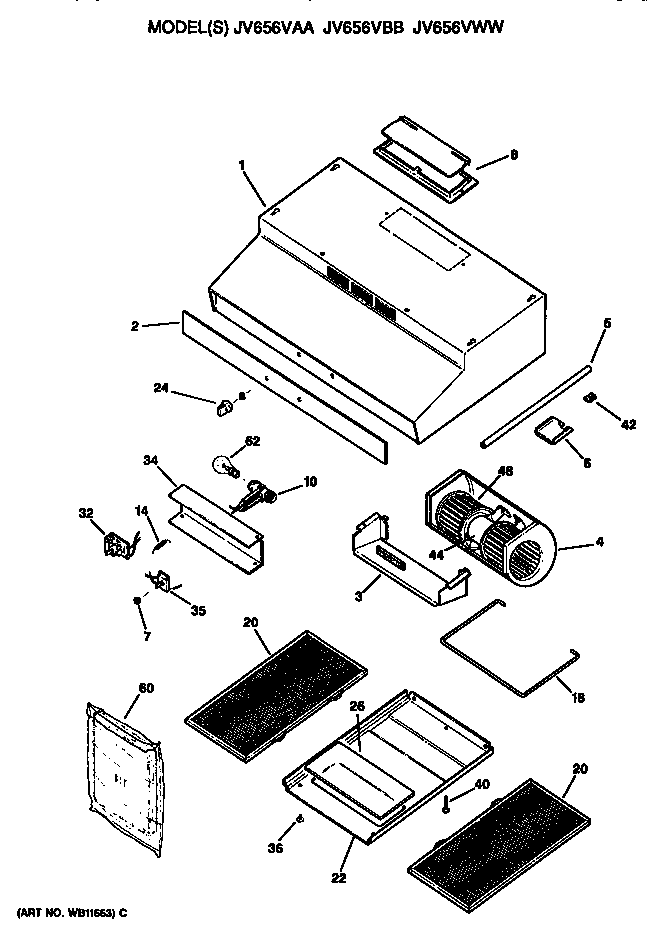

All parts diagram

Installation manual

Part #49-8645

Replaced by #49-8645-2

?
Manufacturer substitution
This part replaces 49-8645. Substitute parts can look different from the original.
$8.49
In Stock
Fustat 15amp Type S OBT LOCAL

#741

All parts diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Diode WB18X5150

#40

All parts diagram

Diode

Part #WB18X5150

The manufacturer no longer makes this part, and there's no substitute part

Damper Re WB2X8450

#1212

All parts diagram

Damper re

Part #WB2X8450

The manufacturer no longer makes this part, and there's no substitute part

Faceplate WB4X5119

#2

All parts diagram

Faceplate

Part #WB4X5119

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Cover WB13X5006

#22

All parts diagram

Range hood blower cover

Part #WB13X5006

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Cover WB13X5007

#22

All parts diagram

Range hood blower cover

Part #WB13X5007

The manufacturer no longer makes this part, and there's no substitute part

Light Sw 3p WB24X5339

#35

All parts diagram

Light sw 3p

Part #WB24X5339

The manufacturer no longer makes this part, and there's no substitute part

Faceplate WB4X5120

#2

All parts diagram

Faceplate

Part #WB4X5120

The manufacturer no longer makes this part, and there's no substitute part

Motor WB26X5109

#44

All parts diagram

Motor

Part #WB26X5109

The manufacturer no longer makes this part, and there's no substitute part
