Kenmore
Canister Vacuum

Model # 1162591290 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162591290 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Vacuum Hose 4369467
#1

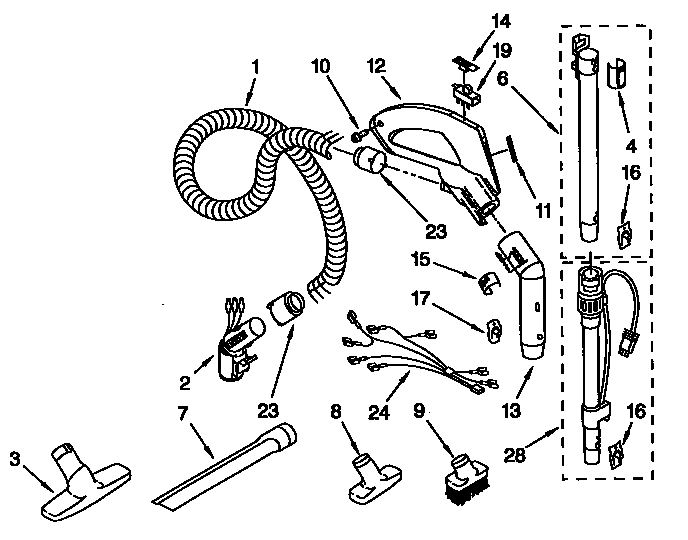

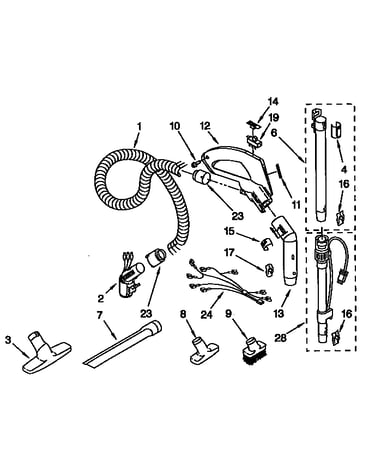

Hose and attachment diagram

Vacuum hose

Part #4369467

$38.94
In Stock
Vacuum Grip Handle 4155620
#44

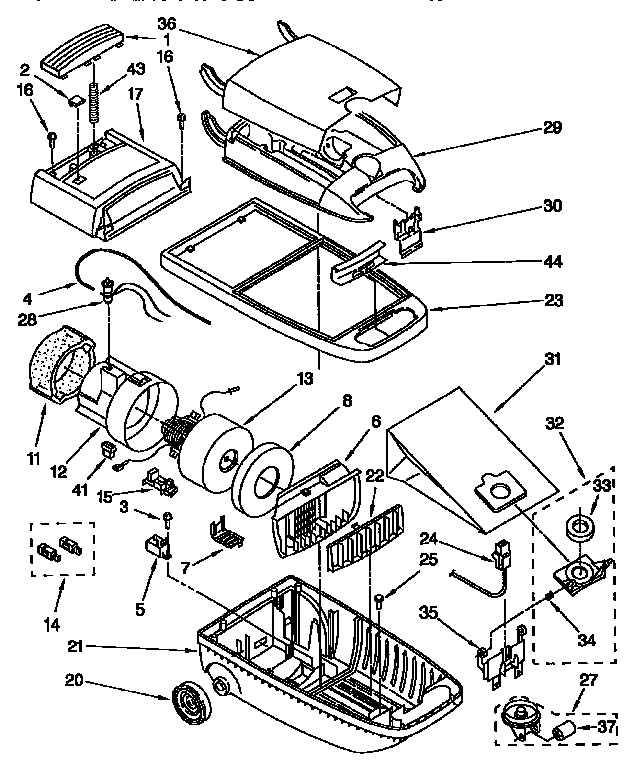

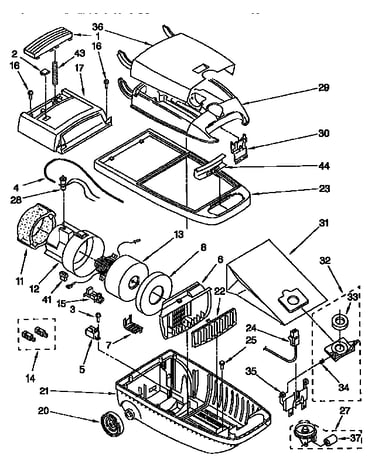

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag, 2-pack 50557
#31A

Vacuum cleaner diagram

Vacuum bag, 2-pack

Part #50557

Replaced by #50557

?
Manufacturer substitution
This part replaces 50557. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.07 |
18% OFF Phone Price : $34.07
In Stock
Filtr-sfty 4152969
#22

Vacuum cleaner diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 4147159
#15

Hose and attachment diagram

Suction control

Part #4147159

The manufacturer no longer makes this part, and there's no substitute part

Slide (black) 4369113
#14

Hose and attachment diagram

Slide (black)

Part #4369113

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#3

Hose and attachment diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Main Body 4152226
#2

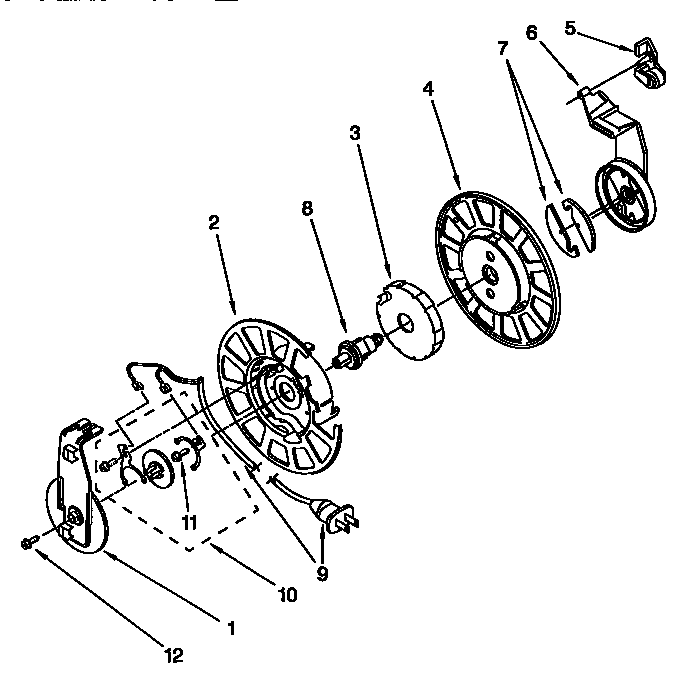

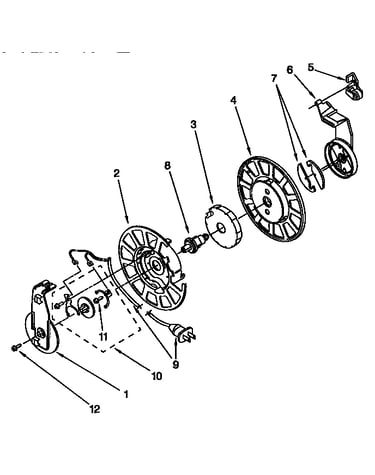

Power cord reel diagram

Main body

Part #4152226

The manufacturer no longer makes this part, and there's no substitute part

Screw 680835
#3

Vacuum cleaner diagram

Screw

Part #680835

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Owner's Manual LIT4369329

#NI

All parts diagram

Vacuum owner's manual

Part #LIT4369329

The manufacturer no longer makes this part, and there's no substitute part
