Maytag
Electric Cooktop

Model # CSE9000BCQ Official Maytag electric surface unit

Here are the diagrams and repair parts for Official Maytag CSE9000BCQ electric surface unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

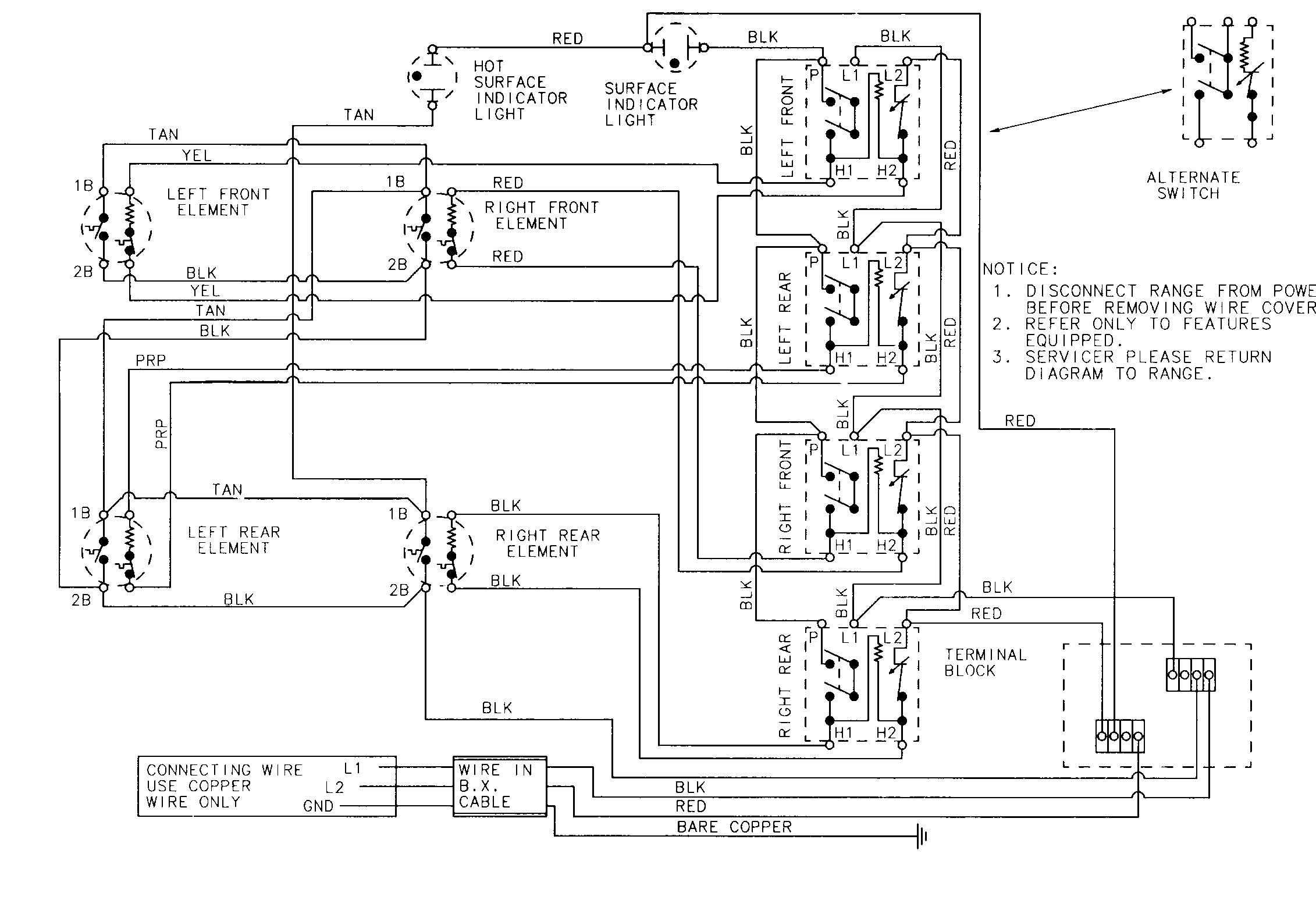

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Cook Top Cle 20000001
#9D

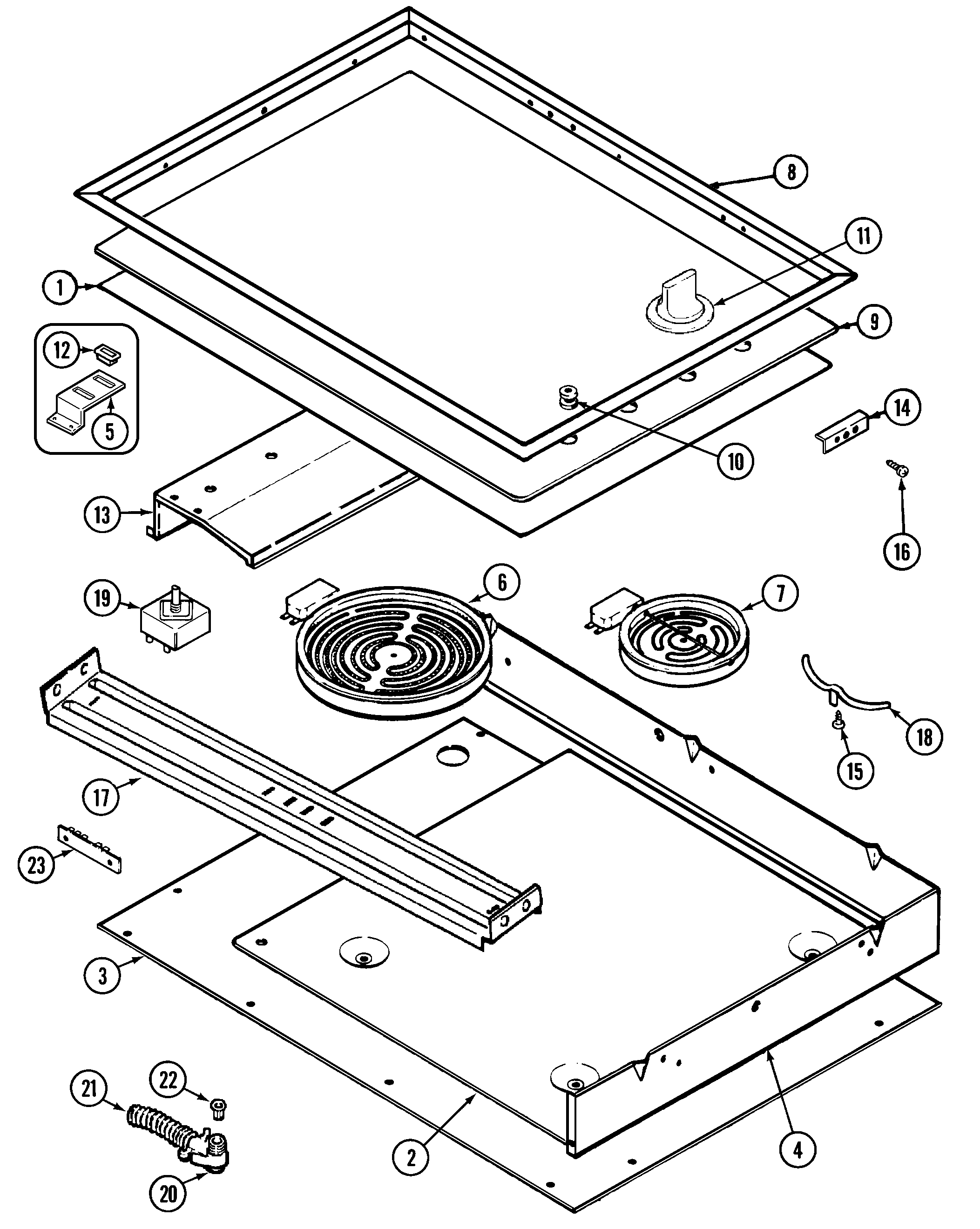

Top assembly diagram

Cook top cle

Part #20000001

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20000001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Element W/li 74005476
Element w/li

Part #74005476

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74005476. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Range Radiant Surface Element 74002653
#7B

Top assembly diagram

Range radiant surface element

Part #74002653

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74002653. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Limiter (6") 74002651
#7F

Top assembly diagram

Limiter (6")

Part #74002651

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74002651. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Element W/re 74001011
Element w/re

Part #74001011

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74001011. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Screw 790448
#15A

Top assembly diagram

Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw (black) 7101P309-60
#19C

Top assembly diagram

Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 7118P004-60
#13A

Top assembly diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Element W/li 74005477
Element w/li

Part #74005477

Replaced by #W10823707

?
Manufacturer substitution
This part replaces 74005477. Substitute parts can look different from the original.
$126.43 |
9% OFF Phone Price : $138.43
In Stock
Screw 7101P349-60
#15

Top assembly diagram

Screw

Part #7101P349-60

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 7101P349-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
