Kenmore
Dishwasher

Model # 3631410694 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 3631410694 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Mech Assm WD26X0077
#310

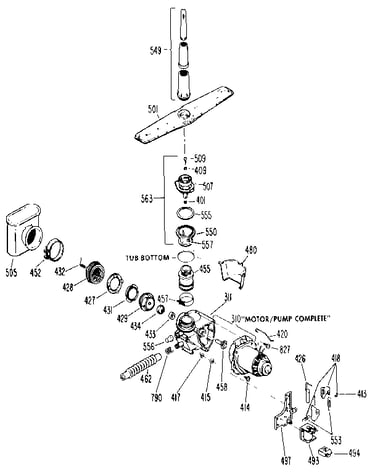

Motor-pump mechanism diagram

Mech assm

Part #WD26X0077

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD26X0077. Substitute parts can look different from the original.
BEST SELLER
$148.24 |
7% OFF Phone Price : $160.24
In Stock
Armature&lnk WD01X1316
#426

Motor-pump mechanism diagram

Armature&lnk

Part #WD01X1316

Replaced by #WD1X1316

?
Manufacturer substitution
This part replaces WD01X1316. Substitute parts can look different from the original.
BEST SELLER
$27.34 |
18% OFF Phone Price : $33.34
In Stock
Bafle Tubcnr WD08X0227
#26

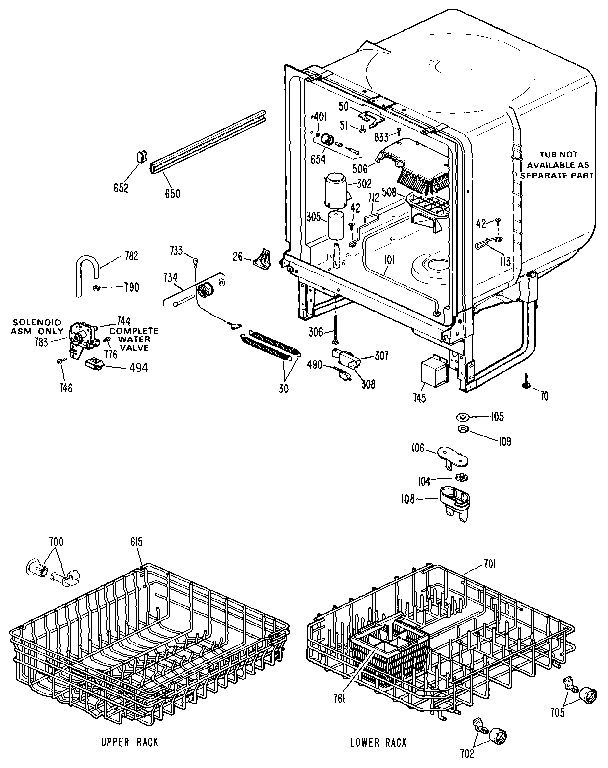

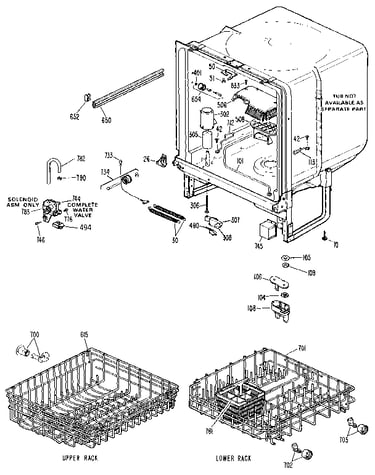

Cabinet diagram

Bafle tubcnr

Part #WD08X0227

Replaced by #WD8X227

?
Manufacturer substitution
This part replaces WD08X0227. Substitute parts can look different from the original.
BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Rack WD28X0246
#615

Cabinet diagram

Rack

Part #WD28X0246

Replaced by #WD28X31820

?
Manufacturer substitution
This part replaces WD28X0246. Substitute parts can look different from the original.
BEST SELLER
$115.54 |
9% OFF Phone Price : $127.54
In Stock
Interlock Switch WD21X0557
#803

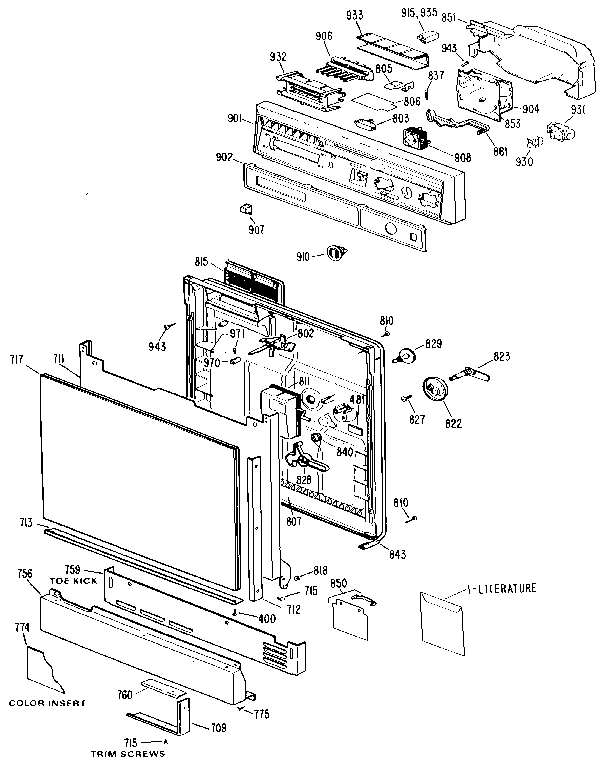

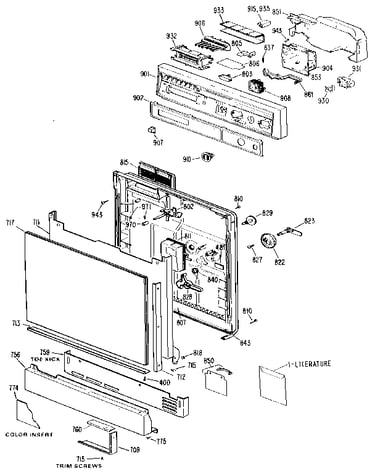

Escutcheon and door diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Fill Cap WD12X0400
#829

Escutcheon and door diagram

Fill cap

Part #WD12X0400

Replaced by #WD12X24238

?
Manufacturer substitution
This part replaces WD12X0400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Rack WD12X0383
#700

Cabinet diagram

Rack

Part #WD12X0383

Replaced by #WD12X10327

?
Manufacturer substitution
This part replaces WD12X0383. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cap WD12X0344
#652

Cabinet diagram

Cap

Part #WD12X0344

Replaced by #WD12X10304

?
Manufacturer substitution
This part replaces WD12X0344. Substitute parts can look different from the original.
BEST SELLER
$16.68 |
11% OFF Phone Price : $18.68
In Stock
Sump Inlet WD18X0208
#505

Motor-pump mechanism diagram

Sump inlet

Part #WD18X0208

Replaced by #WD18X213

?
Manufacturer substitution
This part replaces WD18X0208. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.69 |
9% OFF Phone Price : $21.69
In Stock
Rack Roller WD12X0271
#702

Cabinet diagram

Rack roller

Part #WD12X0271

Replaced by #WD12X271

?
Manufacturer substitution
This part replaces WD12X0271. Substitute parts can look different from the original.
BEST SELLER
$9.72 |
9% OFF Phone Price : $10.72
In Stock
