Whirlpool
Washer

Model # WTW8200YW0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW8200YW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

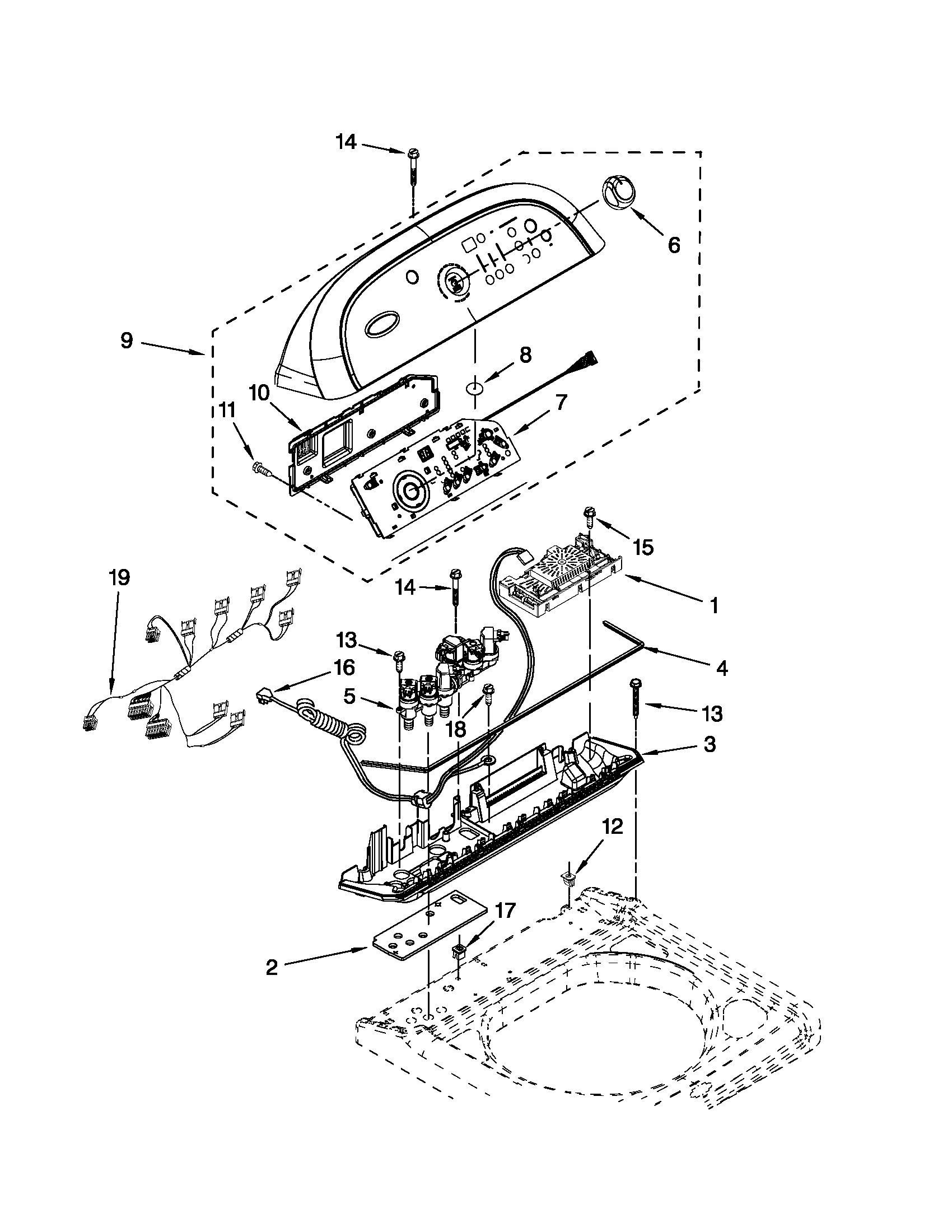

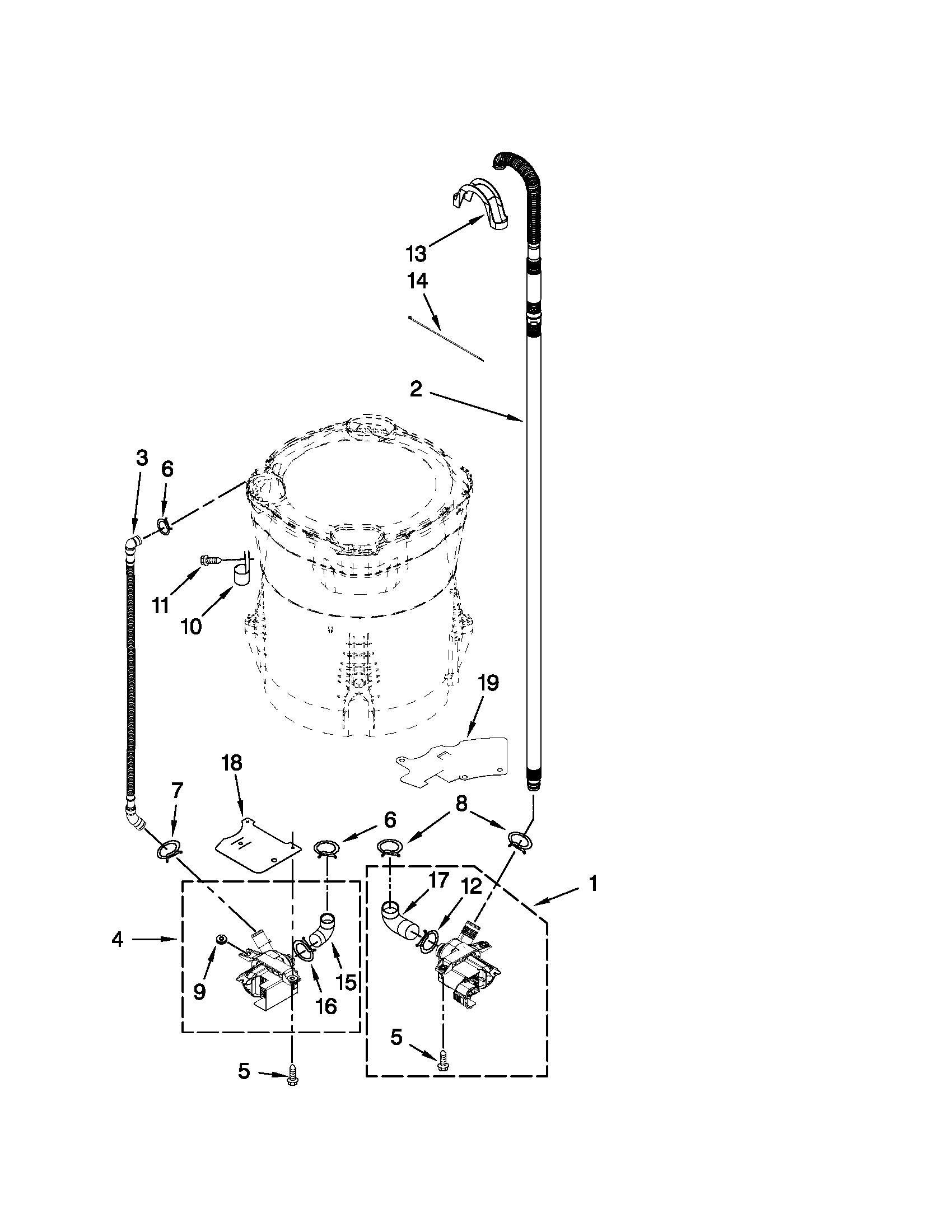

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Hub W10118114
#8

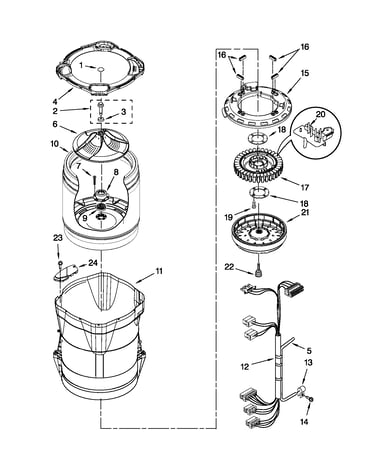

Motor, basket and tub parts diagram

Hub

Part #W10118114

Replaced by #W10820039

?
Manufacturer substitution
This part replaces W10118114. Substitute parts can look different from the original.
BEST SELLER
$24.31 |
20% OFF Phone Price : $30.31
In Stock
Hub 8545953
#9

Motor, basket and tub parts diagram

Hub

Part #8545953

Replaced by #W10820039

?
Manufacturer substitution
This part replaces 8545953. Substitute parts can look different from the original.
BEST SELLER
$24.31 |
20% OFF Phone Price : $30.31
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Washer Motor Stator W10419333
#17

Motor, basket and tub parts diagram

Washer motor stator

Part #W10419333

Replaced by #WPW10419333

?
Manufacturer substitution
This part replaces W10419333. Substitute parts can look different from the original.
BEST SELLER
$195.75 |
6% OFF Phone Price : $207.75
In Stock
Rotor 8565177
#21

Motor, basket and tub parts diagram

Rotor

Part #8565177

Replaced by #280146

?
Manufacturer substitution
This part replaces 8565177. Substitute parts can look different from the original.
BEST SELLER
$183.17 |
6% OFF Phone Price : $195.17
In Stock
Washer Screw 8533953
#7

Motor, basket and tub parts diagram

Washer screw

Part #8533953

Replaced by #WP8533953

?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Motor Rotor Position Sensor W10178988
#20

Motor, basket and tub parts diagram

Washer motor rotor position sensor

Part #W10178988

Replaced by #WPW10178988

?
Manufacturer substitution
This part replaces W10178988. Substitute parts can look different from the original.
BEST SELLER
$38.89 |
13% OFF Phone Price : $44.89
In Stock
Hose W10297449
#5

Motor, basket and tub parts diagram

Hose

Part #W10297449

Replaced by #WP353244

?
Manufacturer substitution
This part replaces W10297449. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Clamp 371503
#28

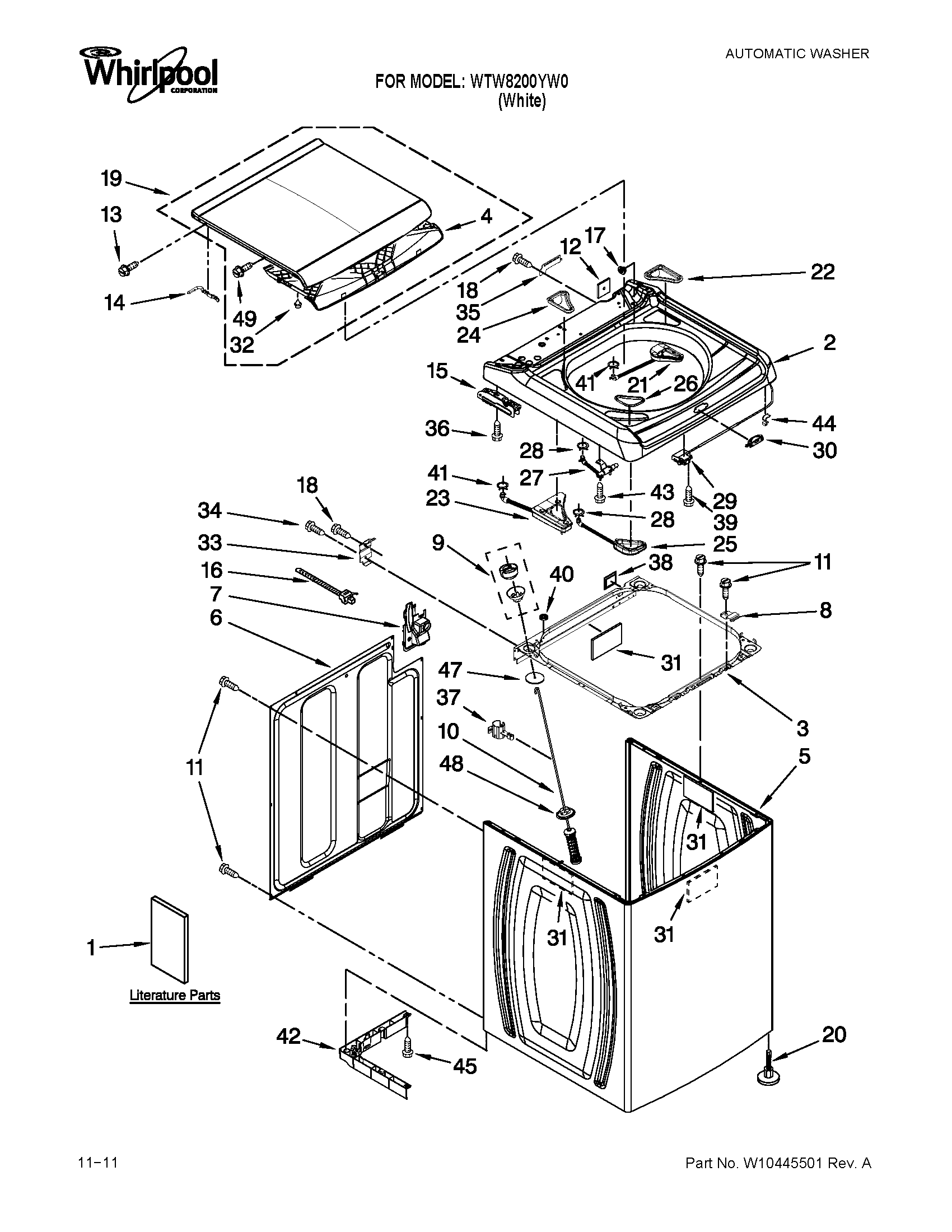

Top and cabinet parts diagram

Clamp

Part #371503

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 370451
#41

Top and cabinet parts diagram

Hose clamp

Part #370451

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370451. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
