Model # SHI4306 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHI4306 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

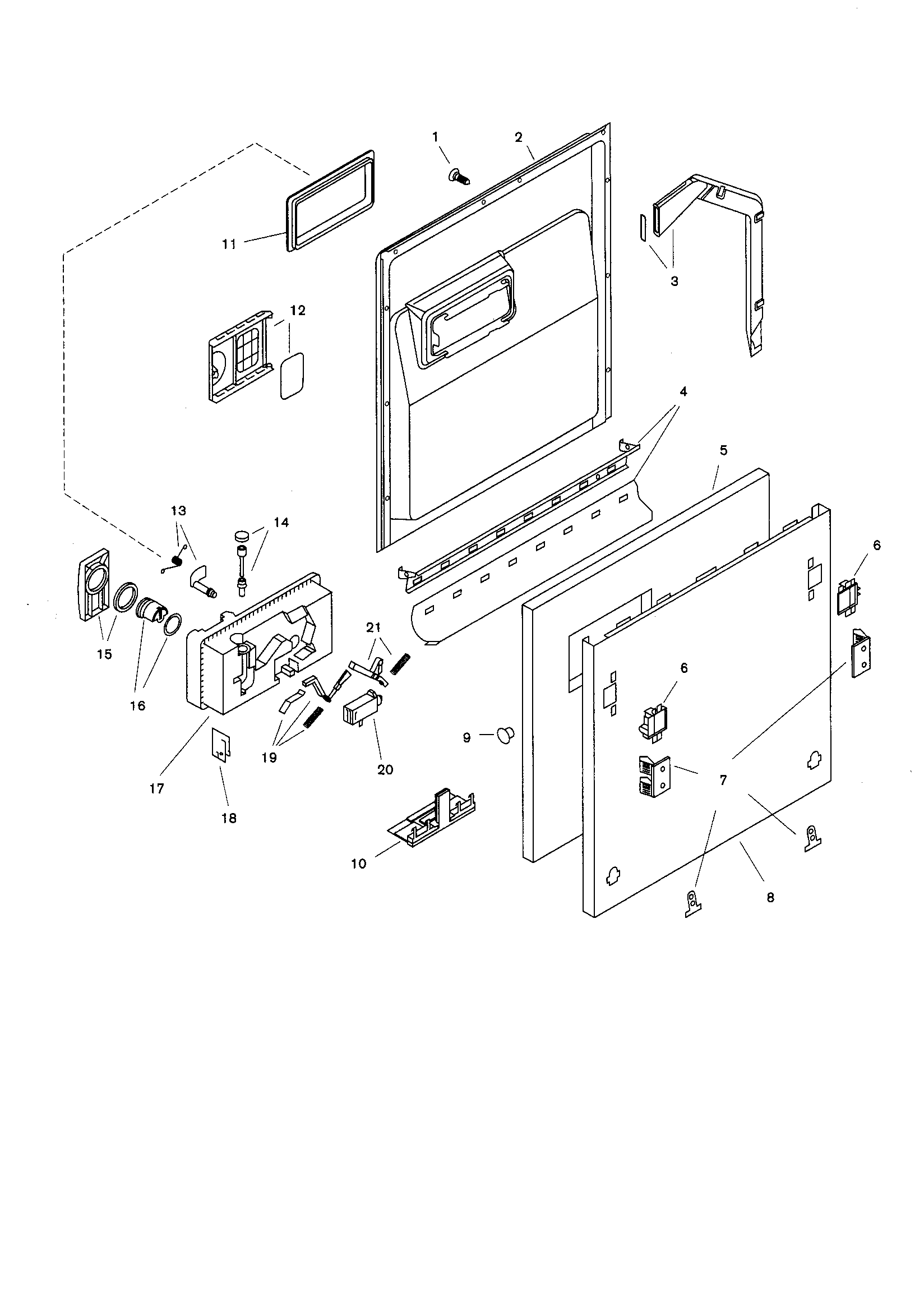

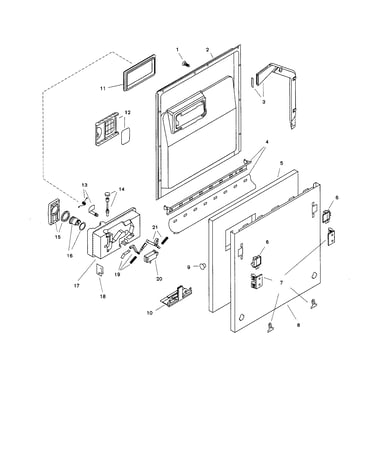

SELECT DIAGRAM
Browse Parts forSHI4306 Dishwasher
- #13

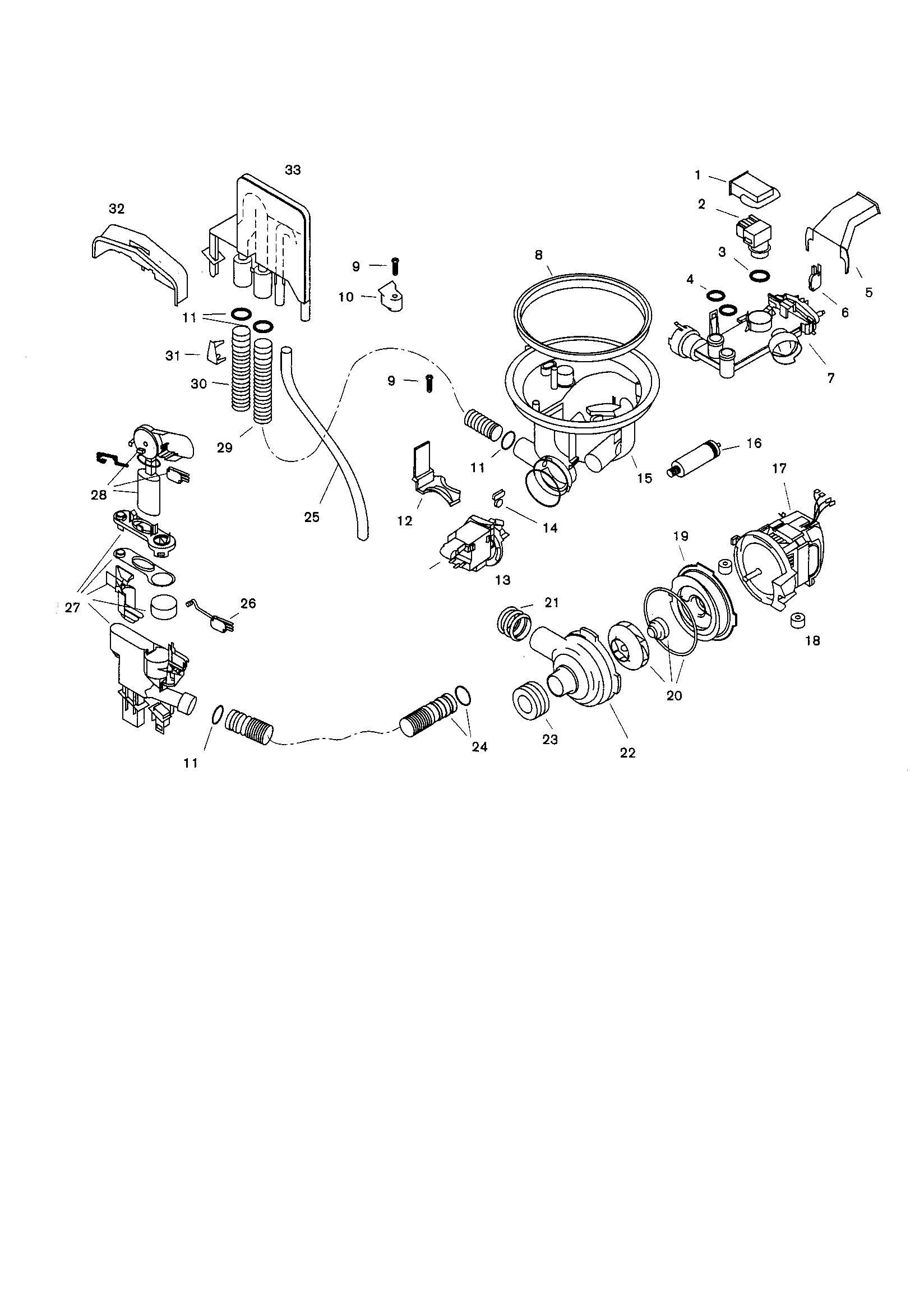

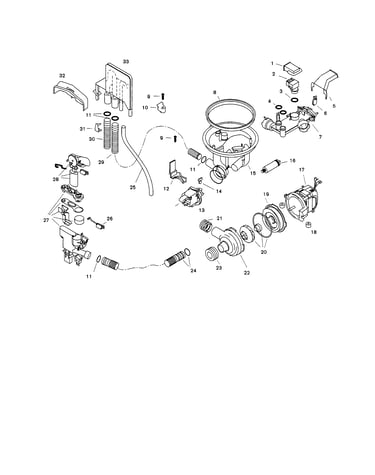

Component assemblies diagram
MotorPart #167082
The manufacturer no longer makes this part, and there's no substitute part
- #18

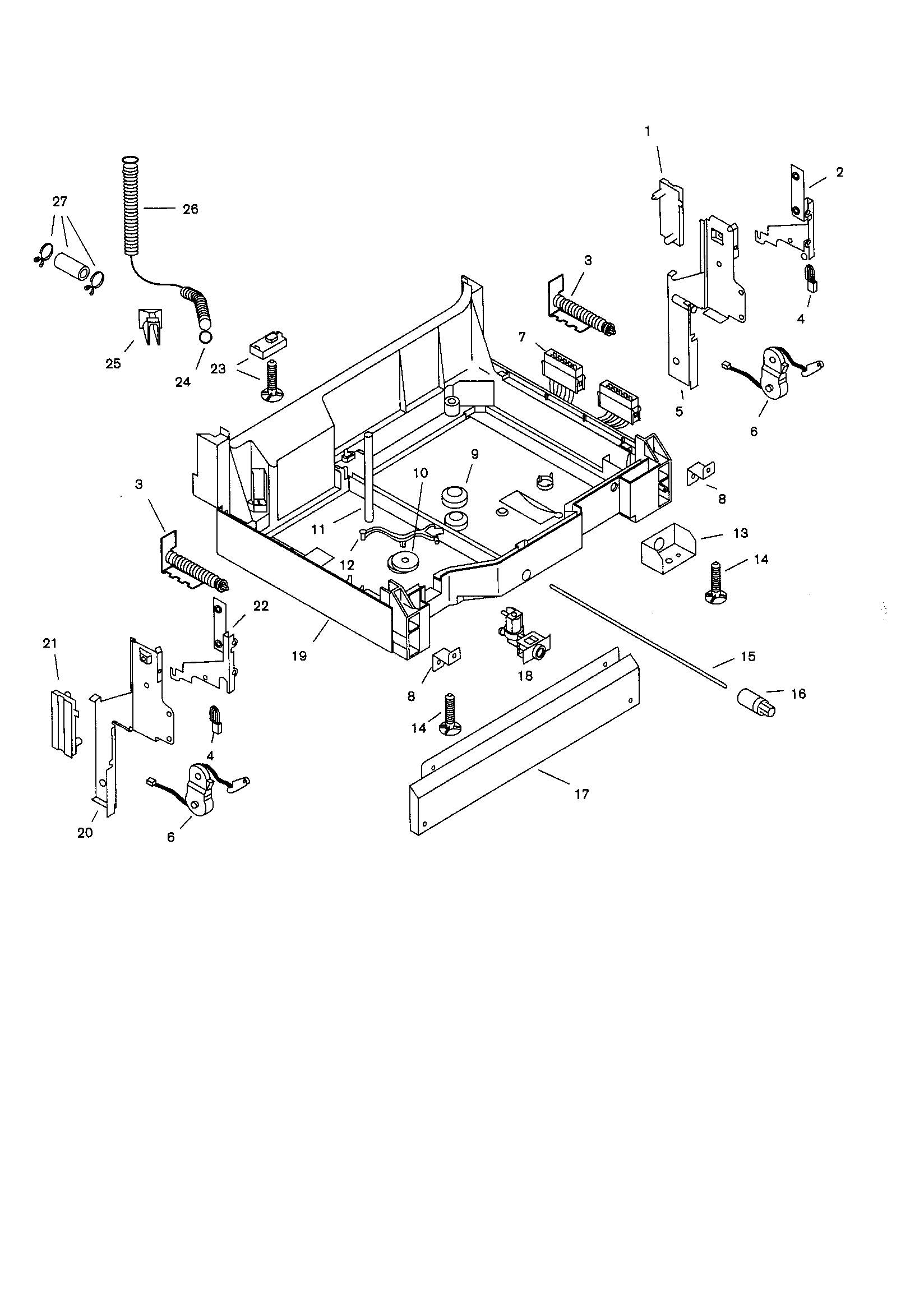

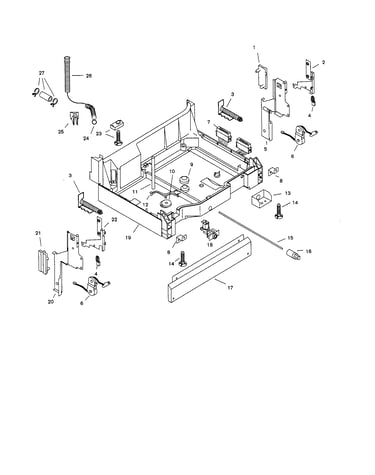

Base diagram
Water valvePart #167081
Replaced by #00425458
?Manufacturer substitutionThis part replaces 167081. Substitute parts can look different from the original.$61.28 |9% OFF Phone Price : $67.28In Stock - #4

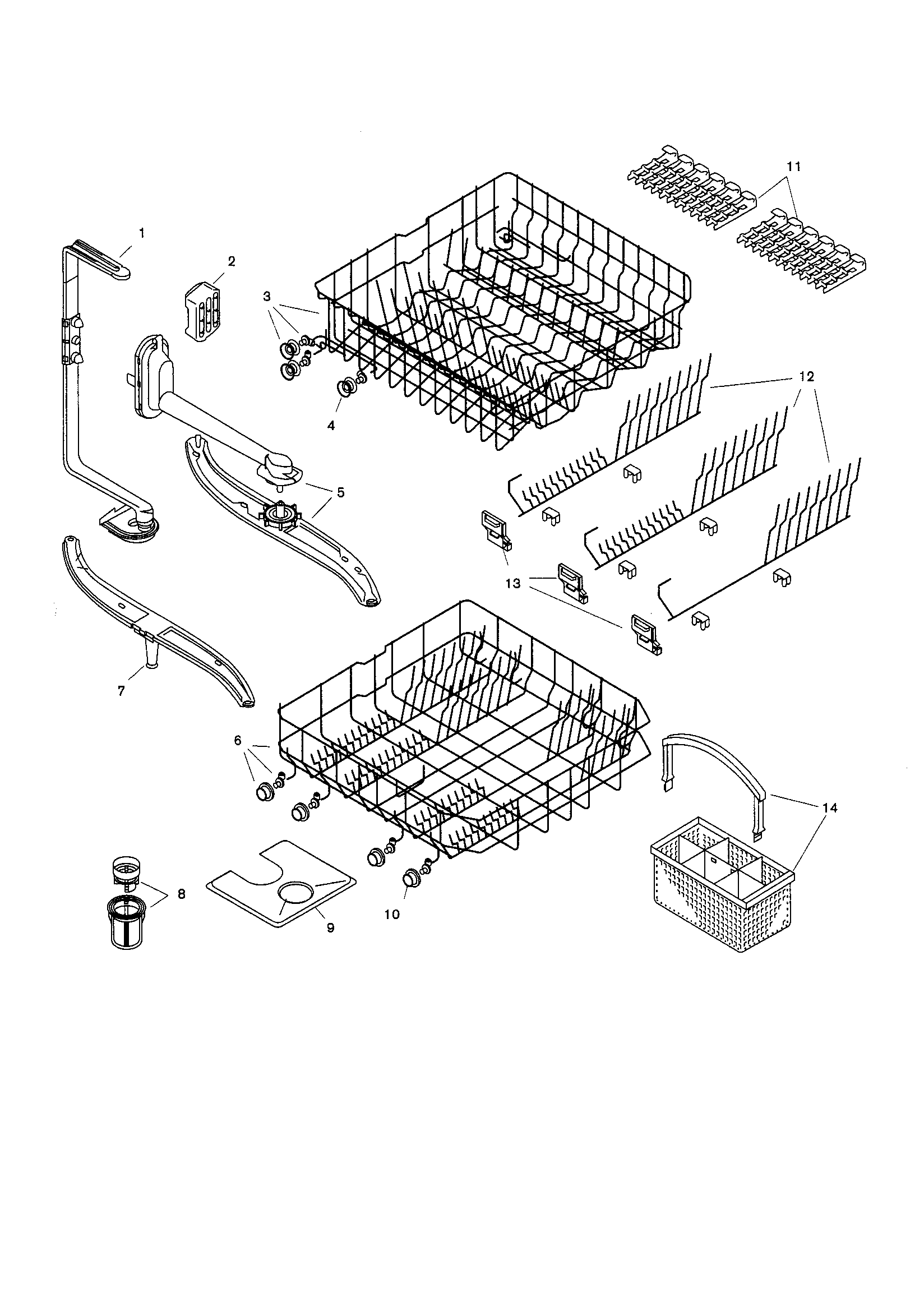

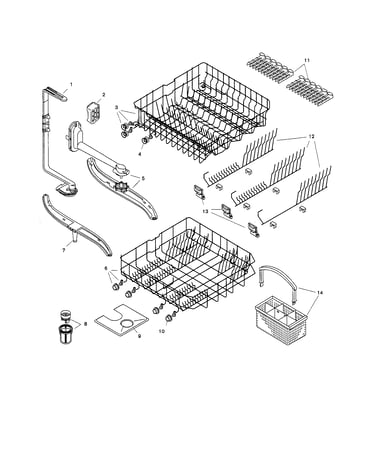

Racks diagram
Dishwasher dishrack wheel, upperPart #165313
Replaced by #00611666
?Manufacturer substitutionThis part replaces 165313. Substitute parts can look different from the original.$13.00In Stock - #33
Component assemblies diagram
Dishwasher water inlet valvePart #263833
Replaced by #00263833
?Manufacturer substitutionThis part replaces 263833. Substitute parts can look different from the original.$150.10 |7% OFF Phone Price : $162.10In Stock - #10
Racks diagram
Dishwasher lower rack wheelsPart #165314
Replaced by #00165314
?Manufacturer substitutionThis part replaces 165314. Substitute parts can look different from the original.$11.49 |15% OFF Phone Price : $13.49In Stock - #4
Base diagram
BearingPart #165296
Replaced by #00165296
?Manufacturer substitutionThis part replaces 165296. Substitute parts can look different from the original.This item is not returnable$17.89 |10% OFF Phone Price : $19.89In Stock - #29
Component assemblies diagram
Drain hosePart #263099
Replaced by #00263099
?Manufacturer substitutionThis part replaces 263099. Substitute parts can look different from the original.$17.16 |10% OFF Phone Price : $19.16In Stock - #9

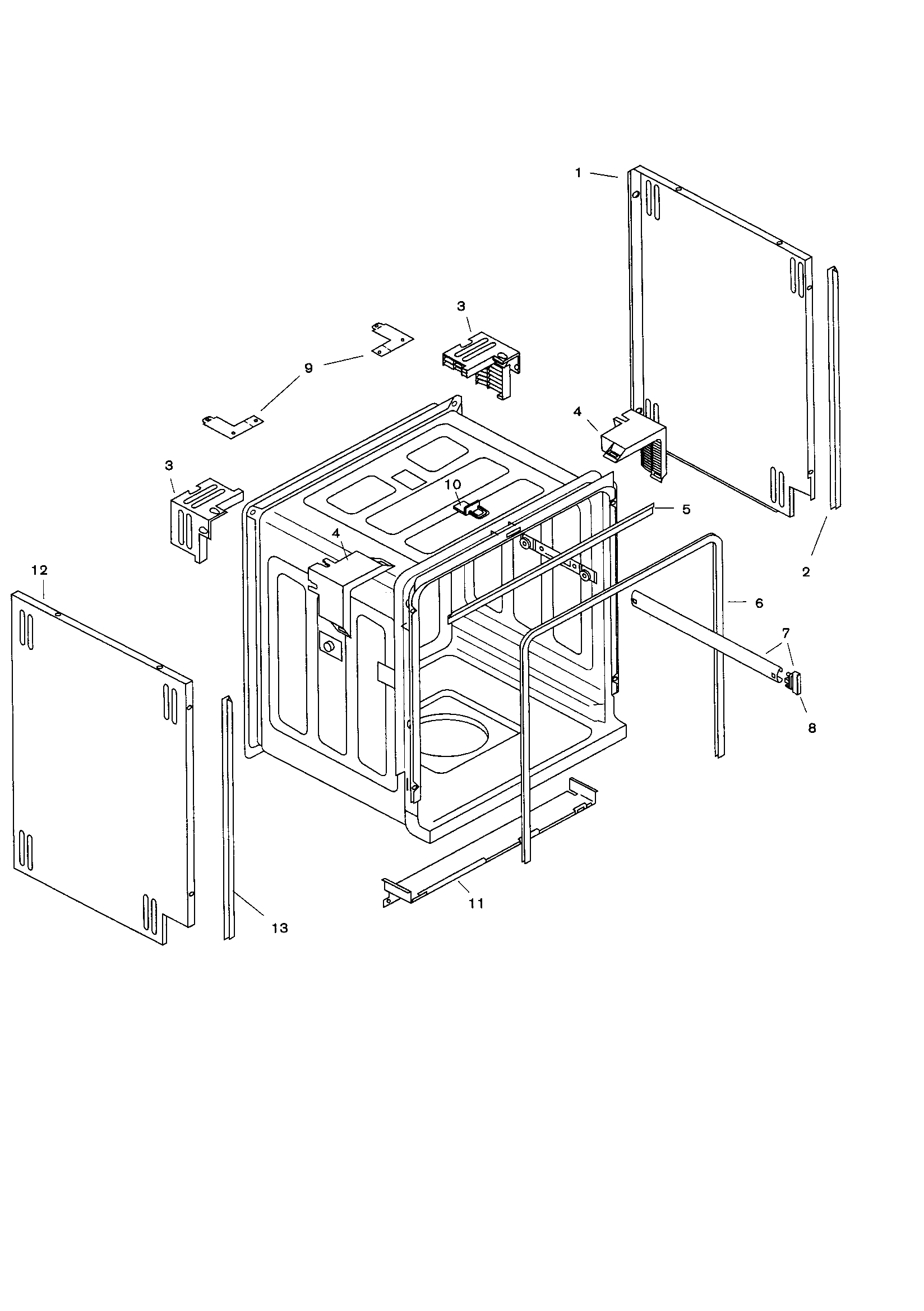

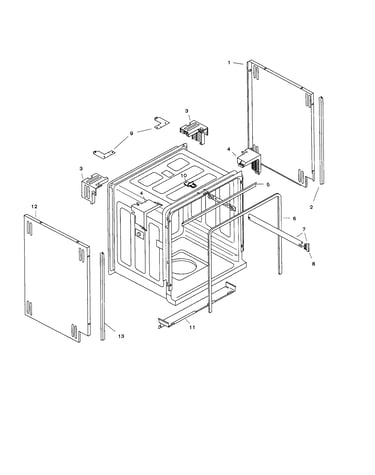

Tank assembly diagram
Mounting bracketPart #165778
Replaced by #170664
?Manufacturer substitutionThis part replaces 165778. Substitute parts can look different from the original.$12.99 |13% OFF Phone Price : $14.99In Stock - #25
Component assemblies diagram
HosePart #086373
Replaced by #00496099
?Manufacturer substitutionThis part replaces 086373. Substitute parts can look different from the original.$27.49 |18% OFF Phone Price : $33.49In Stock - #5

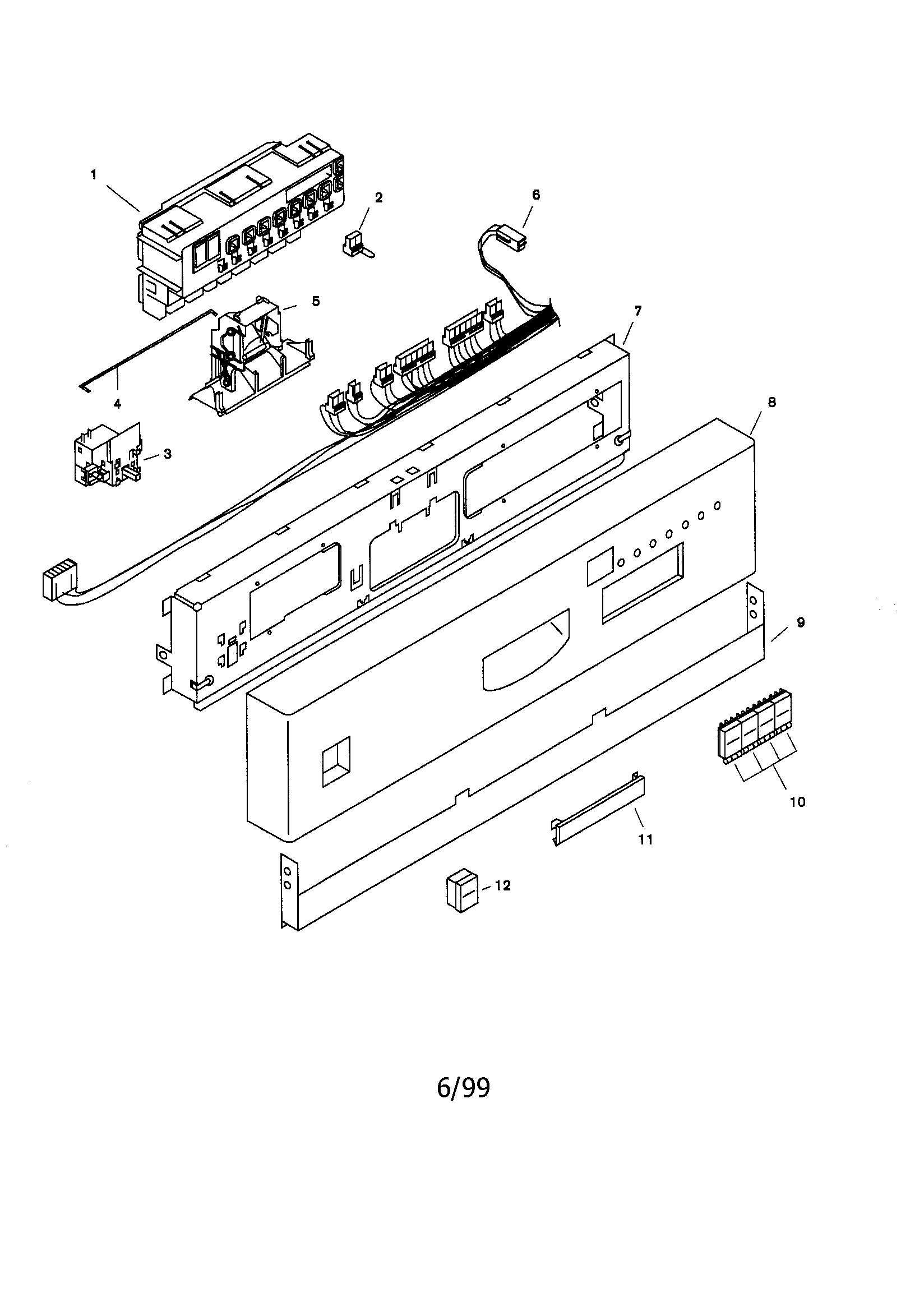

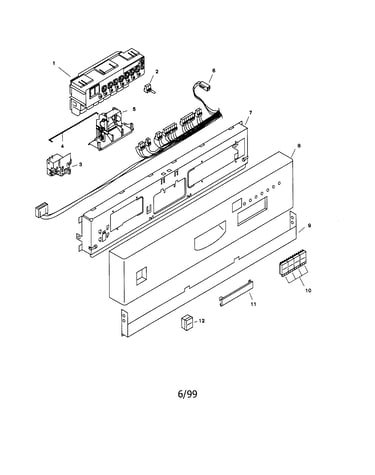

Fascia panel diagram
Door latchPart #165243
Replaced by #00419827
?Manufacturer substitutionThis part replaces 165243. Substitute parts can look different from the original.$29.09 |17% OFF Phone Price : $35.09In Stock
