Model # SHE6AP06UC/02 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE6AP06UC-02 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

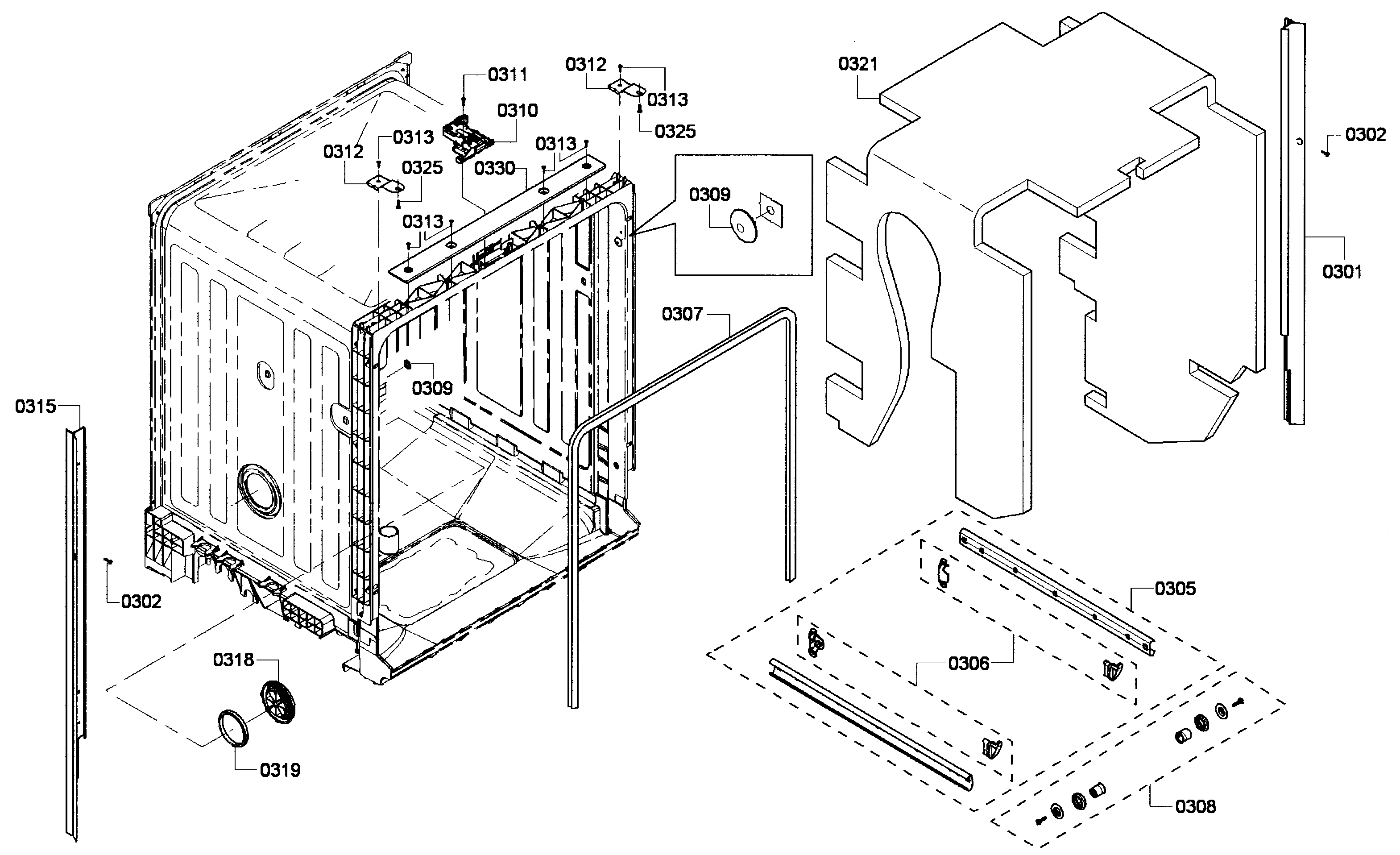

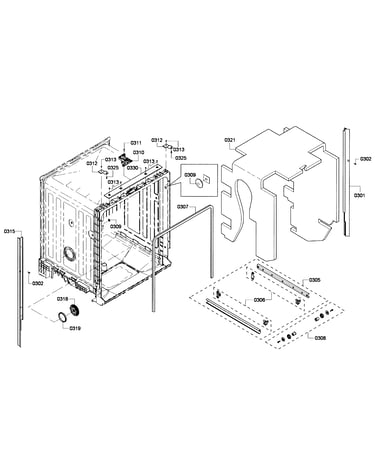

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Dishwasher Water Inlet Valve 607335
#521

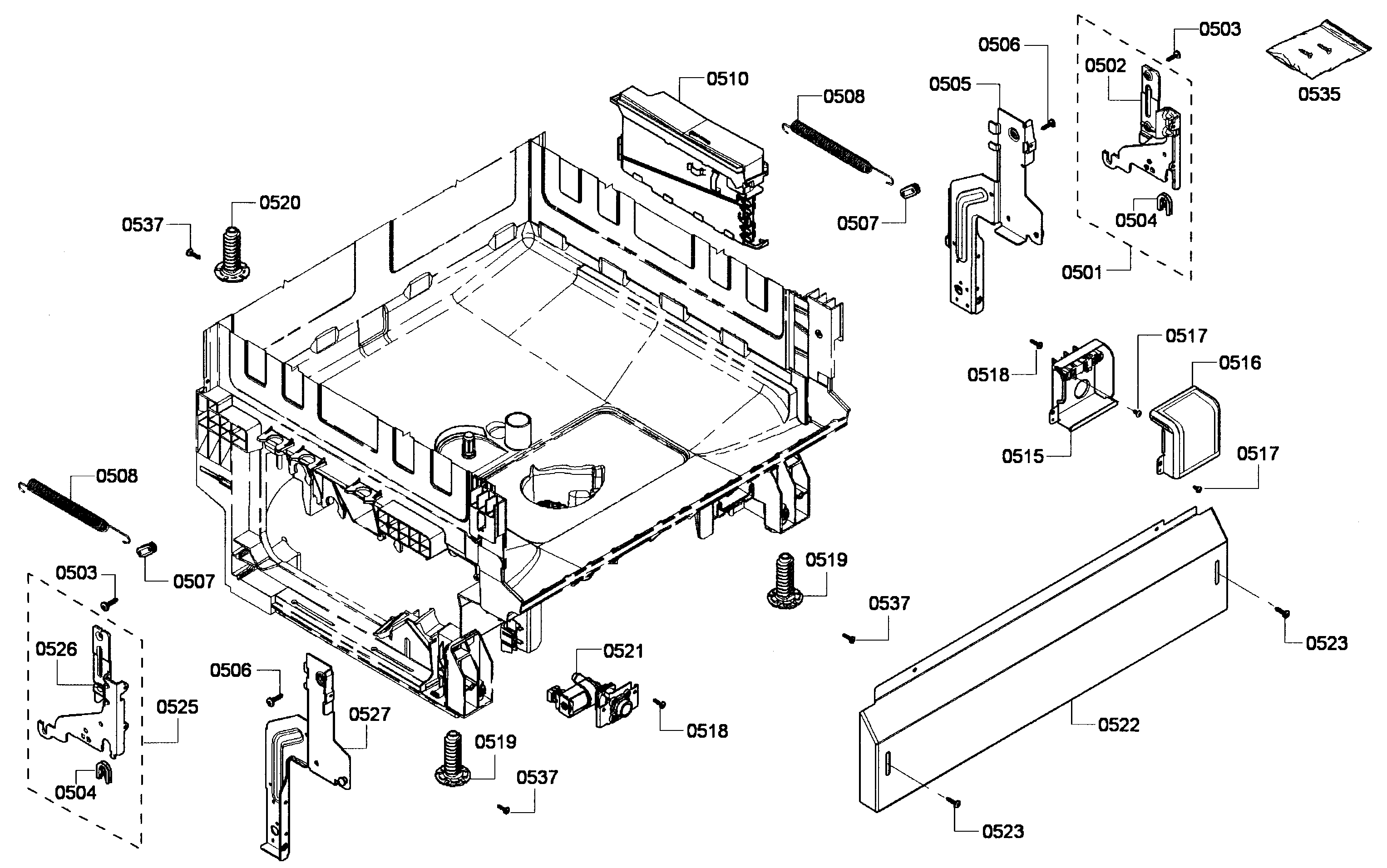

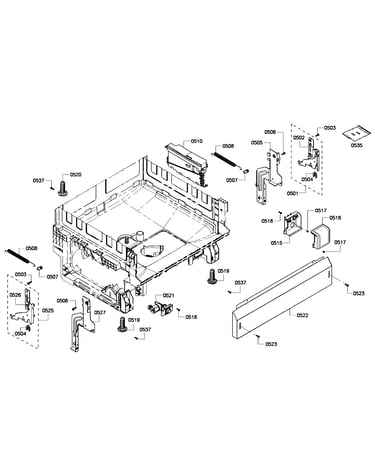

Base assy diagram

Dishwasher water inlet valve

Part #607335

Replaced by #00607335

?
Manufacturer substitution
This part replaces 607335. Substitute parts can look different from the original.
BEST SELLER
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Dishwasher Drain Hose 645149
#432

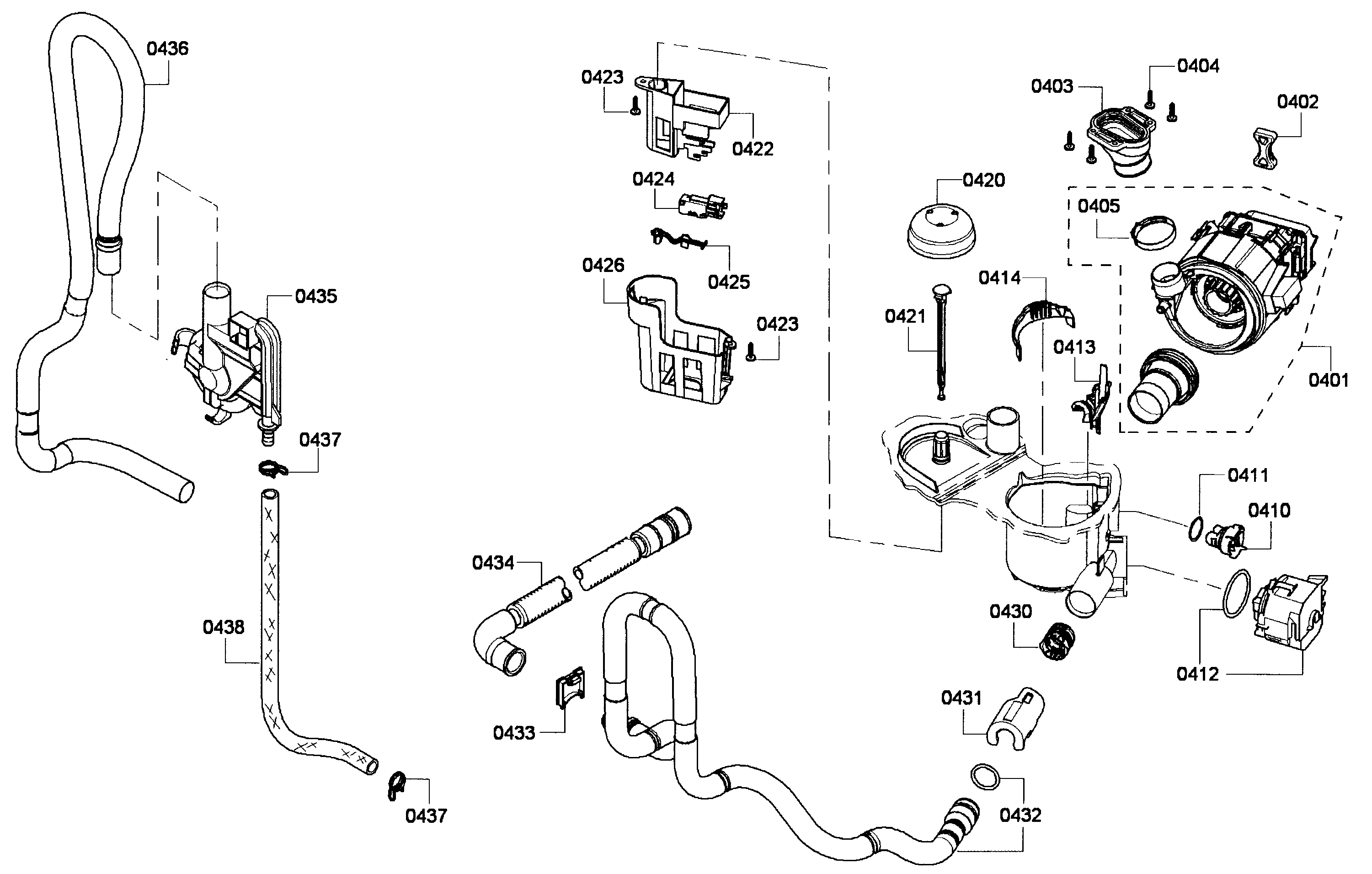

Pump assy diagram

Dishwasher drain hose

Part #645149

Replaced by #00645149

?
Manufacturer substitution
This part replaces 645149. Substitute parts can look different from the original.
This item is not returnable
$24.09 |
20% OFF Phone Price : $30.09
In Stock
Pump 669135
#401

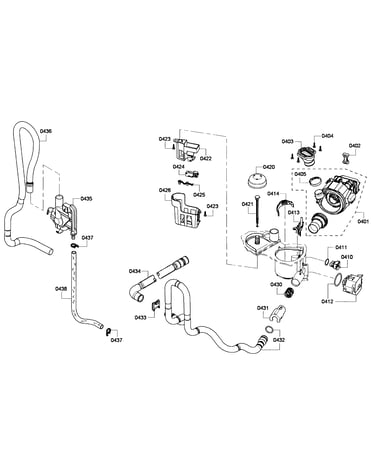

Pump assy diagram

Pump

Part #669135

Replaced by #00669135

?
Manufacturer substitution
This part replaces 669135. Substitute parts can look different from the original.
$257.69 |
$12.00 OFF Phone Price : $269.69
In Stock
Dishwasher Spray Arm 668385
#603

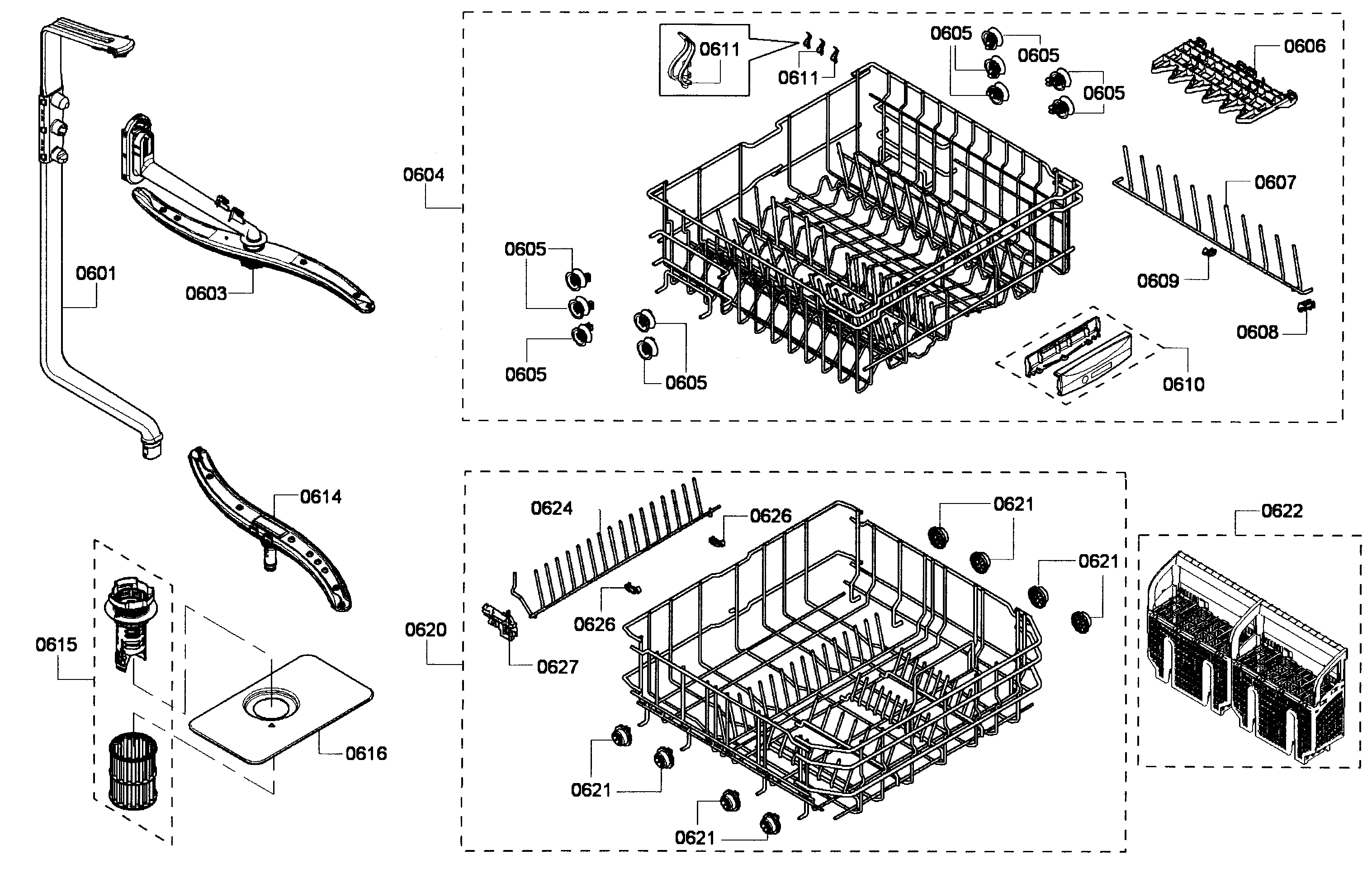

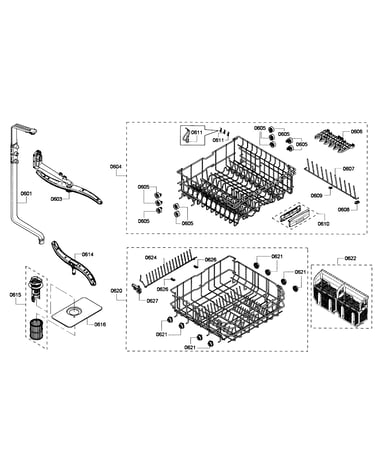

Baskets assy diagram

Dishwasher spray arm

Part #668385

Replaced by #00668385

?
Manufacturer substitution
This part replaces 668385. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dishwasher Door Seal 669221
#207

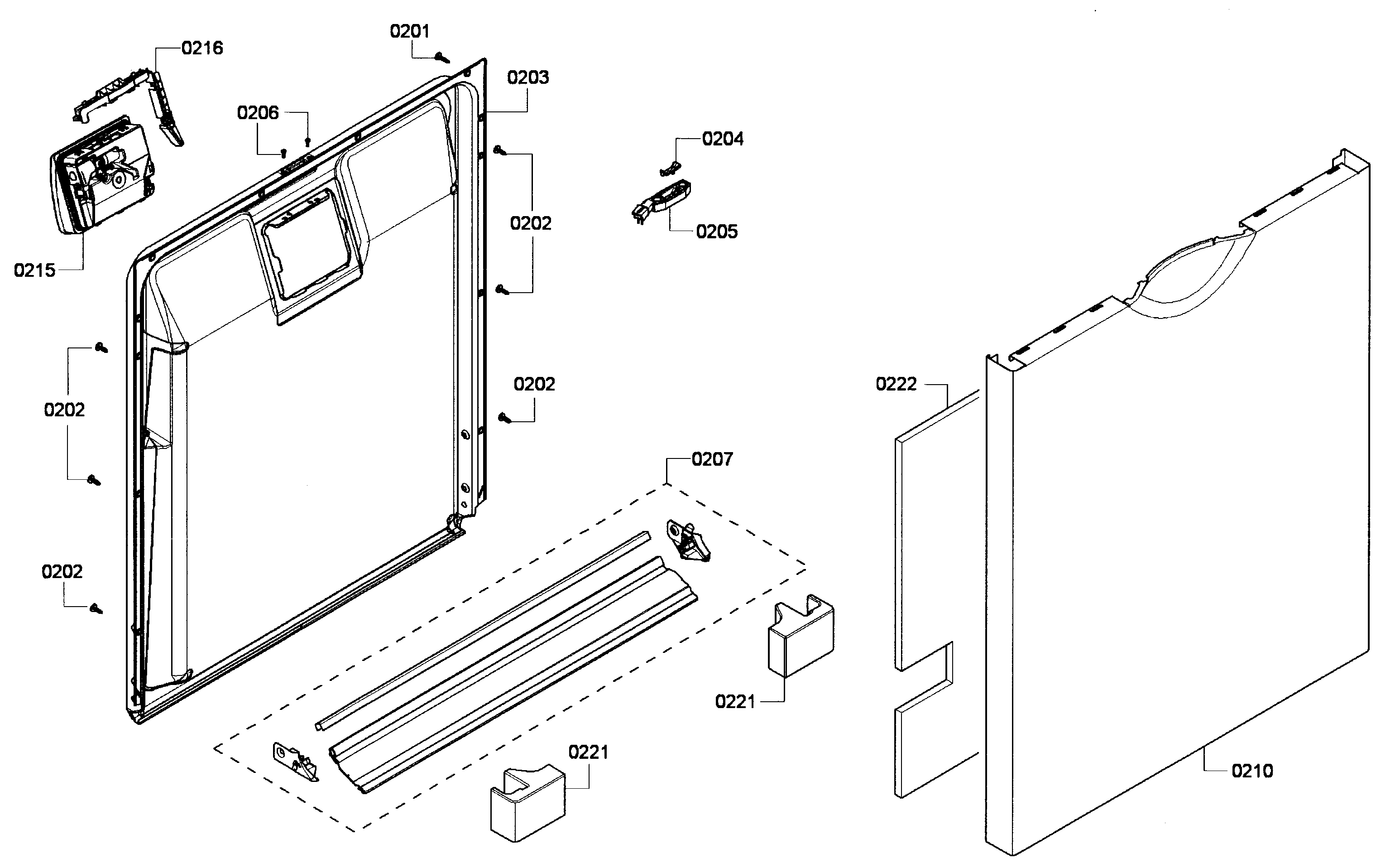

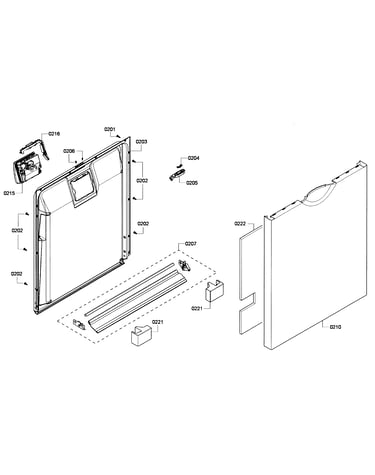

Door assy diagram

Dishwasher door seal

Part #669221

Replaced by #00669221

?
Manufacturer substitution
This part replaces 669221. Substitute parts can look different from the original.
$26.59 |
18% OFF Phone Price : $32.59
In Stock
Dishwasher Micro Filter With Coarse Filter 645038
#615

Baskets assy diagram

Dishwasher micro filter with coarse filter

Part #645038

Replaced by #00645038

?
Manufacturer substitution
This part replaces 645038. Substitute parts can look different from the original.
$38.86 |
13% OFF Phone Price : $44.86
In Stock
Basket 683547
#620

Baskets assy diagram

Basket

Part #683547

Replaced by #00770545

?
Manufacturer substitution
This part replaces 683547. Substitute parts can look different from the original.
$177.92 |
6% OFF Phone Price : $189.92
In Stock
Holder 611981
#626

Baskets assy diagram

Holder

Part #611981

Replaced by #00611981

?
Manufacturer substitution
This part replaces 611981. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Holder 616990
#608

Baskets assy diagram

Holder

Part #616990

The manufacturer no longer makes this part, and there's no substitute part

Harness 611664
#102

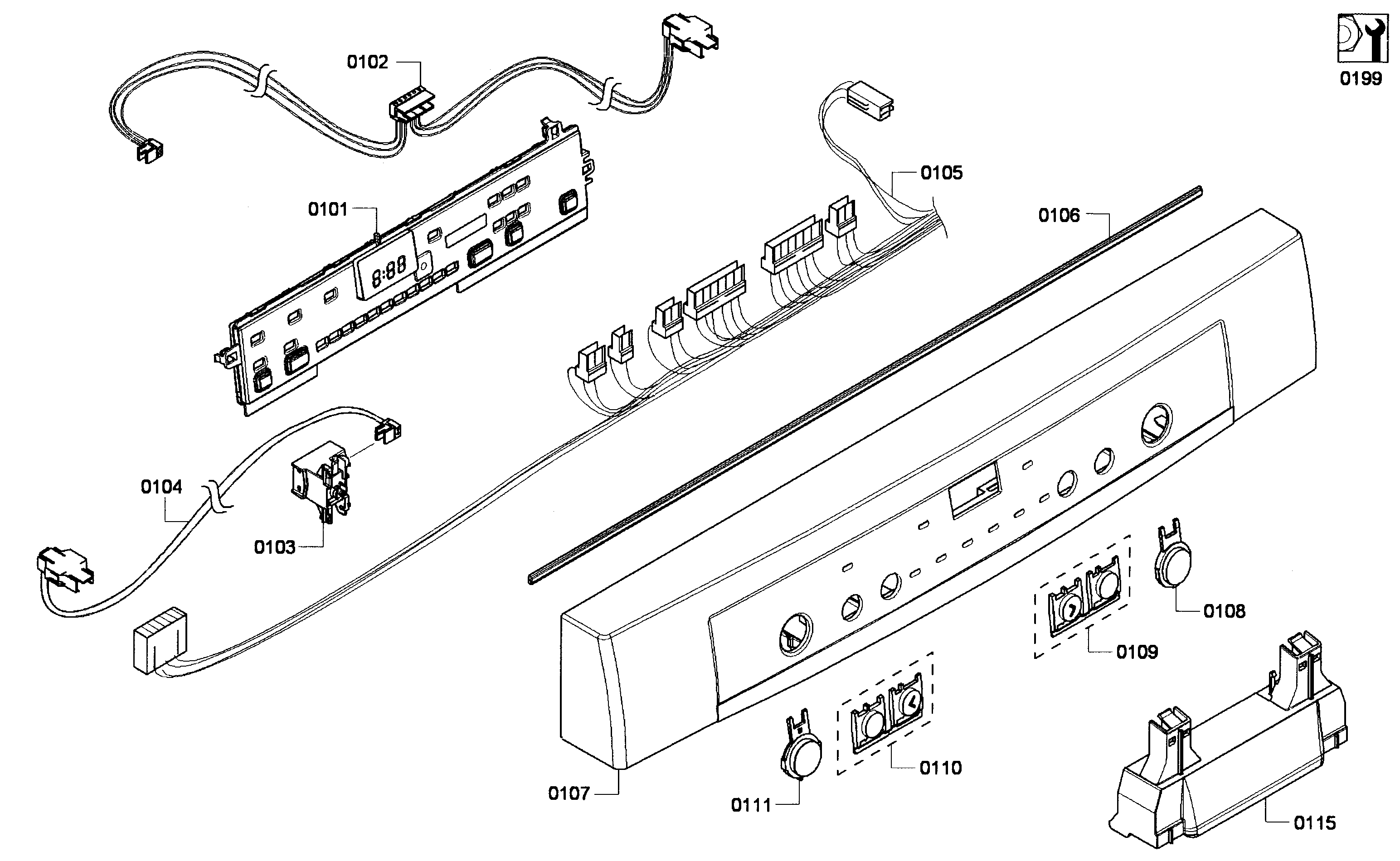

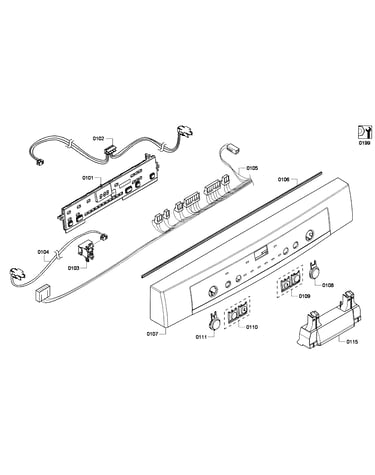

Front panel diagram

Harness

Part #611664

Replaced by #00648135

?
Manufacturer substitution
This part replaces 611664. Substitute parts can look different from the original.
$80.49 |
7% OFF Phone Price : $86.49
In Stock
