Whirlpool
Bottom-Mount Refrigerator

Model # WRF990SLAW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRF990SLAW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

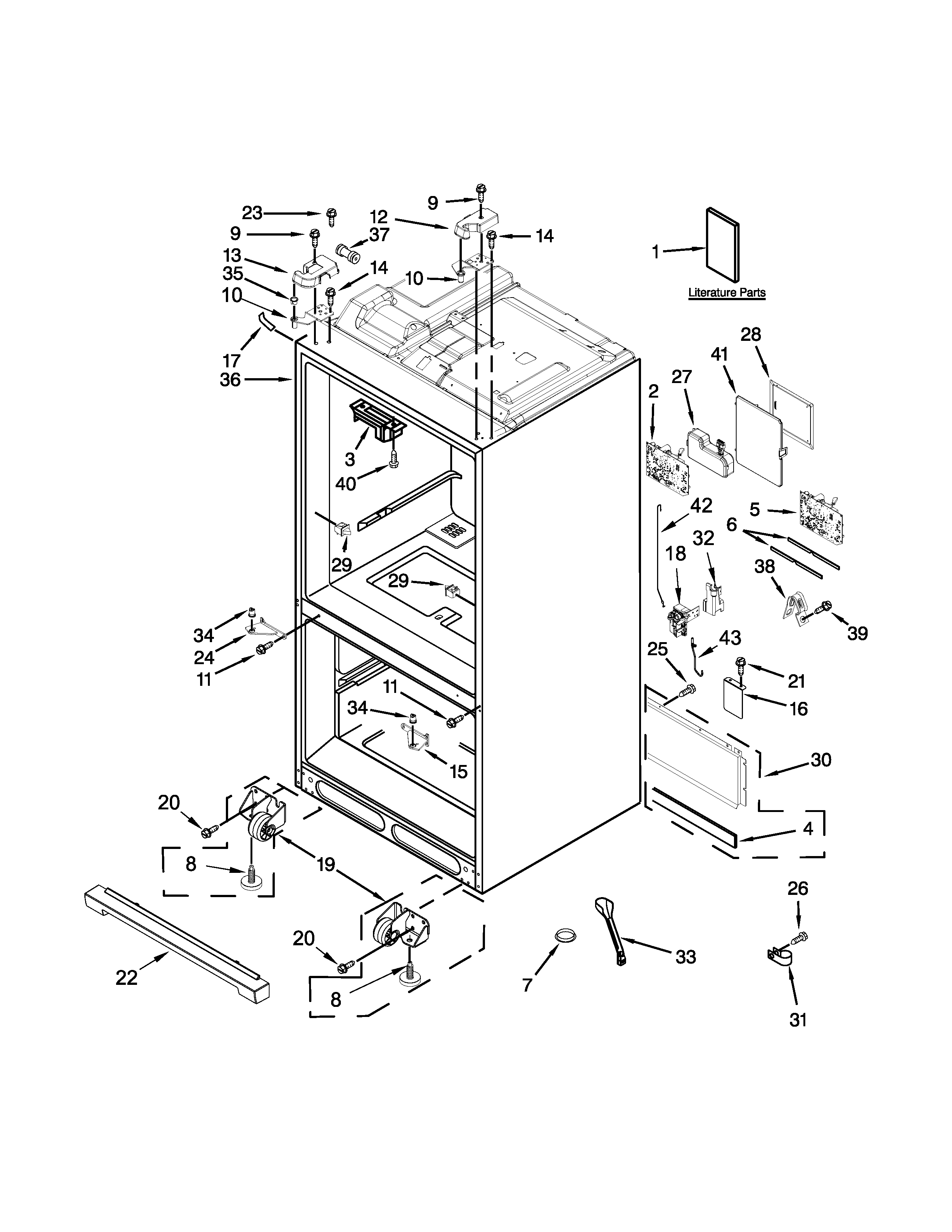

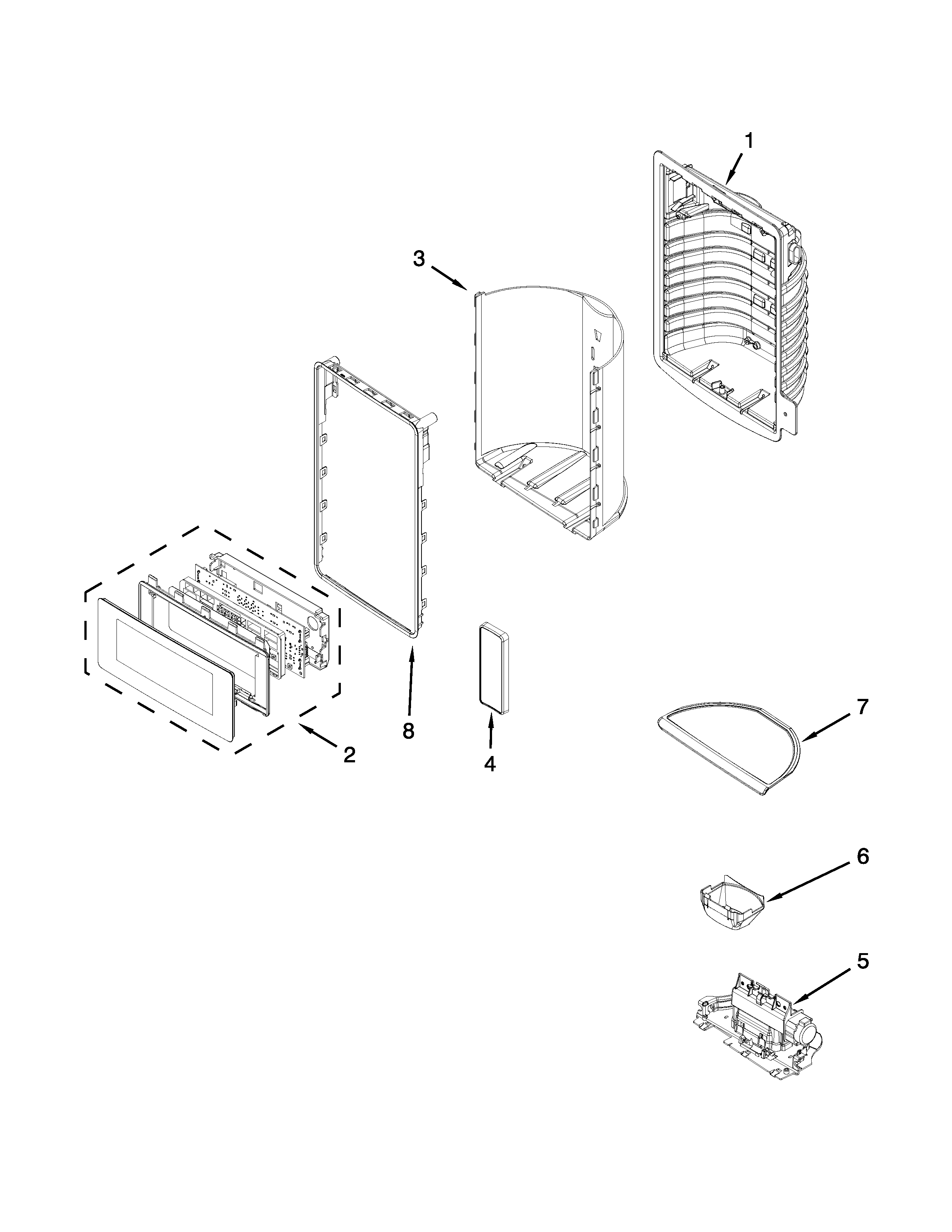

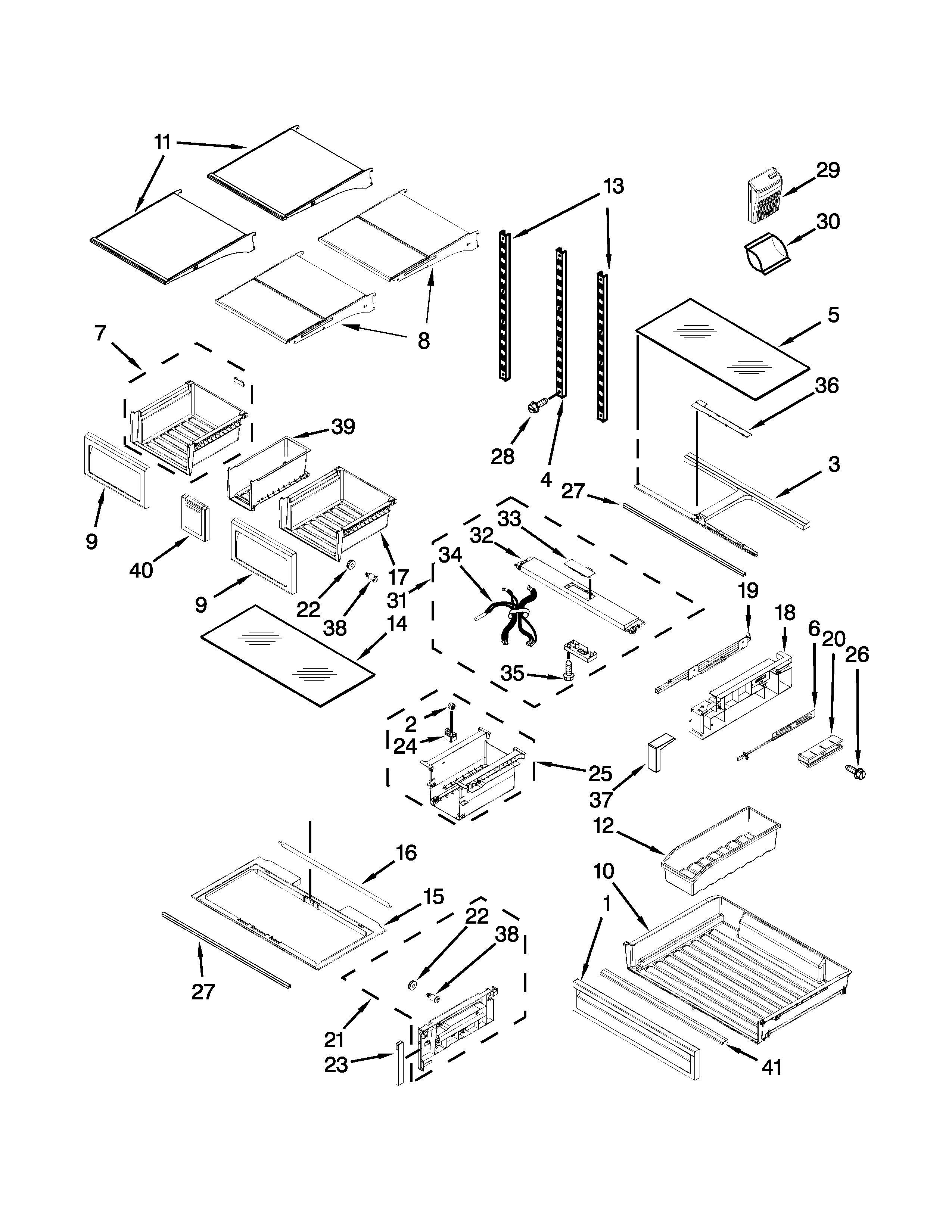

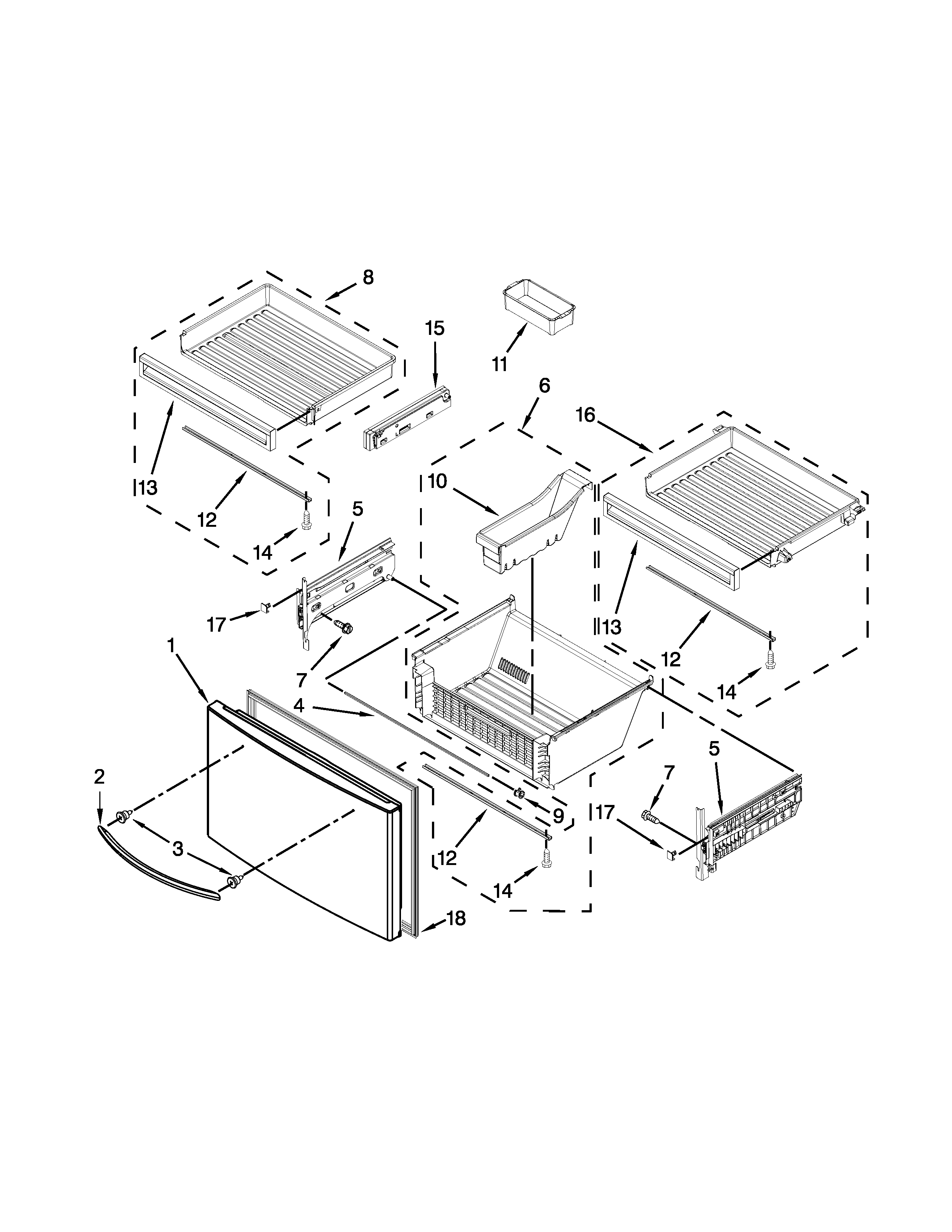

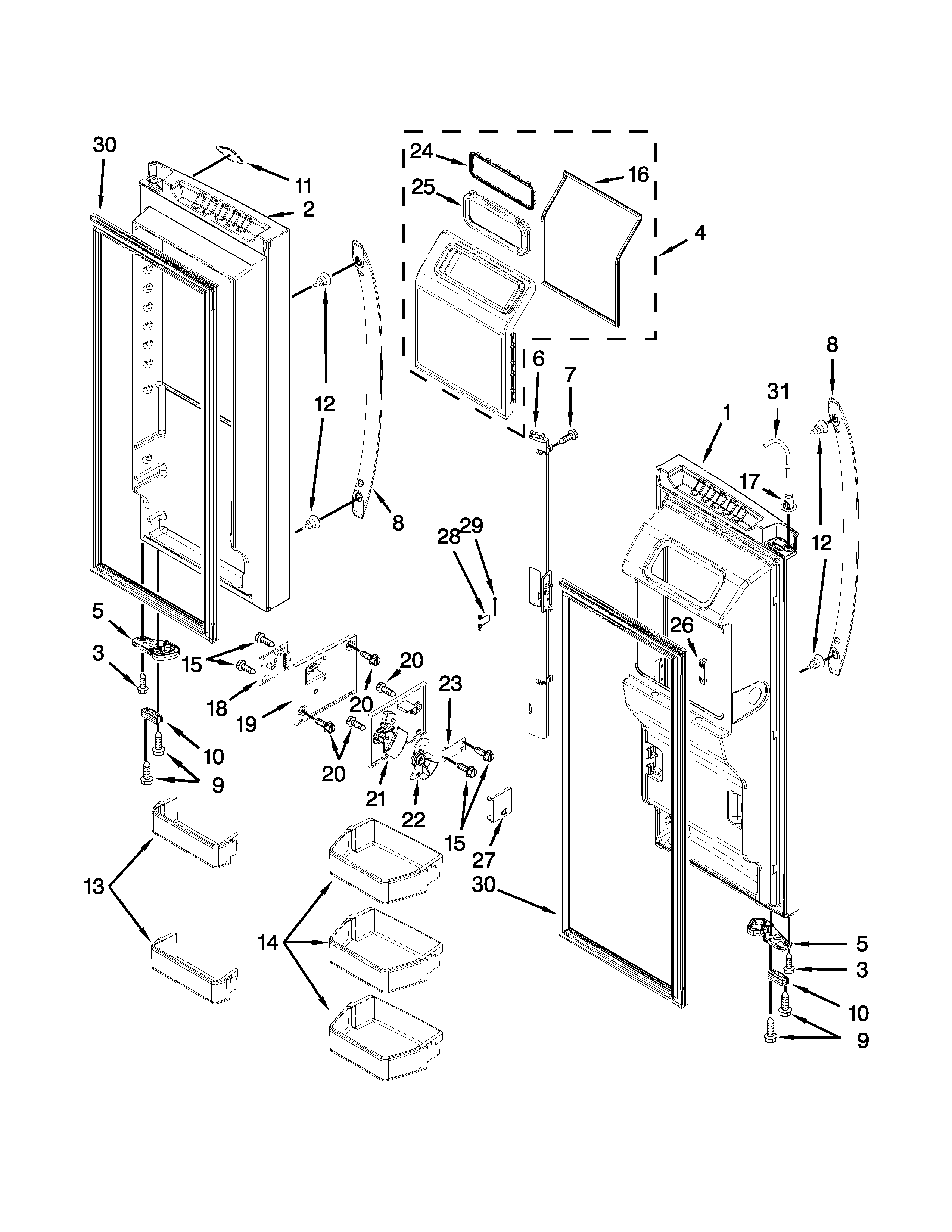

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |
Refrigerator Air Filter W10315189
#12

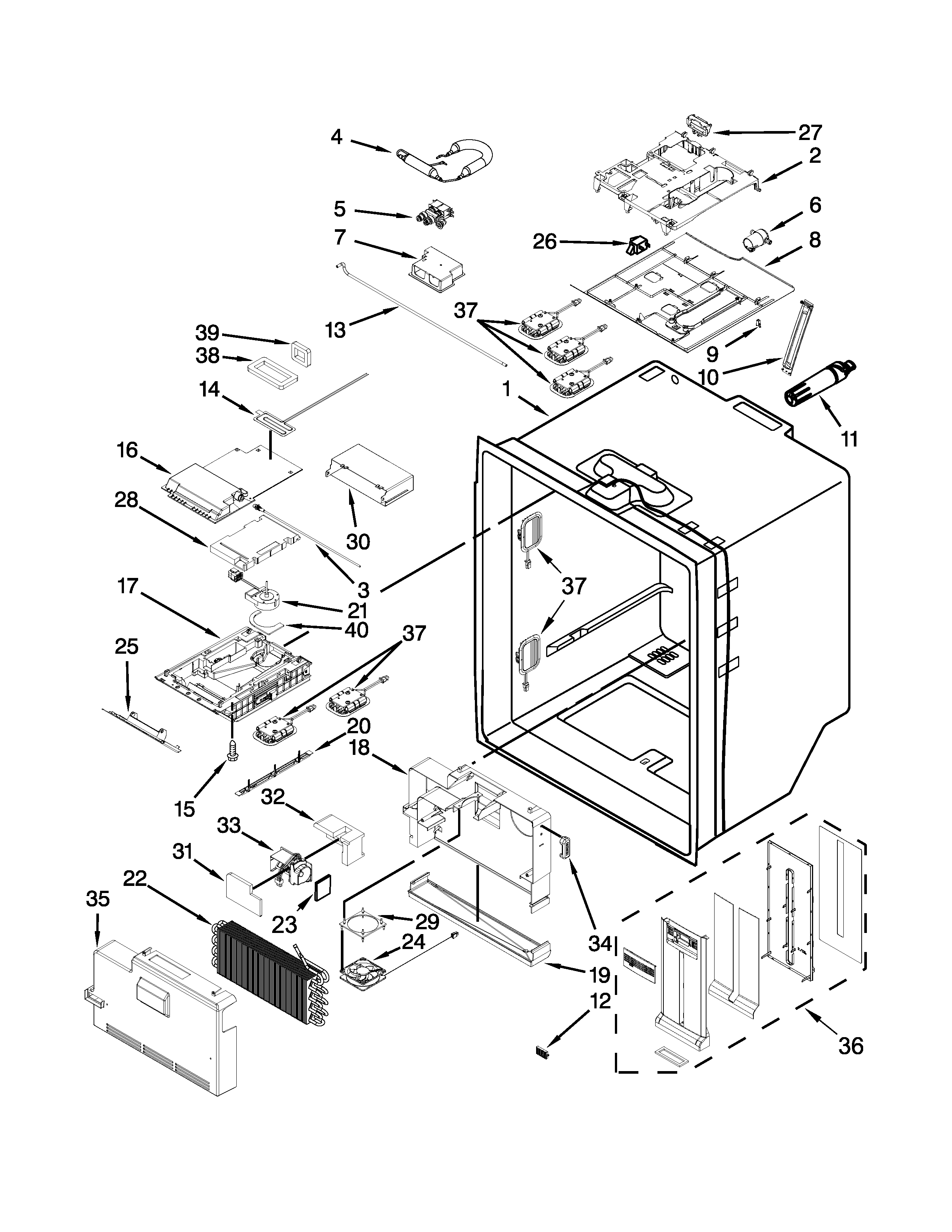

Refrigerator liner parts diagram

Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Drier Tube W10286069
#25

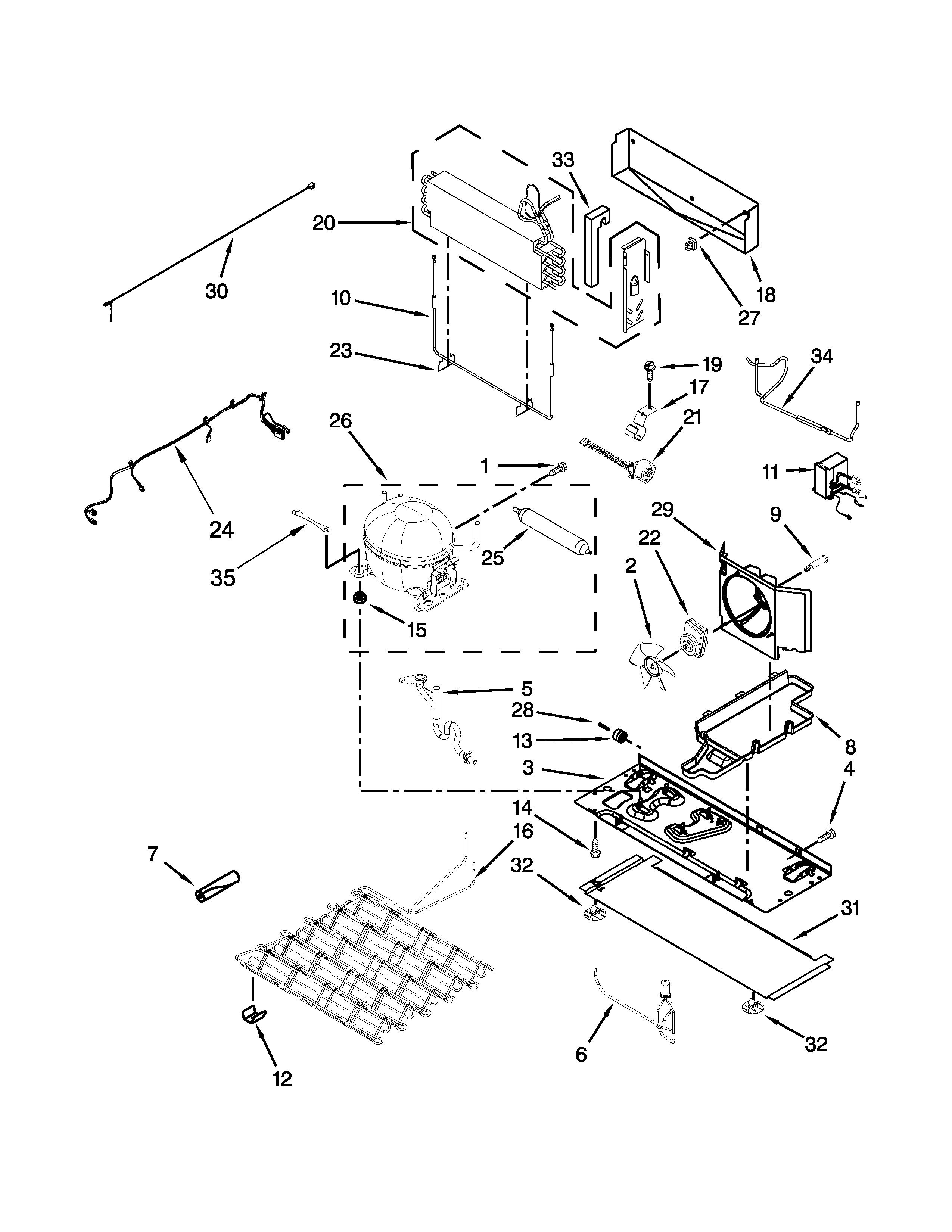

Unit parts diagram

Drier tube

Part #W10286069

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10286069. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Cartridge Wrap Assembly W10609378
#11

Refrigerator liner parts diagram

Refrigerator cartridge wrap assembly

Part #W10609378

Replaced by #EDR2RXD1

?
Manufacturer substitution
This part replaces W10609378. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Thermistor W10280385
#19

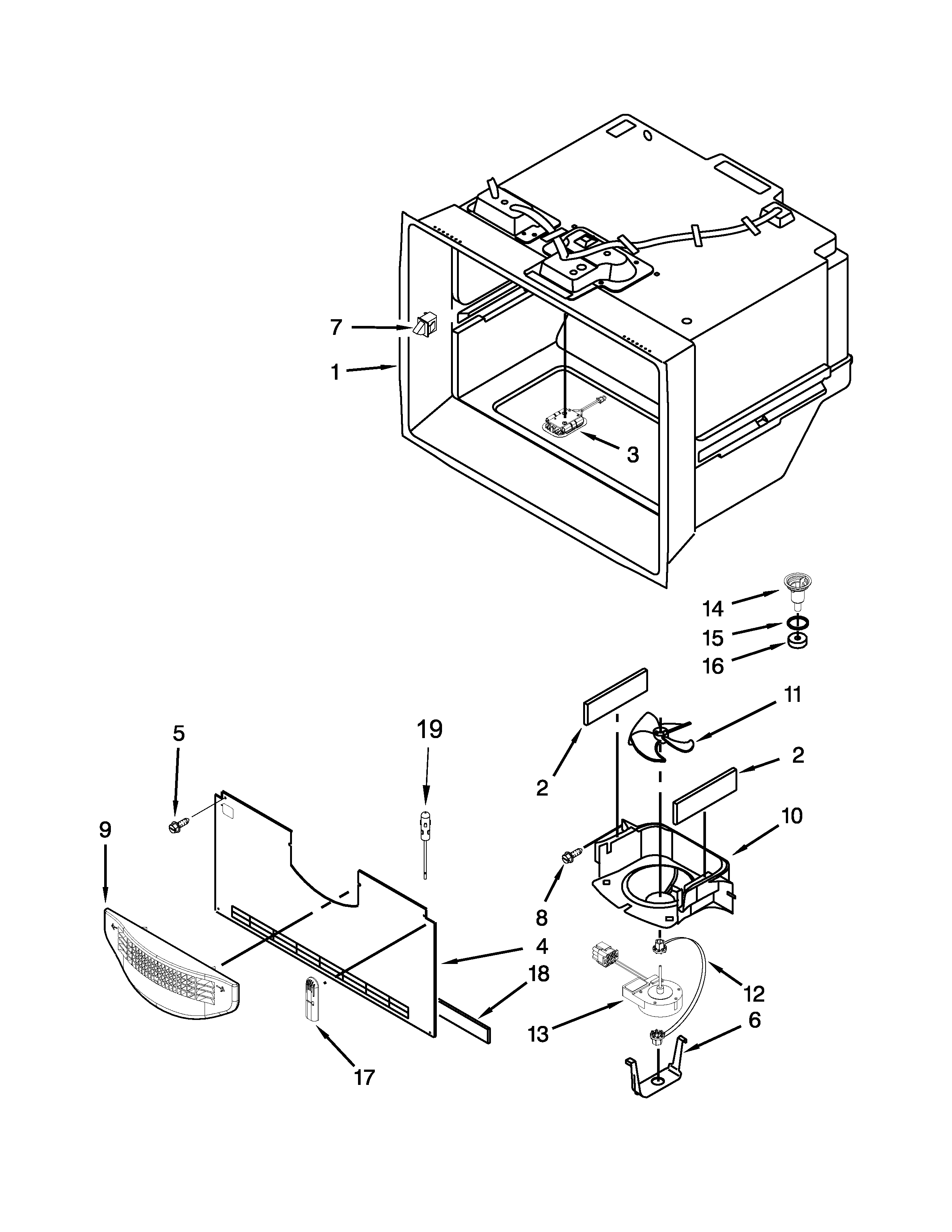

Freezer liner parts diagram

Refrigerator thermistor

Part #W10280385

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280385. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Ice Maker Assembly W10498261
#1

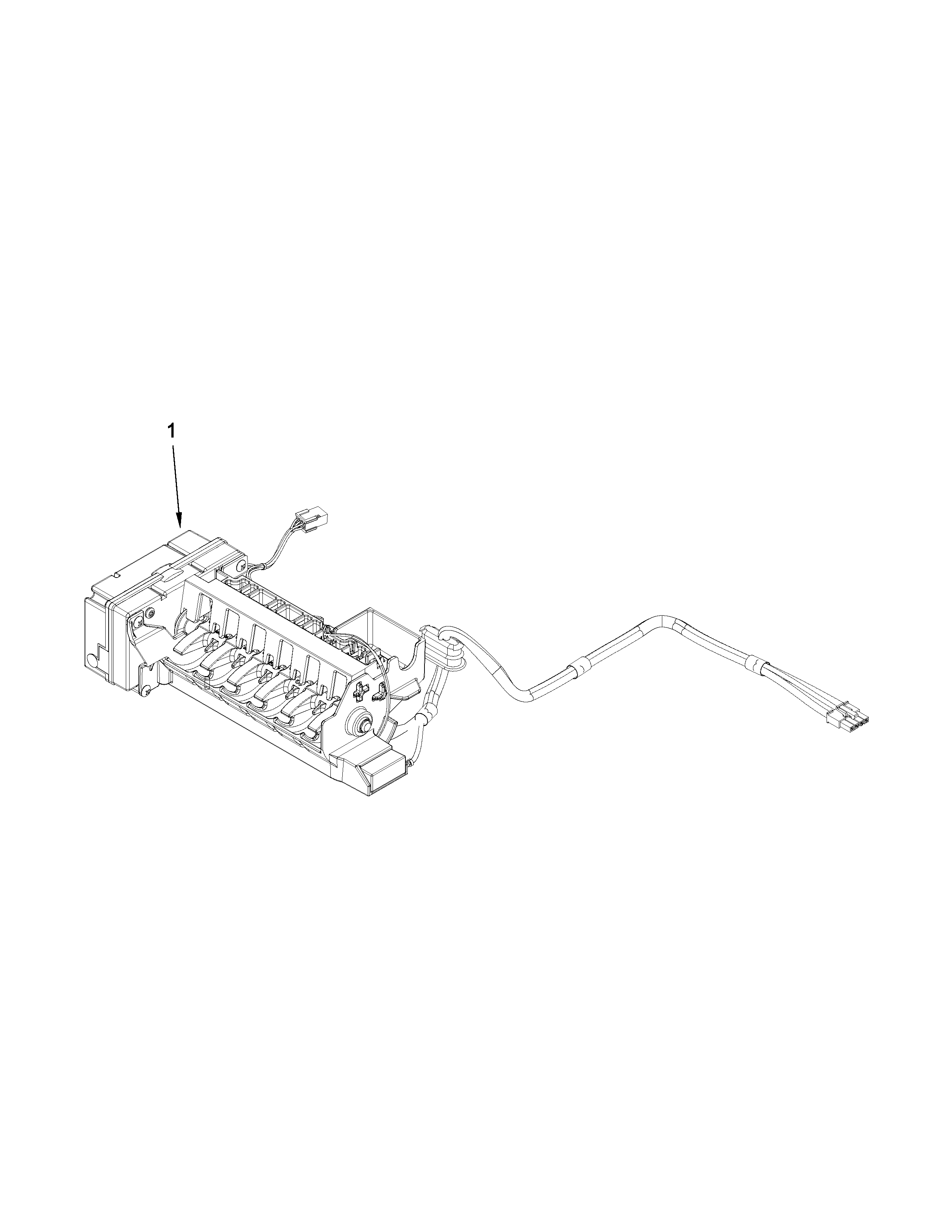

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10498261

Replaced by #W11577195

?
Manufacturer substitution
This part replaces W10498261. Substitute parts can look different from the original.
BEST SELLER
$91.79 |
6% OFF Phone Price : $97.79
In Stock
Refrigerator Switch C3680310V
Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Water Inlet Valve Assembly W10341329
#5

Refrigerator liner parts diagram

Refrigerator water inlet valve assembly

Part #W10341329

Replaced by #WPW10341329

?
Manufacturer substitution
This part replaces W10341329. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Refrigerator Defrost Heater 12729128
#10

Unit parts diagram

Refrigerator defrost heater

Part #12729128

Replaced by #WP12729128

?
Manufacturer substitution
This part replaces 12729128. Substitute parts can look different from the original.
BEST SELLER
$65.56 |
8% OFF Phone Price : $71.56
In Stock
Refrigerator Evaporator Fan W10460280
#21

Refrigerator liner parts diagram

Refrigerator evaporator fan

Part #W10460280

Replaced by #W10846539

?
Manufacturer substitution
This part replaces W10460280. Substitute parts can look different from the original.
BEST SELLER
$129.47 |
8% OFF Phone Price : $141.47
In Stock
Refrigerator Motor W10215646
#6

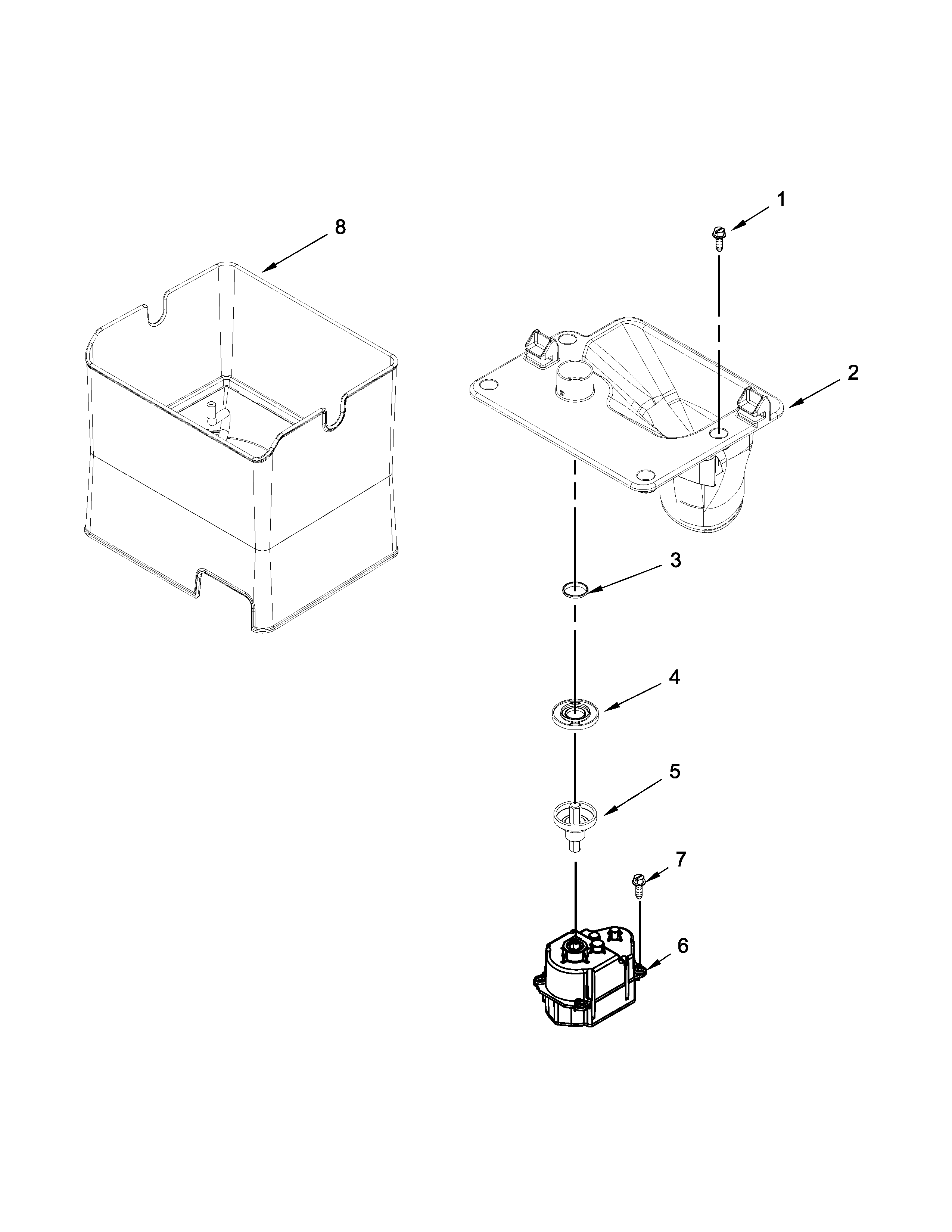

Motor and ice container parts diagram

Refrigerator motor

Part #W10215646

Replaced by #W10822606

?
Manufacturer substitution
This part replaces W10215646. Substitute parts can look different from the original.
BEST SELLER
$89.46 |
7% OFF Was : $96.09
In Stock
