Amana
Washer

Model # AWM290W2 Official Amana washer

Here are the diagrams and repair parts for Official Amana AWM290W2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

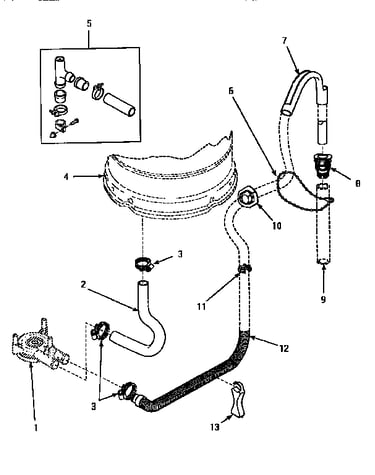

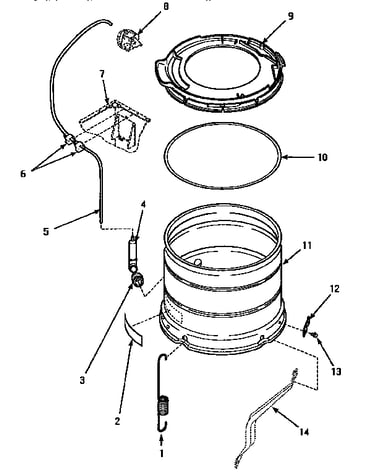

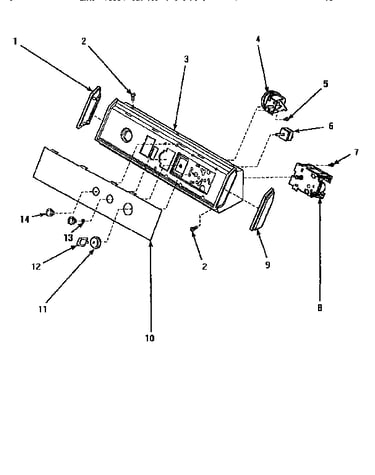

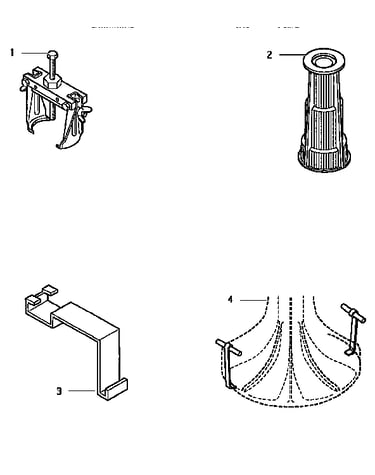

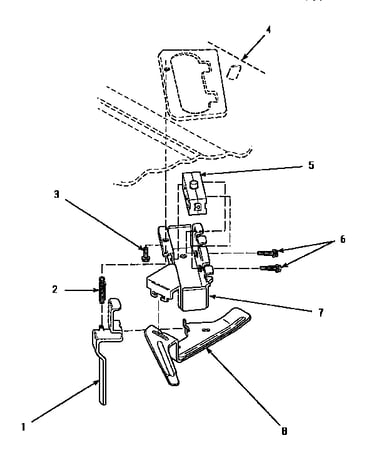

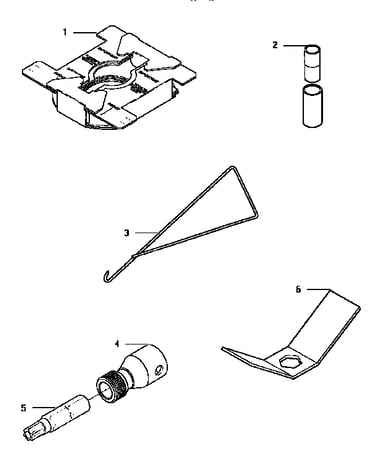

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |

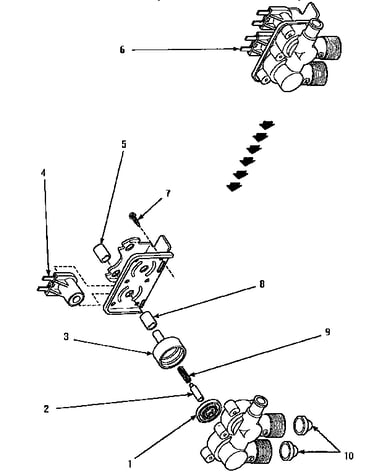

Hose Clamp 36801
#6

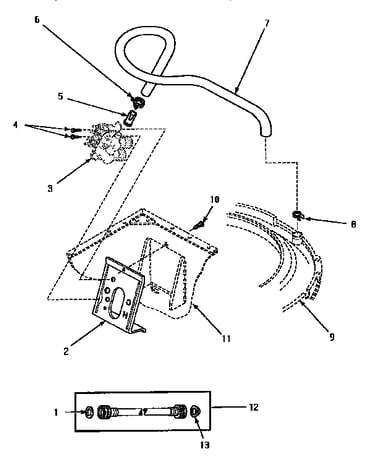

Inlet hose & mixing valve mount diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tub 34519P
#8

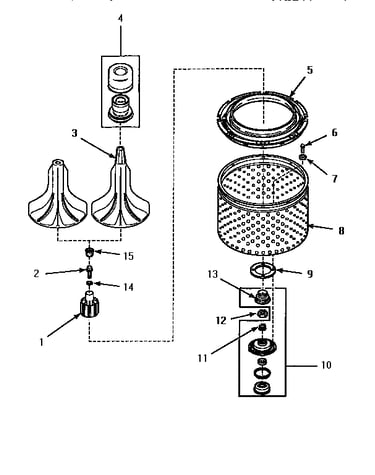

Agitator, washtub & hub diagram

Tub

Part #34519P

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 34519P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 34337
#10

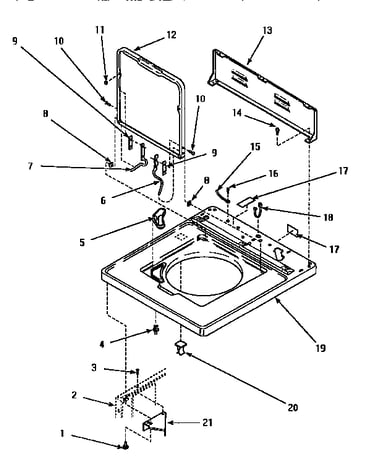

Cabinet top, door & c.h. rear panel diagram

Screw

Part #34337

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 34337. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Washer 52549
#23

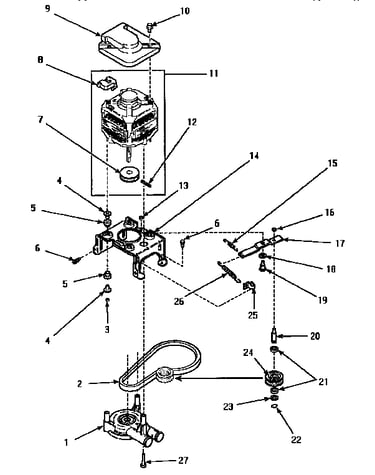

Motor, pump & idler assembly diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut 35423
#3

Motor, pump & idler assembly diagram

Nut

Part #35423

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 35423. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer 20290
#1

Inlet hose & mixing valve mount diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock

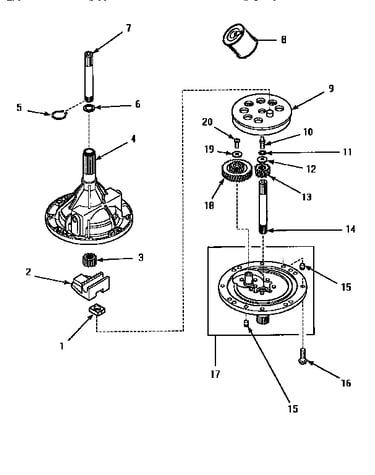

Bearing 27182
#3

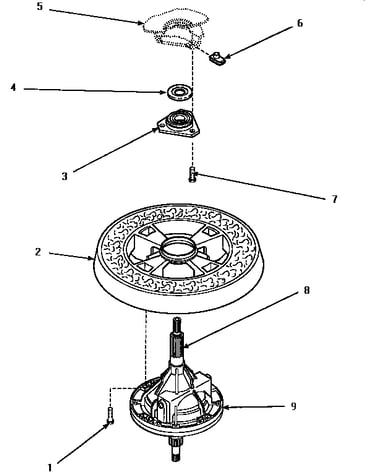

Transmission assy & balance ring diagram

Bearing

Part #27182

The manufacturer no longer makes this part, and there's no substitute part

Bearing 28944R
#10

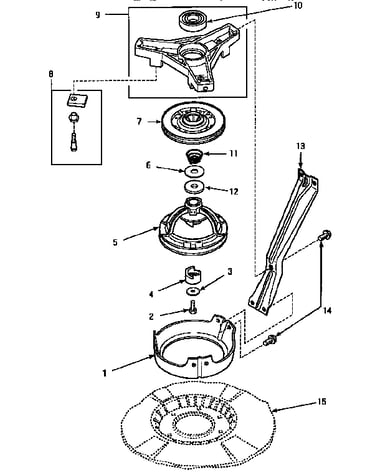

Bearing housing & pivot dome diagram

Bearing

Part #28944R

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces 28944R. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock

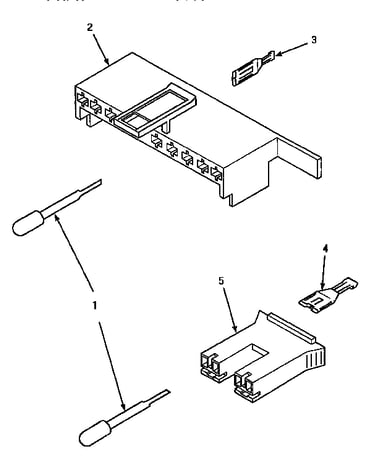

Connector 21091
#26

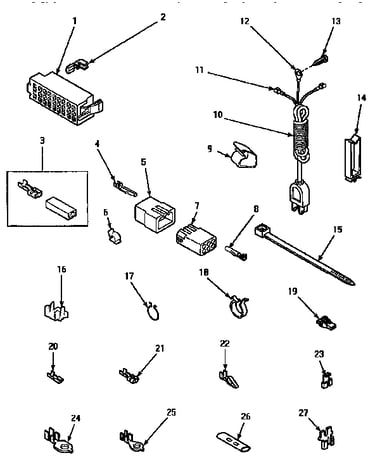

Power cord & terminals diagram

Connector

Part #21091

Replaced by #A0304502

?
Manufacturer substitution
This part replaces 21091. Substitute parts can look different from the original.
This item is not returnable
$3.60
In Stock
Screw 32671
#7

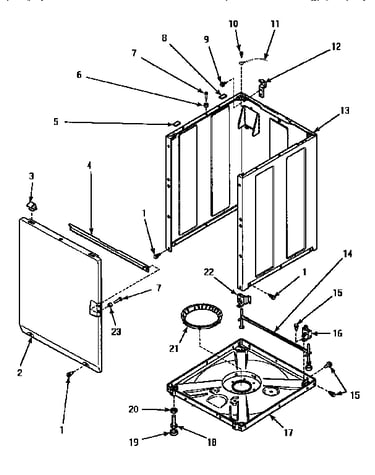

Front panel, base & cabinet assy diagram

Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
