Hoover
Upright Vacuum

Model # U5049900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5049900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Hoover Convert Body 38683507
#19

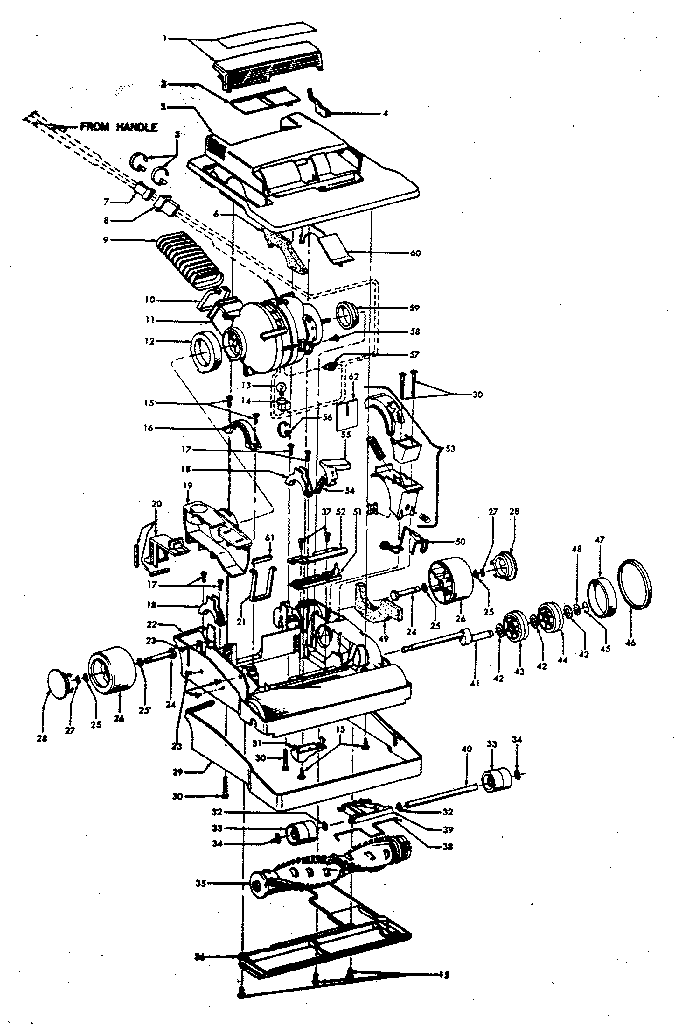

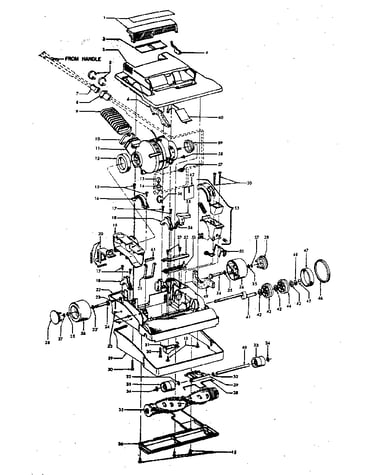

Housing assembly diagram

Hoover convert body

Part #38683507

The manufacturer no longer makes this part, and there's no substitute part

Hoover Brake Lever 38452516
#29

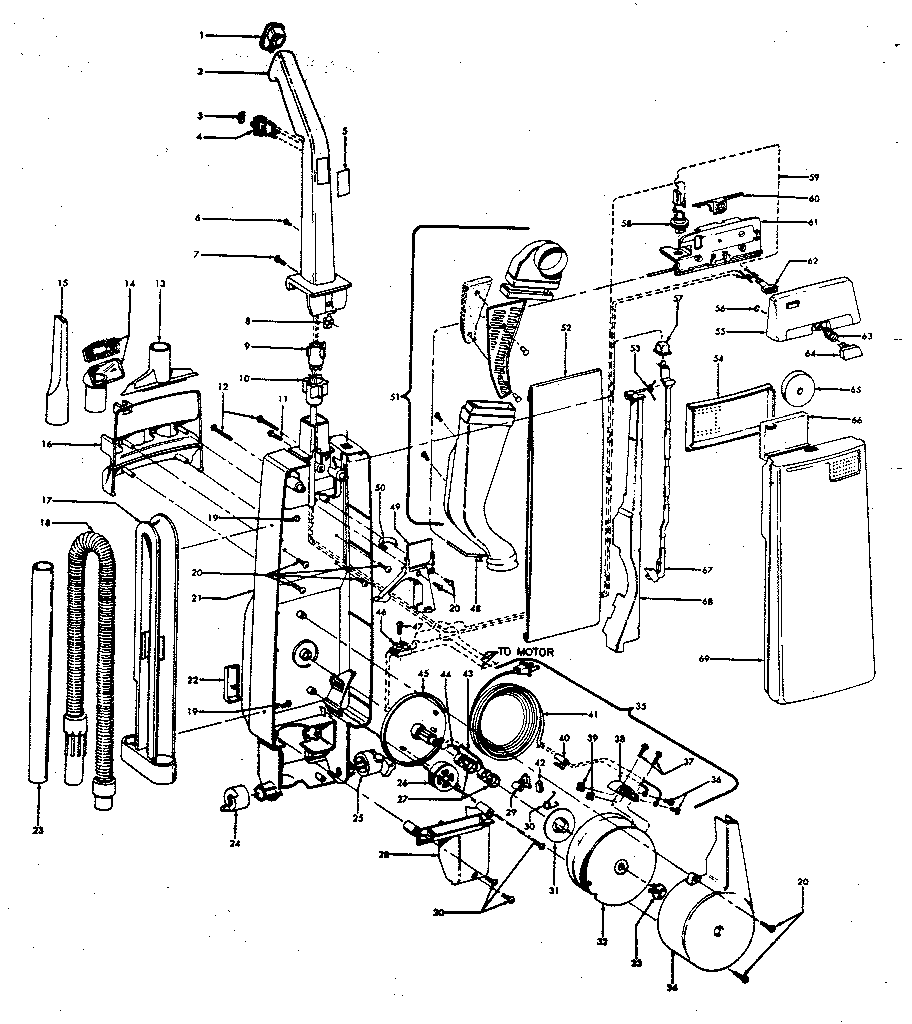

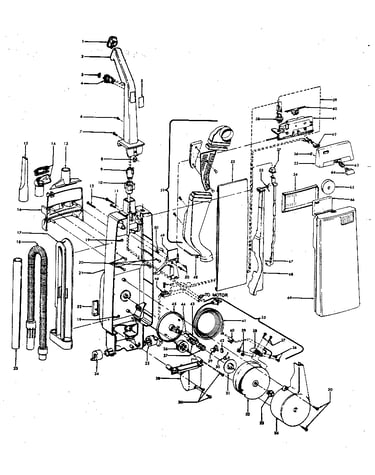

Bag housing assembly diagram

Hoover brake lever

Part #38452516

The manufacturer no longer makes this part, and there's no substitute part

Washer 21345115
#16

Motor assembly diagram

Washer

Part #21345115

The manufacturer no longer makes this part, and there's no substitute part

Hoover Tube Assembly 43415504
#51

Bag housing assembly diagram

Hoover tube assembly

Part #43415504

The manufacturer no longer makes this part, and there's no substitute part

Hoover Lens Shield 37246522
#2

Housing assembly diagram

Hoover lens shield

Part #37246522

The manufacturer no longer makes this part, and there's no substitute part

Hoover Screw 21448022
#15

Housing assembly diagram

Hoover screw

Part #21448022

The manufacturer no longer makes this part, and there's no substitute part

Hoover Lower Cover Plate 37257538
#28

Bag housing assembly diagram

Hoover lower cover plate

Part #37257538

The manufacturer no longer makes this part, and there's no substitute part

Hoover Whl Spt Sprg 33175501
#38

Housing assembly diagram

Hoover whl spt sprg

Part #33175501

The manufacturer no longer makes this part, and there's no substitute part

Hoover Screw 21448004
#30

Housing assembly diagram

Hoover screw

Part #21448004

The manufacturer no longer makes this part, and there's no substitute part

Finder Lamp 48122501
#13

Housing assembly diagram

Finder lamp

Part #48122501

The manufacturer no longer makes this part, and there's no substitute part
