Kelvinator
Dehumidifier

Model # DHC300G1 Official Kelvinator dehumidifier - lk34589010

Here are the diagrams and repair parts for Official Kelvinator DHC300G1 dehumidifier - lk34589010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Washer 3203469
#34

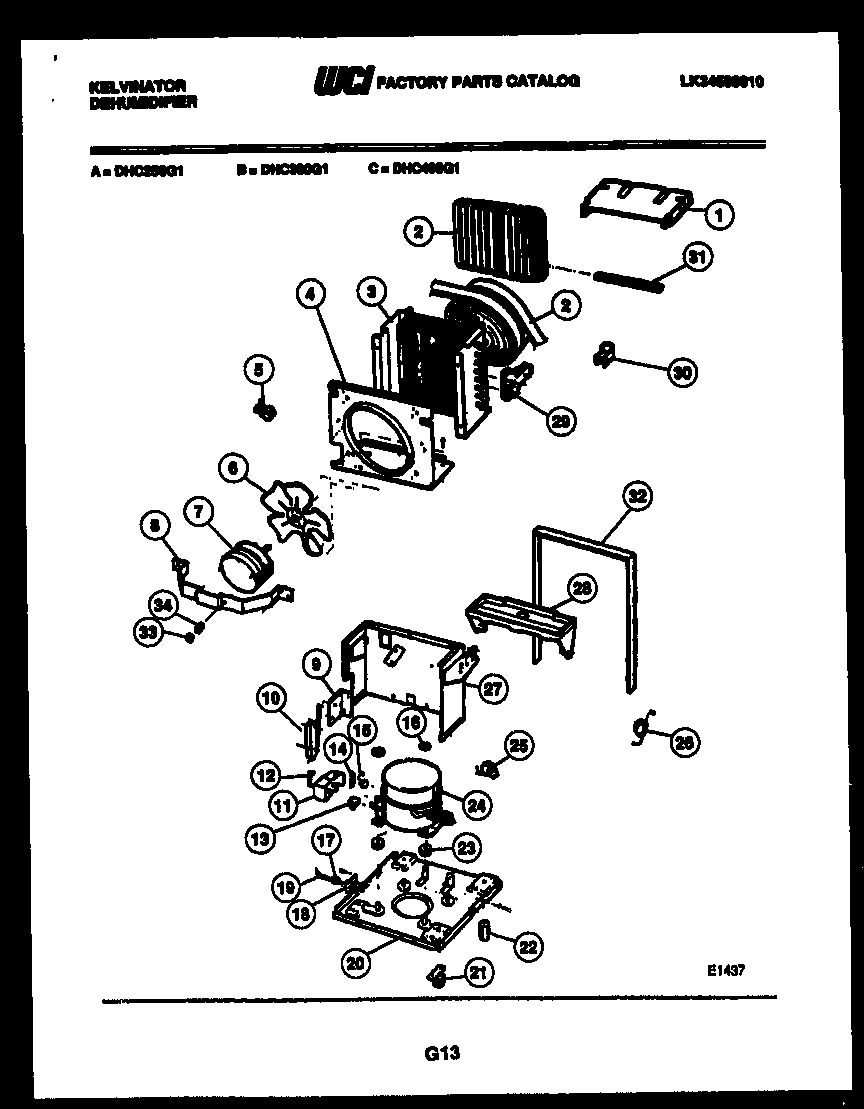

Air, water and condensing parts diagram

Washer

Part #3203469

This item is not returnable
$2.29
In Stock
Lamp 3203372
#6

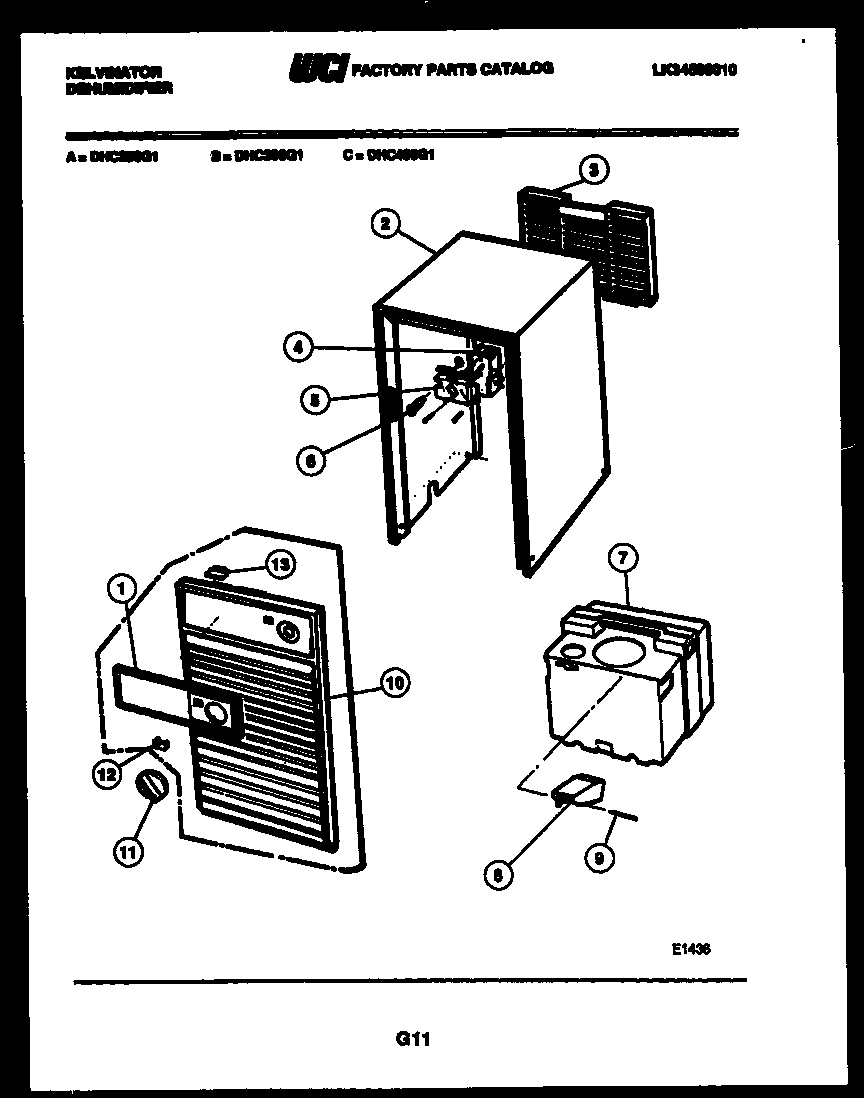

Cabinet and control parts diagram

Lamp

Part #3203372

The manufacturer no longer makes this part, and there's no substitute part

Fan 3203364
#6

Air, water and condensing parts diagram

Fan

Part #3203364

The manufacturer no longer makes this part, and there's no substitute part

Pin 3203384
#9

Cabinet and control parts diagram

Pin

Part #3203384

The manufacturer no longer makes this part, and there's no substitute part

Holder 3203368
#29

Air, water and condensing parts diagram

Holder

Part #3203368

The manufacturer no longer makes this part, and there's no substitute part

Relay 3203346
#13

Air, water and condensing parts diagram

Relay

Part #3203346

The manufacturer no longer makes this part, and there's no substitute part

Tube 3203378
#26

Air, water and condensing parts diagram

Tube

Part #3203378

The manufacturer no longer makes this part, and there's no substitute part

Humidstat 3203373
#4

Cabinet and control parts diagram

Humidstat

Part #3203373

The manufacturer no longer makes this part, and there's no substitute part

Overload 3203349
#15

Air, water and condensing parts diagram

Overload

Part #3203349

The manufacturer no longer makes this part, and there's no substitute part

Divider 3203360
#27

Air, water and condensing parts diagram

Divider

Part #3203360

The manufacturer no longer makes this part, and there's no substitute part
