Model # VCH-7A Official Thermador range hood control housing

Here are the diagrams and repair parts for Official Thermador VCH-7A range hood control housing, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Range Hood Light Socket 14-09-941
#11

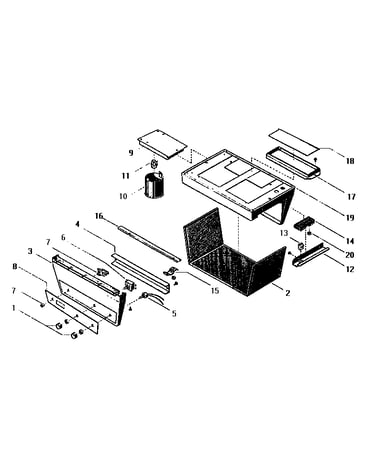

Control housing diagram

Range hood light socket

Part #14-09-941

This item is not returnable
$6.99
In Stock
Terminal Block 19-09-534
#14A

Control housing diagram

Terminal block

Part #19-09-534

The manufacturer no longer makes this part, and there's no substitute part

Lamp Box 19-07-028
#9

Control housing diagram

Lamp box

Part #19-07-028

The manufacturer no longer makes this part, and there's no substitute part

Housing 19-07-205
#19

Control housing diagram

Housing

Part #19-07-205

The manufacturer no longer makes this part, and there's no substitute part

Switch 19-19-104
#6

Control housing diagram

Switch

Part #19-19-104

The manufacturer no longer makes this part, and there's no substitute part

Junction Box Cover 19-07-027
#12

Control housing diagram

Junction box cover

Part #19-07-027

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block, Earlier 19-07-353
#14B

Control housing diagram

Terminal block, earlier

Part #19-07-353

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Filter 19-07-142
#2

Control housing diagram

Range hood filter

Part #19-07-142

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 19-07-143
#14

Control housing diagram

Terminal block

Part #19-07-143

The manufacturer no longer makes this part, and there's no substitute part

Light Switch 19-19-021
#5

Control housing diagram

Light switch

Part #19-19-021

The manufacturer no longer makes this part, and there's no substitute part
