Model # YKERS208XB1 Official KitchenAid 30" electric freestanding range

Here are the diagrams and repair parts for Official KitchenAid YKERS208XB1 30" electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

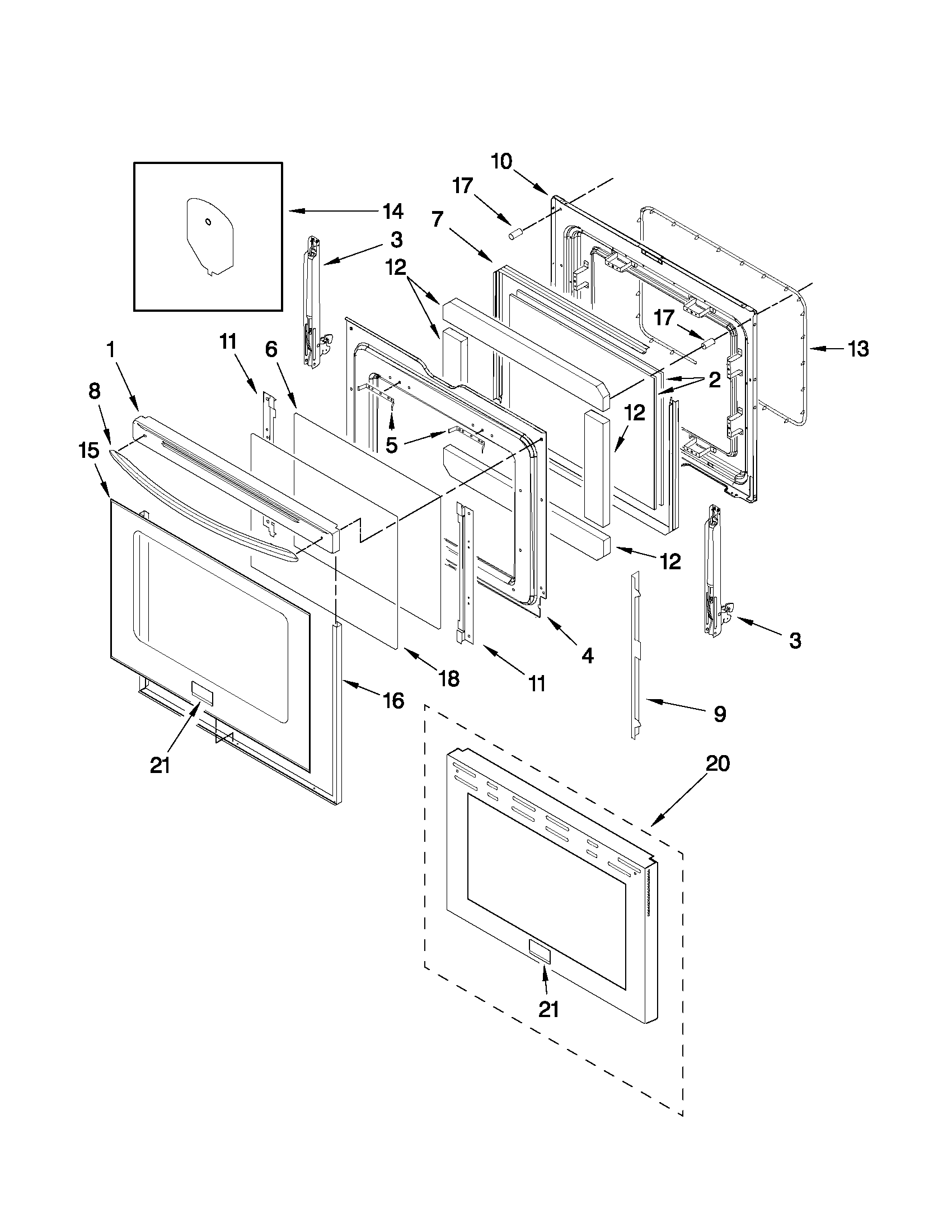

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Light Bulb W10346855
#37

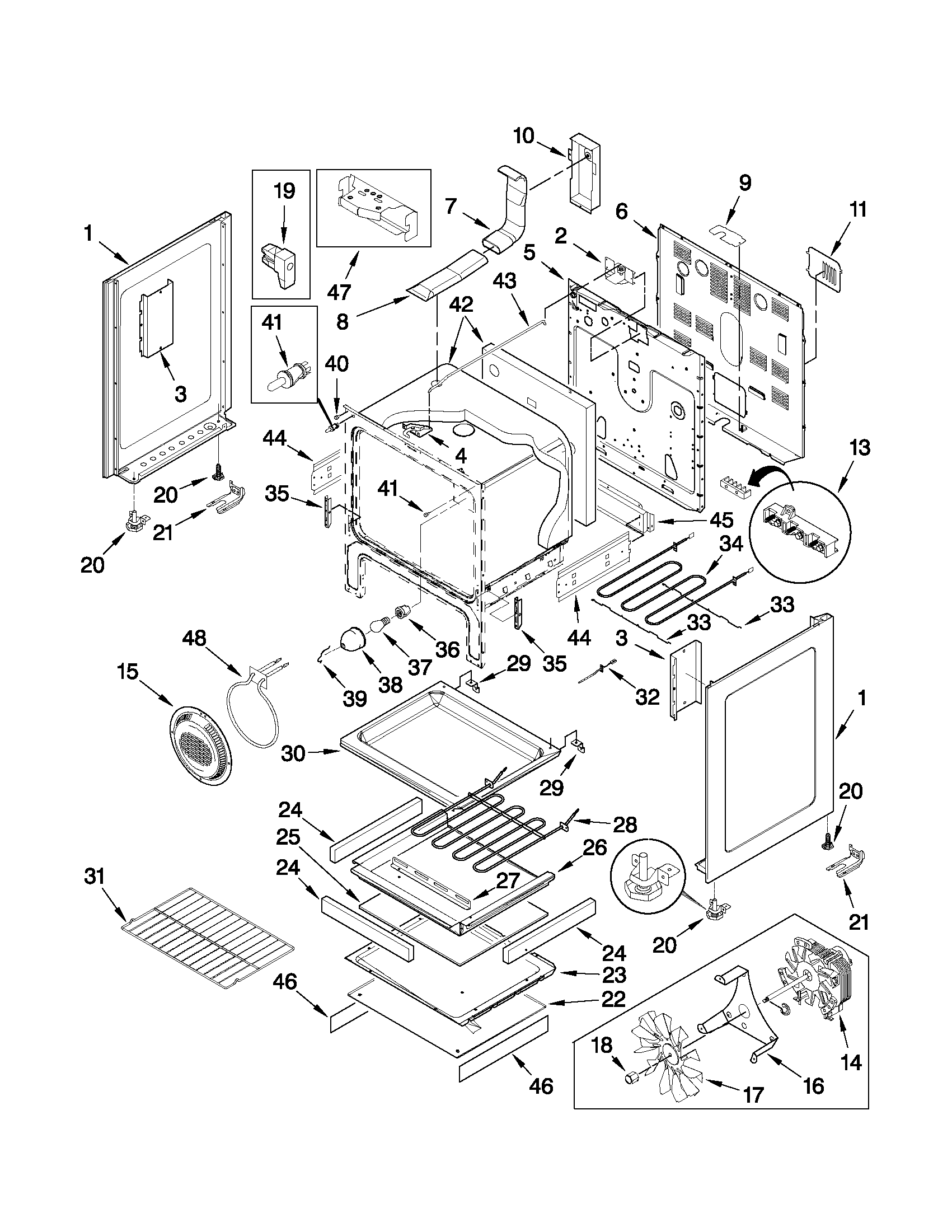

Chassis parts diagram

Light bulb

Part #W10346855

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10346855. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Polish 3191048
#NI

Optional parts (not included) diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Elmnt-surf W10350485
#9

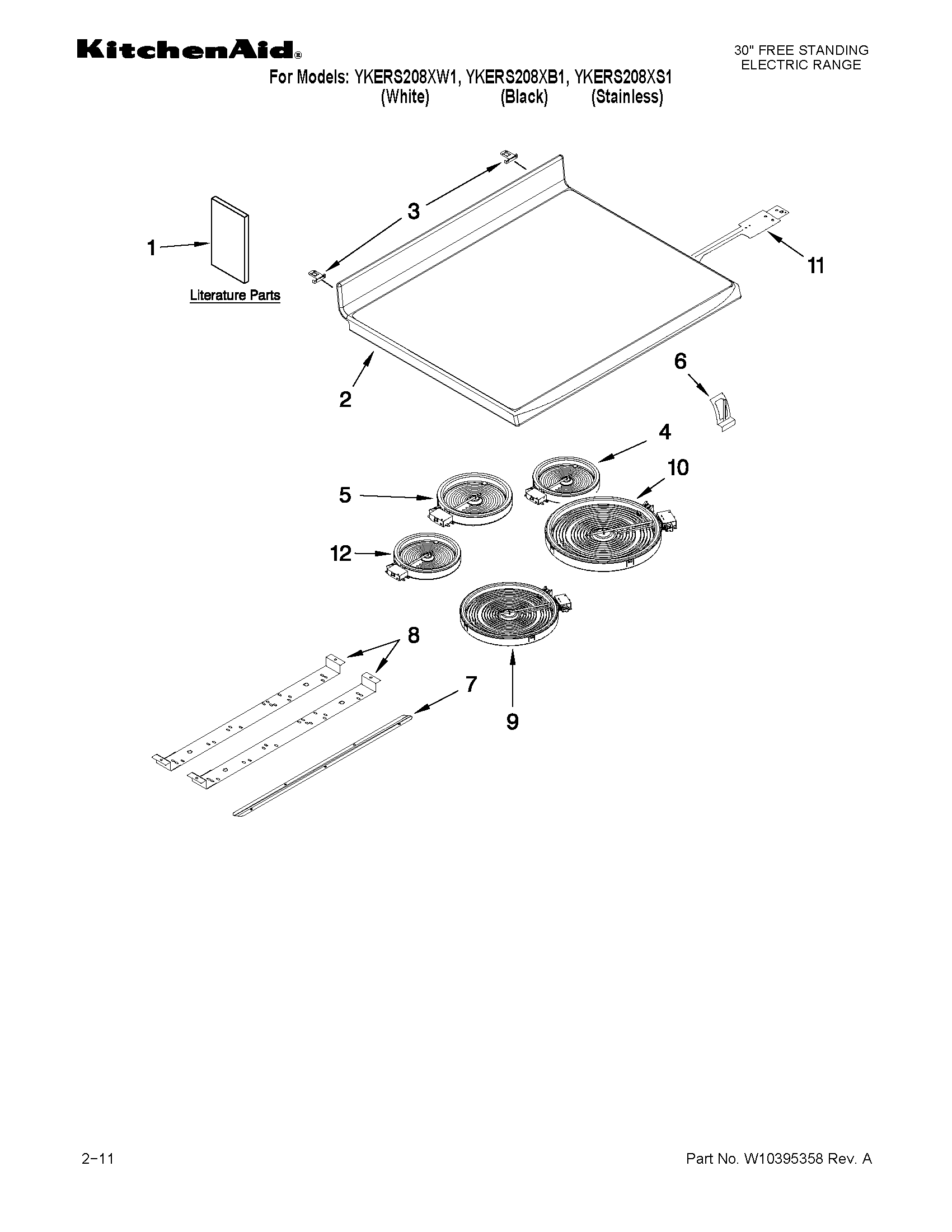

Cooktop parts diagram

Elmnt-surf

Part #W10350485

Replaced by #W11517959

?
Manufacturer substitution
This part replaces W10350485. Substitute parts can look different from the original.
BEST SELLER
$85.00 |
7% OFF Phone Price : $91.00
In Stock
Range Broil Pan Assembly W10123240
#NI

Optional parts (not included) diagram

Range broil pan assembly

Part #W10123240

$62.06 |
9% OFF Phone Price : $68.06
Back Order
Range Bake Element W10350448
#28

Chassis parts diagram

Range bake element

Part #W10350448

Replaced by #WPW10350448

?
Manufacturer substitution
This part replaces W10350448. Substitute parts can look different from the original.
$142.99 |
8% OFF Phone Price : $154.99
In Stock
Switch-inf W10350098
#4A

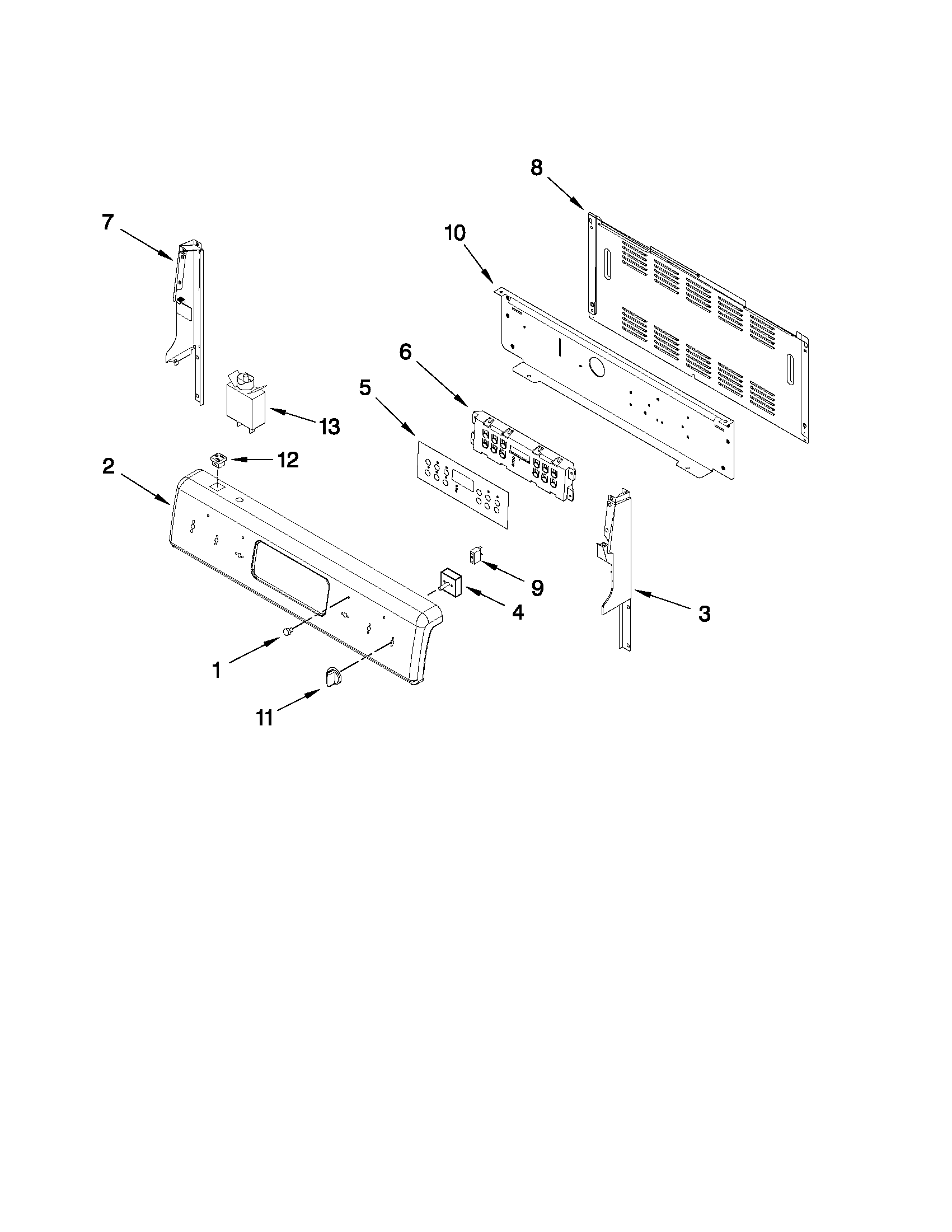

Control panel parts diagram

Switch-inf

Part #W10350098

$81.40
In Stock
Tray-bake W10350109
#26

Chassis parts diagram

Tray-bake

Part #W10350109

$148.96
In Stock
Bake Element W10354990
#6

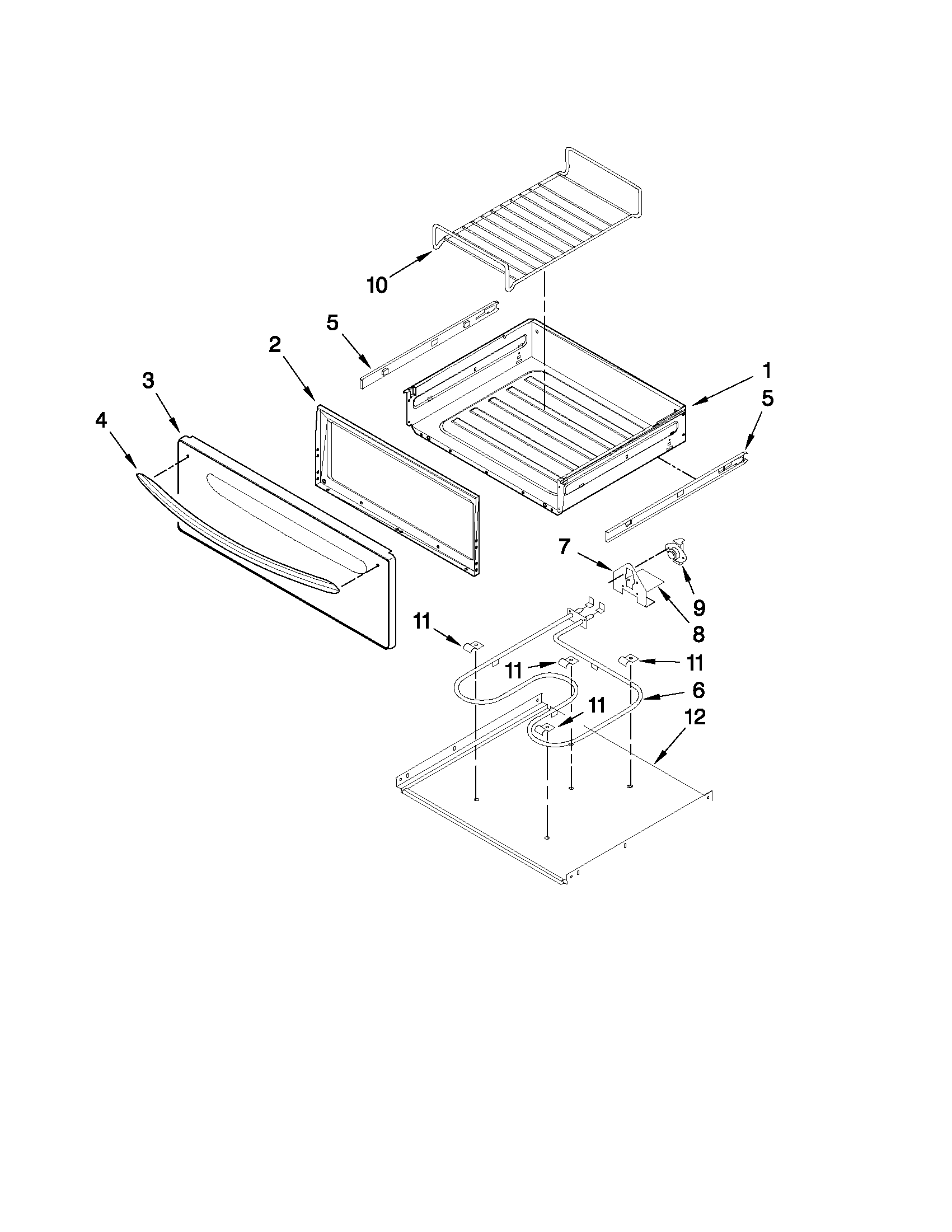

Drawer parts diagram
