Model # LMV2073WW/01 Official LG microwave

Here are the diagrams and repair parts for Official LG LMV2073WW-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

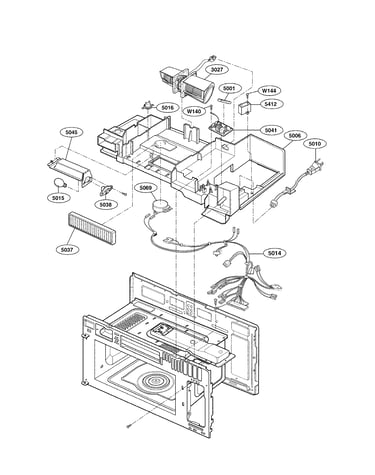

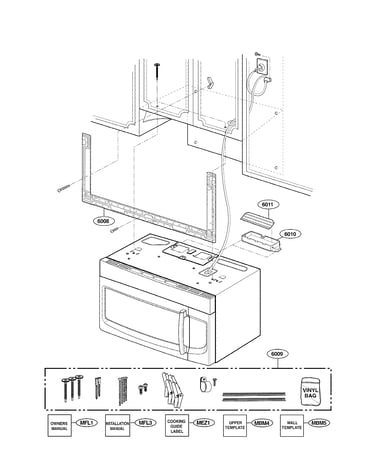

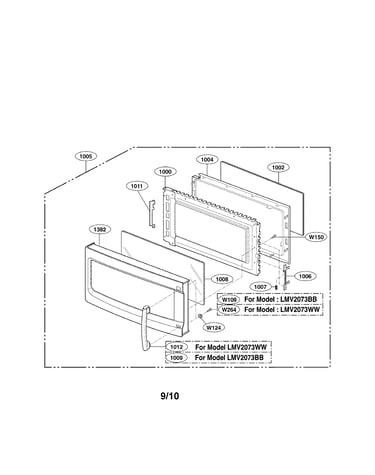

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Microwave Magnetron 6324W1A001E
#5009

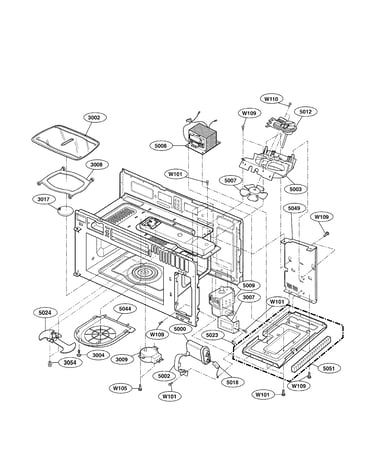

Interior parts (i) diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
High-voltage Diode 6021W3B001Q
#5018A

Interior parts (i) diagram

High-voltage diode

Part #6021W3B001Q

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001Q. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave High-voltage Diode 6021W3B001M
#5018

Interior parts (i) diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Goldstar Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
Goldstar microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Capacitor 6120W3H003J
#5000C

Interior parts (i) diagram

Capacitor

Part #6120W3H003J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 6120W3H003J. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Capacitor 0CZZW1H002J
#5000

Interior parts (i) diagram

Capacitor

Part #0CZZW1H002J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002J. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Capacitor 0CZZW1H003J
#5000A

Interior parts (i) diagram

Capacitor

Part #0CZZW1H003J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H003J. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Microwave Door Interlock Switch 3B73361E
#4003

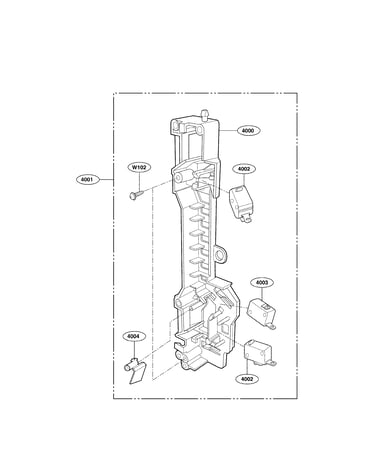

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Oven Lamp 6912W3Q001A
#3028

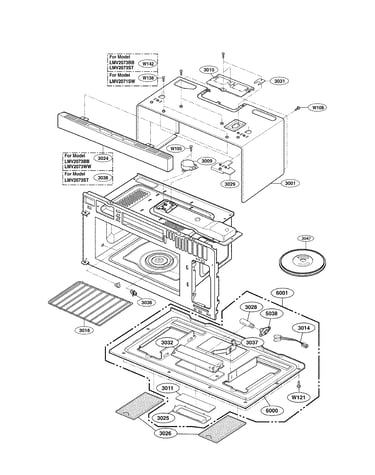

Oven cavity parts diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Microwave/hood Lamp 6912W3Q001D
#3028A

Oven cavity parts diagram

Microwave/hood lamp

Part #6912W3Q001D

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001D. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
