Gas Walk-Behind Mower

Model # 917376403 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376403 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Lawn Mower Hex Flange Nut 409149
#25

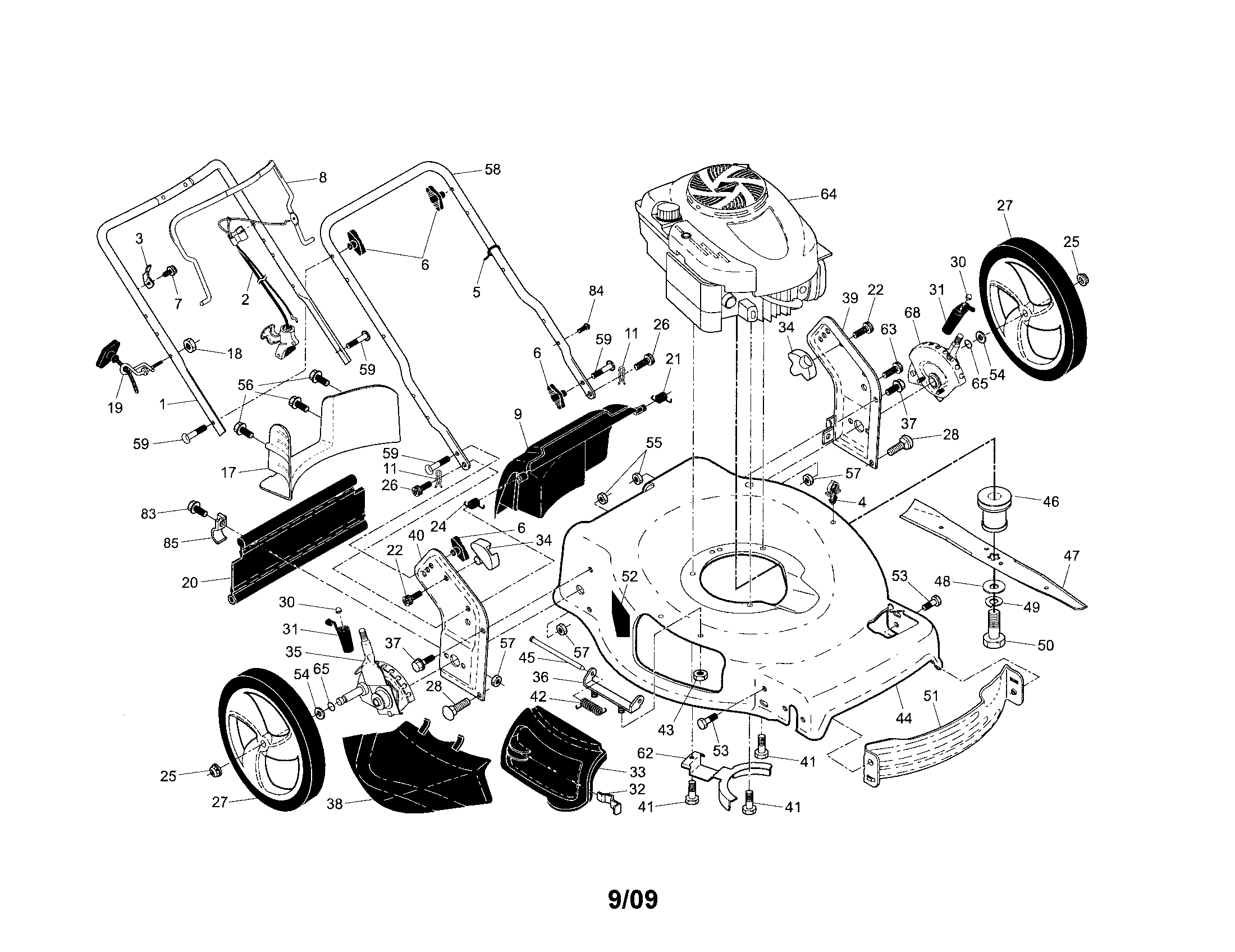

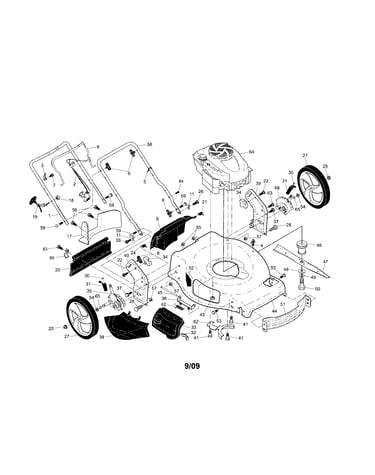

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Nut 409148
#29

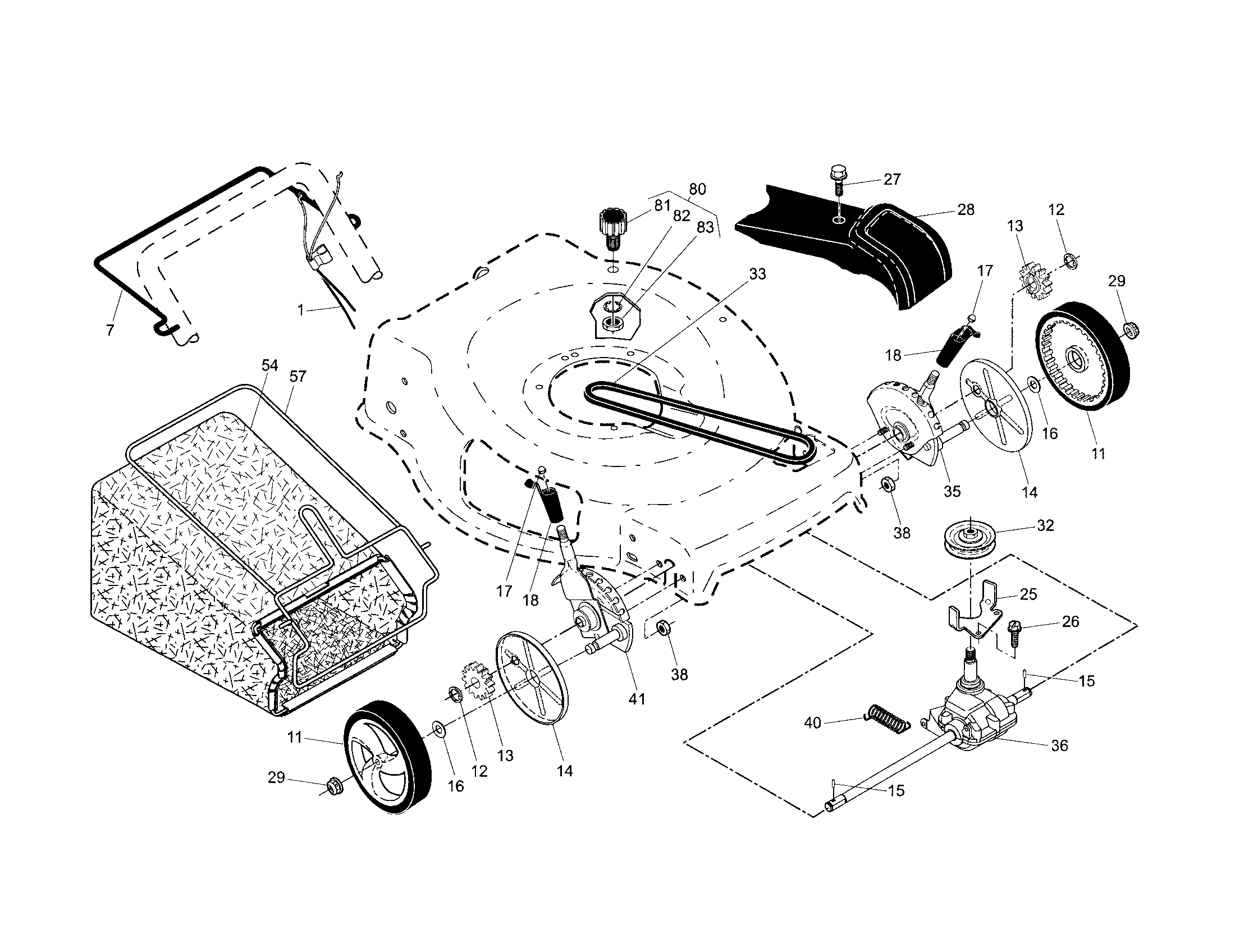

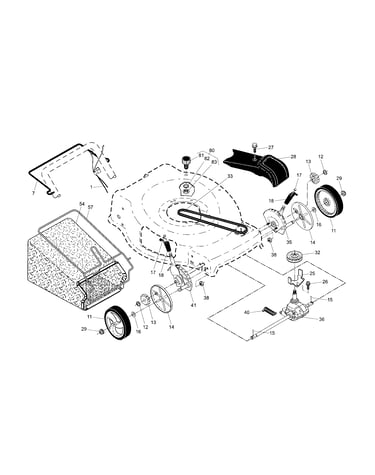

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#11

Drive control/gear case/wheels diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$33.31 |
15% OFF Phone Price : $39.31
In Stock
Blade Adapter 421782
#46

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Grass Bag Frame 419951
#57

Drive control/gear case/wheels diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Lawn Mower Transmission Assembly 424741
#36

Drive control/gear case/wheels diagram

Lawn mower transmission assembly

Part #424741

Replaced by #589600601

?
Manufacturer substitution
This part replaces 424741. Substitute parts can look different from the original.
BEST SELLER
$94.27 |
6% OFF Phone Price : $100.27
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Drive Pawl 404845
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Wheel.12.x1. 194387X460
#27

Engine/housing/handle diagram

Wheel.12.x1.

Part #194387X460

Replaced by #532433121

?
Manufacturer substitution
This part replaces 194387X460. Substitute parts can look different from the original.
BEST SELLER
$37.98 |
14% OFF Phone Price : $43.98
In Stock
