Model # 867767830 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867767830 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for867767830 Gas-Fired Horizontal Furnace

  • Thermocouple 92097
    #12

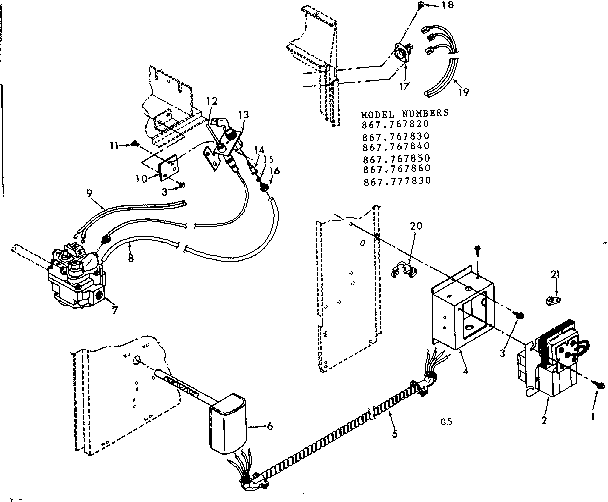

    Control box diagram

    Thermocouple

    Part #92097

    Replaced by #H06E-36

    ?
    Manufacturer substitution
    This part replaces 92097. Substitute parts can look different from the original.
    $14.91
    12% OFF Phone Price : $16.91
    In Stock
  • Pilot Tube 91464
    #8

    Control box diagram

    Pilot tube

    Part #91464

    Replaced by #100108370

    ?
    Manufacturer substitution
    This part replaces 91464. Substitute parts can look different from the original.
    Back Order
  • Furnace Blower Fan Wheel 600587
    #20B

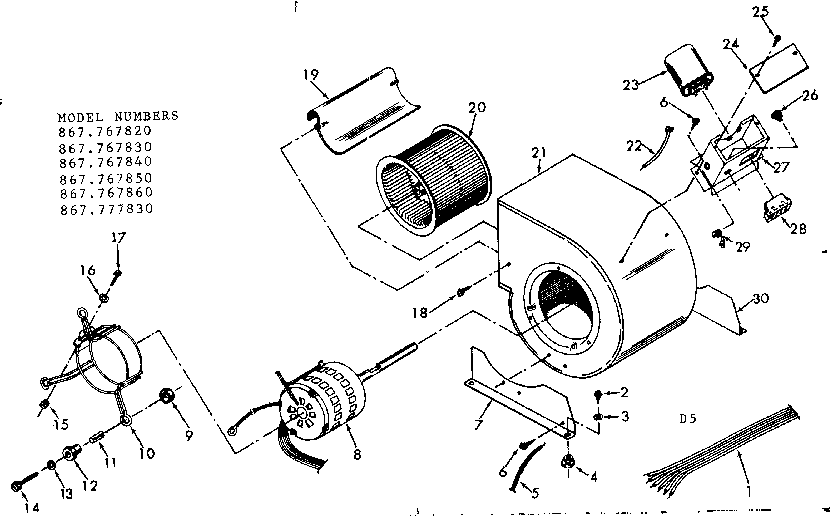

    Blower assembly diagram

    Furnace blower fan wheel

    Part #600587

    $151.49
    7% OFF Phone Price : $163.49
    In Stock
  • Furnace Blower Foot 600086
    #7B

    Blower assembly diagram

    Furnace blower foot

    Part #600086

    In Stock
  • Restrictor 600088
    #17E

    Functional horizontal coils diagram

    Restrictor

    Part #600088

    In Stock
  • Furnace Blower Fan Wheel 600586
    #20A

    Blower assembly diagram

    Furnace blower fan wheel

    Part #600586

    $152.83
    7% OFF Phone Price : $164.83
    In Stock
  • Furnace Blower Fan Wheel 601210
    #20C

    Blower assembly diagram

    Furnace blower fan wheel

    Part #601210

    In Stock
  • Capacitor 77353
    #23B

    Blower assembly diagram

    Capacitor

    Part #77353

    Replaced by #TRCF5

    ?
    Manufacturer substitution
    This part replaces 77353. Substitute parts can look different from the original.
    In Stock
  • Motor 1/3 Hp 84748
    #8B

    Blower assembly diagram

    Motor 1/3 hp

    Part #84748

    The manufacturer no longer makes this part, and there's no substitute part

  • Gas Valve 600423
    #7A

    Control box diagram

    Gas valve

    Part #600423

    Replaced by #36C53-418

    ?
    Manufacturer substitution
    This part replaces 600423. Substitute parts can look different from the original.
    $615.82
    $12.00 OFF Phone Price : $627.82
    In Stock
