Hotpoint
Top-Mount Refrigerator

Model # HTR16ABSHRBB Official Hotpoint refrigerator - s series

Here are the diagrams and repair parts for Official Hotpoint HTR16ABSHRBB refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Dryer Bifurc WR86X10070
#740

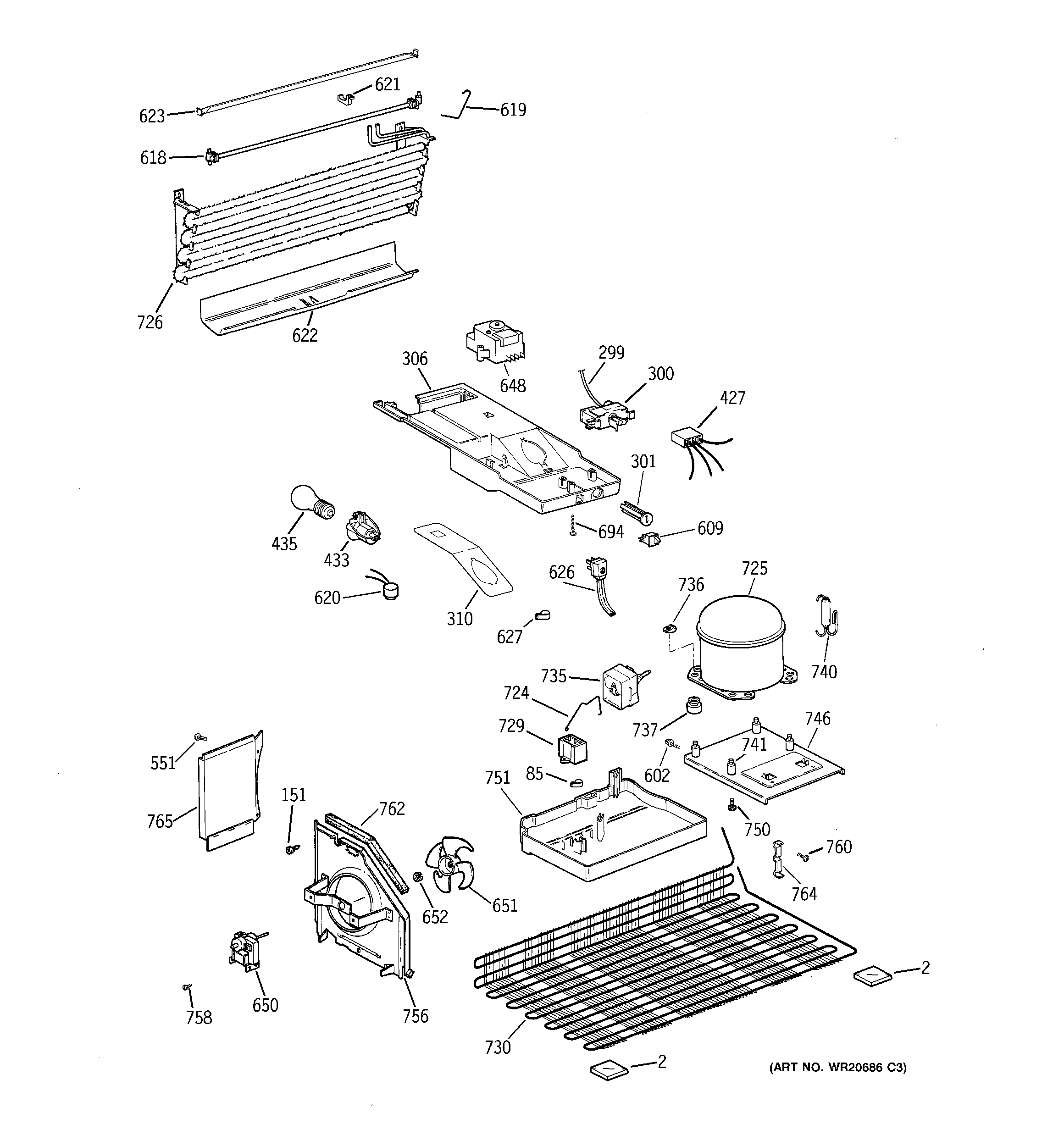

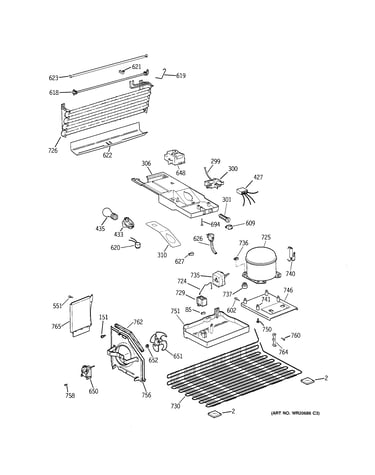

Machine compartment diagram

Dryer bifurc

Part #WR86X10070

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10070. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Machine compartment diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Replacement Compressor WR87X10096
#725

Machine compartment diagram

Refrigerator replacement compressor

Part #WR87X10096

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10096. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

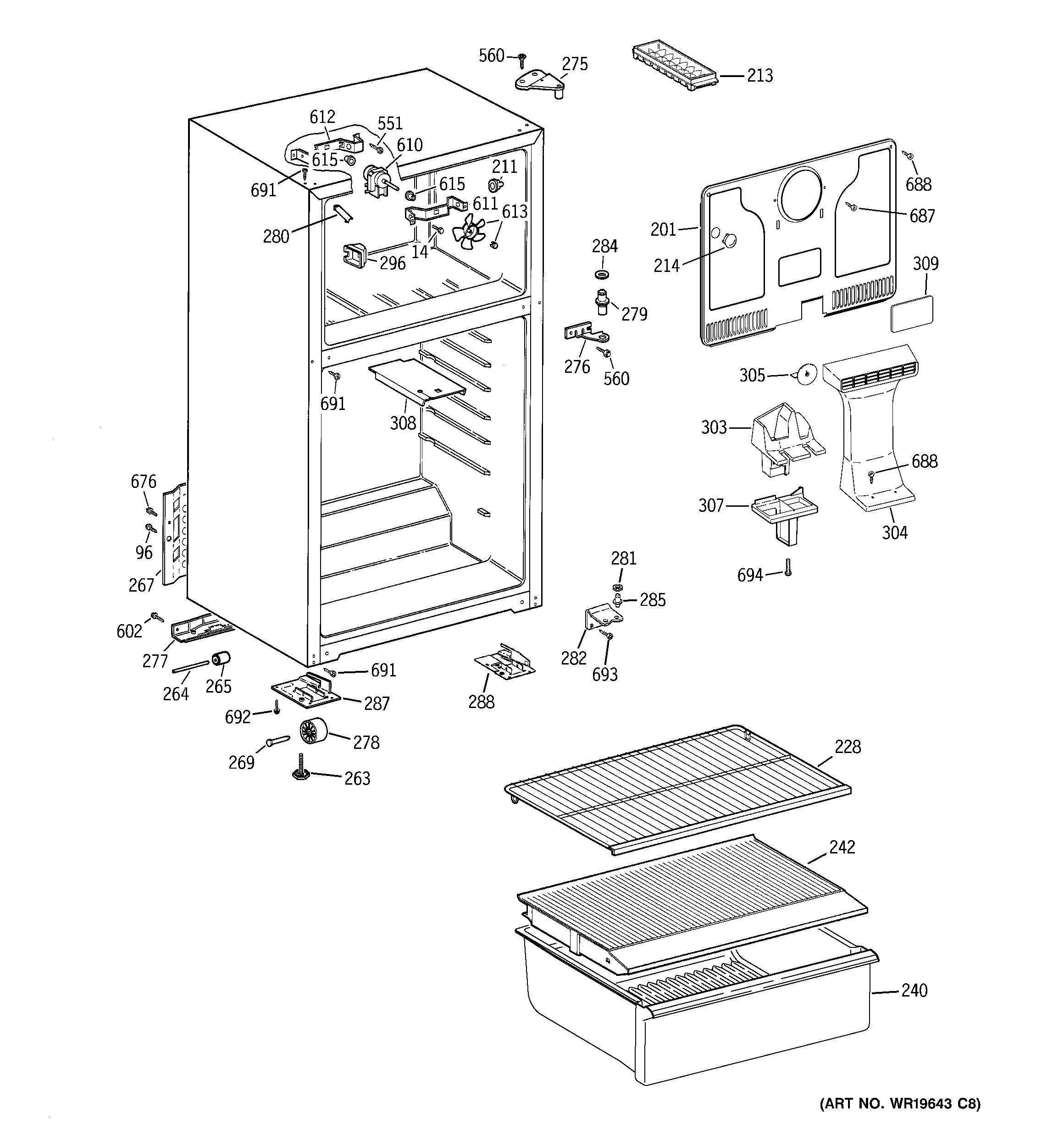

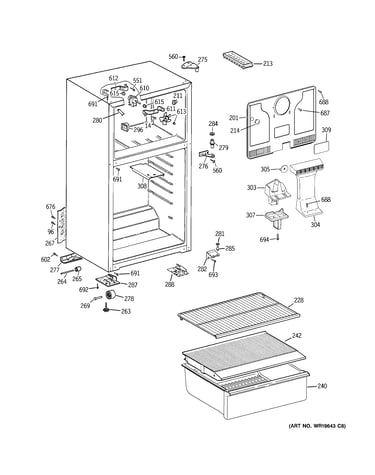

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Fixed Shelf WR17X12916
#19

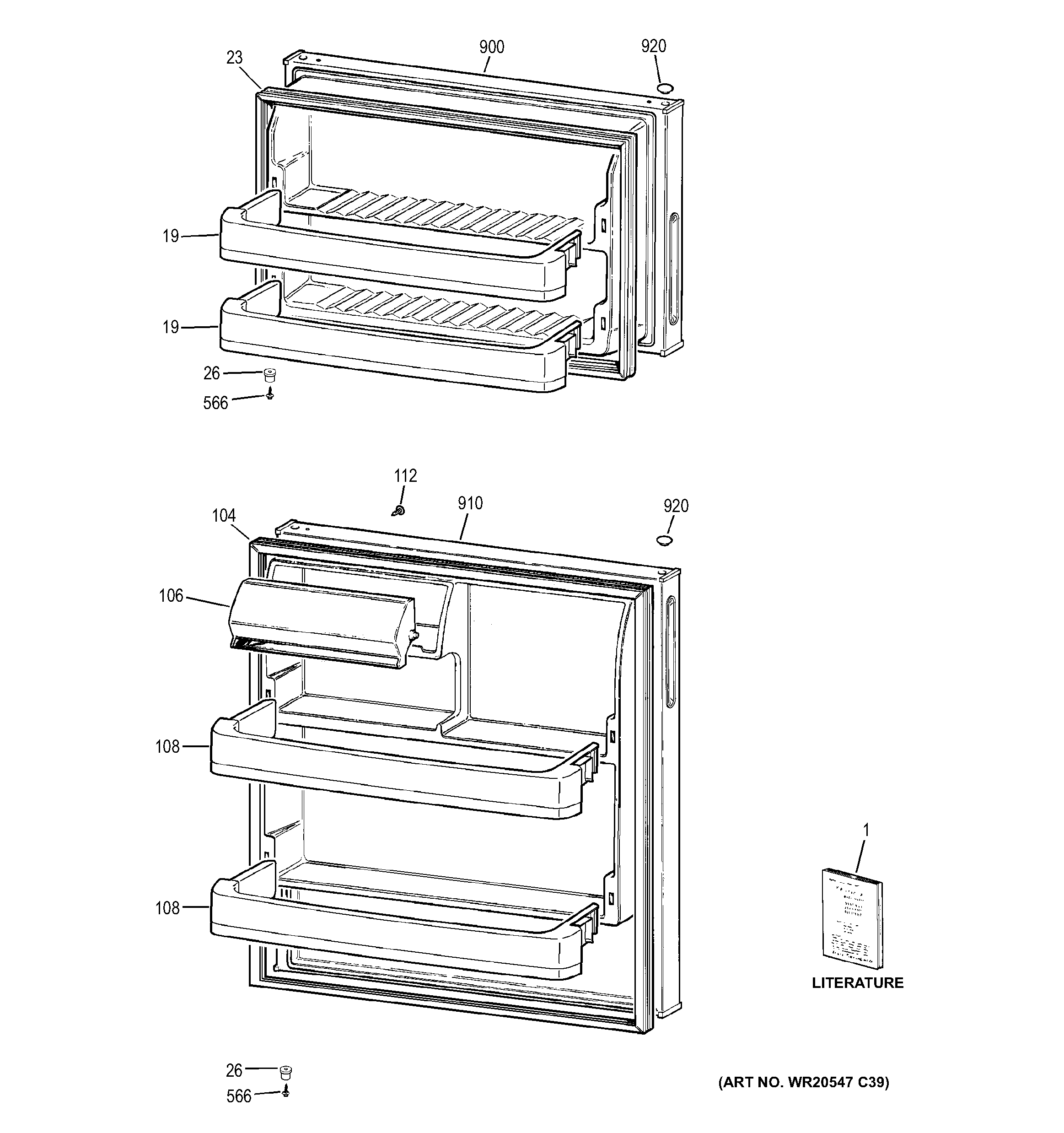

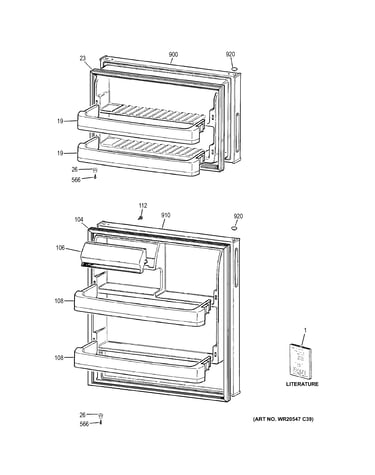

Doors diagram

Refrigerator fixed shelf

Part #WR17X12916

Replaced by #WR17X11889

?
Manufacturer substitution
This part replaces WR17X12916. Substitute parts can look different from the original.
BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
Refrigerator Drawer Cover (replaces Wr32x10353, Wr32x1083, Wr32x1086, Wr32x1094) WR32X10398
#242

Cabinet diagram

Refrigerator drawer cover (replaces wr32x10353, wr32x1083, wr32x1086, wr32x1094)

Part #WR32X10398

$83.52 |
7% OFF Phone Price : $89.52
In Stock
Refrigerator Temperature Control WR09X10042
#300

Machine compartment diagram

Refrigerator temperature control

Part #WR09X10042

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
#652

Machine compartment diagram

Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Blade WR60X10205
#613

Cabinet diagram

Refrigerator evaporator fan blade

Part #WR60X10205

$13.92 |
13% OFF Phone Price : $15.92
In Stock
