Digital Camcorder

Model # HDR-CX260VW Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX260VW camcorder, as well as links to manuals and error code tables, if available.

By Schematic

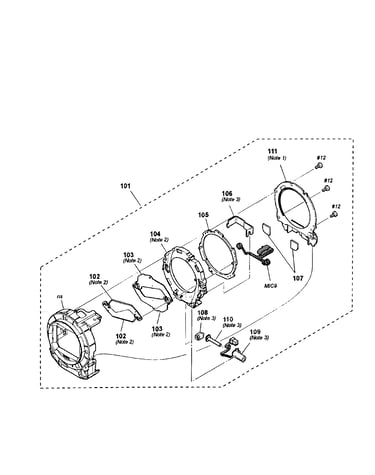

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HDR-CX260VW Camcorders
Ground Plate X25832411
#257

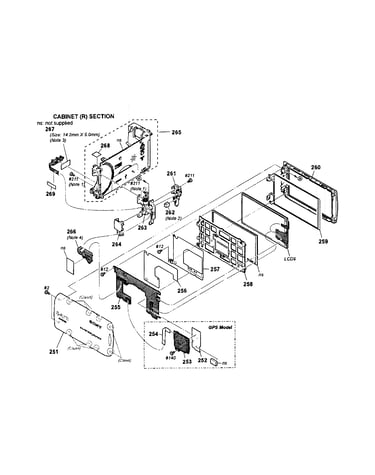

Cabinet (r) section diagram

Ground plate

Part #X25832411

This item is not returnable
$7.22
In Stock
Sony Cabinet Front A1854080A
#52

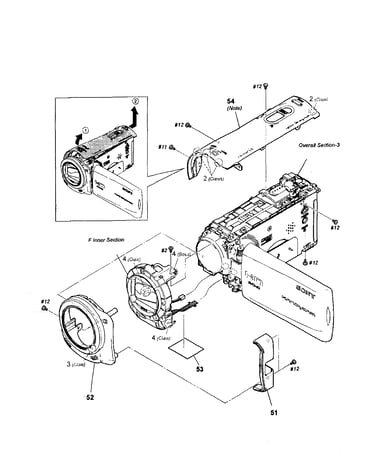

Overall section - 2 diagram

Sony cabinet front

Part #A1854080A

$217.00
In Stock
Grip Belt 441312501
#6

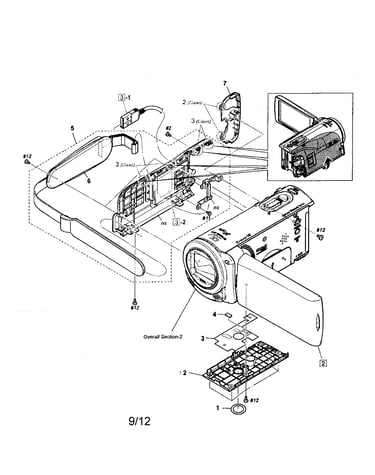

Overall section - 1 diagram

Grip belt

Part #441312501

$43.03
In Stock
Seal,rubbe 426848201
#205

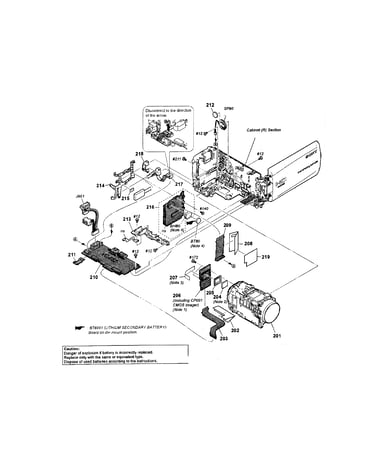

Lens section diagram

Seal,rubbe

Part #426848201

$10.31
In Stock
Jack-sm.mi 169173742
#J100

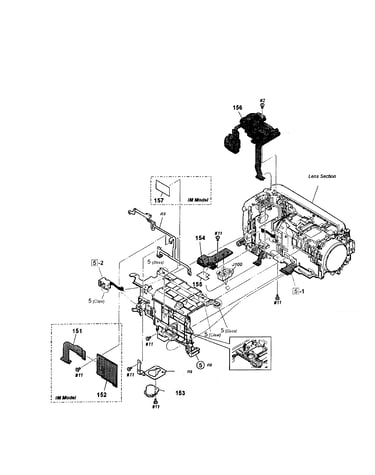

Overall section - 3 diagram

Jack-sm.mi

Part #169173742

$8.03
In Stock
Lcd Panel A1854122A
#LCD

Cabinet (r) section diagram

Lcd panel

Part #A1854122A

$95.31
In Stock
Pcb Fp1484 188492211
#203

Lens section diagram

Pcb fp1484

Part #188492211

$10.31
In Stock
Retaining 429486901
#213

Lens section diagram

Retaining

Part #429486901

$19.87
In Stock
Lock Assy,bt Sub A1854132A
#214

Lens section diagram

Lock assy,bt sub

Part #A1854132A

This item is not returnable
$2.46
In Stock
Socket,bat 125192821
#BH80

Lens section diagram

Socket,bat

Part #125192821

This item is not returnable
$7.22
In Stock
