Craftsman
Electric Walk-Behind Mower

Model # 247370801 Official Craftsman 16" electric rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 247370801 16" electric rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Saddle Bolt 706-10072-32
#62

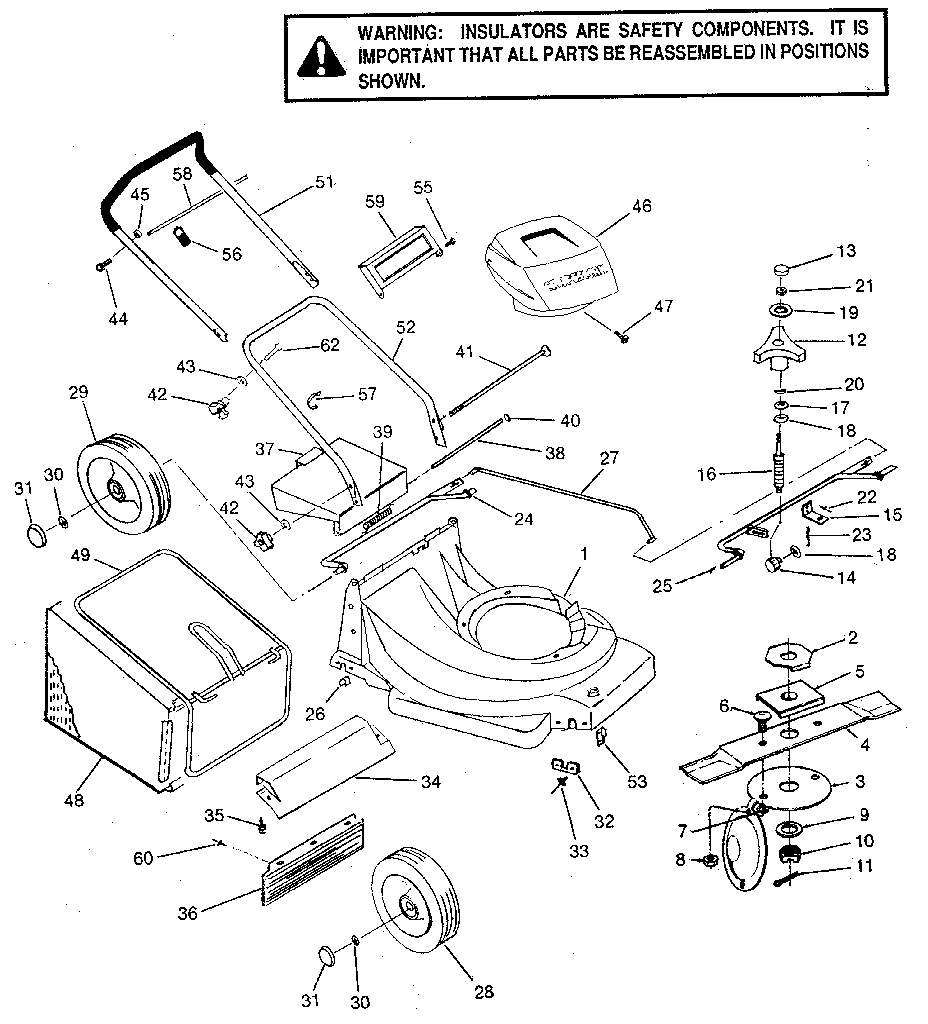

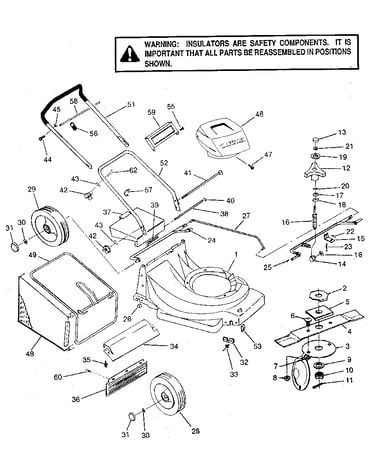

Mower deck diagram

Saddle bolt

Part #706-10072-32

Replaced by #710-1174

?
Manufacturer substitution
This part replaces 706-10072-32. Substitute parts can look different from the original.
This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Mtg Plate 706-14403-00-90
#155

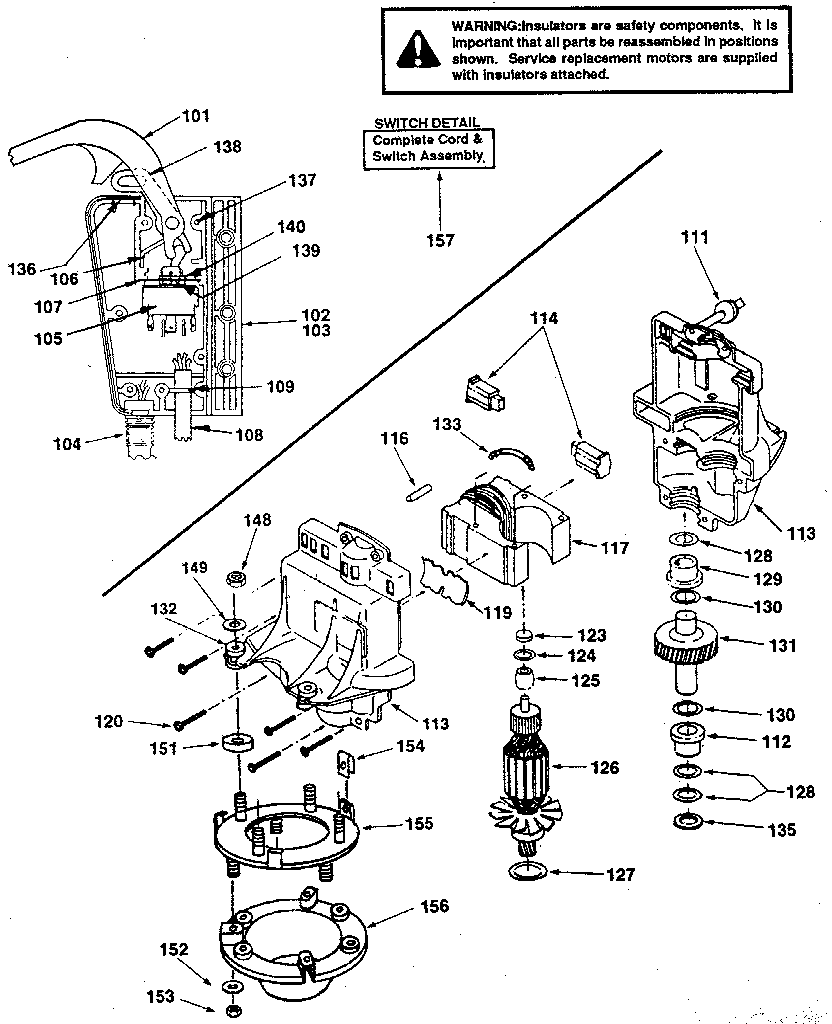

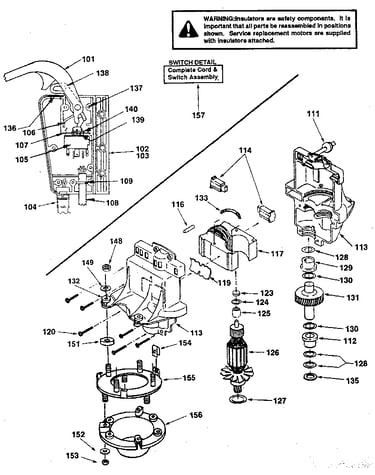

Motor & switch assembly diagram

Mtg plate

Part #706-14403-00-90

$23.99
In Stock
Knob 706-10488
#42

Mower deck diagram

Knob

Part #706-10488

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 706-10488. Substitute parts can look different from the original.
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Bolt STD533107
#6

Mower deck diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin STD560907
#23

Mower deck diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Spring 706-10393
#119

Motor & switch assembly diagram

Spring

Part #706-10393

The manufacturer no longer makes this part, and there's no substitute part

O-ring 706-10039
#128

Motor & switch assembly diagram

O-ring

Part #706-10039

The manufacturer no longer makes this part, and there's no substitute part

Cord Switch 706-13808
#157

Motor & switch assembly diagram

Cord switch

Part #706-13808

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 706-15795-01
#108

Motor & switch assembly diagram

Cord assembly

Part #706-15795-01

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 706-16070
#30

Mower deck diagram

Push nut

Part #706-16070

The manufacturer no longer makes this part, and there's no substitute part
