Model # DWFP55120 TYPE 1 Official DeWalt air compressor
Here are the diagrams and repair parts for Official DeWalt DWFP55120 TYPE 1 air compressor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts forDWFP55120 TYPE 1 Power Tools
- #14

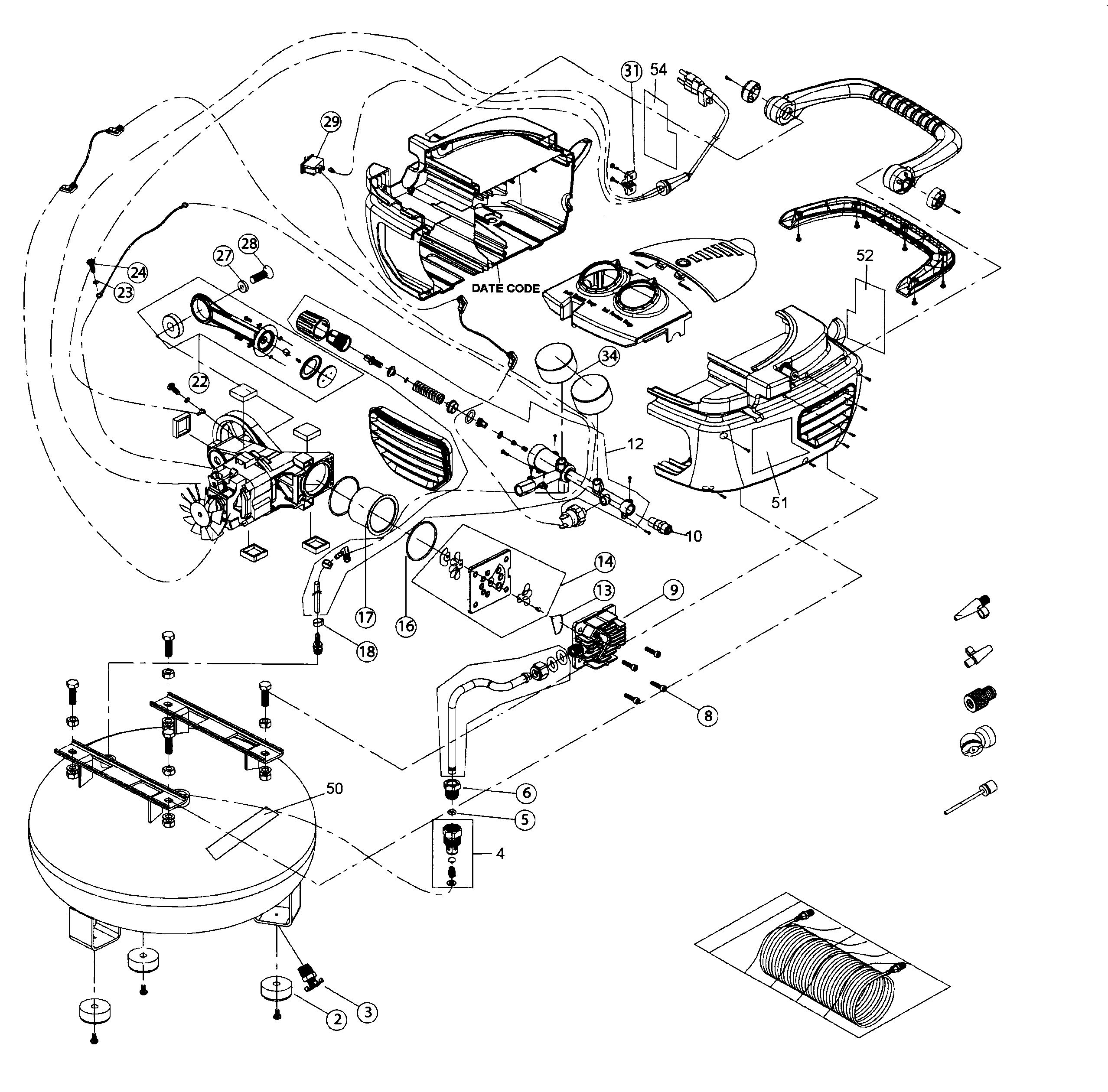

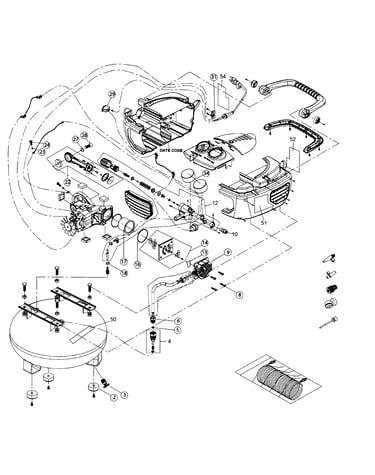

Main asy diagram
Dewalt valve seatPart #5140069-97
The manufacturer no longer makes this part, and there's no substitute part
- #9
Main asy diagram
Dewalt cylinder hPart #5140069-95
The manufacturer no longer makes this part, and there's no substitute part
- #31
Main asy diagram
Dewalt cord clampPart #5140070-14
The manufacturer no longer makes this part, and there's no substitute part
- #13
Main asy diagram
Dewalt oPart #5140069-96
The manufacturer no longer makes this part, and there's no substitute part
- #23
Main asy diagram
Dewalt washerPart #5140070-17
The manufacturer no longer makes this part, and there's no substitute part
- #8
Main asy diagram
Dewalt screwPart #5140069-94
The manufacturer no longer makes this part, and there's no substitute part
- #17
Main asy diagram
Dewalt cylinderPart #5140070-00
The manufacturer no longer makes this part, and there's no substitute part
- #6
Main asy diagram
Dewalt nutPart #5140070-08
The manufacturer no longer makes this part, and there's no substitute part
- #2
Main asy diagram
Dewalt footPart #5140047-52
The manufacturer no longer makes this part, and there's no substitute part
- #4
Main asy diagram
Dewalt valvePart #5140127-56
The manufacturer no longer makes this part, and there's no substitute part
