Model # 919157030 Official Craftsman craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919157030 craftsman air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 100 parts |

#67

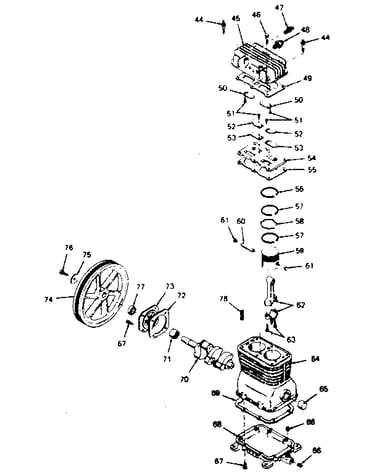

Compressor pump diagram

Unknown brand name #696 air compressor screw

Part #SSF-925

The manufacturer no longer makes this part, and there's no substitute part

#17A

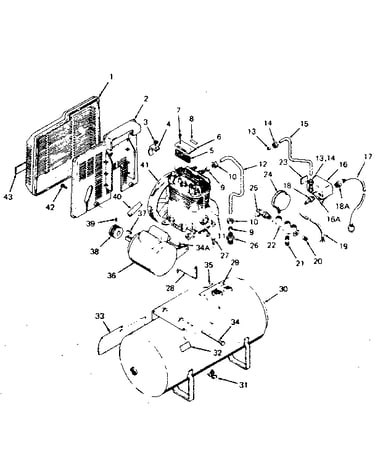

Air compressor diagram

Unknown brand name #696 air compressor power cord

Part #SUDL-404-1

The manufacturer no longer makes this part, and there's no substitute part

#35A

Air compressor diagram

Unknown brand name #696 label

Part #LA-1823

The manufacturer no longer makes this part, and there's no substitute part

#25

Air compressor diagram

Unknown brand name #696 air compressor safety valve

Part #TIA-4150

The manufacturer no longer makes this part, and there's no substitute part

#48

Compressor pump diagram

Unknown brand name #696 air compressor compression nut thread adapter

Part #SSP-9401

The manufacturer no longer makes this part, and there's no substitute part

#43

Air compressor diagram

Unknown brand name #696 label

Part #LA-1803

The manufacturer no longer makes this part, and there's no substitute part

#35B

Air compressor diagram

Unknown brand name #696 label

Part #LA-1824

The manufacturer no longer makes this part, and there's no substitute part

#22

Air compressor diagram

Unknown brand name #696 air compressor manifold assembly

Part #CAC-95

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Unknown brand name #696 air compressor belt guard

Part #CAC-323

The manufacturer no longer makes this part, and there's no substitute part

#27

Air compressor diagram

Unknown brand name #696 screw

Part #SSF-928

The manufacturer no longer makes this part, and there's no substitute part
