Kenmore
Garbage Disposal

Model # 17565245 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17565245 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

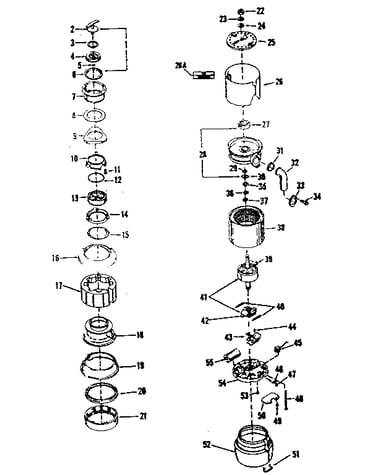

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Mounting Gasket 1010.801
#13

Replacement parts diagram

Mounting gasket

Part #1010.801

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange Gasket 1160
#8

Replacement parts diagram

Insinkerator garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Spring 1537
#40

Replacement parts diagram

Spring

Part #1537

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Drain Stopper Gasket, Inner 1144
#3

Replacement parts diagram

Insinkerator garbage disposal drain stopper gasket, inner

Part #1144

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Drain Tube Flange 5490
#33

Replacement parts diagram

Insinkerator garbage disposal drain tube flange

Part #5490

The manufacturer no longer makes this part, and there's no substitute part

Bx Clamp 5060
#46

Replacement parts diagram

Bx clamp

Part #5060

The manufacturer no longer makes this part, and there's no substitute part

Screw 8221
#44

Replacement parts diagram

Screw

Part #8221

The manufacturer no longer makes this part, and there's no substitute part

Grind Ring 1248
#21

Replacement parts diagram

Grind ring

Part #1248

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Tailpipe Gasket 1470
#31

Replacement parts diagram

Insinkerator garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Screw 1491
#34

Replacement parts diagram

Insinkerator garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part
