Steele
Gas Pressure Washer

Model # SP-WG220 Official Steele power washer

Here are the diagrams and repair parts for Official Steele SP-WG220 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

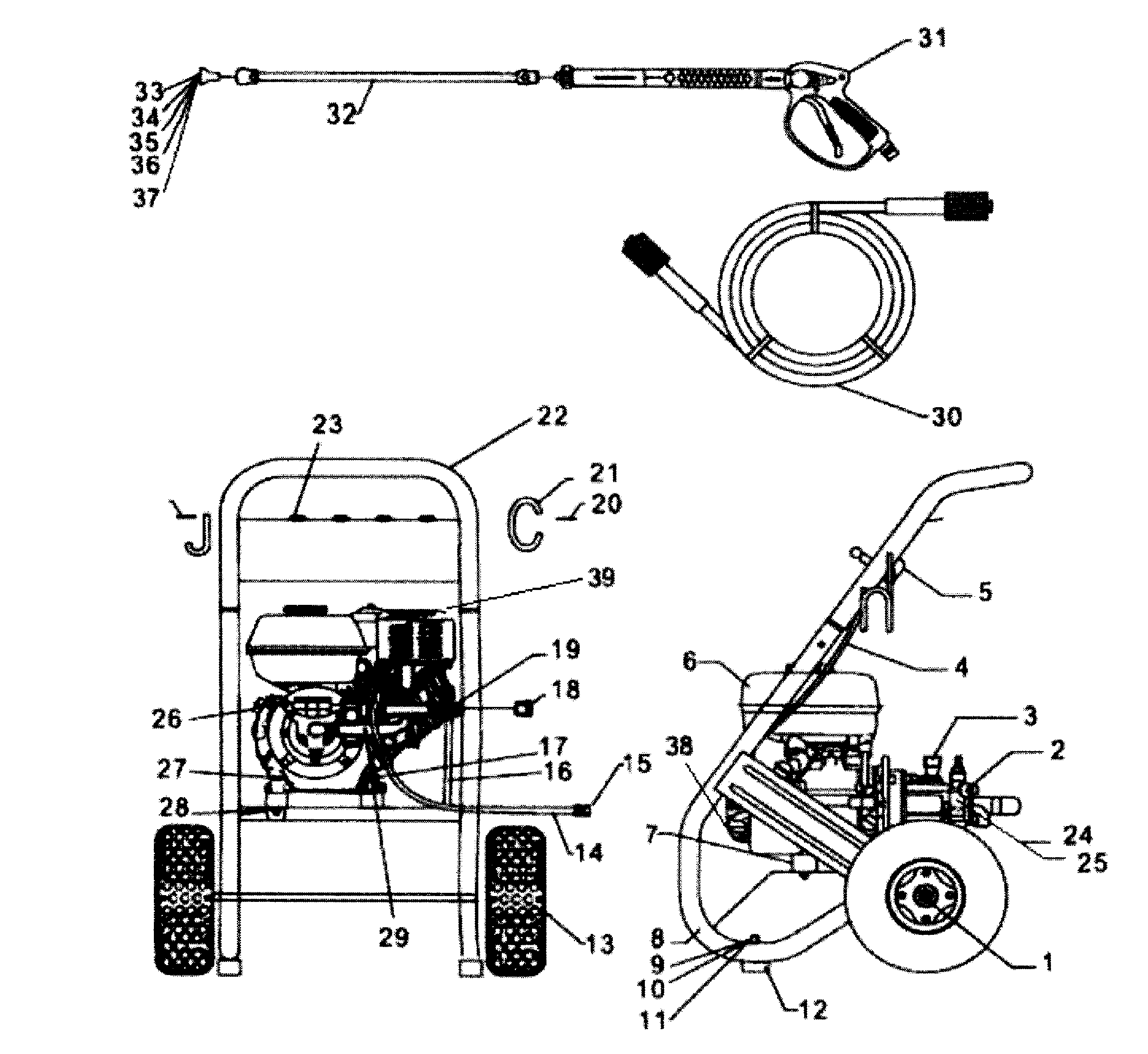

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Bolt APW5105-G-11-GM
#11

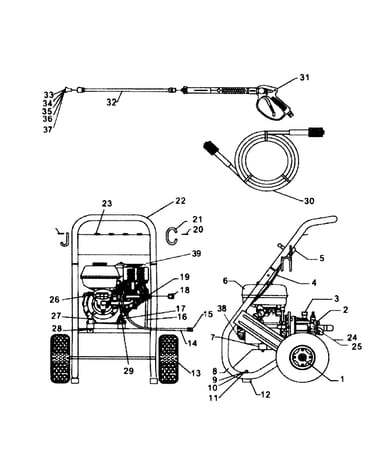

Power washer diagram

Bolt

Part #APW5105-G-11-GM

The manufacturer no longer makes this part, and there's no substitute part

Cap APW5105-G-21-GM
#21

Power washer diagram

Cap

Part #APW5105-G-21-GM

The manufacturer no longer makes this part, and there's no substitute part

Bolt APW5105-G-27-GM
#27

Power washer diagram

Bolt

Part #APW5105-G-27-GM

The manufacturer no longer makes this part, and there's no substitute part

Handle APW5105-G-22-GM
#22

Power washer diagram

Handle

Part #APW5105-G-22-GM

The manufacturer no longer makes this part, and there's no substitute part

Start Grip APW5105-G-38-GM
#38

Power washer diagram

Start grip

Part #APW5105-G-38-GM

The manufacturer no longer makes this part, and there's no substitute part

Grommet APW5105-G-23-GM
#23

Power washer diagram

Grommet

Part #APW5105-G-23-GM

The manufacturer no longer makes this part, and there's no substitute part

Nut APW5105-G-28-GM
#28

Power washer diagram

Nut

Part #APW5105-G-28-GM

The manufacturer no longer makes this part, and there's no substitute part

Bolt,whiz APW5105-G-16-GM
#16

Power washer diagram

Bolt,whiz

Part #APW5105-G-16-GM

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut APW5105-G-19-GM
#19

Power washer diagram

Lock nut

Part #APW5105-G-19-GM

The manufacturer no longer makes this part, and there's no substitute part

Wheel APW5105-G-13-GM
#13

Power washer diagram

Wheel

Part #APW5105-G-13-GM

The manufacturer no longer makes this part, and there's no substitute part
