Model # YWED7300XW0 Official Whirlpool 27" electric dryer

Here are the diagrams and repair parts for Official Whirlpool YWED7300XW0 27" electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

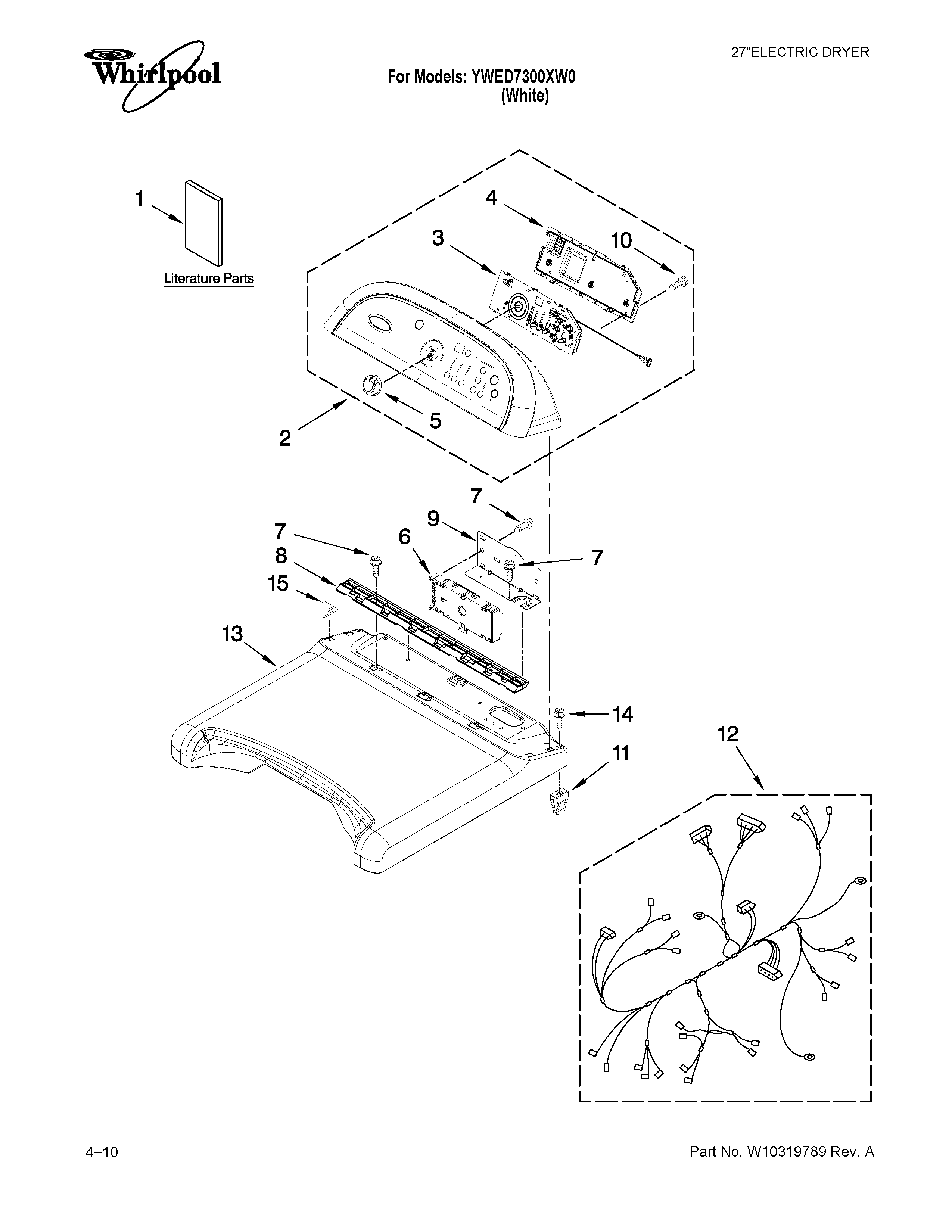

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Support 8536973
#21

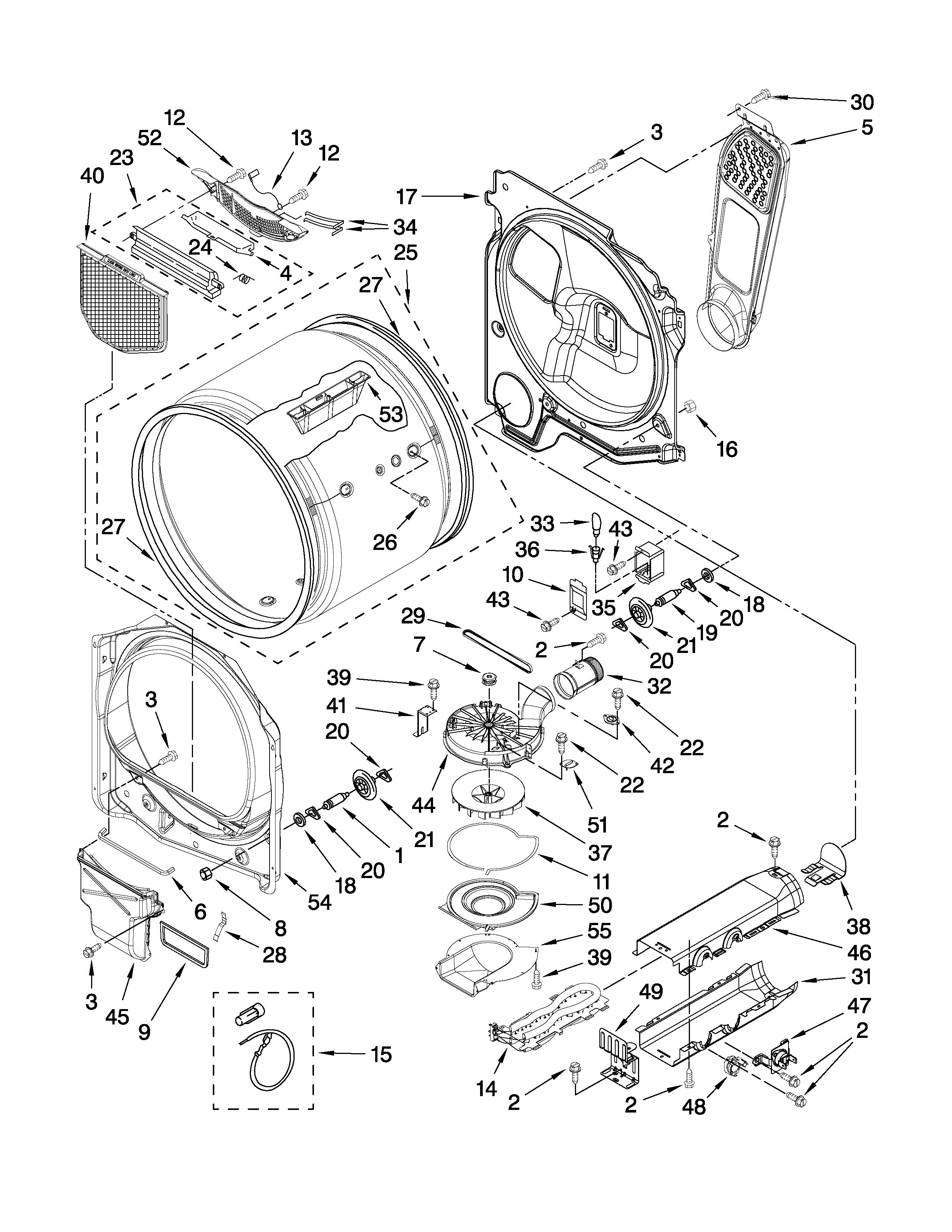

Bulkhead parts diagram

Support

Part #8536973

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 8536973. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Dryer Thermistor 8577274
#42

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$32.80 |
15% OFF Phone Price : $38.80
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Dryer Thermal Fuse 3390719
#51

Bulkhead parts diagram

Dryer thermal fuse

Part #3390719

Replaced by #WP3390719

?
Manufacturer substitution
This part replaces 3390719. Substitute parts can look different from the original.
BEST SELLER
$17.10 |
10% OFF Phone Price : $19.10
In Stock
Sears Canada Dryer Thermal Cut-off Fuse Kit, 352-degree F 280148
#47

Bulkhead parts diagram

Sears canada dryer thermal cut-off fuse kit, 352-degree f

Part #280148

BEST SELLER
$33.51 |
15% OFF Phone Price : $39.51
In Stock
Screen W10049370
#40

Bulkhead parts diagram

Screen

Part #W10049370

Replaced by #W10120998

?
Manufacturer substitution
This part replaces W10049370. Substitute parts can look different from the original.
BEST SELLER
$58.57 |
9% OFF Phone Price : $64.57
In Stock
Dryer High-limit Thermostat 8557403
#48

Bulkhead parts diagram

Dryer high-limit thermostat

Part #8557403

Replaced by #WP8557403

?
Manufacturer substitution
This part replaces 8557403. Substitute parts can look different from the original.
BEST SELLER
$74.13 |
7% OFF Phone Price : $80.13
In Stock
Dryer Drum Belt 8547157
#30

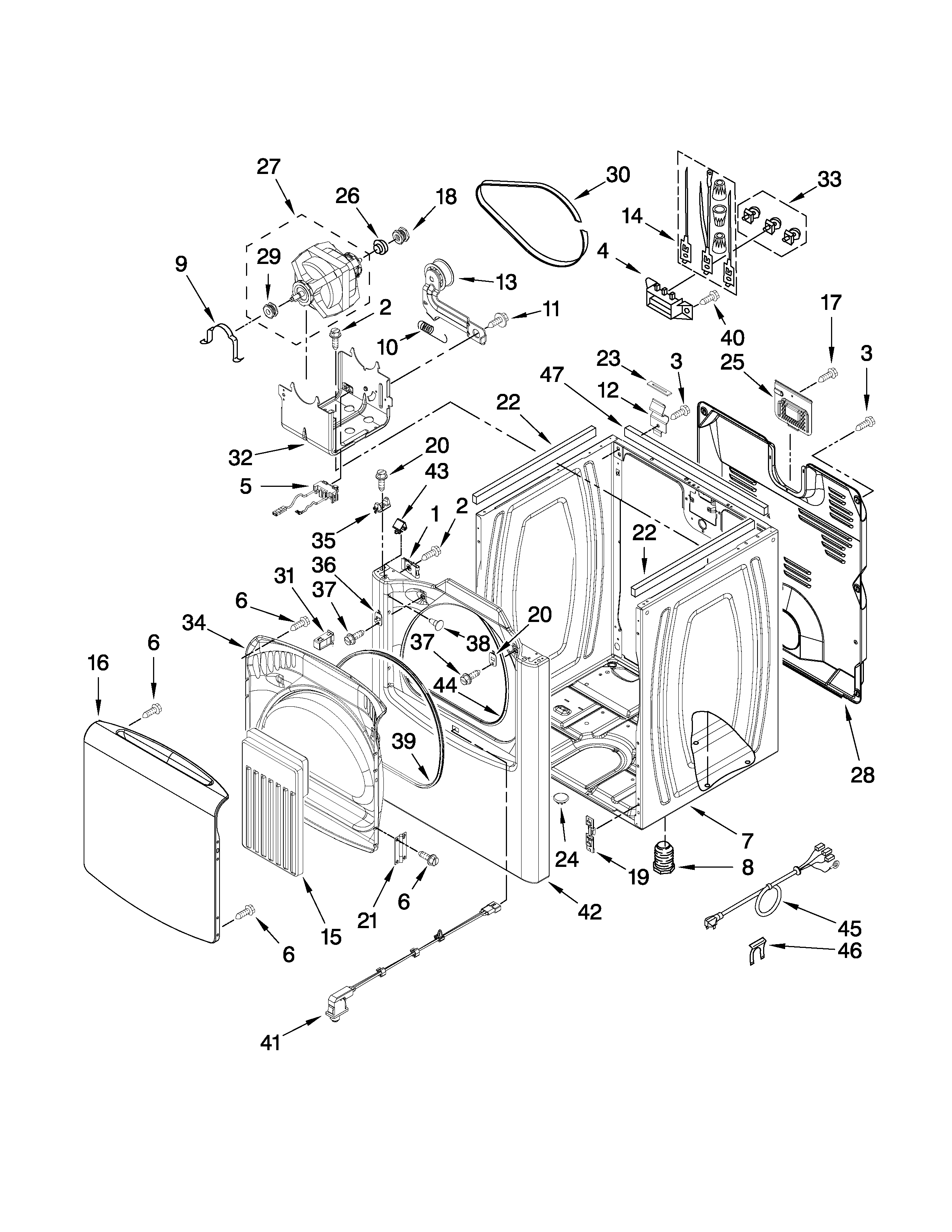

Cabinet parts diagram

Dryer drum belt

Part #8547157

Replaced by #WP8547157

?
Manufacturer substitution
This part replaces 8547157. Substitute parts can look different from the original.
BEST SELLER
$41.72 |
13% OFF Phone Price : $47.72
In Stock
Dryer Tri-ring Retainer 690997
#20

Bulkhead parts diagram

Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.73 |
13% OFF Phone Price : $7.73
In Stock
Dryer Moisture Sensor 3387223
#34

Bulkhead parts diagram

Dryer moisture sensor

Part #3387223

Replaced by #WP3387223

?
Manufacturer substitution
This part replaces 3387223. Substitute parts can look different from the original.
BEST SELLER
$7.45 |
12% OFF Phone Price : $8.45
In Stock
