Model # EW5630SS Official Broan range hood

Here are the diagrams and repair parts for Official Broan EW5630SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Socket S99527444
#3

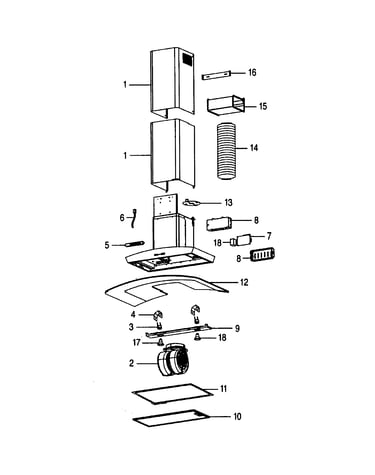

Range hood diagram

Socket

Part #S99527444

This item is not returnable
$4.92
In Stock
Range Hood Blower Assembly S99527443
#2

Range hood diagram

Range hood blower assembly

Part #S99527443

$279.05
In Stock
Owner's Manual 99527439E
#NI

Range hood diagram

Owner's manual

Part #99527439E

This item is not returnable
$4.49
In Stock
Cable Key S99527447
#6

Range hood diagram

Cable key

Part #S99527447

$19.88
In Stock
Fuse S99527471
#NI

Range hood diagram

Fuse

Part #S99527471

$8.43
In Stock
Range Hood Electronic Control Board S99527449
#7

Range hood diagram

Range hood electronic control board

Part #S99527449

$251.46 |
5% OFF Phone Price : $263.46
In Stock
Capacitor S99527468
#18

Range hood diagram

Capacitor

Part #S99527468

The manufacturer no longer makes this part, and there's no substitute part

Grease Filter S99010367
#10

Range hood diagram

Grease filter

Part #S99010367

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag S99527472
#NI

Range hood diagram

Parts bag

Part #S99527472

The manufacturer no longer makes this part, and there's no substitute part

Non-ducted Filter S99010381
#11

Range hood diagram

Non-ducted filter

Part #S99010381

The manufacturer no longer makes this part, and there's no substitute part
