Model # C6J/C8901 Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag C6J-C8901 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Drier 13900
#10

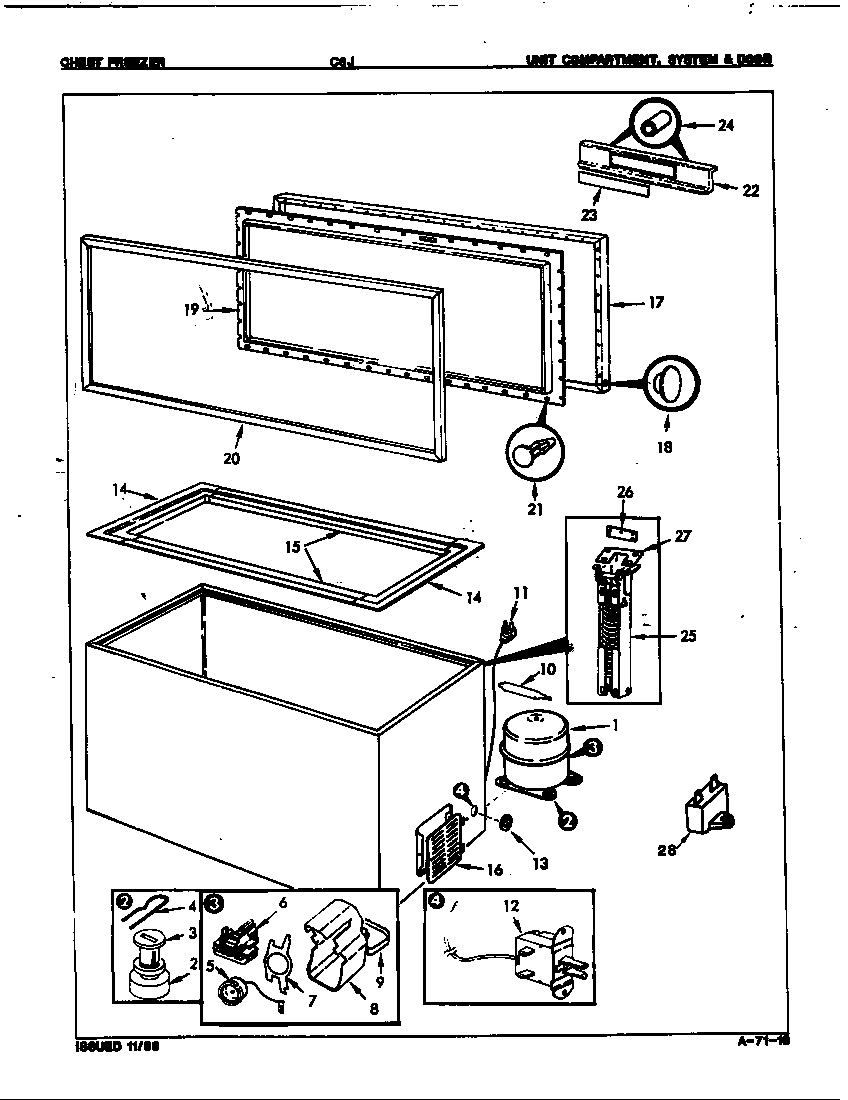

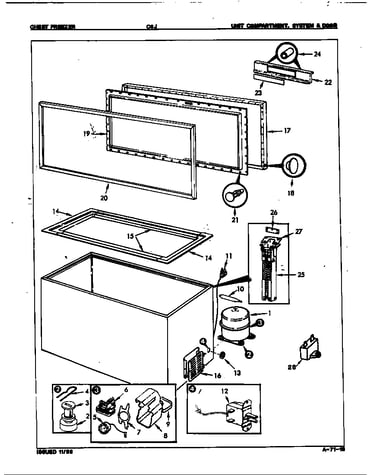

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Compressor RA1019
#1

Unit compartment & system diagram

Refrigerator compressor

Part #RA1019

Replaced by #12000018

?
Manufacturer substitution
This part replaces RA1019. Substitute parts can look different from the original.
$445.60
In Stock
Refrigerator Compressor RA1024
#1A

Unit compartment & system diagram

Refrigerator compressor

Part #RA1024

Replaced by #12000018

?
Manufacturer substitution
This part replaces RA1024. Substitute parts can look different from the original.
$445.60
In Stock
Screw 400016-1
#16A

Unit compartment & system diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Panel, Frz. Door (alm) - Series 11 NO LONGER AVAILABLE
Panel, frz. door (alm) - series 11

Part #NO LONGER AVAILABLE

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Relay 049423-02
#5

Unit compartment & system diagram

Refrigerator relay

Part #049423-02

The manufacturer no longer makes this part, and there's no substitute part

Overload Clip 65887-1
#7

Unit compartment & system diagram

Overload clip

Part #65887-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Overload 63294-6
#5A

Unit compartment & system diagram

Refrigerator overload

Part #63294-6

The manufacturer no longer makes this part, and there's no substitute part

Grommet 242-4
#2

Unit compartment & system diagram

Grommet

Part #242-4

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 101275-1
#28A

Unit compartment & system diagram

Use and care manual

Part #101275-1

The manufacturer no longer makes this part, and there's no substitute part
